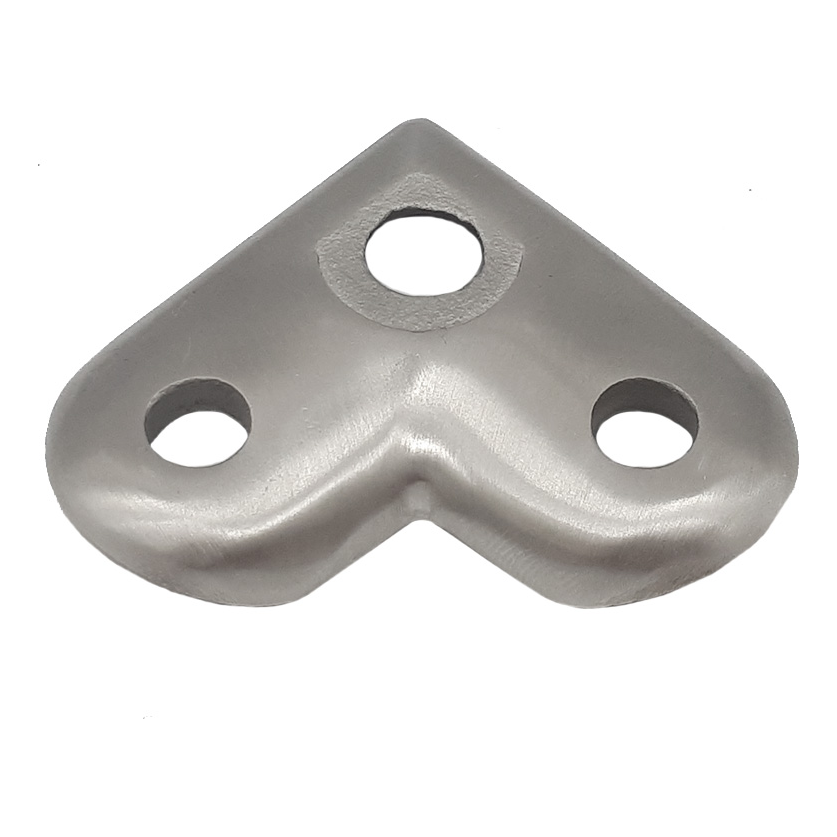

Postal – corner mounting plate for 42.4mm handrail AISI 304 satin 43×43×4mm
Description
Postal – corner mounting plate for 42.4mm handrail AISI 304 satin 43×43×4mm
Corner mounting plate for handrail brackets in the 42.4mm system, designed for installation at corners and bends in the balustrade. The plate is screwed from above and fixed to a flat surface using screws — this ensures quick installation and a stable, aesthetically pleasing connection.
Made from AISI 304 stainless steel with a satin finish, which guarantees high corrosion resistance and an elegant, matt appearance that perfectly complements modern stainless steel balustrade systems. Compact dimensions of 43×43×4mm and low weight (36g) facilitate storage and transport even for large orders.
Technical parameters
- Type: corner mounting plate
- Handrail system: Ø 42.4mm
- Dimensions: 43 × 43 × 4mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Number of mounting holes: 3
- Weight: 0.036kg
- EAN: 5901289672139
Installation and application
The plate is designed for mounting handrail brackets at corners — where the balustrade run changes direction. Installation is carried out by screwing the plate from above to a flat surface (e.g. post or support column). Three mounting holes ensure secure, three-point fixing and eliminate the risk of element rotation under load.
The product works excellently in internal and external balustrade systems — on staircases, balconies, terraces and ramps. AISI 304 steel ensures durability in conditions of exposure to moisture and varying temperatures, whilst the satin finish is easy to keep clean and resistant to fingerprints.
Technical data
| Mounting System | 42.4 mm |
