Postal – axial articulated mounting for post and handrail 42.4 mm AISI 304 satin
Description
Postal – axial articulated mounting for post and handrail 42.4 mm AISI 304 satin

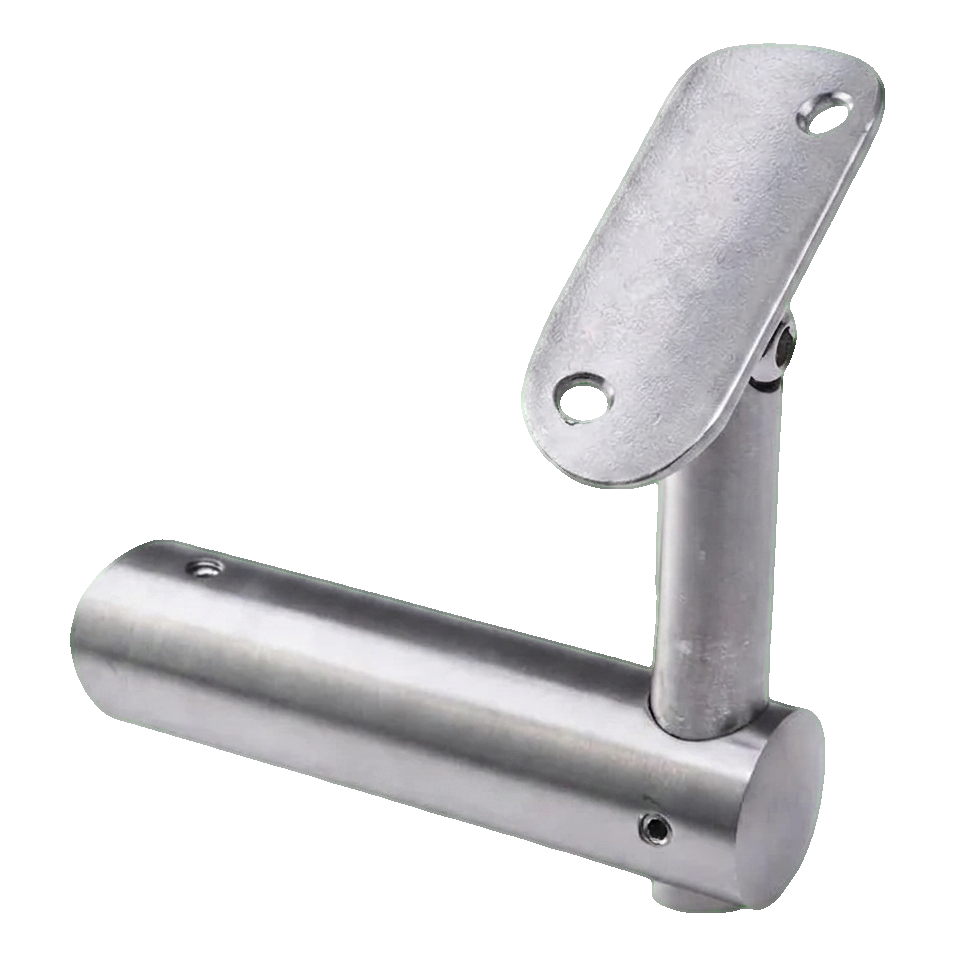

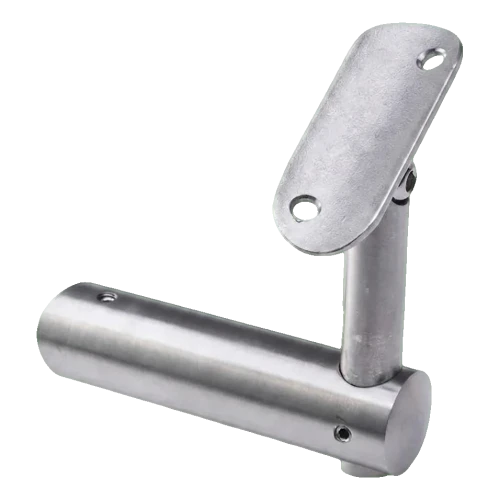

Axial articulated mounting from Postal brand is a solid connector designed to join stainless steel balustrade posts with handrails in tube systems Ø 42.4 mm. Thanks to its articulated construction, it enables smooth adjustment of handrail angle inclination, which significantly facilitates installation on stairs and ramps with varying angles.
Component manufactured from AISI 304 stainless steel with satin finish combines durability with aesthetics — it is resistant to corrosion and mechanical damage, whilst being easy to clean and maintain. This is a proven solution on construction sites where installation speed and connection reliability are paramount.
Dimensions and technical data
- Post diameter: Ø 42.4 mm
- Handrail diameter: Ø 42.4 mm
- Arm length (offset from post axis): 80 mm
- Adjustable height (from arm axis to mounting plate): 40–80 mm
- Horizontal arm diameter: Ø 25 mm
- Vertical spindle diameter: Ø 14 mm
- Overall dimensions (L × W × H): 42 × 42 × 90 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Connection type: articulated – handrail angle adjustment
- Weight: 0.375 kg
- EAN: 5901289671743
Application and installer benefits
The articulated connector allows for free adjustment of optimal balustrade handrail angle — it does not require precise cutting of tubes at angles or the use of additional adjustment elements. Installation involves simply sliding onto the Ø 42.4 mm post and tightening the Allen screw, which reduces working time on site.
Stainless steel balustrades provide natural lighting and optical enlargement of space. Using AISI 304 steel components guarantees many years of operation without the need for painting or maintenance — both inside buildings and outdoors in moderate atmospheric exposure conditions.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
