Articulated balustrade elbow 90°–180° for tube 42.4x2 mm, AISI 304 stainless steel satin

Go to Product feedback

Postal articulated balustrade elbow made from AISI 304 stainless steel satin. Angle adjustment 90°-180°. For tube 42.4x2 mm. Insertion depth 27 mm. Bonded installation. Weight 0.45 kg.

Go to full description
with VAT without VAT
Price €10.22
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] kolana-laczniki #139

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm

Description

Articulated balustrade elbow 90°–180° for tube 42.4x2 mm, AISI 304 stainless steel satin

Articulated elbow for balustrade tube with diameter 42.4 mm and wall thickness 2 mm, with angle adjustment in the range 90°–180°. Connector designed for building stainless steel balustrades — enables smooth direction change of handrails on stairs, ramps and landings, eliminating the need to use multiple variants of fixed-angle elbows.

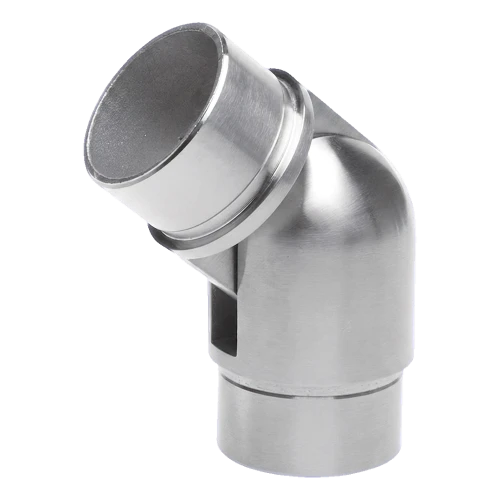

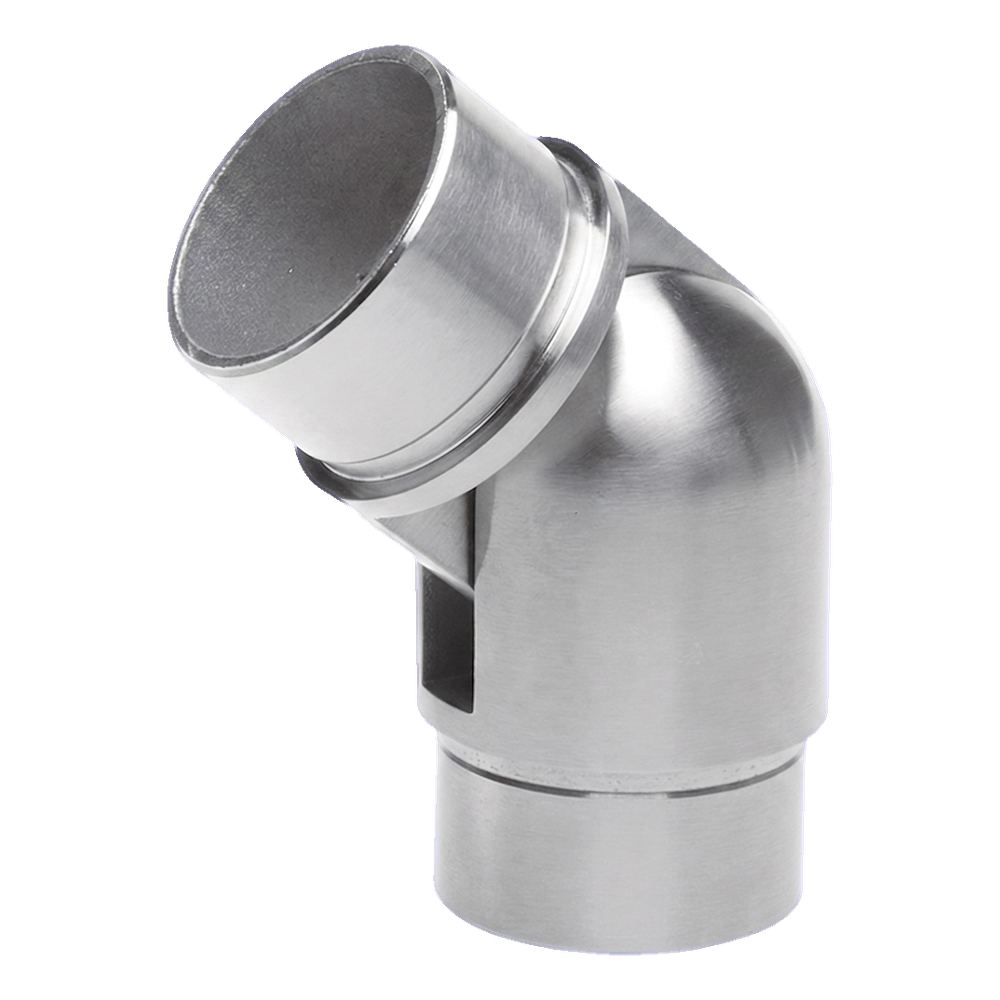

Articulated balustrade elbow made from AISI 304 stainless steel in satin finish
Articulated balustrade elbow made from AISI 304 stainless steel in satin finish

Made from high-grade AISI 304 stainless steel in satin finish guarantees long service life, corrosion resistance and an elegant, understated appearance that suits modern arrangements. The articulated joint with built-in locking screw allows setting the desired angle and permanently fixing it, which significantly speeds up installation on site.

The connector is installed using the bonding method with anaerobic adhesive — the adhesive cures upon contact with metal and hardens after oxygen supply is cut off, ensuring a permanent and aesthetic connection without visible welds.

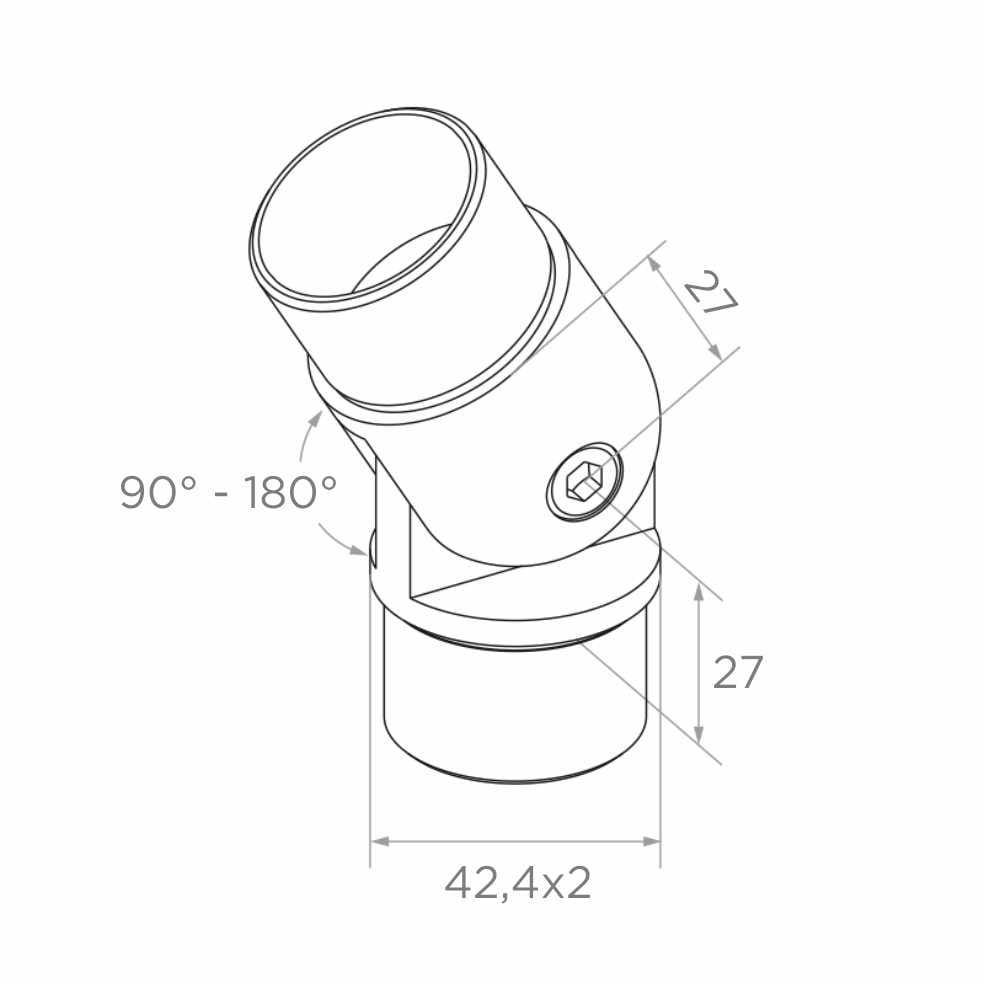

Dimensional drawing of articulated elbow showing adjustment range 90°–180° and insertion dimensions
Dimensional drawing of articulated elbow showing adjustment range 90°–180° and insertion dimensions

Dimensions and technical parameters

  • Tube diameter: 42.4 mm
  • Tube wall thickness: 2 mm
  • Insertion depth (upper and lower sleeve): 27 mm
  • Angle adjustment range: 90°–180°
  • Material: AISI 304 stainless steel
  • Surface finish: satin
  • Installation: bonded (anaerobic adhesive)
  • Weight: 0.45 kg
  • EAN: 5901289673228

The articulated elbow is a universal element of the 42.4 mm diameter balustrade system. Thanks to the wide angle adjustment range, one product replaces several fixed elbow variants — this simplifies storage and order fulfilment. An ideal solution for installation companies implementing balustrade projects on stairs with varying angles of inclination.
