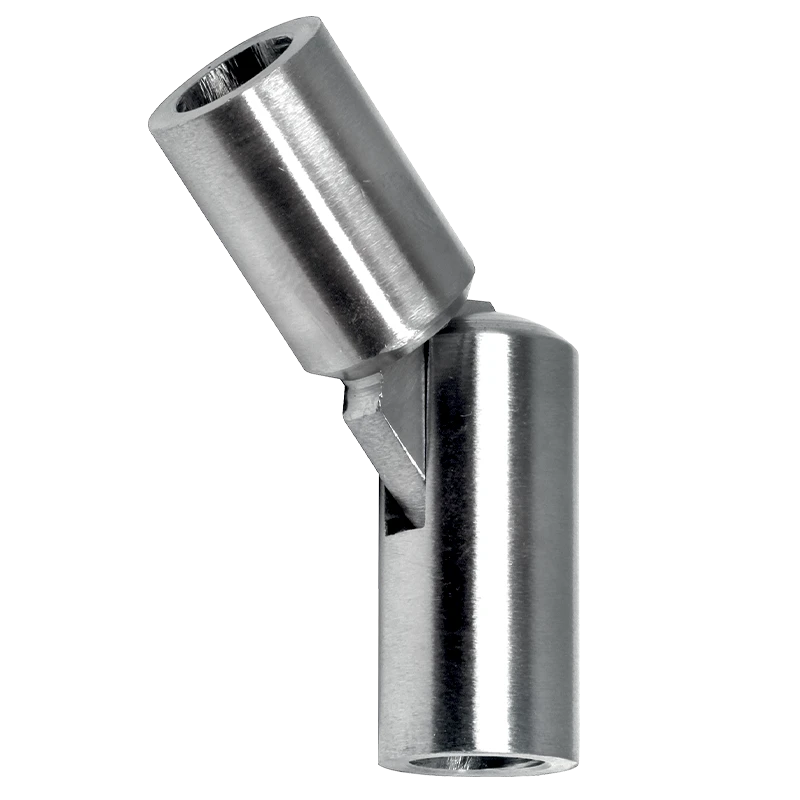

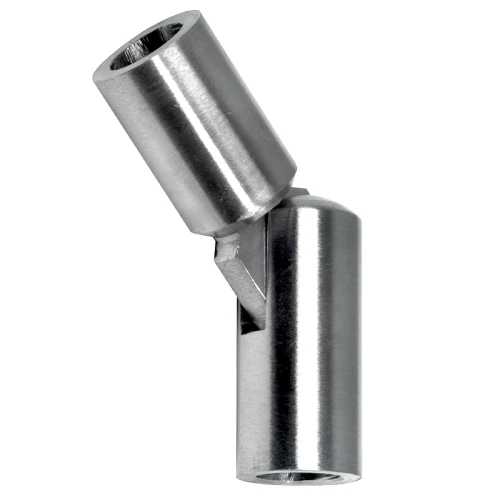

  • Postal – adjustable balustrade elbow 90°–180° for rod Ø 12 mm, AISI 304 satin 001-146 (1)
  • Postal – adjustable balustrade elbow 90°–180° for rod Ø 12 mm, AISI 304 satin 001-146 (2)
Postal

Adjustable balustrade elbow 90°–180° for rod Ø 12 mm, AISI 304 satin

Go to Product feedback

Postal adjustable balustrade elbow made from AISI 304 stainless steel, satin finish. Angle adjustment 90°-180°, for rod Ø 12 mm. Sleeves 30 mm, external diameter 18 mm. Screw-in mounting. Weight 0.04 kg.

Go to full description
with VAT without VAT
Price €3.94
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] kolana-laczniki #139

  • Material AISI 304
  • Finish Satin

Description

Adjustable balustrade elbow 90°–180° for rod Ø 12 mm, AISI 304 satin

Adjustable elbow for rod and tube Ø 12 mm — universal balustrade connector made from AISI 304 stainless steel with satin finish. Thanks to the adjustable angle range 90°–180° it performs perfectly in staircase constructions, at bends and slopes of handrails, where precise angle adjustment is required without the need for cutting or welding elements.

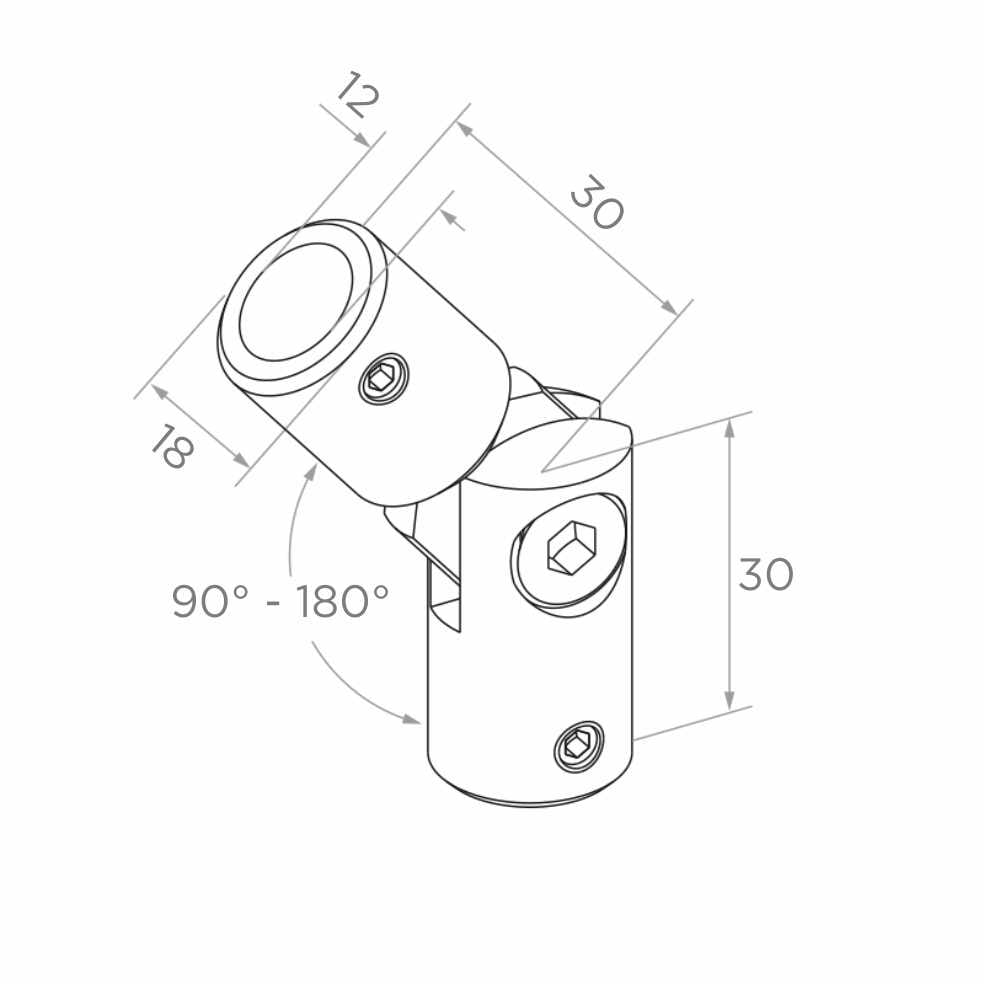

Dimensional drawing of adjustable elbow 90°–180° for rod Ø 12 mm with marked dimensions
Dimensional drawing of adjustable elbow 90°–180° for rod Ø 12 mm with marked dimensions

Dimensions and technical parameters

  • Internal diameter (hole for rod/tube): Ø 12 mm
  • External diameter of sleeve: 18 mm
  • Length of upper sleeve: 30 mm
  • Length of lower sleeve: 30 mm
  • Angle adjustment range: 90°–180°
  • Material: AISI 304 stainless steel
  • Finish: satin
  • Mounting: screw-in
  • Weight: 0.04 kg
  • EAN: 5901289673310

Application and benefits

The Postal adjustable connector is a structural element designed for building stainless steel balustrades. The adjustable joint allows smooth angle adjustment between rods in the range from 90° to 180°, which eliminates the need to use multiple variants of fixed-angle elbows. One elbow replaces several elements — simplifying storage and speeding up order completion for construction.

The construction consists of two sleeves of 30 mm length each, connected by a joint and secured with Allen screws. Mounting is screw-in — the Ø 12 mm rod is inserted into the sleeve and locked by tightening the screw, which ensures quick and secure installation without the need for specialist tools.

AISI 304 stainless steel guarantees high resistance to corrosion and atmospheric factors, making the elbow suitable for both internal and external building applications. The satin surface finish provides an elegant, matt appearance and perfectly complements other stainless steel balustrade elements in this standard.
