PV Mounting Profile Connector Aluminium 100 mm – C-Channel 25×45×25

Go to Product feedback

PV mounting profile connector, aluminium 6060, 100 mm length. C-channel profile 25×45×25 mm, wall thickness 2.5 mm, 2 holes Ø10.5 mm at 50 mm spacing. Corrosion-resistant, black anodised version available. For extending mounting profiles in photovoltaic installations.

Go to full description
with VAT without VAT
Price €0.72
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

PV Mounting Profile Connector Aluminium 100 mm – C-Channel 25×45×25

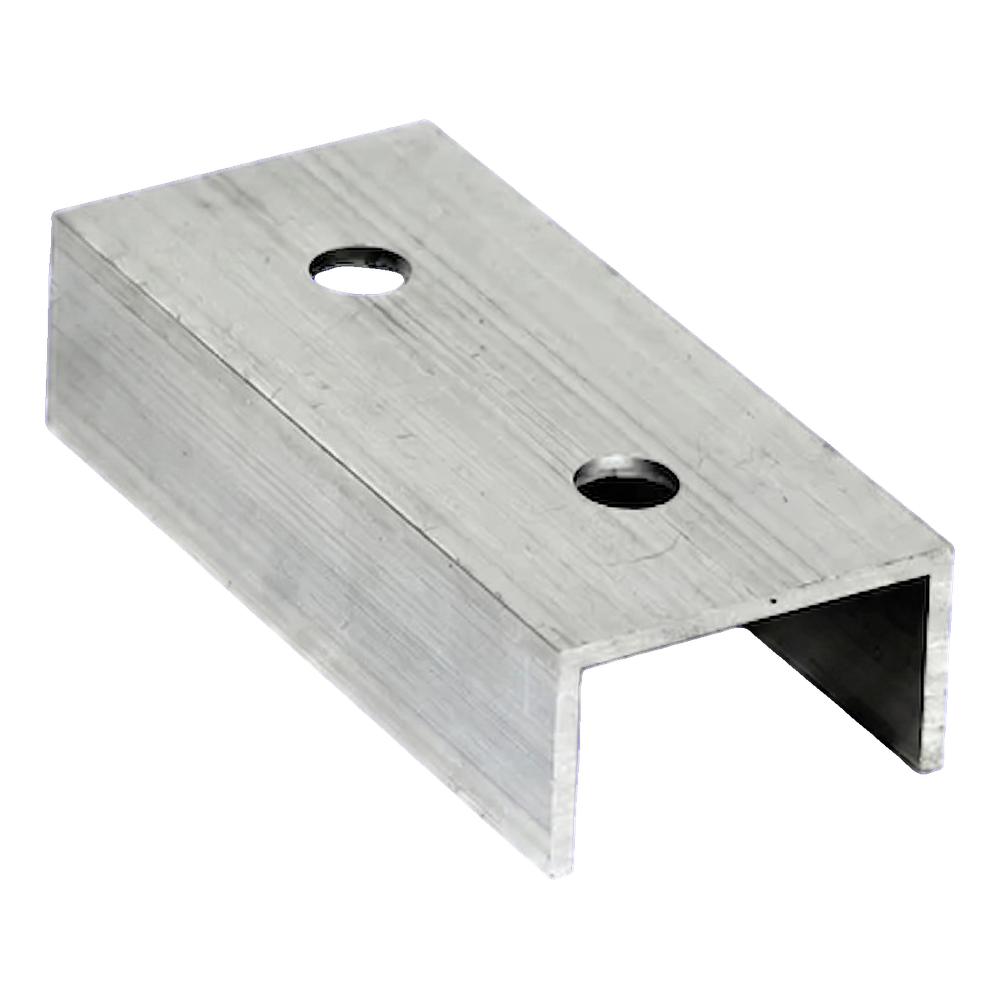

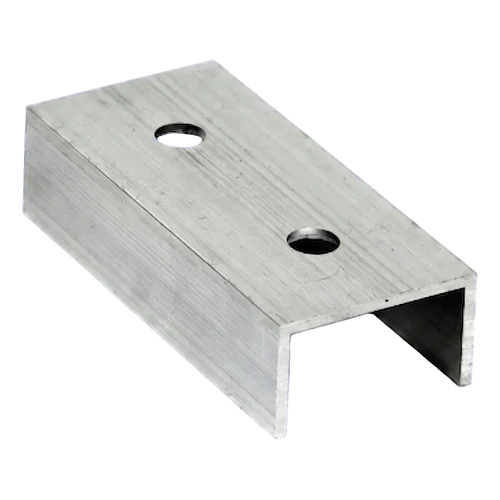

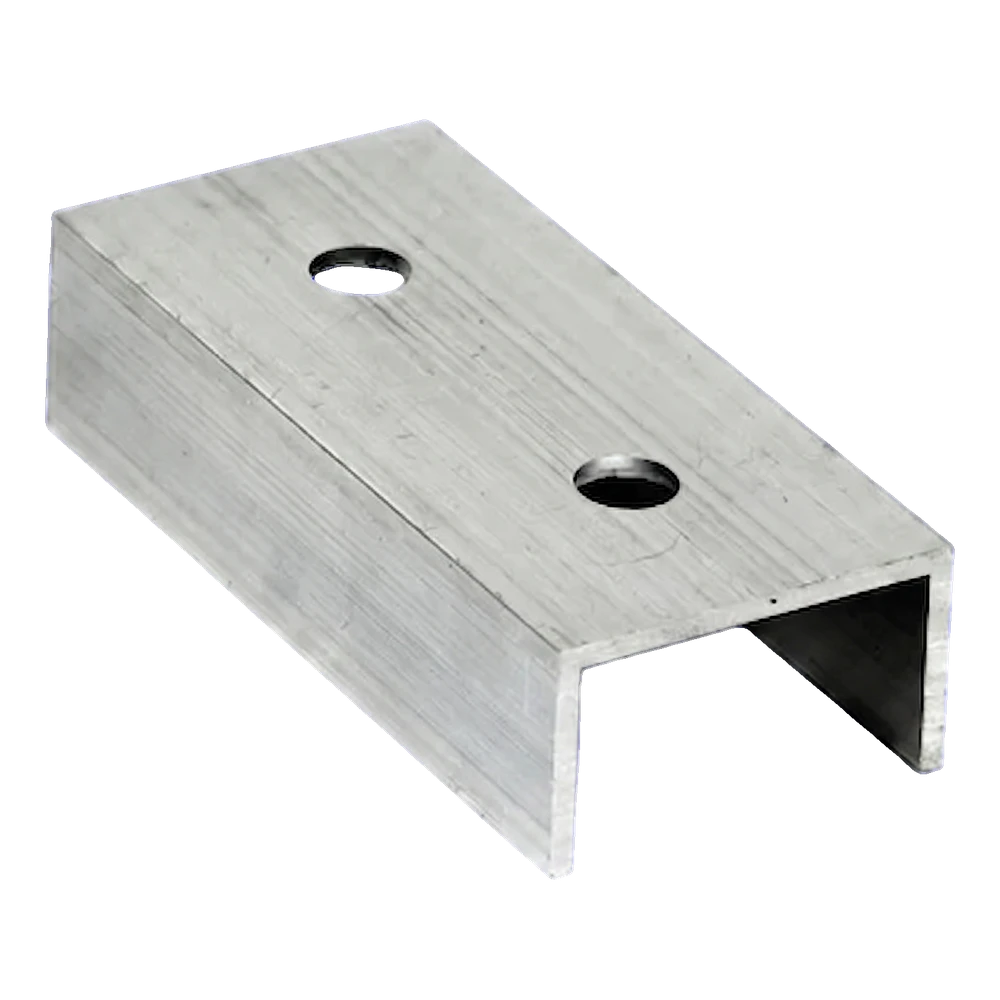

PV mounting profile connector aluminium 100 mm – isometric view
PV mounting profile connector aluminium 100 mm – isometric view

The 100 mm mounting profile connector is a compact structural component in the shape of a C-channel, designed for extending mounting profiles in photovoltaic installations. Made from aluminium 6060, it combines light weight with high corrosion resistance — no additional anti-corrosion protection is required even with many years of exposure to weather conditions. Precisely positioned mounting holes ensure a secure bolted connection between profiles, while the C-channel shape guarantees stable seating inside standard mounting rails. The connector is also available in a black anodised version, which provides additional environmental protection and an aesthetic finish on dark roofs.

Benefits for the installation team

  • Aluminium 6060 — natural corrosion resistance without the need for additional protective coatings
  • C-channel profile matched to standard PV mounting rails — the connector slides directly into the profile without additional positioning
  • Very low component weight — minimal load on the structure and convenient transport
  • Mounting holes allow quick bolted connection without additional machining
  • Black anodised version available for installations on dark roof coverings

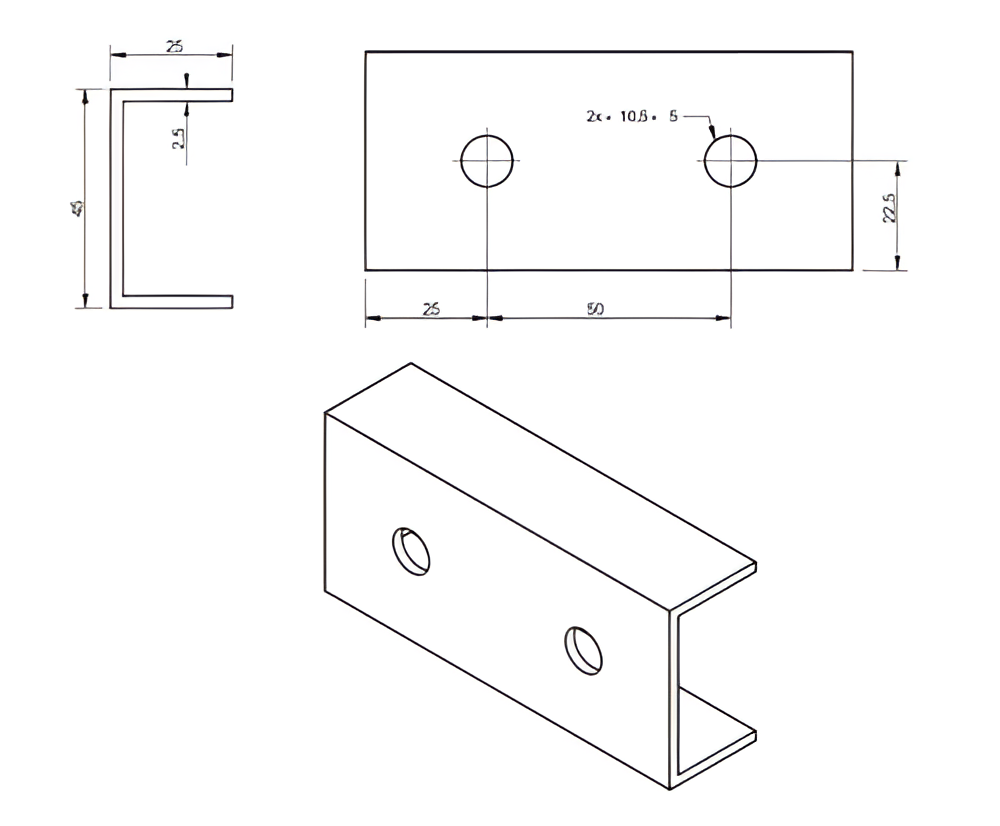

PV profile connector 100 mm – technical drawing with three views
PV profile connector 100 mm – technical drawing with three views

The technical drawing shows three views of the connector: a cross-section of the C-channel with wall thickness marked, a top view showing the arrangement of mounting holes, and an isometric view of the finished component. The symmetrical arrangement of the holes ensures even load distribution along the entire length of the connection.

Video presenting PV structure mounting components
Video presenting the installation of a photovoltaic structure

Technical parameters

Component typeprofile connector (C-channel)
Length / adjustment range100 mm

Dimensions

C-channel profile25×45×25 mm
Wall thickness2.5 mm
Hole diameter10.5 mm
Number of holes2
Hole spacing50 mm

Material and finish

Materialaluminium 6060
Coating / corrosion resistancenaturally corrosion-resistant; black anodised version available

Other parameters

Weight0.06 kg
