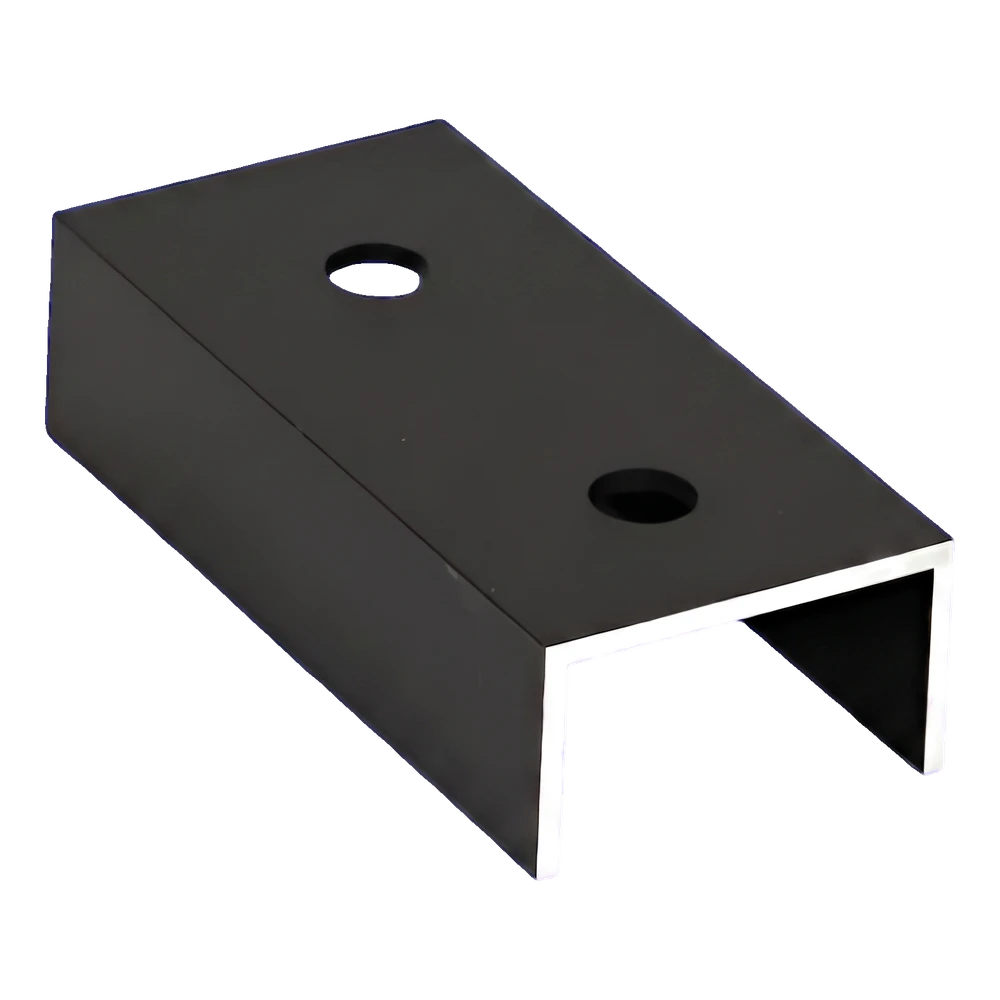

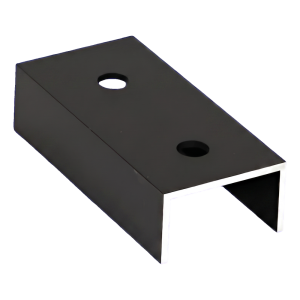

PV Mounting Profile Connector, Black Anodised Aluminium, 100 mm

Go to Product feedback

PV mounting profile connector, aluminium, black anodised. Length 100 mm, channel cross-section 25×45×25 mm, wall thickness 2.5 mm. 2 mounting holes ø10.5 mm. Material: 6060 aluminium. Weight 0.06 kg. For extending profiles in photovoltaic structures.

Go to full description
with VAT without VAT
Price €1.07
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

PV Mounting Profile Connector, Black Anodised Aluminium, 100 mm

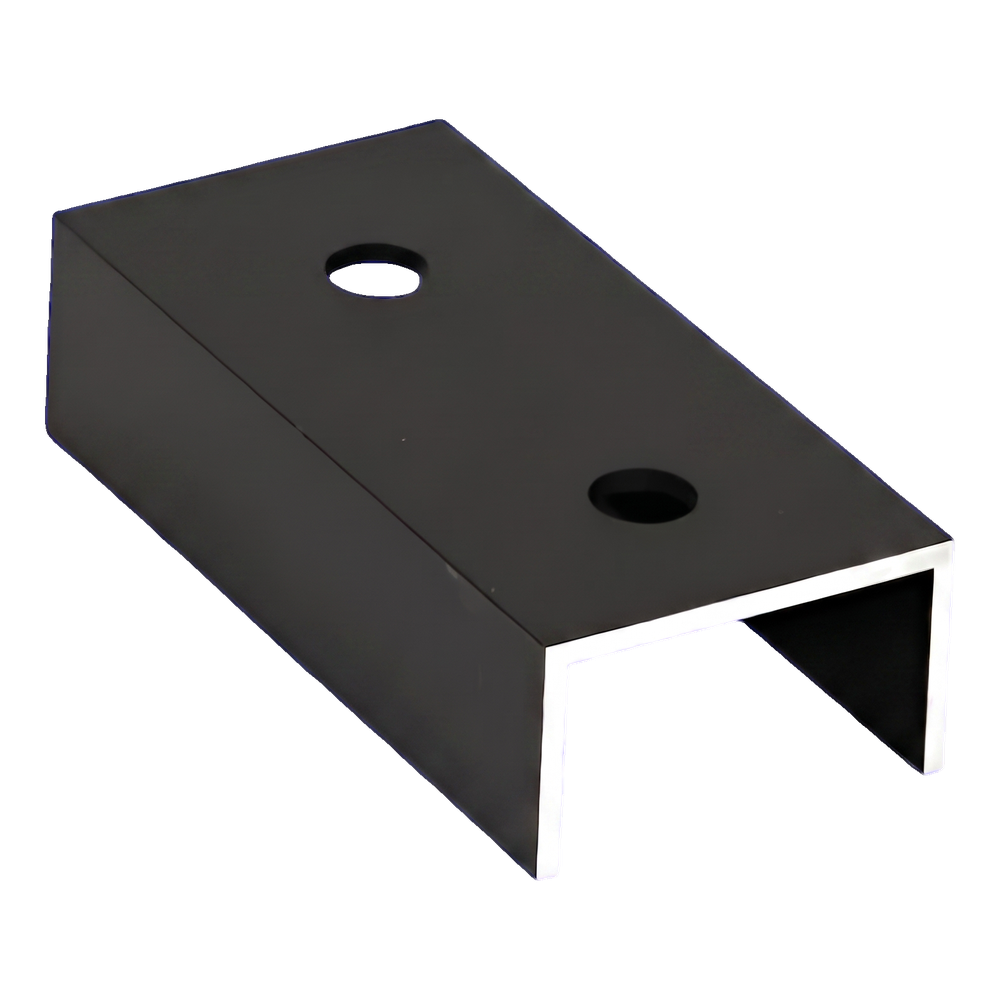

PV profile connector, black anodised aluminium, 25x45x25 mm
PV profile connector, black anodised aluminium, 25x45x25 mm

The PV mounting profile connector, 100 mm long, is used to extend aluminium profiles in photovoltaic structures. The channel-shaped element is inserted into the interior of the connected profiles and secured with screws through two mounting holes. Made of 6060 aluminium with black anodising, it combines high corrosion resistance with an attractive, uniform appearance for the entire structure. The channel profile with a 2.5 mm wall thickness ensures a rigid and stable connection, transferring wind and snow loads between mounting rail segments. Weighing just 0.06 kg per piece, it adds no extra load to the structure and makes transport to the roof easier.

Benefits of the connector for installation teams

  • Quick profile joining — simply insert the channel and tighten two screws
  • 6060 aluminium with black anodising provides long-lasting corrosion protection with no maintenance required, even in demanding weather conditions
  • Two mounting holes positioned symmetrically along the length of the connector
  • Low self-weight allows for efficient handling of components at height
  • The black finish blends harmoniously with dark profiles and PV modules

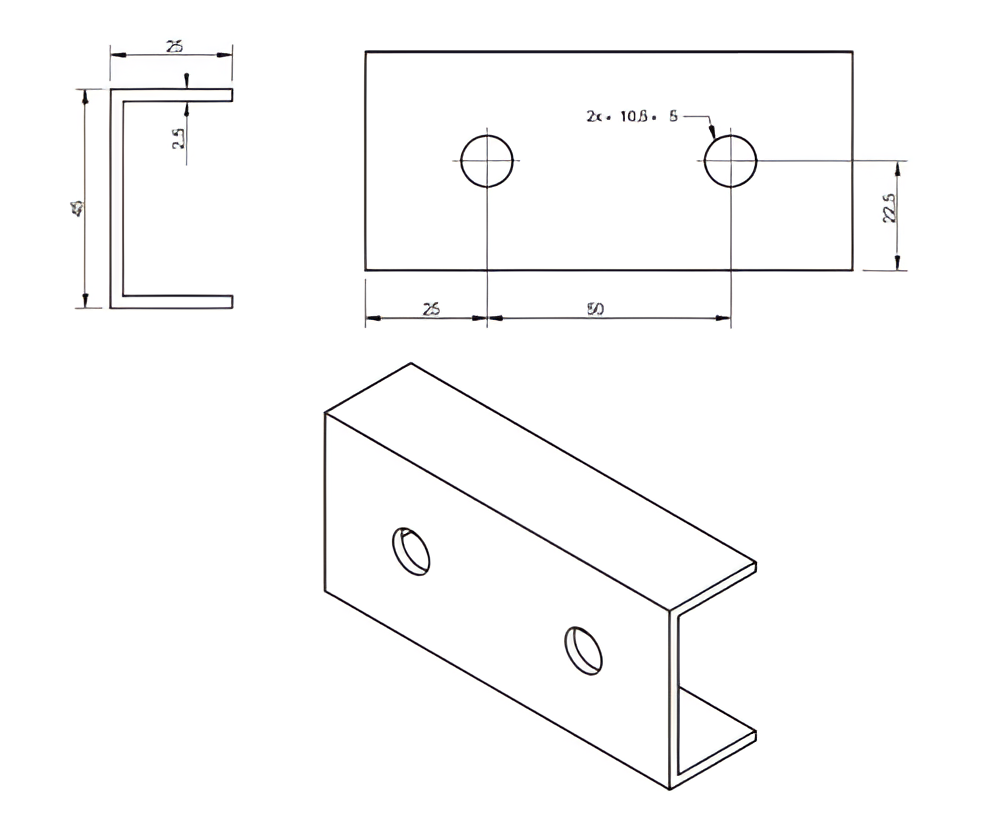

Dimensional drawing of the PV profile connector — channel cross-section, top view and isometric view
Dimensional drawing of the PV profile connector — channel cross-section, top view and isometric view

The technical drawing shows three views of the connector: the channel cross-section, a top view showing the layout of the mounting holes, and an isometric view of the finished component. All dimensions and structural details can be found in the specification sheets below.

Video presenting the PV mounting profile connector
Video presenting the application of the profile connector in a PV structure

Technical parameters

Component typeprofile connector (channel)
Length / adjustment range100 mm

Dimensions

Channel cross-section25×45×25 mm
Wall thickness2.5 mm
Mounting holes2× ø10.5 mm

Material and finish

Material6060 aluminium
Coating / corrosion resistanceblack anodising

Other parameters

Weight0.06 kg
