PV Mounting Profile Connector, Anodised Black Aluminium, 120 mm, U-Channel 25×45

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.07 kg

Price / pcs.: £0.87 0.87

excl. shipping costs

* Packaging options:

Piece
Package: 200 pieces
Package: 5000 pieces
Package: 10000 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

3.66667

Vendor: -

Product code: PV-18-05

recommend to a friend

Description

PV Mounting Profile Connector, Anodised Black Aluminium, 120 mm, U-Channel 25×45

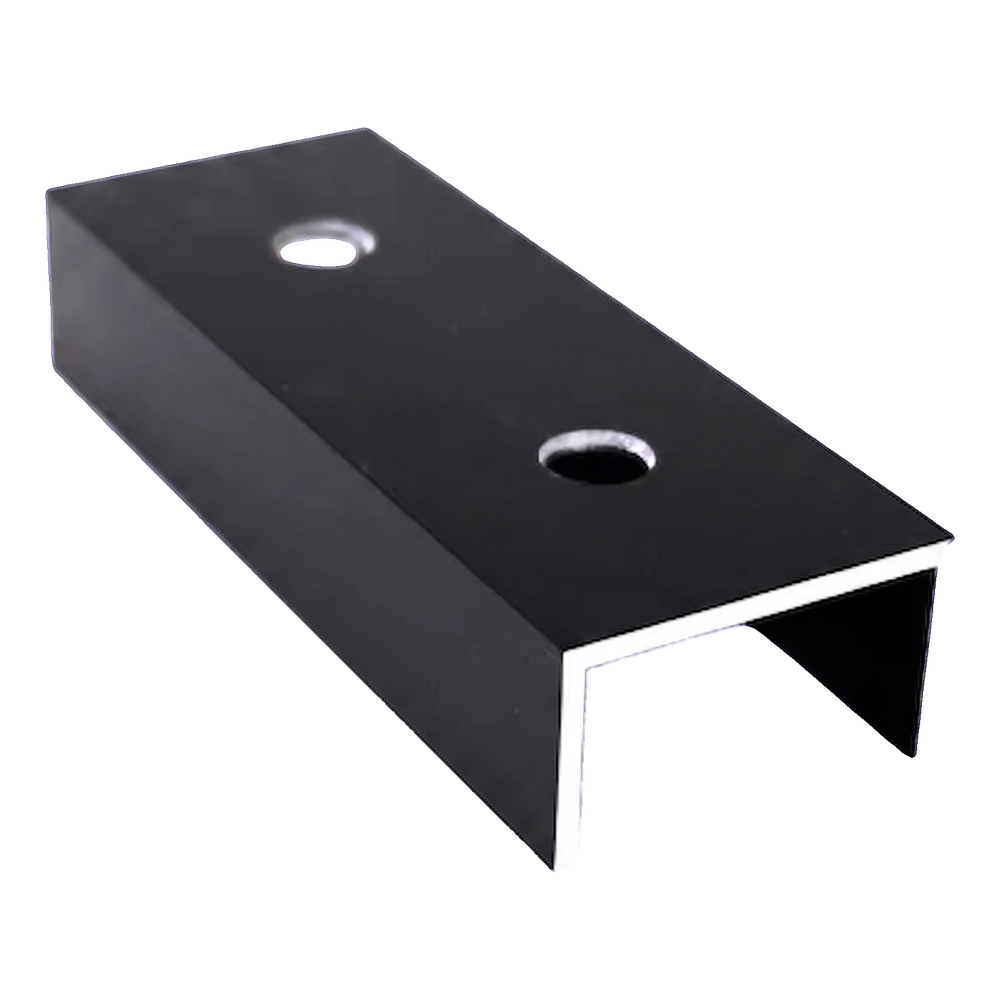

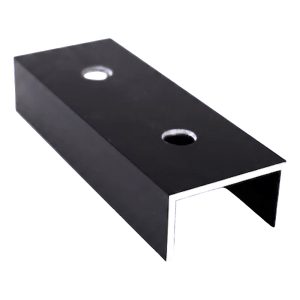

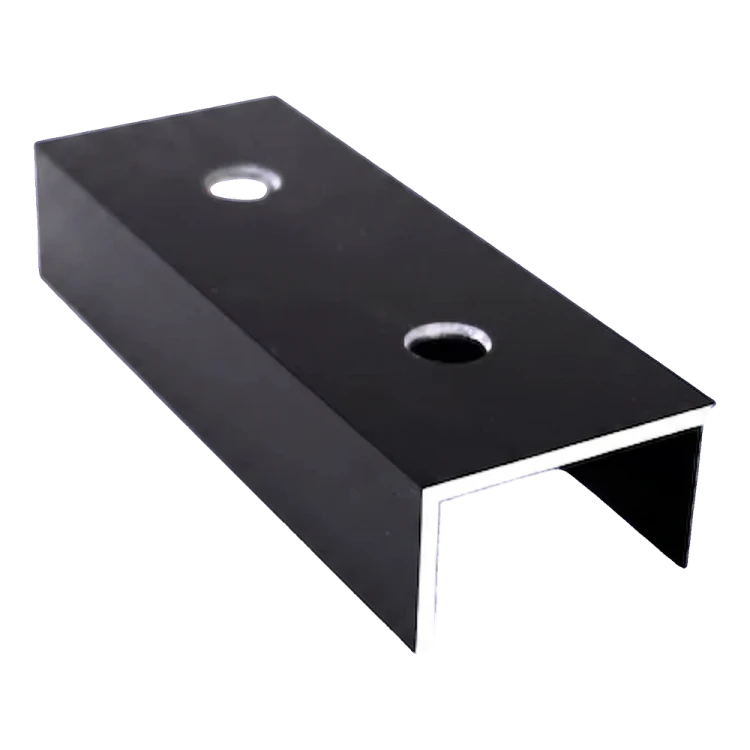

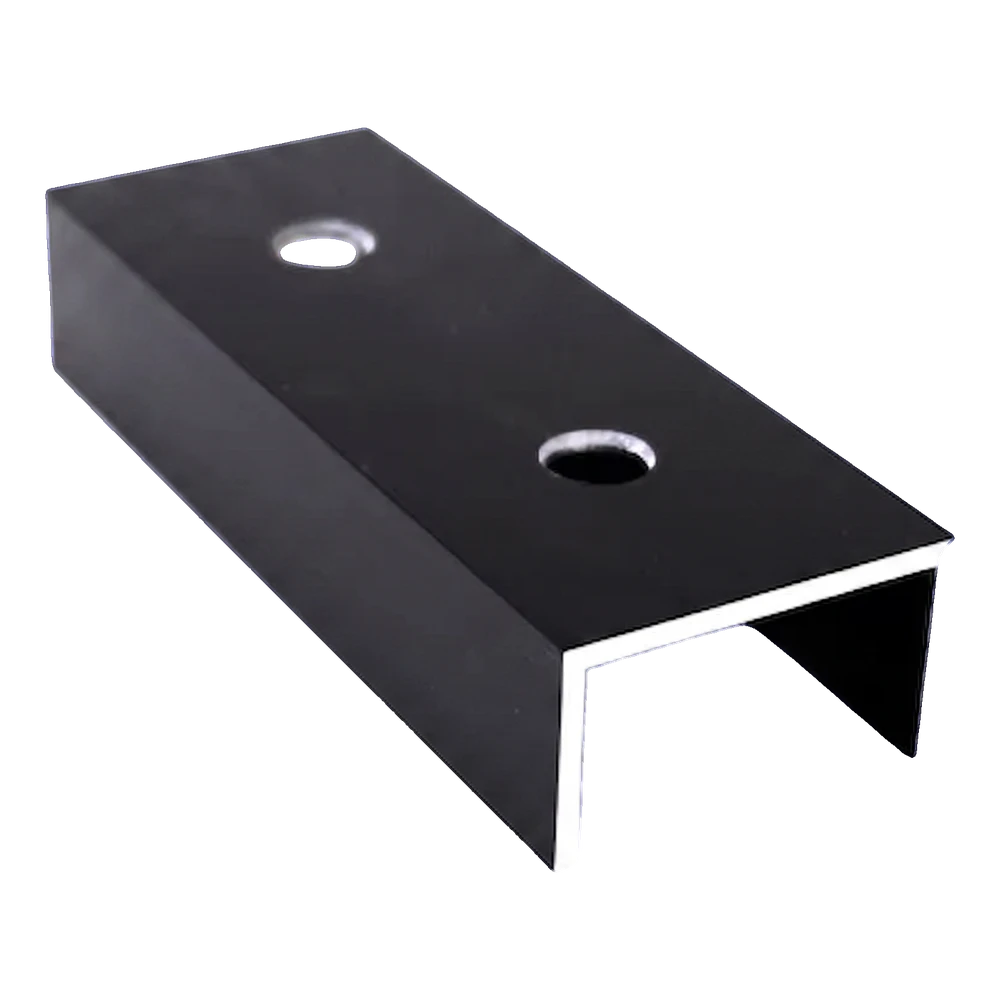

Black anodised aluminium PV profile connector, 120 mm, with two mounting holes

The 120 mm U-channel mounting profile connector is a structural component used to extend aluminium profiles in photovoltaic mounting systems. Made from black-anodised 6060 aluminium, it ensures a durable and aesthetically pleasing connection between two consecutive profile sections without risk of corrosion — even in harsh weather conditions. Thanks to two through-holes with a diameter of 10.5 mm, installation is as simple as a bolted connection using standard fasteners, allowing longer profile runs to be efficiently built on roofs or on the ground. Its low weight (0.07 kg) and compact dimensions make transport and storage easy, even for large batches of connectors.

Key advantages of the connector

6060 aluminium with anodised finish — lightweight, corrosion and weather resistant

25 × 45 mm U-channel profile perfectly matched to popular PV mounting rails

Two ⌀10.5 mm holes spaced 85 mm apart allow for quick bolted connection

Black anodised finish provides aesthetics and additional surface protection

2.5 mm wall thickness guarantees sufficient rigidity with minimal weight

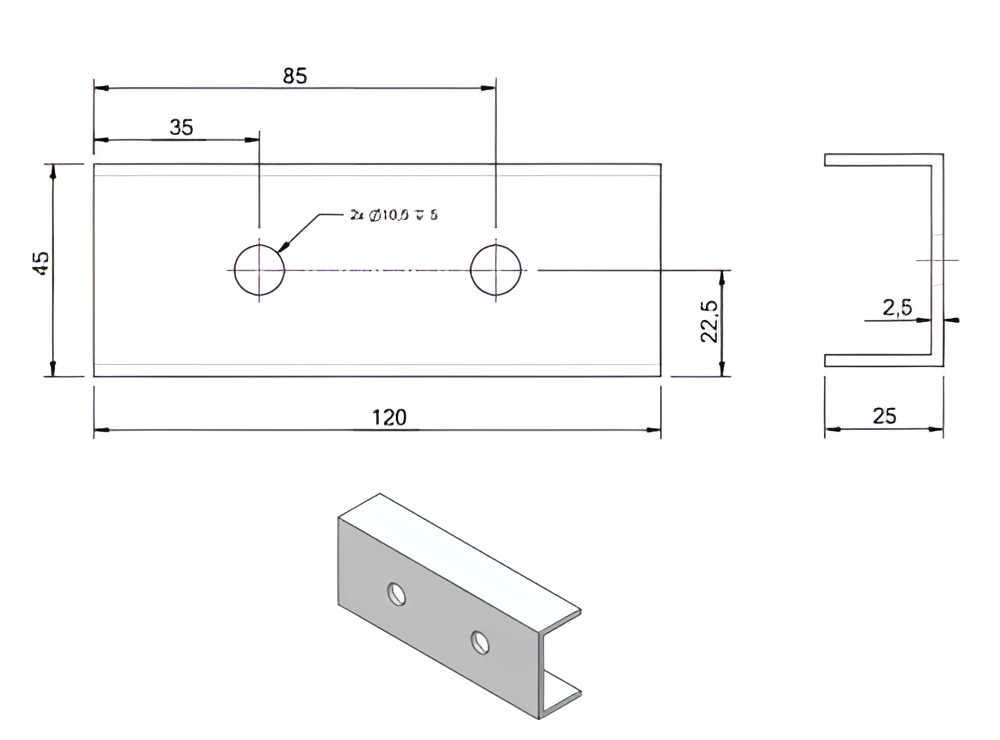

Dimensional drawing of the 120 mm PV profile connector — top, side and perspective views with dimensions

Video presenting mounting components for photovoltaic structures

Video presenting the mounting system for photovoltaic profiles

Technical parameters

Component type	profile connector (U-channel)
Thread / size	⌀10.5 mm holes (2 pcs.)
Length / adjustment range	120 mm

Dimensions

U-channel (width × height × width)	25 × 45 × 25 mm
Wall thickness	2.5 mm
Hole spacing	85 mm
Distance of first hole from edge	35 mm

Material and finish

Material	6060 aluminium
Coating / corrosion resistance	anodised — black

Installation and compatibility

Compatible profiles	PV mounting profiles with a 25 × 45 mm U-channel cross-section
Roof / surface type	PV roof and ground-mounted structures

Other parameters

Weight	0.07 kg

Safety
