PV Low Mid Clamp L50 Black Lacquered
Leave feedback on the product
Low PV mid clamp L50, black lacquered. Length 50 mm, overall width 41 mm, profile height 8.5 mm, top flange width 25 mm. Weight 23 g. For connecting photovoltaic modules on the mounting profile.
Product code: 002-045
Product features
[PIM] Klemy #34
- Clamp Type Mid
- Panel thickness [mm] 30-45
- Colour Black
- Grounding pin No
- Additional accessories None
Description
Low mid clamp PV L50 black lacquered
Low mid clamp L50 in a black lacquered finish — a compact fixing component designed for connecting adjacent photovoltaic modules on a mounting rail. Its low-profile design minimises the installation profile and complements dark full-black panels perfectly.

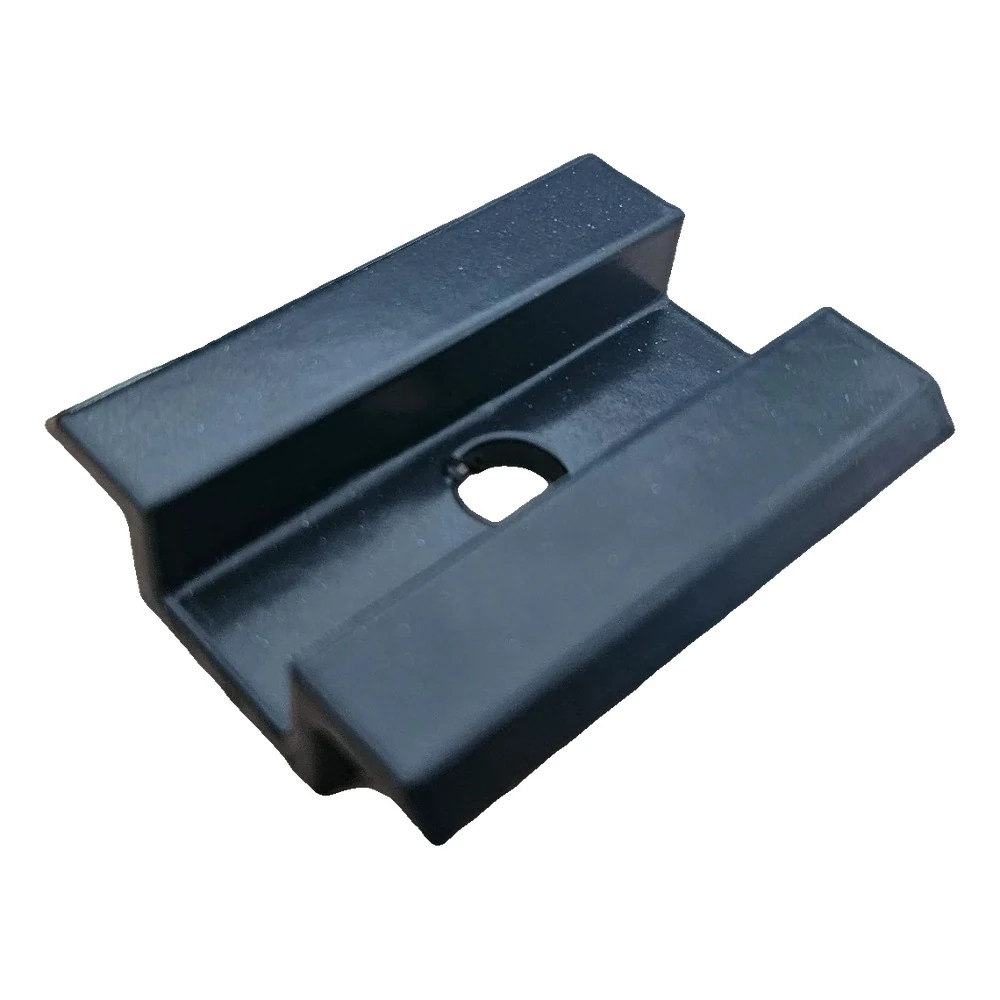

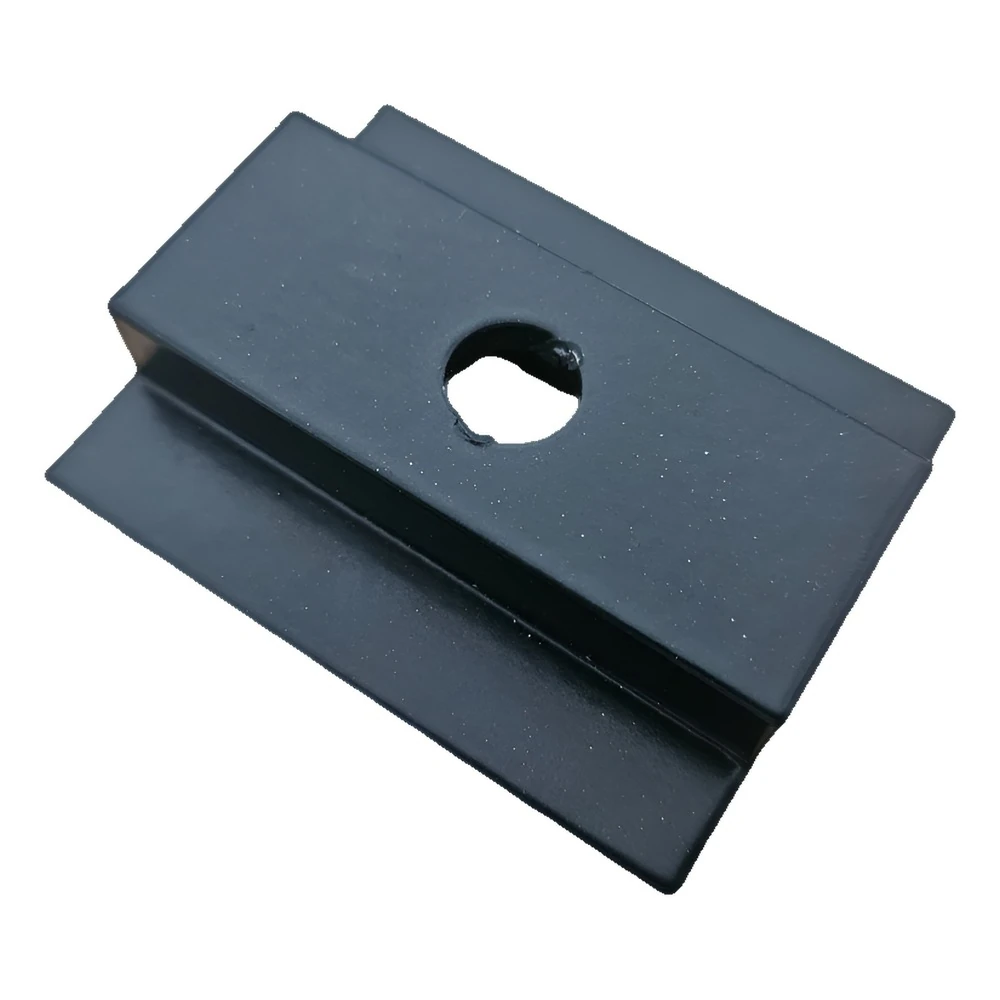

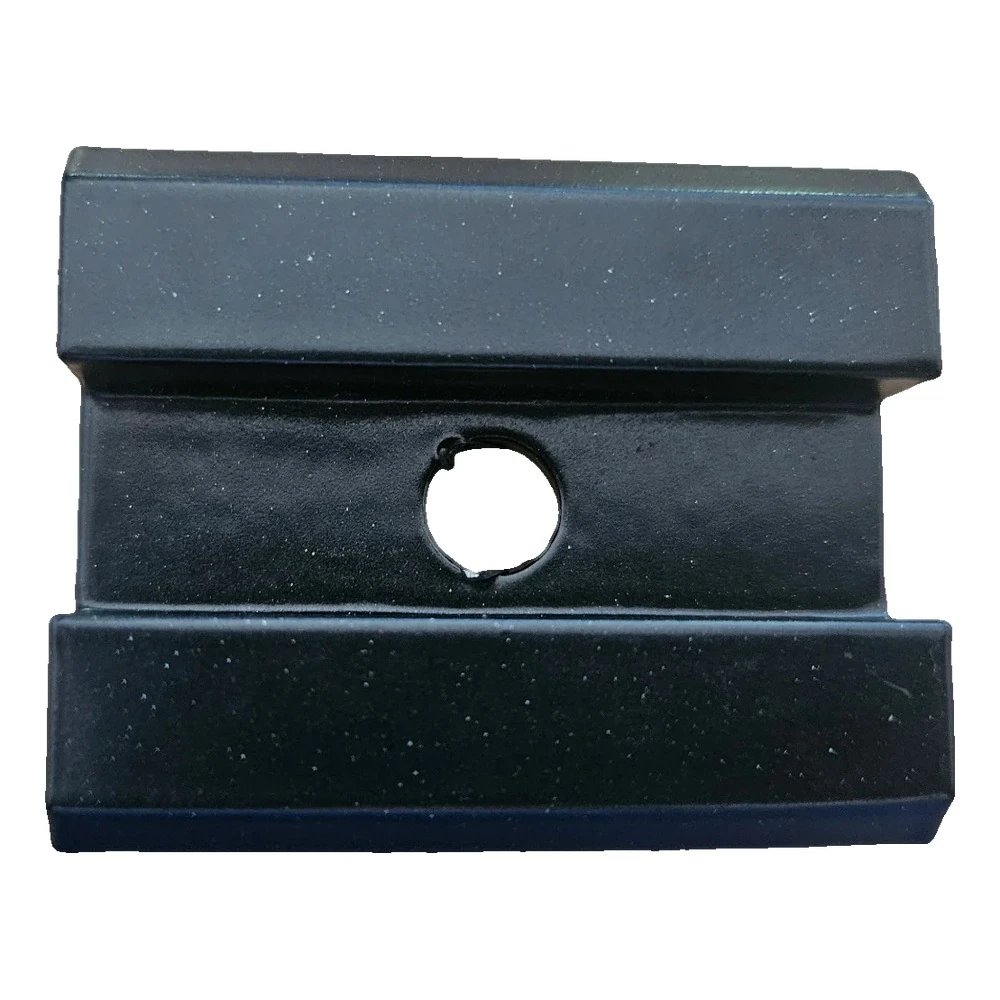

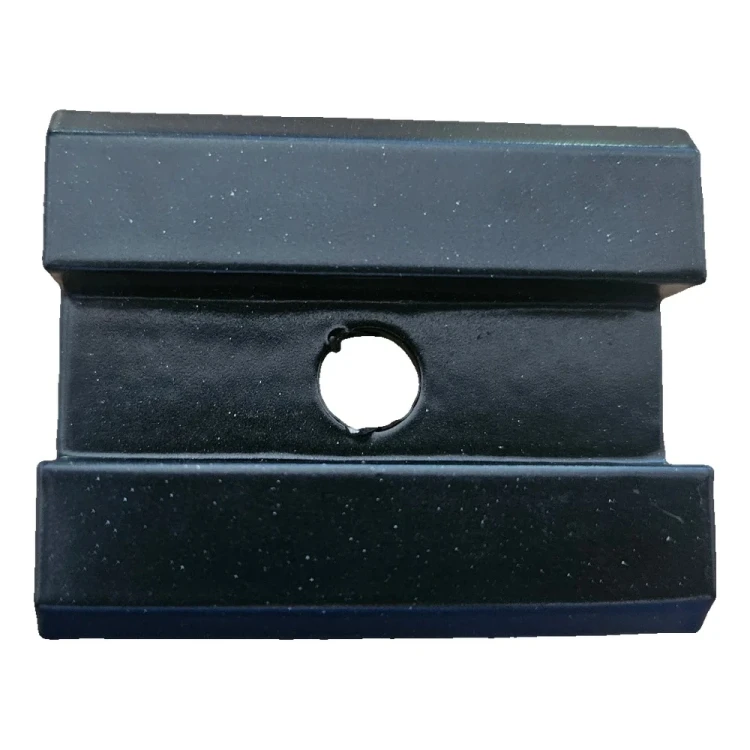

The clamp profile features a central grip groove and ribbed lower edges, which increase clamping force and prevent the module from shifting after installation. The central mounting hole allows for quick fixing to the support rail with a screw.
Precise cross-sectional profile

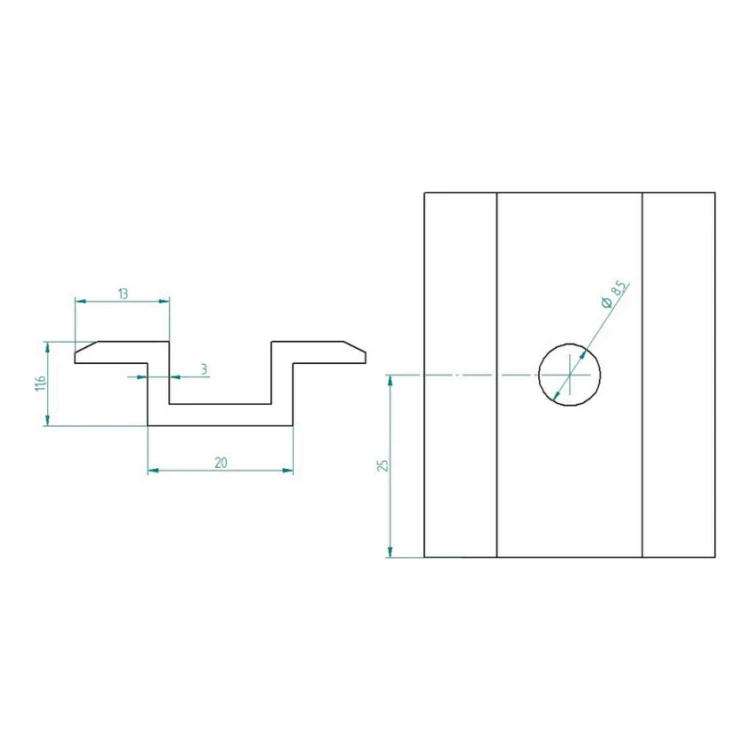

The cross-sectional drawing shows a symmetrical clamp profile with two shoulders gripping the module frames. The central groove ensures secure guidance, while the toothed lower edges guarantee stable seating on the mounting rail.
