Optimizer PV for vertical rail mounting P950 Solaredge
Availability:
In stock (almost sold out)
Delivered within:
10 Business days
Weight:
1.064 kg
Description

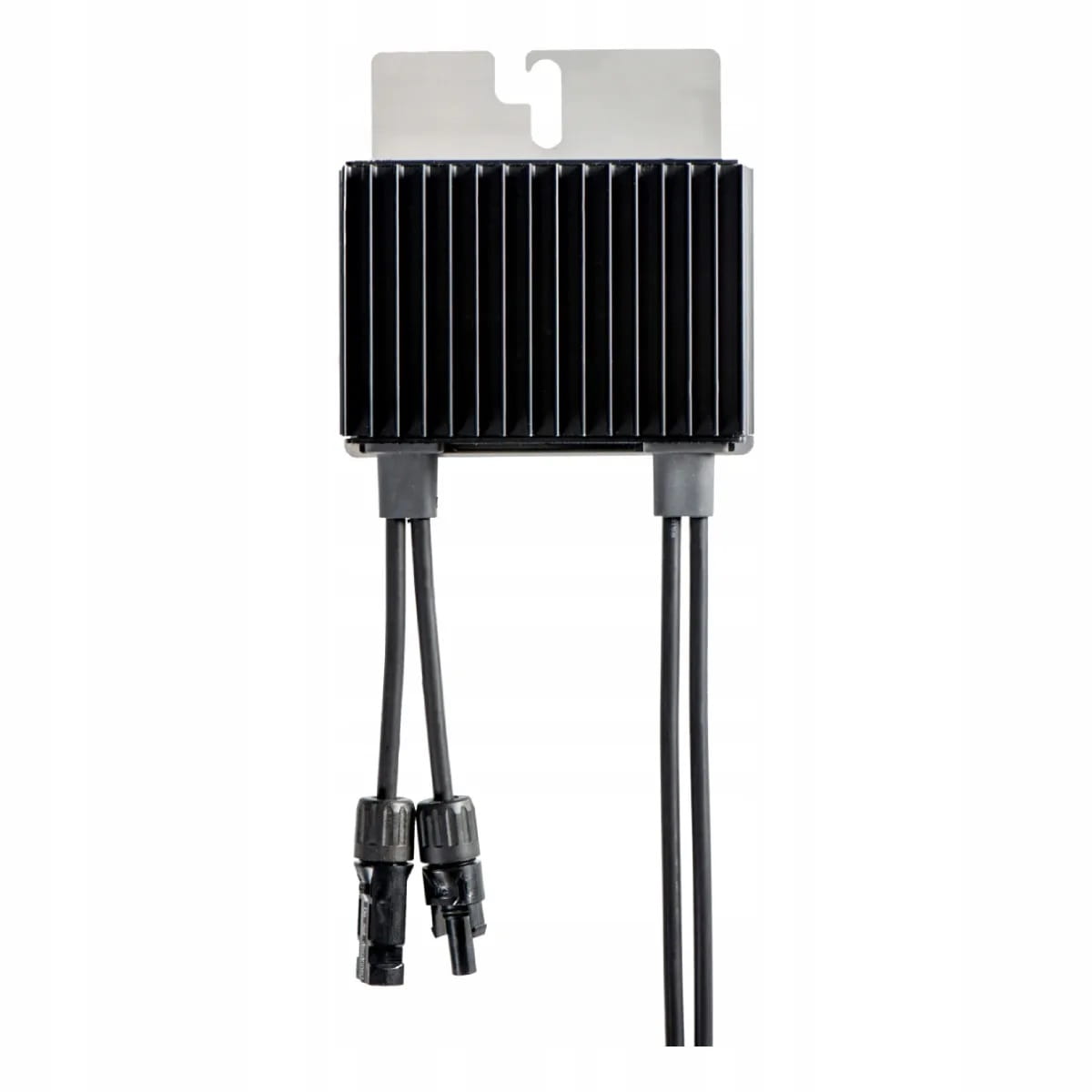

Optimizer PV for vertical rail mounting P950 Solaredge
Optimizer PV vertical rail mounted P950 Solaredge improves energy production efficiency by individually tracking the maximum power point (MPPT) for each panel.
This makes it possible to maintain a high voltage in the circuit, which translates into increased efficiency of the Solaredge inverter. The optimizers monitor the efficiency of individual panels, and this information can be tracked through the Solaredge monitoring system. Each power optimizer is equipped with SafeDC, which automatically reduces the circuit voltage to a safe level in the event of a grid, inverter or fire outage.
In addition, features of the P950 Solaredge Optimizer include:
- Specially designed to work with SolarEdge inverters.
- Highest efficiency (99.5%).
- Reduced system balancing costs due to reduced wiring, fuses and installation boxes, and the ability to use longer strings.
- Quick installation with a single screw.
- Advanced maintenance with module-level monitoring.
- Module-level voltage shutdown for installer and firefighter safety.
- Can be used with two photovoltaic modules connected in series or parallel.
Input
Nominal input power
950 W
Connection type
Single input for serial connection of modules
Maximum input voltage (Voc lowest temperature)
125 Vdc
MPPT voltage range
12.5 - 105 Vdc
Maximum input current per input (Isc)
14.1 Adc
Maximum efficiency
99.5 %
Weighted efficiency
98.6 %
Overvoltage category
II
Output during operation (the power optimizer is connected to an operating Solaredge inverter)
Maximum output current
18 Adc
Maximum output voltage
80 Vdc
Standby output (the power optimizer is disconnected from the Solaredge inverter or the inverter is turned off)
Safe voltage of the optimizer
1 ± 0.1 Vdc
Compliance with standards
EMC
FCC Part 15 IEC61000-6-2, IEC61000-6-3 - Class B, EN 55011 - Class A
Safety
IEC62109-1 (safety class II)
RoHS
Yes
Fire protection
VDE-AR-E 2100-712:2013-05
| Our Models | P950 Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions [mm/in] | 129 x 162 x 59 | |||
| Weight [g] | 1064 | |||
| Input connector | MC4 | |||
| Input cable length [m/ ft] | 0.16 / 0.52, 1.3 / 4.26, 1.6 / 5.24 | |||
| Output connector | MC4 | |||
| Output cable length [m/ ft] | Vertical orientation: 1.2 / 3.9, Horizontal orientation: 2.2 / 7.2 | |||
| Operating temperature range [˚C] | from -40 to +85 / from -40 to +185 | |||
| Degree of protection | IP68 / NEMA6P | |||
| Relative humidity [%] | 0 - 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 950 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,16 / 1,3 / 1,6 |
| Output cable length [m] | Vertical orientation: 1.2 horizontal orientation: 2.2 |
| Width [mm] | 162 |
| Length [mm] | 129 |
| Thickness [mm] | 59 |
| Weight [kg] | 1,064 |
