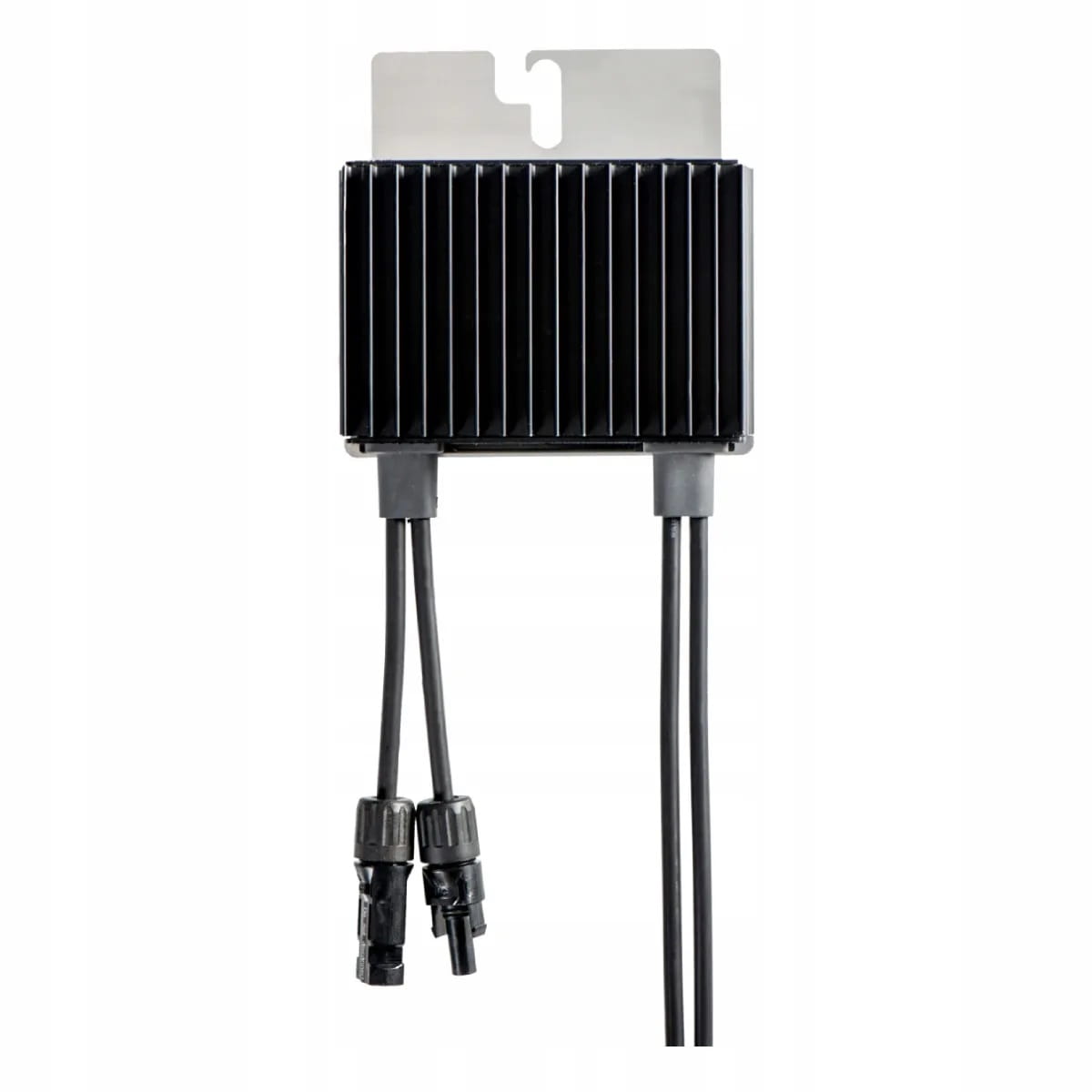

Optimizer PV for rail mounting P404 Solaredge
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.775 kg
Description
Optimizer PV for rail mounting P404 Solaredge
Optimizer PV rail mounting P404 Solaredge increase energy production efficiency by tracking the maximum power point (MPPT) for each panel, resulting in increased efficiency of the SolarEdge inverter.
The Solaredge monitoring system allows tracking the efficiency of individual panels. In addition, the optimizers are equipped with SafeDC, which automatically reduces the circuit voltage in the event of a power outage, inverter or fire, ensuring the safety of the installation.
Main features:
- Specially designed to work with SolarEdge inverters.
- Up to 25% more energy possible.
- High efficiency (99.5%).
- Solution to prevent problems with mismatched modules or partial shading.
- Flexible installation design system allows maximum space utilization.
- Quick installation with a single screw.
- Individual monitoring for each module facilitates system management.
- Voltage reduction of each module during installation or in case of fire.
Input
Nominal input power
405
Absolute maximum input voltage (Voc at lowest temperature)
80
MPPT voltage range
12.5 - 80
Maximum short circuit current (Isc)
11
Maximum efficiency
99.5
Weighted efficiency
98.8
Overvoltage category
II
Output during operation (the power optimizer is connected to an operating Solaredge inverter)
Maximum output current
15
Maximum output voltage
85
Standby output (the power optimizer is disconnected from the Solaredge inverter or the inverter is turned off)
Safe output voltage of power optimizers
1 ± 0.1
Compliance with standards
EMC
FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3
Safety
IEC62109-1 (class II safety), UL1741
RoHS
Yes
Fire protection
VDE-AR-E 2100-712:2013-05
| Our Models | P404 Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions [mm] | 129 x 89 x 42.5 | |||
| Weight [gr] | 775 | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.16 / 0.52 | |||
| Output connector | MC4 | |||
| Output cable length [m] | 1.2 | |||
| Operating temperature range [˚C] | -40 - +85 | |||
| Degree of protection | IP68 | |||
| Relative humidity [%] | 0 - 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 405 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0.16 / 0.52 |
| Output cable length [m] | 1,2 |
| Width [mm] | 89 |
| Length [mm] | 129 |
| Thickness [mm] | 42,5 |
| Weight [kg] | 0,775 |
