Optimizer PV SAFE DC with MC4 connector 600W Huawei
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.6 kg
Description

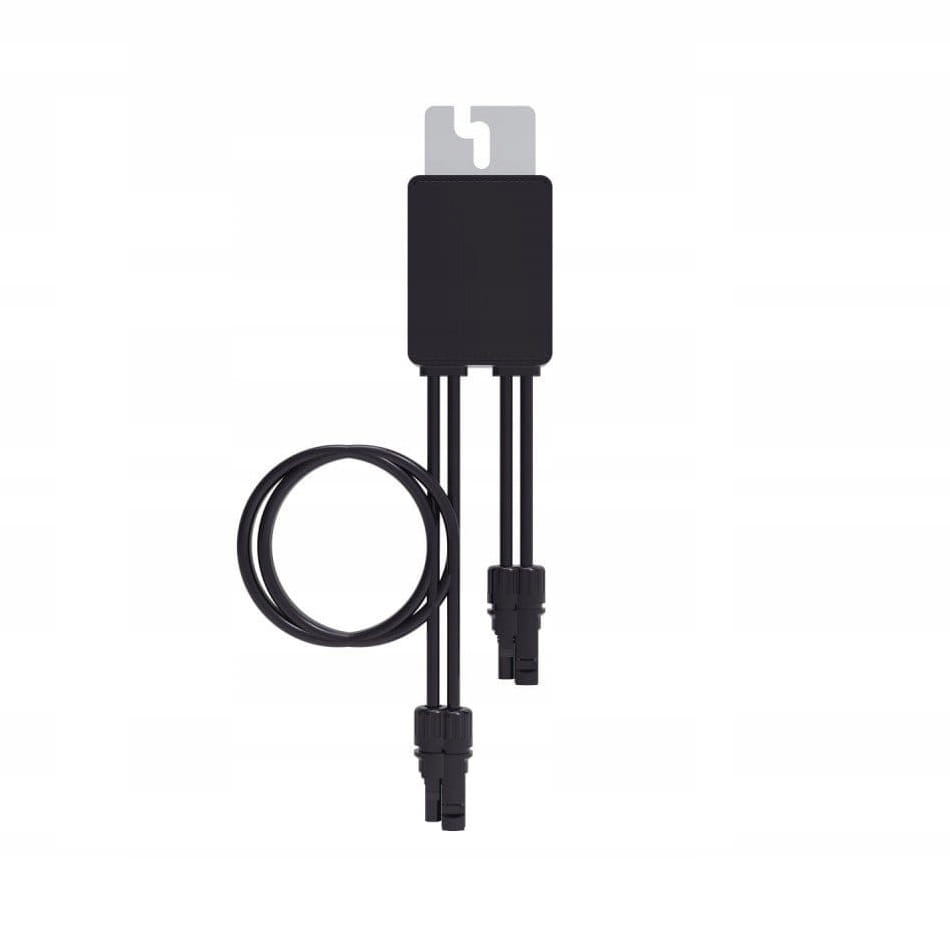

Optimizer PV SAFE DC with MC4 connector 600W Huawei
The Smart photovoltaic optimizer PV SAFE DC connector MC4 600W Huawei is a DC-DC device mounted on the back of photovoltaic modules in a PV installation.
Its main function is to manage the maximum power point (MPP) of each module, which translates into optimizing the performance of the entire photovoltaic system. The optimizer also performs module-level shutdown and module-level management functions to maximize energy production.
Input
Rated DC input power
600 W
Maximum input voltage
80 V
MPPT operating voltage range
10 - 80 V
Maximum short circuit current (Isc)
14.5 A
Maximum efficiency
99.5%
Weighted efficiency
99.0%
Surge protection category
II
Output
Maximum output voltage
80 V
Maximum output current
15 A
Output bypass
Yes
Output voltage when inverter is off
0 V
Output resistance when inverter is turned off
1k ohm ±10%
Communication
Communication method
MBUS
Compliance with the standard
Safety
IEC62109-1 (Safety class II)
RoHS
Yes
| Our Models | 600W Huawei | |||
|---|---|---|---|---|
| Specification | ||||
| Dimensions [mm] | 75 x 140 x 28 | |||
| Weight [kg] | 0.6 | |||
| Mounting parts | Frame mounting bracket / bolt in the shape of a letter | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.15 | |||
| Output connector | MC4 | |||
| Output cable length [m] | 1.3 | |||
| Operating temperature [°C] | -40 - 85 | |||
| Degree of protection | IP68 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 600 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,15 |
| Output cable length [m] | 1,3 |
| Width [mm] | 140 |
| Length [mm] | 75 |
| Thickness [mm] | 28 |
| Weight [kg] | 0,6 |
