Optimizer PV SAFE DC with MC4 connector 450W Huawei
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.6 kg
Description

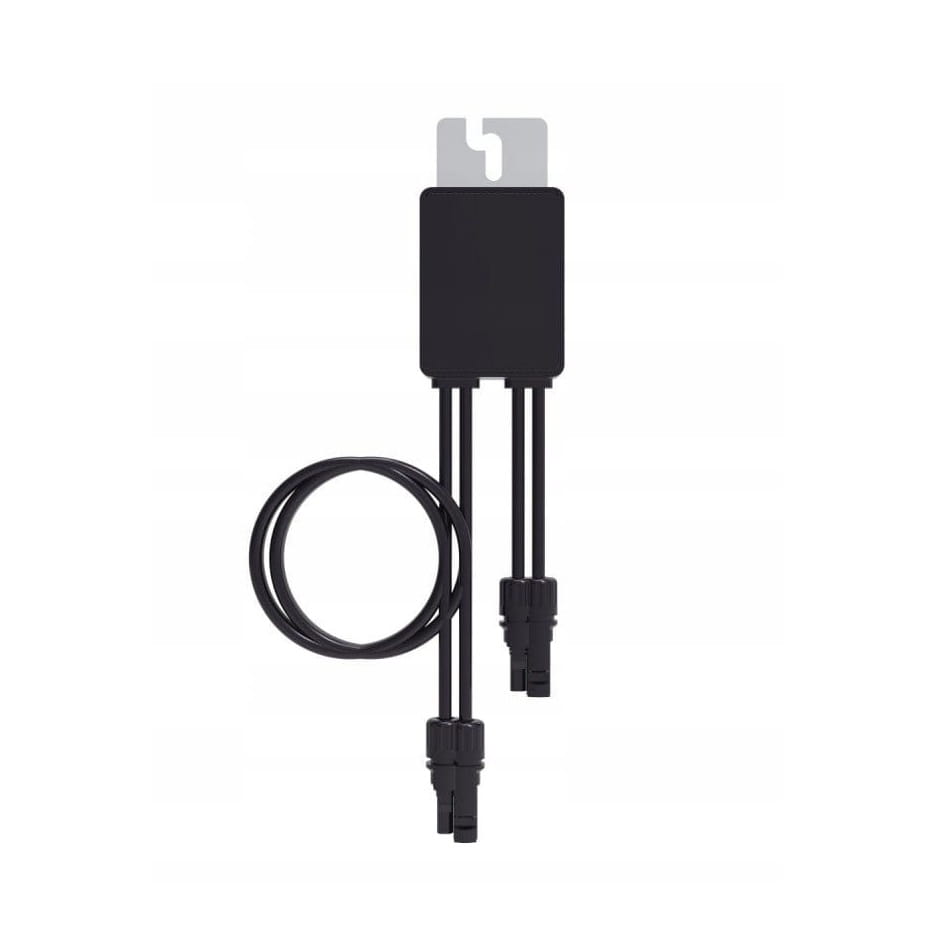

Optimizer PV SAFE DC with MC4 connector 450W Huawei
Optimizer PV SAFE DC 450W Huawei is a device installed on the back of modules in a PV system that helps offset module power drops, such as those caused by shading or unfavorable positioning of parts of the installation.
It works at the level of PV modules, so it can be installed only where there is a problem. The optimizer monitors the maximum power point (MPP) of each module separately, which can increase installation efficiency by up to 30%. The optimizer's input port connects to the PV module, and the device automatically adjusts the input voltage to the optimal value.
Input
Rated DC input power
450 W
Maximum input voltage
80 V
MPPT operating voltage range
10 - 80 V
Maximum short circuit current (Isc)
14.5 A
Maximum efficiency
99.5%
Weighted efficiency
99.0%
Surge protection category
II
Output
Maximum output voltage
80 V
Maximum output current
15 A
Output bypass
Yes
Output voltage when inverter is off
0 V
Output resistance when inverter is turned off
1k ohm ±10%
Communication
Communication method
MBUS
Compliance with the standard
Safety
IEC62109-1 (Safety class II)
RoHS
Yes
| Our Models | 450W Huawei | |||
|---|---|---|---|---|
| Specification | ||||
| Dimensions [mm] | 75 x 140 x 28 | |||
| Weight [kg] | 0.6 | |||
| Mounting parts | Frame mounting bracket / bolt in the shape of a letter | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.15 | |||
| Output connector | MC4 | |||
| Output cable length [m] | 1.3 | |||
| Operating temperature [°C] | -40°C - 85°C5 | |||
| Degree of protection | IP68 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 450 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,15 |
| Output cable length [m] | 1,3 |
| Width [mm] | 140 |
| Length [mm] | 75 |
| Thickness [mm] | 28 |
| Weight [kg] | 0,6 |
