Optimizer PV S500B Solaredge
Description

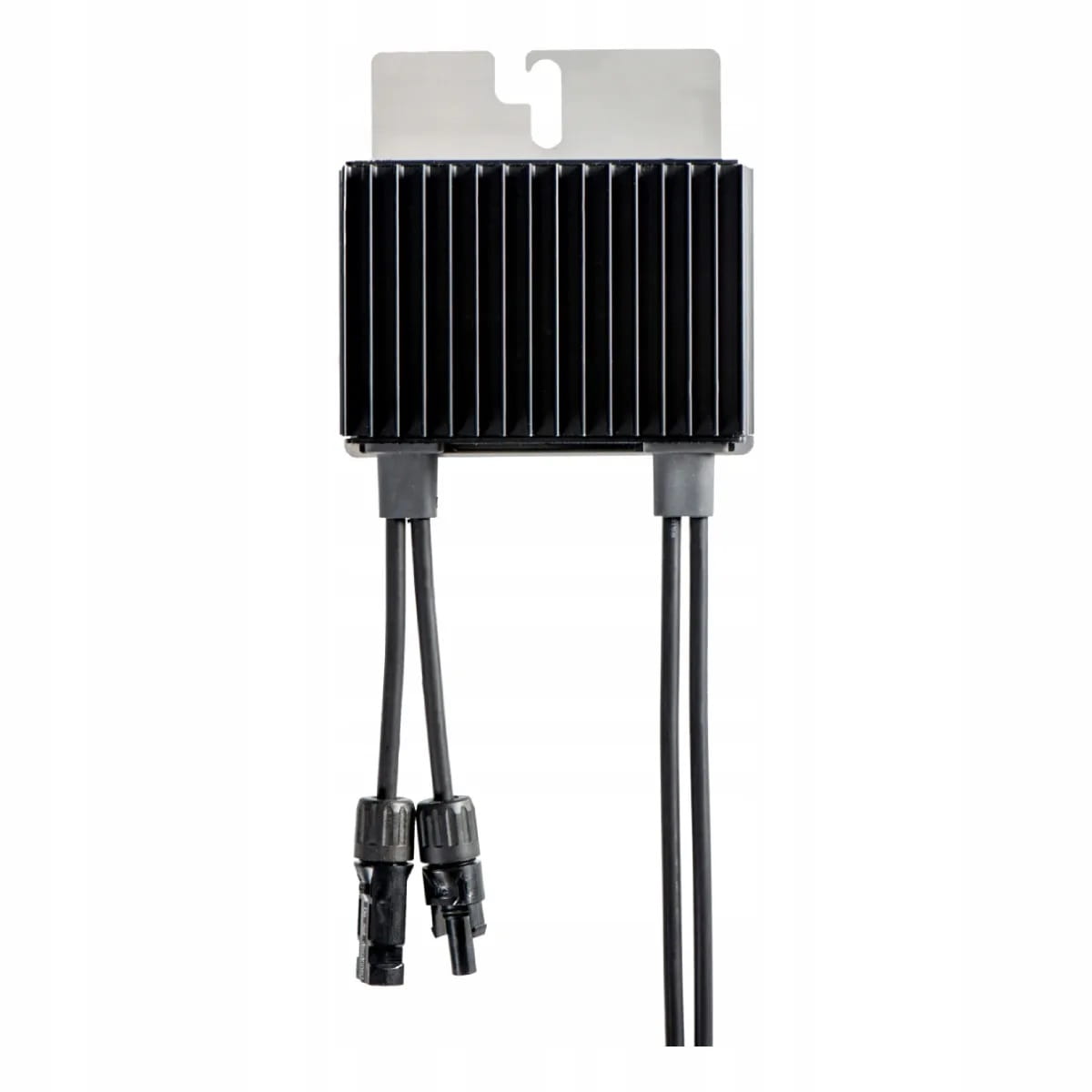

Optimizer PV S500B Solaredge
Optimizer PV S500B Solaredge is an advanced DC/DC converter that connects to any PV module in a PV system, transforming them into smart modules.
By continuously tracking the maximum power point (MPP) of each individual PV module, power optimizers can increase the system's energy production, potentially increasing revenue and reducing payback time.
By attaching power optimizers to each PV module, installers and system maintenance personnel can easily monitor system performance and track, locate and troubleshoot problems with high precision.
The most advanced S-Series power optimizer provides unparalleled energy production and protection for residential projects. With SolarEdge Sense Connect technology and notifications, installation is simplified and operation is safer.
Additional information:
- Increase production at the module level through DC optimization, even under shading or contamination.
- 100% system visibility through module-level monitoring.
- Supports PV modules up to 500Wp, Isc 15A, 126V.
- Key benefits include high efficiency, reduced module malfunction losses, compatibility with various module types, advanced module performance tracking, safety features and 25-year product warranty.
Input
Output during operation
Standby output (the power optimizer is disconnected from the Solaredge inverter or the inverter is turned off)
Compliance with standards
| Our Models | S500B Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions [mm] | 129 x 165 x 45 | |||
| Weight [g] | 790 | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.1 | |||
| Output connector | MC4 | |||
| Output cable length [m] | (+) 2.3, (-) 0.10 | |||
| Operating temperature range [˚C] | From -40 to +85 | |||
| Degree of protection | IP68 | |||
| Relative humidity [%] | 0 – 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 500 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,1 |
| Output cable length [m] | (+) 2.3, (-) 0.10 |
| Width [mm] | 165 |
| Length [mm] | 129 |
| Thickness [mm] | 45 |
| Weight [kg] | 0,79 |
