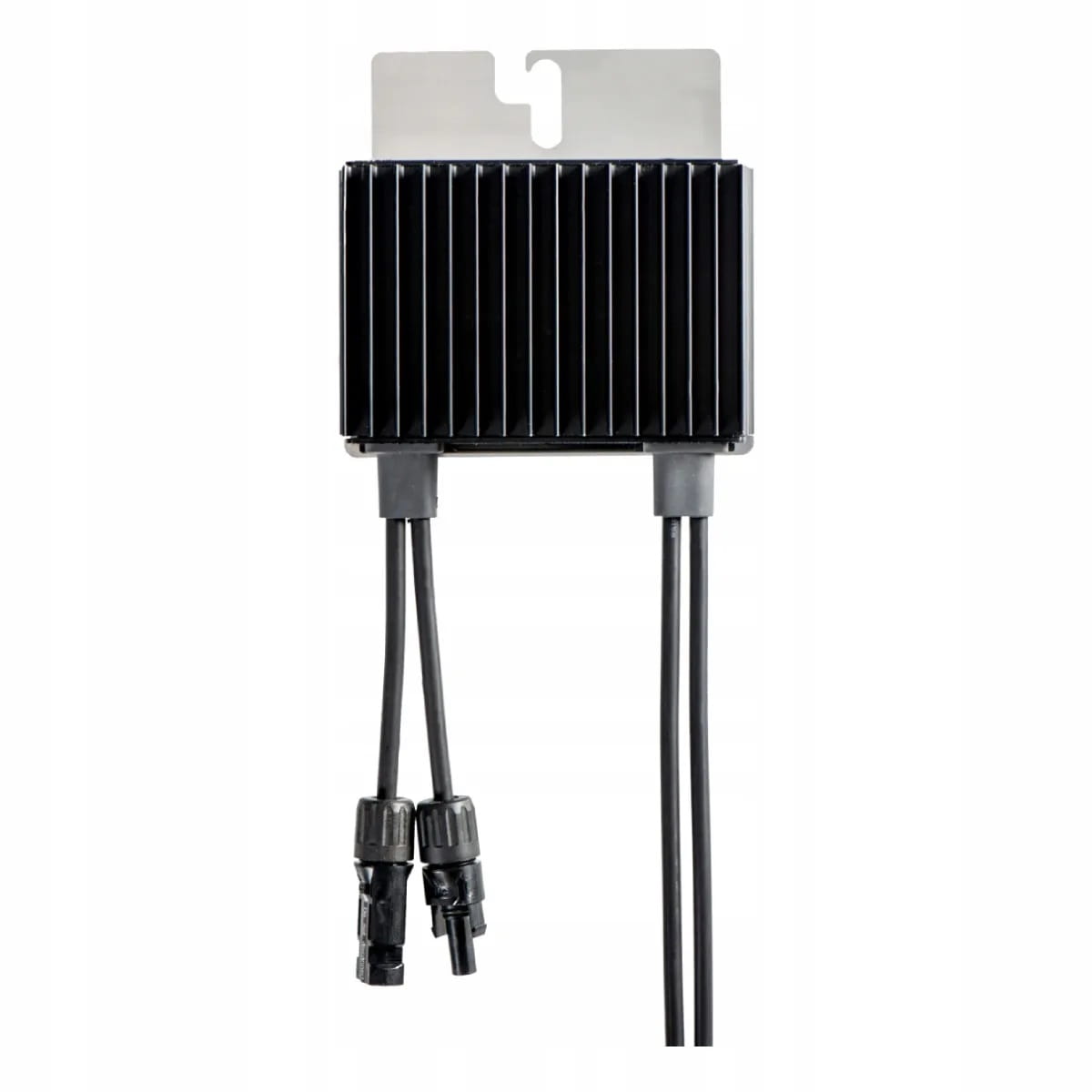

Optimizer PV S440 Solaredge
Availability:
Temporarily unavailable
Weight:
0.72 kg
Description
Optimizer PV S440 Solaredge
Optimizer PV S440 Solaredge increases energy production efficiency by individually tracking the maximum power point (MPPT) for each panel.
This ensures that the circuit voltage remains high, which translates into increased efficiency of the SolarEdge inverter. In addition, the optimizers monitor the efficiency of individual panels, which can be tracked through the SolarEdge monitoring system. Each power optimizer is equipped with SafeDC, which automatically reduces the circuit voltage to a safe level in the event of a grid, inverter or fire outage.
Main features of the TS4-A-O 700W PV optimizer:
- Increased energy production by individually tracking the maximum power point for each panel.
- Designed specifically for use with SolarEdge inverters designed for residential buildings.
- Detects abnormal behavior of the photovoltaic connector, preventing potential safety problems.
- Module-level voltage shutdown for installer and emergency service safety. Highest efficiency (99.5%).
- Reduces any loss due to module inhomogeneity, from manufacturing tolerances to partial shading.
- Faster installation process due to simplified wiring and easy one-screw installation.
- Flexible system design to maximize space utilization.
- Compatible with bifacial modules.
Input
Rated DC input power
440 W
Absolute maximum input voltage (Voc)
60 Vdc
MPPT operating range
8 – 60 Vdc
Maximum short circuit current (Isc)
14.5 Adc
Maximum efficiency
99.5 %
Weighted efficiency
98.6 %
Overvoltage category
II
Output during operation
Maximum output current
15 Adc
Maximum output voltage
60 Vdc
Standby output (power optimizer disconnected from Solaredge inverter or inverter is off)
Safe voltage of the optimizer
1 ± 0.1 Vdc
Compliance with standards
Electromagnetic compatibility
FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011
Safety
IEC62109-1 (class II safety), UL1741
Plastic
UL94 V-0, resistant to UV radiation
RoHS
Yes
Fire safety
VDE-AR-E 2100-712:2018-12
| Our Models | S440 Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions (Width / Length / Height) [mm] | 129 x 155 x 30 | |||
| Weight [g] | 720 | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.1 | |||
| Output connector | MC4 | |||
| Output cable length [m] | (+) 2.3, (-) 0.10 | |||
| Operating temperature range [˚C] | From -40 to +85 | |||
| Degree of protection | IP68 | |||
| Relative humidity [%] | 0 – 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 440 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,1 |
| Output cable length [m] | (+) 2.3, (-) 0.10 |
| Width [mm] | 155 |
| Length [mm] | 129 |
| Thickness [mm] | 30 |
| Weight [kg] | 0,72 |
