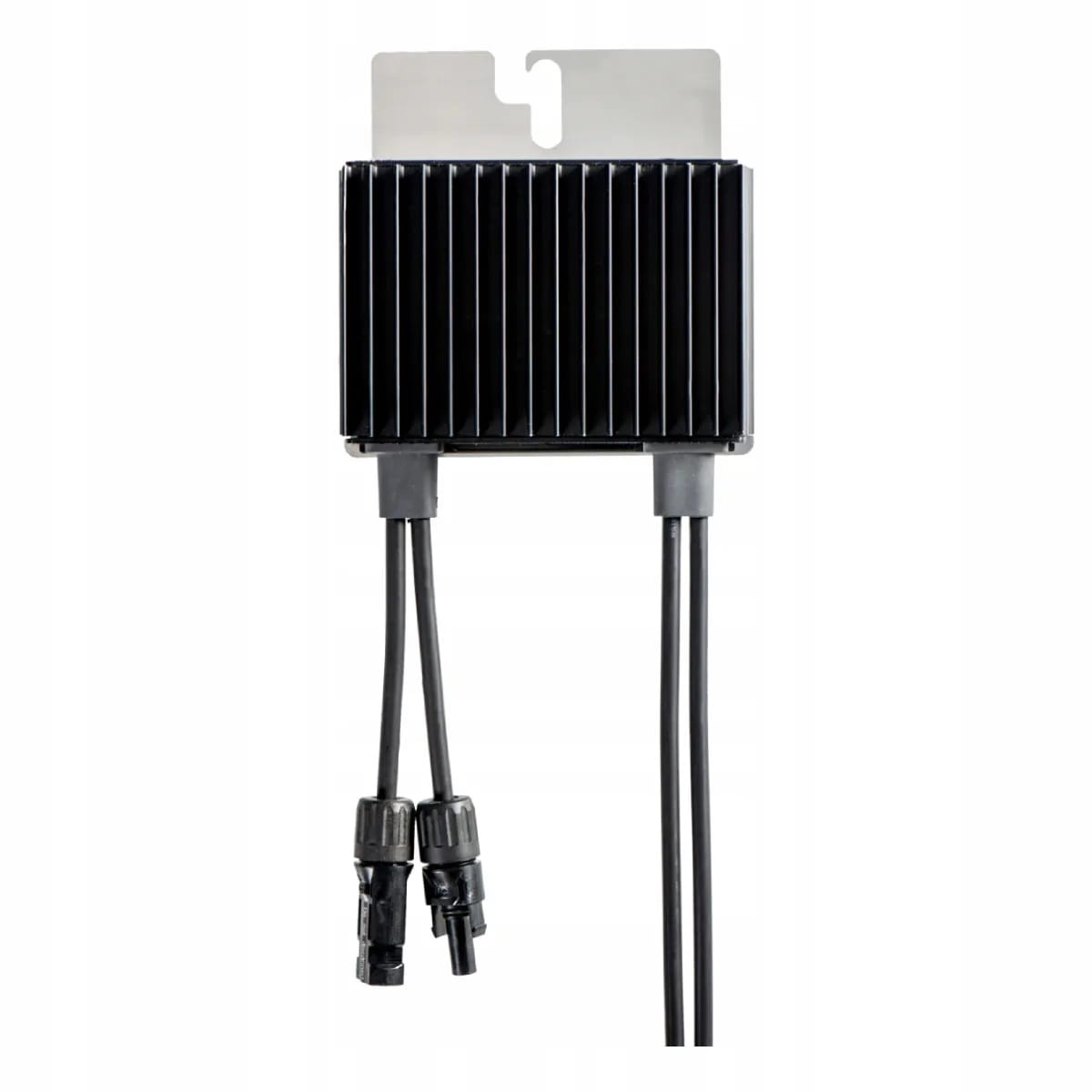

Optimizer PV P1100 with 2.1M cable length Solaredge
Availability:
In stock (almost sold out)
Delivered within:
10 Business days
Weight:
1.064 kg
Description
Optimizer PV P1100 with 2.1M cable length Solaredge
Optimizer PV P1100 cable length 2.1M Solaredge improves energy production efficiency by individually tracking the maximum power point (MPPT) for each panel.
This makes it possible to maintain a high voltage in the circuit, which translates into increased efficiency of the Solaredge inverter. The optimizers monitor the efficiency of individual panels, and this information can be tracked through the Solaredge monitoring system. Each power optimizer is equipped with SafeDC, which automatically reduces the circuit voltage to a safe level in the event of a grid, inverter or fire outage.
In addition, features of the P950 Solaredge Optimizer include:
- Specially designed to work with SolarEdge inverters.
- Highest efficiency (99.5%).
- Reduced system balancing costs due to reduced wiring, fuses and installation boxes, and the ability to use longer strings.
- Quick installation with a single screw.
- Advanced maintenance with module-level monitoring.
- Module-level voltage shutdown for installer and firefighter safety.
- Can be used with two photovoltaic modules connected in series or parallel.
Input
Rated DC input power
1100 W
Connection method
One input for modules connected in series
Absolute maximum input voltage (Voc at lowest temperature)
125 Vdc
MPPT operating range
12.5 – 105 Vdc
Maximum short-circuit current per input (Isc)
14.1 Adc
Maximum efficiency
99.5 %
Weighted efficiency
98.6 %
Overvoltage category
II
Output power during operation (power optimizer connected to a running Solaredge inverter)
Maximum output current
18 Adc
Maximum output voltage
80 Vdc
Power output in standby mode (power optimizer disconnected from Solaredge inverter or Solaredge inverter off)
Safe voltage of the optimizer
1 ± 0.1 Vdc
Compliance with standards
Electromagnetic compatibility
FCC Part 15, IEC61000-6-2, IEC61000-6-3 – Class B, EN55011
Safety
IEC62109-1 (Safety class II)
RoHS
Yes
Fire safety
VDE-AR-E2100-712:2013-05
| Our Models | P1100 cable length 2.1M Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions [mm] | 129 x 162 x 59 | |||
| Weight [g] | 1064 | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.16 / 1.3 | |||
| Output connector | MC4 | |||
| Output cable length [m] | 2.4 | |||
| Operating temperature range [ºC] | From -40 to +85 | |||
| Degree of protection | IP68/NEMA6P | |||
| Relative humidity [%] | 0 – 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 1100 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,16 / 1,3 |
| Output cable length [m] | 2,4 |
| Width [mm] | 162 |
| Length [mm] | 129 |
| Thickness [mm] | 59 |
| Weight [kg] | 1,064 |
