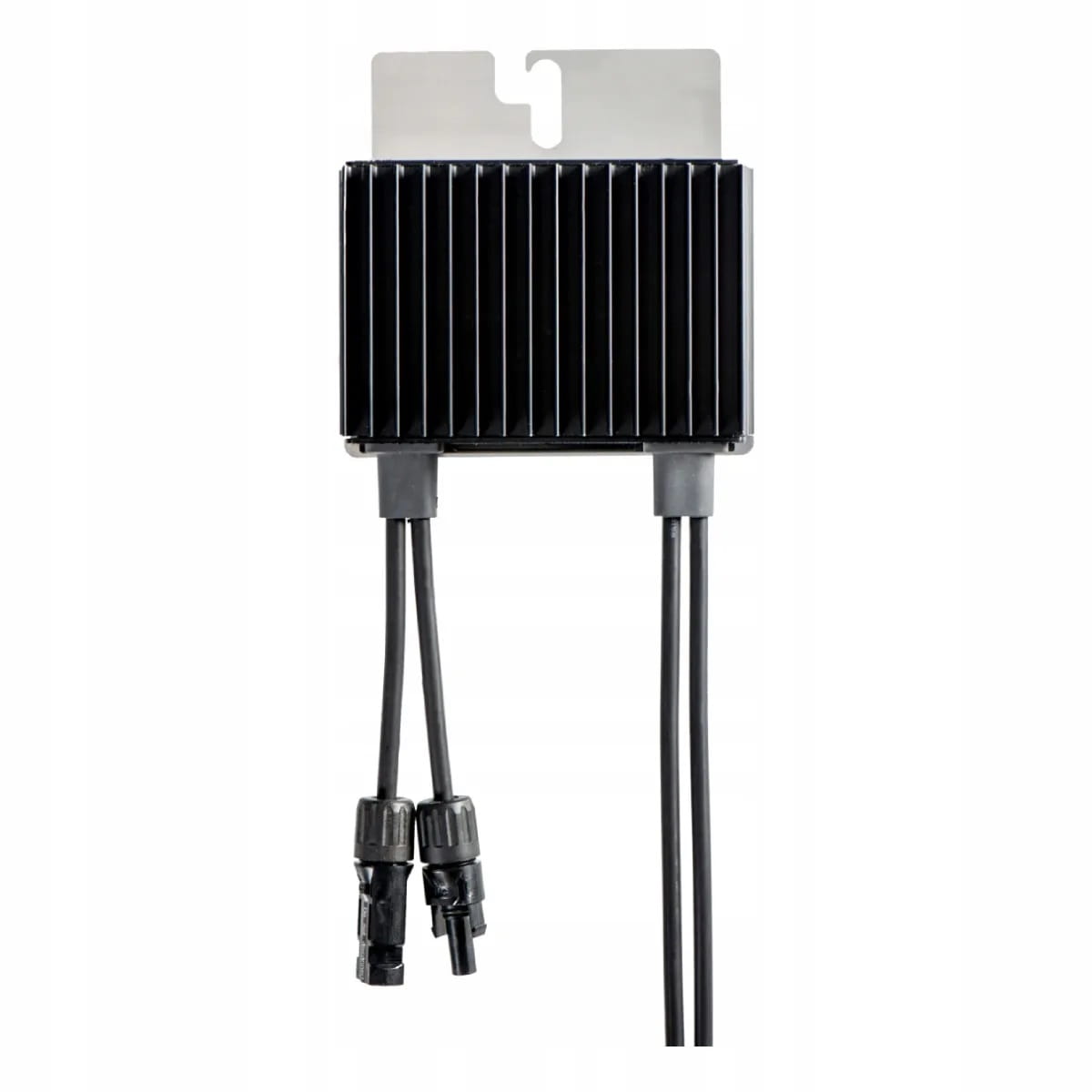

Optimizer PV P1100 with 1.2M cable length Solaredge
Availability:
In stock (almost sold out)
Delivered within:
10 Business days
Weight:
1.064 kg
Description
Optimizer PV P1100 with 1.2M cable length Solaredge
Optmizer PV P1100 cable length 1.2M Solaredge increased power generation efficiency through individual maximum power point tracking (MPPT) for each panel.
This makes it possible to maintain a high voltage in the circuit, which translates into increased efficiency of the Solaredge inverter. The optimizers monitor the efficiency of individual panels, and this information can be tracked through the Solaredge monitoring system.
Each power optimizer is equipped with SafeDC, which automatically reduces the circuit voltage to a safe level in the event of a grid, inverter or fire outage.
Input
Nominal input power
1100
Connection type
Single input for serial connection of modules
Maximum input voltage (Voc lowest temperature)
125
MPPT voltage range
12.5 - 105
Maximum input current per input (Isc)
14.1
Maximum efficiency
99.5
Weighted efficiency
98.6
Overvoltage category
II
Output during operation (the power optimizer is connected to an operating Solaredge inverter)
Maximum output current
18
Maximum output voltage
80
Standby output (the power optimizer is disconnected from the Solaredge inverter or the inverter is turned off)
Safe voltage of the optimizer
1 ± 0.1
Compliance with standards
EMC
FCC Part 15 IEC61000-6-2, IEC61000-6-3 - Class B, EN 55011 - Class A
Safety
IEC62109-1 (class II safety)
RoHS
Yes
Fire protection
VDE-AR-E 2100-712:2013-05
| Our Models | P1100 cable length 1.2M Solaredge | |||
|---|---|---|---|---|
| Specification | ||||
| Maximum allowable system voltage [Vdc] | 1000 | |||
| Dimensions [mm] | 129 x 162 x 59 | |||
| Weight [g] | 1064 | |||
| Input connector | MC4 | |||
| Input cable length [m] | 0.16 / 0.52, 0.9 / 2.95 | |||
| Output connector | MC4 | |||
| Output cable length [m] | Horizontal orientation: 2.4 | |||
| Operating temperature range [˚C] | from -40 to +85 / from -40 to +185 | |||
| Degree of protection | IP68 / NEMA6P | |||
| Relative humidity [%] | 0 - 100 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 1100 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,16 / 0,52, 0,9 / 2,95 |
| Output cable length [m] | Horizontal orientation: 2.4 |
| Width [mm] | 162 |
| Length [mm] | 129 |
| Thickness [mm] | 59 |
| Weight [kg] | 1,064 |
