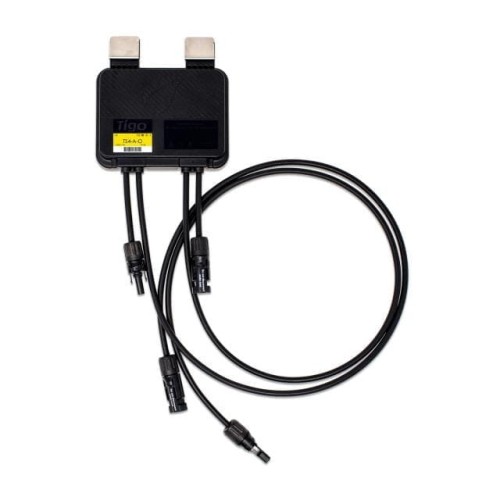

Optimizer PV DO 700W TIGO
The Optimizer PV DO 700W TIGO is an efficient solution for increasing the efficiency of photovoltaic panels.
With a maximum current of 15A and a power output of 700W, it ensures optimal use of solar energy. Compatible with existing CCAs and TAPs, and compatible with older modules. Easy installation, high reliability (IP68) and IEC certified for quality.
General data
Maximum total input voltage (VOC at lowest temperature)
80 V
Voltage range
16 – 80 V
Maximum current
15 A
Cable length (input/output)
0.12/1.2 m (standard), 0.62/1.2 m (optional)
Connectors
MC4, EVO2
Recommended fuse rating
30 A
Material
Polycarbonate, aluminum
Usage
External
Certifications
CE & RoHS, TÜV
| Our Models | 700W TIGO | |||
|---|---|---|---|---|
| Specification | ||||
| Operating temperature range [°C] | from -40 to +70 | |||
| Protection class for outdoor operation | IP68 | |||
| Maximum height above sea level [m] | 2000 | |||
| Dimensions [mm] | 138.4 x 139.7 x 22.9 | |||
| Weight [g] | 520 | |||
| Type of communication | Wireless | |||
| Maximum power [W] | 700 | |||
Available Configuration
Files to download:
Technical data
| Nominal DC input power [W] | 700 |
| Input connector | MC4, EVO2 |
| Output connector | MC4, EVO2 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0.12 / 0.62 option |
| Output cable length [m] | 1,2 |
| Width [mm] | 139,7 |
| Length [mm] | 138,4 |
| Thickness [mm] | 22,9 |
| Weight [kg] | 0,52 |
