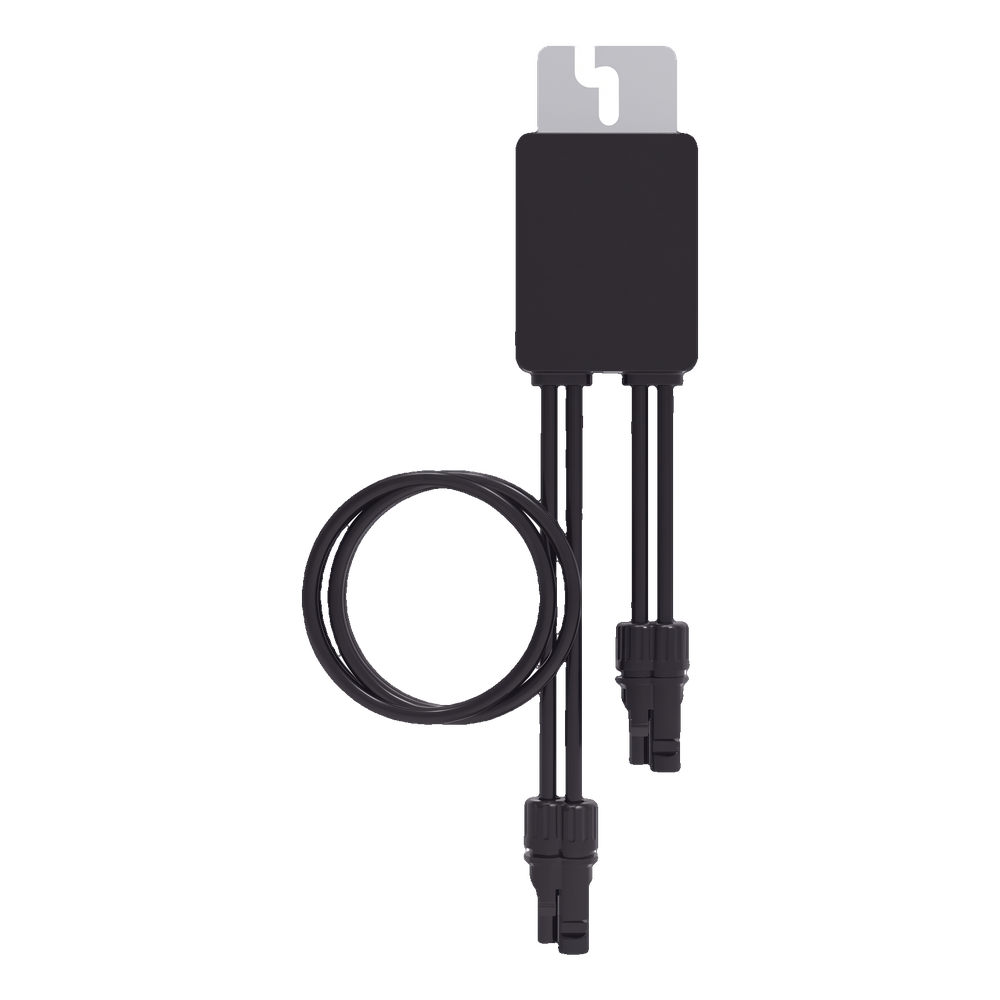

Huawei SUN2000-600W-P – PV SAFE DC 600W optimiser with MC4 connectors
Description
Huawei SUN2000-600W-P – PV SAFE DC 600W optimiser with MC4 connectors
Huawei SUN2000-600W-P is an intelligent photovoltaic optimiser from the PV SAFE DC series, designed for mounting on the rear wall of PV modules. The device performs independent maximum power point tracking (MPPT) at each module level, which eliminates losses resulting from partial shading, dirt, or differences between panels within a single string. The optimiser also provides a module-level shutdown function — once the inverter is disconnected, the output voltage drops to 0 V and the output resistance is 1 kΩ ±10%, which significantly increases safety for service technicians and firefighters. Communication with the inverter takes place via the MBUS bus, enabling monitoring and management of each module from the Huawei FusionSolar system. The compact design with IP68 protection rating and a wide operating temperature range guarantees reliability in demanding outdoor conditions.
Key benefits for the installer
- Individual MPPT on each module — maximising yield even with uneven shading of the installation
- PV SAFE DC function: output voltage drops to 0 V once the inverter is switched off, ensuring safety during servicing and meeting NEC 2017 / IEC 60364-7-712 requirements
- Maximum efficiency of 99.5% — minimal DC-DC conversion losses
- MC4 connectors at input and output plus an included mounting bracket shorten installation time
- IP68 protection and a temperature range from −40 °C to +85 °C — operation in extreme conditions without additional covers
Files to download:
Technical data
| Nominal DC input power [W] | 600 |
| Input connector | MC4 |
| Output connector | MC4 |
| Operating temperature [°C] | -40°C - 85 |
| Degree of protection | IP68 |
| Input cable length [m] | 0,15 |
| Output cable length [m] | 1,3 |
| Width [mm] | 140 |
| Length [mm] | 75 |
| Thickness [mm] | 28 |
| Weight [kg] | 0,6 |
