Glass holder 6-10.76 mm 50x40x26 mm pin zamak flat system anthracite
Description

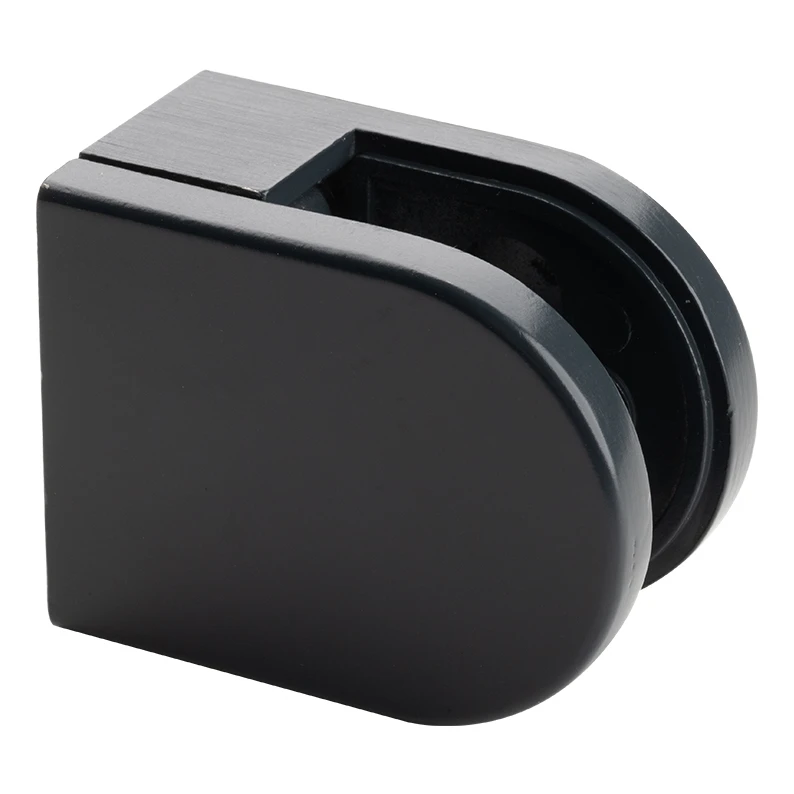

Glass Clamp 50×40 mm Anthracite – Zamak, Flat System, Glass 6–10.76 mm
Glass clamp in matt anthracite finish, designed for mounting on flat surfaces. Made from zamak — a zinc alloy with excellent mechanical properties and high corrosion resistance. Finished with a wet spray coating, providing a durable, aesthetically pleasing surface with anti-corrosion properties. This makes the clamp suitable for both indoor and outdoor use.
The clamp accommodates glass thicknesses from 6 to 10.76 mm, making it compatible with a wide range of panels — from single panes to laminated glass. It is fixed by screwing directly into the substrate. The set includes a securing pin to prevent the glass panel from accidentally sliding out. Rubber spacers are required for correct installation and must be purchased separately.

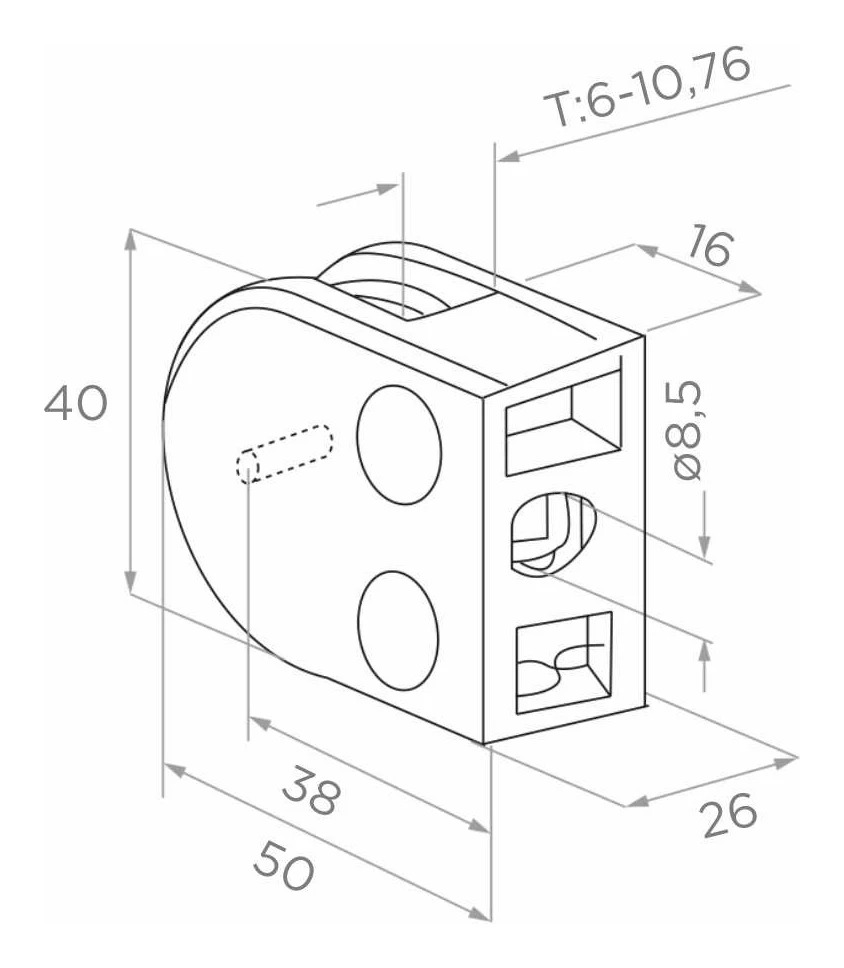

Dimensions and Technical Specification
- Length (L): 50 mm
- Height (H): 40 mm
- Width: 26 mm
- Glass thickness (T): 6–10.76 mm
- Mounting hole diameter: Ø8.5 mm
- Distance from mounting surface to slot axis: 16 mm
- Distance from mounting surface to side hole axis: 38 mm
- Material: zamak (zinc alloy)
- Finish: wet spray coating
- Colour: matt anthracite
- Mounting type: flat surface (screw-in)
- Weight: 0.18 kg
- Included: securing pin
- EAN: 5903313204446
Installation and Applications

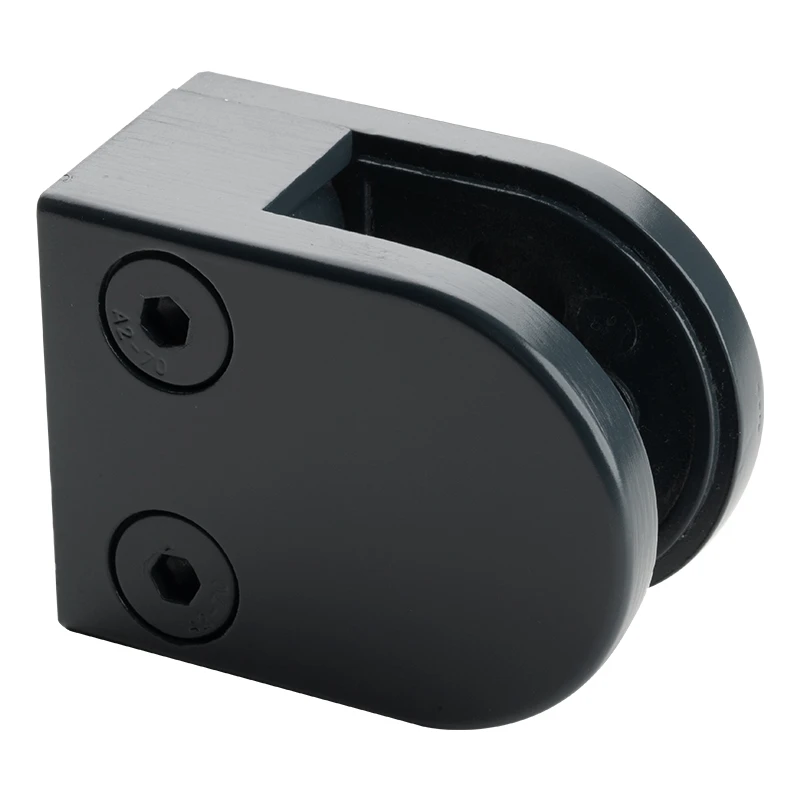

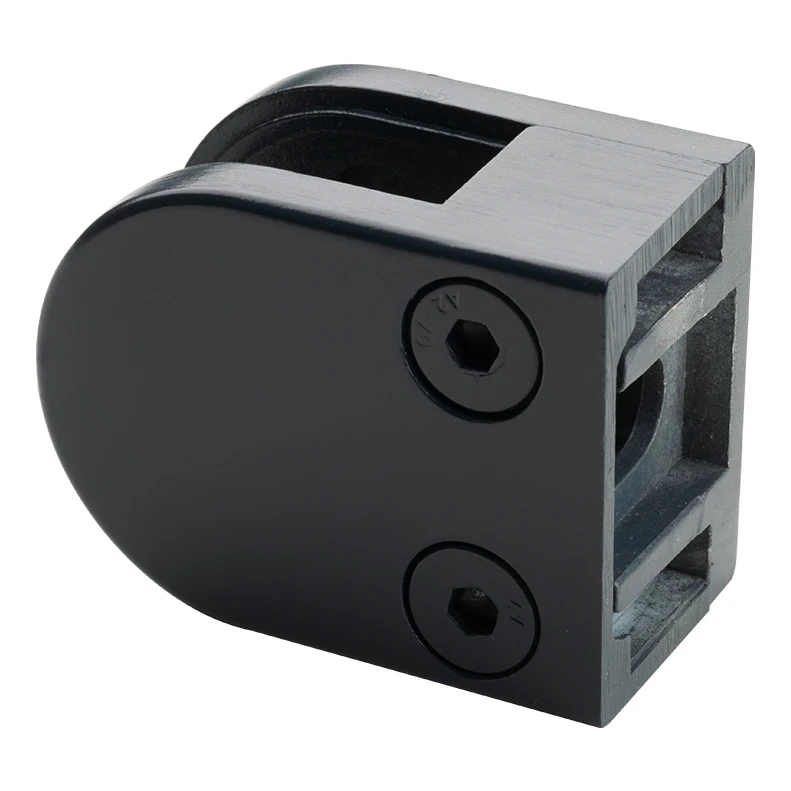

The clamp features two Allen screw holes visible from the mounting side, enabling precise adjustment of the clamping pressure on the glass. Its compact dimensions (50×40×26 mm) allow for discreet securing of glass panels in balustrades, partitions, glazed enclosures and other structures where stable and aesthetically pleasing retention of a glass panel is required. The anthracite finish complements contemporary interiors and exteriors in both commercial and residential settings.
Why Choose This Clamp?
- Zamak — a robust zinc alloy with high resistance to mechanical loads
- Anti-corrosion coating — wet spray finish protects against weathering
- Versatility — compatible with glass from 6 to 10.76 mm thick
- Securing pin included — additional protection against the panel sliding out
- Flat system — straightforward installation on smooth walls, posts and profiles
Technical data
| Finish | Powder-coated anthracite |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
| Material | Zamak |
