Glass holder 6-10.76 mm 50x40x26 mm pin AISI 304 flat system polished
Description

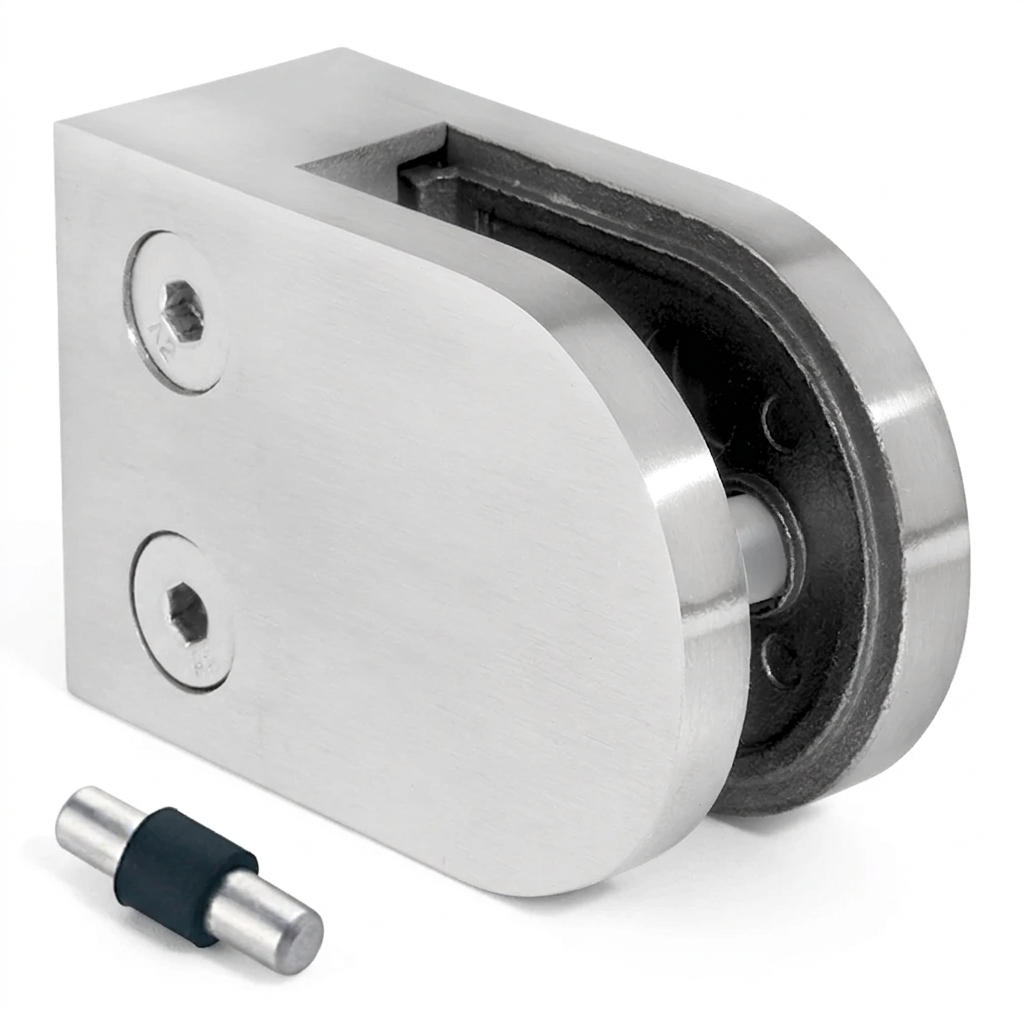

Glass Clamp 50x40 mm AISI 304 Polished – Glass 6–10.76 mm
A stainless steel glass clamp in AISI 304 with a polished (mirror) finish — a robust and elegant solution for mounting glass panels with a thickness of 6 to 10.76 mm. Designed for fixing to flat surfaces by screwing. The set includes a securing pin that prevents the glass from accidentally sliding out of the clamp.
Construction and Material
The clamp body is made from AISI 304 stainless steel — a grade resistant to corrosion, making it suitable for both indoor and outdoor use. The polished (mirror) finish gives it an elegant appearance that complements modern glass-based interior and architectural designs. An internal rubber gasket ensures a secure grip on the glass without risk of scratching. Two Allen screws allow precise adjustment of the clamping force directly on site — without the need to remove the entire clamp, significantly speeding up installation and any on-site adjustments.

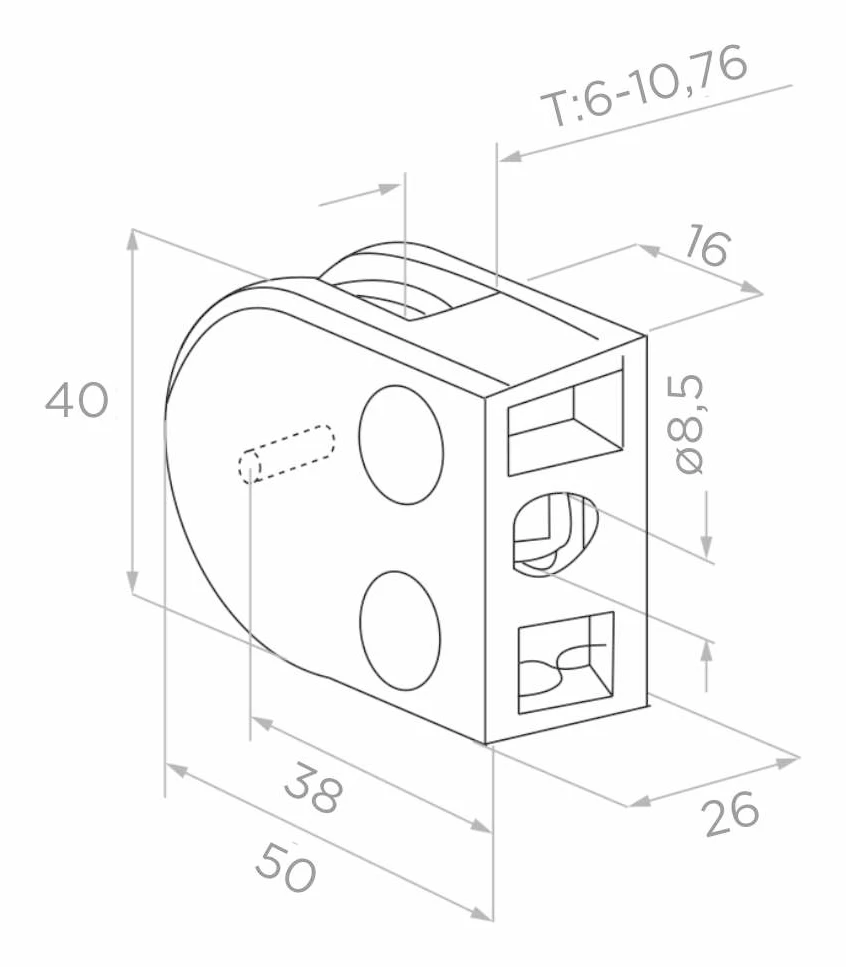

Dimensions and Technical Specifications
- Length (L): 50 mm
- Height (H): 40 mm
- Width (depth): 26 mm
- Distance of mounting axes from base: 38 mm and 16 mm
- Mounting hole diameter: ø8.5 mm
- Glass thickness range (T): 6–10.76 mm
- Material: AISI 304 stainless steel
- Surface finish: polished (mirror)
- Mounting system: flat surface (screw-fixed)
- Weight: 0.17 kg
- Volume: 52 cm³
- EAN: 5901289670487
Installation Guidelines
The clamp requires the use of rubber gaskets — the thickness should be selected to match the glass being installed. Gaskets are available as separate accessories. The Allen screws allow adjustment of the clamping force directly at the installation point, without the need to remove the clamp. The securing pin included in the set provides additional fixing reliability.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
