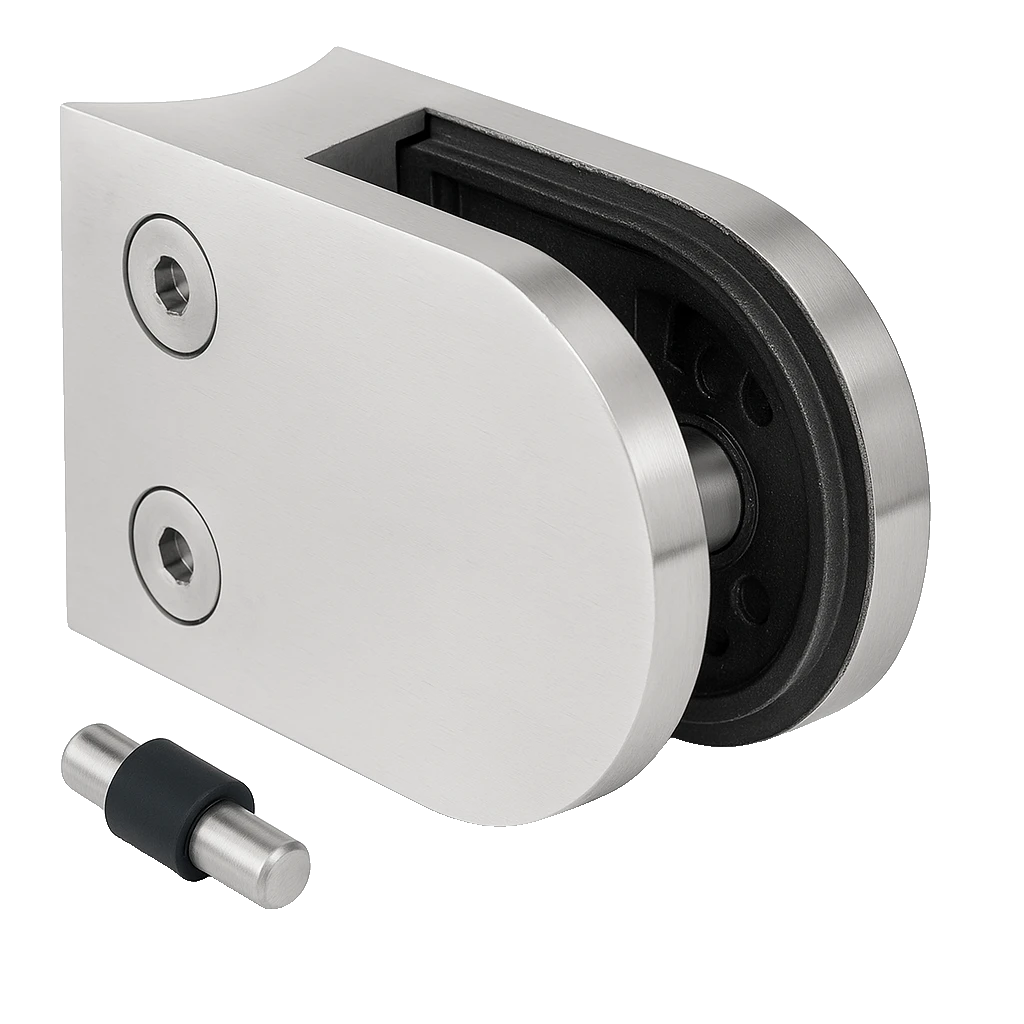

Glass holder 50x40x26 mm with pin, glass 6-10.76 mm, AISI 304, system 42.4 mm, satin
Description
Point Glass Clamp fi 50 AISI 304 – M10 Thread, Satin, Glass 8–17.52 mm
Point glass clamp fi 50 mm in AISI 304 stainless steel with a satin finish — reliable fixing for glass panes from 8 to 17.52 mm thick to flat surfaces. The fitting includes a threaded M10 standoff, enabling fast and secure installation without the need for additional adapters. An ideal solution for companies working on glass balustrade, glazed enclosure and fencing projects.
Construction and Material
The clamp is manufactured from AISI 304 stainless steel — a grade with high corrosion resistance, proven in both indoor and outdoor applications. The satin surface finish gives the fitting an elegant, matt appearance that complements contemporary architectural designs. Inside the clamp, a rubber gasket protects the glass from scratching and ensures even distribution of pressure. The set includes a threaded M10×50 mm standoff for direct mounting to a flat surface — wall, post or steel structure.

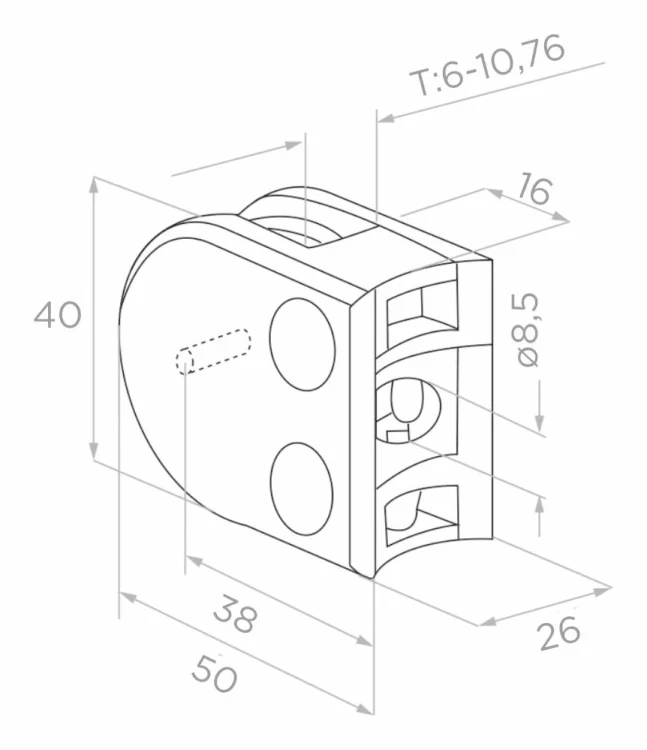

Dimensions and Technical Specifications
- Material: AISI 304 stainless steel
- Finish: satin
- Clamp diameter: fi 50 mm
- Height: 40 mm
- Overall width: 50 mm
- Depth: 26 mm
- Internal width (base): 38 mm
- Glass slot width: 16 mm
- Mounting hole diameter: o 8.5 mm
- Glass thickness: 8–17.52 mm
- Standoff thread: M10
- Standoff length: 50 mm
- Mounting system: flat (for flat surfaces)
- Fixing method: screw-in (threaded standoff)
- Weight: 0.295 kg
- EAN: 5901289670449
Applications
The clamp is designed for fixing toughened and laminated glass panes in glass balustrade systems, interior glazed enclosures, fencing and glass partitions. Thanks to its flat surface mounting system, it is well suited for fixing to concrete and masonry walls, rectangular steel posts and aluminium profiles. The universal glass thickness range of 8–17.52 mm means it can be used with both single toughened panes and VSG/laminated composite units — significantly reducing the number of stock variants required on site.
Additional Information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the fitting
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
