Glass holder 50x40x26 mm with pin, glass 6-10.76 mm, AISI 304, system 42.4, polished
Description

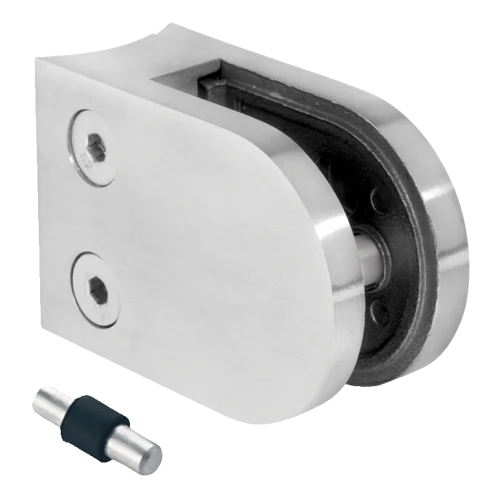

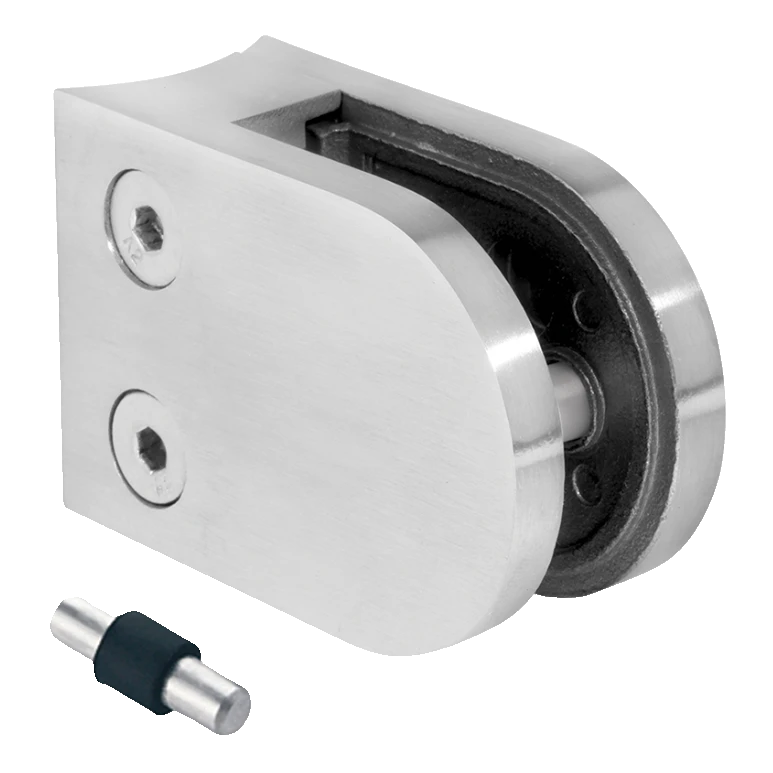

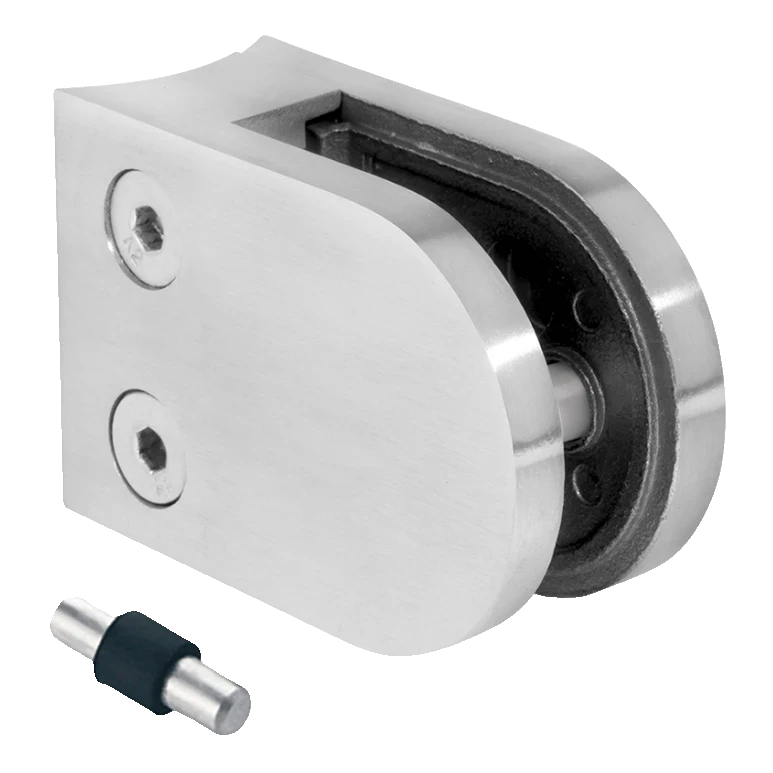

Glass Clamp 50x40 mm in Stainless Steel AISI 304 – Tube 42.4 mm, Polished
Stainless steel AISI 304 glass clamp with a polished (mirror) finish, designed for mounting glass panels with a thickness of 6 to 10.76 mm onto tubes with a diameter of 42.4 mm. The compact design, supplied with a securing pin, ensures reliable and aesthetically pleasing fixing of glass panels in balustrades, conservatories and partitions.
The clamp is supplied with a securing pin that prevents the glass panel from accidentally sliding out. Installation is carried out by screwing the clamp directly onto the support tube — no welding or additional adapters are required. Internal rubber inserts protect the glass edges from scratching and compensate for thickness tolerances within the range of 6–10.76 mm.
The polished mirror-finish surface gives the balustrade an elegant, contemporary appearance and is easy to keep clean — resulting in greater satisfaction for end customers.
Applications

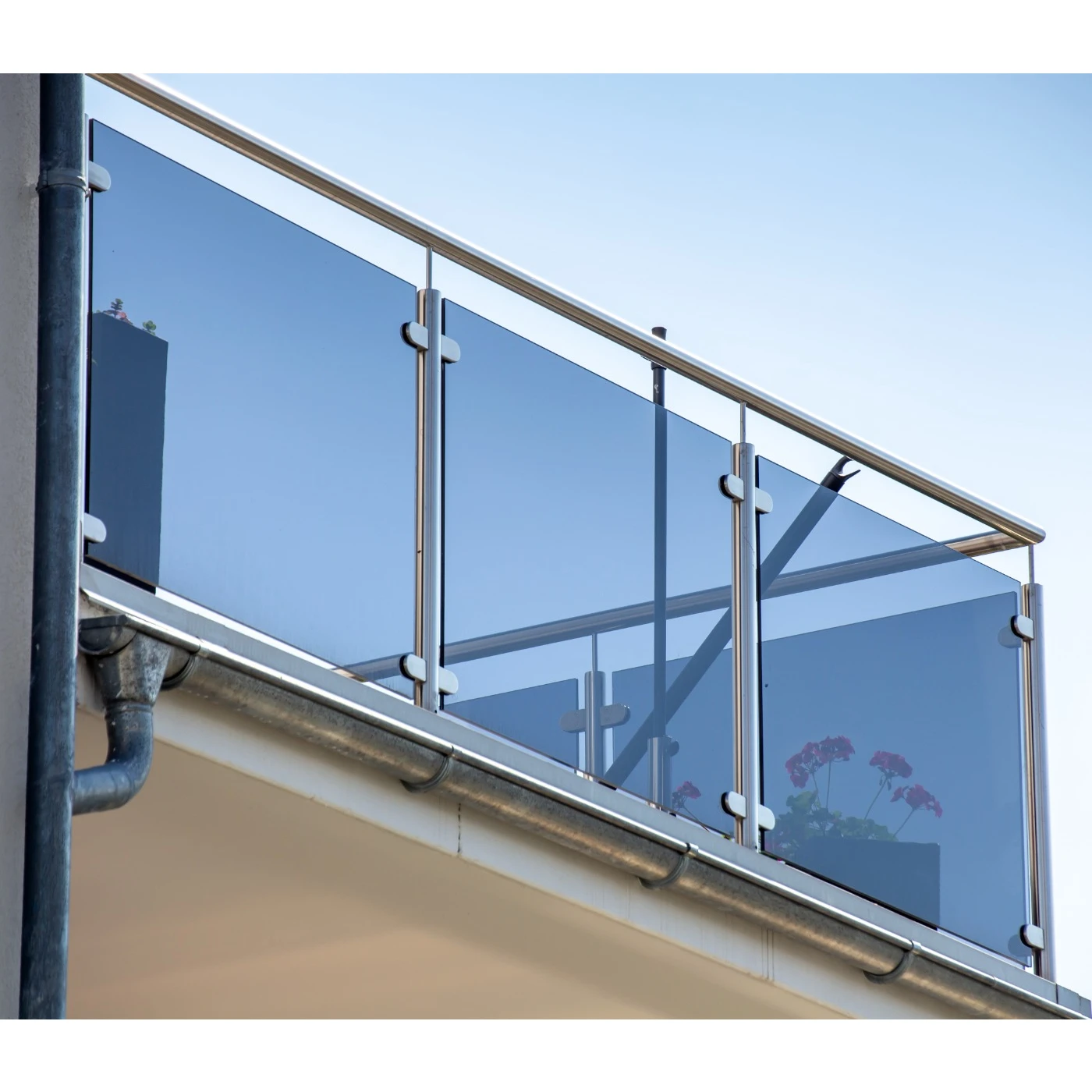

The clamp is suitable wherever secure and attractive glass fixing to tubular structures is required — balcony balustrades, interior staircases, terraces, conservatories and partitions in commercial premises. The system based on a 42.4 mm tube is one of the most widely used standards in the balustrade industry, making it straightforward to select compatible components.

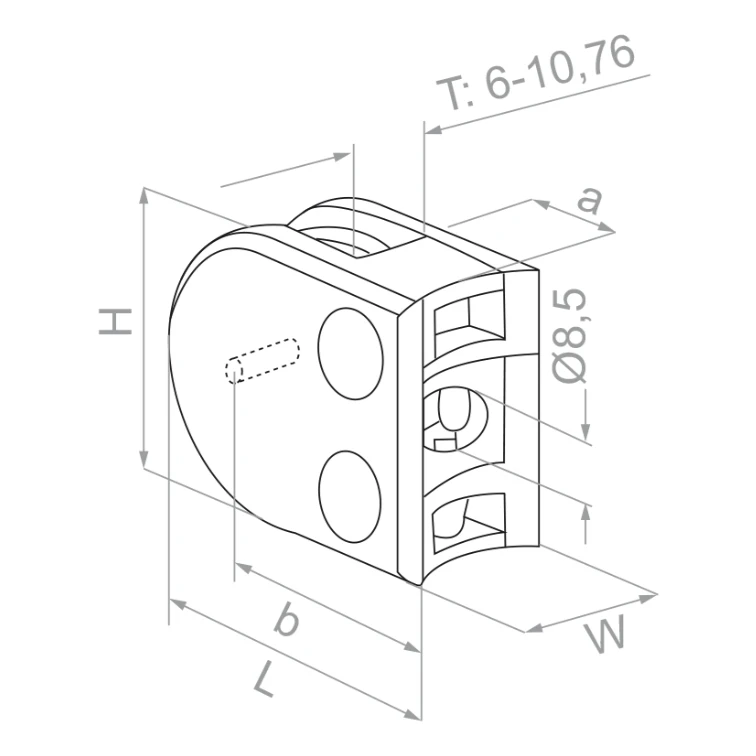

Technical Specifications
- Length (L): 50 mm
- Height (H): 40 mm
- Width (W): 26 mm
- Glass thickness (T): 6–10.76 mm
- Mounting hole diameter: O 8.5 mm
- Compatibility: tube diameter 42.4 mm
- Material: stainless steel AISI 304
- Finish: polished / mirror
- Weight: 0.18 kg
- Included: securing pin
Additional Information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
Safety
Shipping costs
The price does not include any possible payment costs
Related products

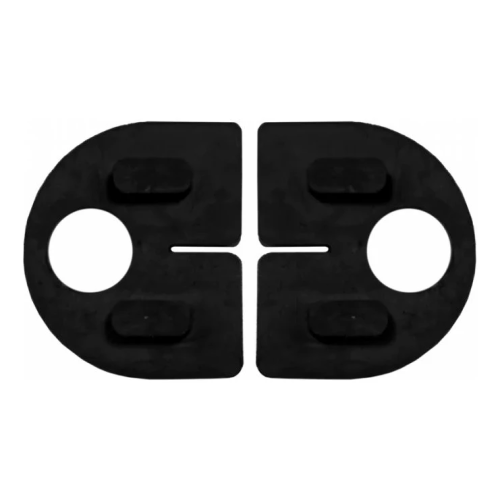

Pressure rubber 6mm for 50D1 brackets

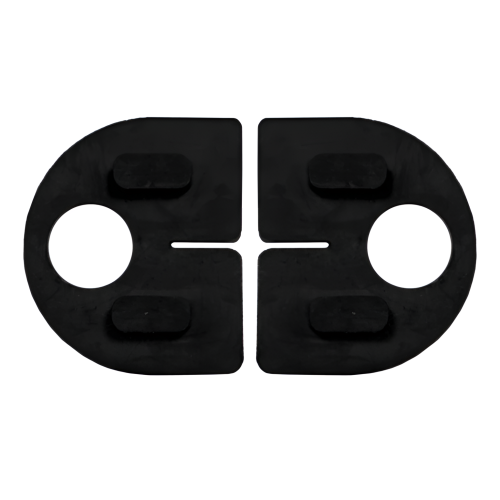

Pressure rubber 8.76mm for 50D1 clamps

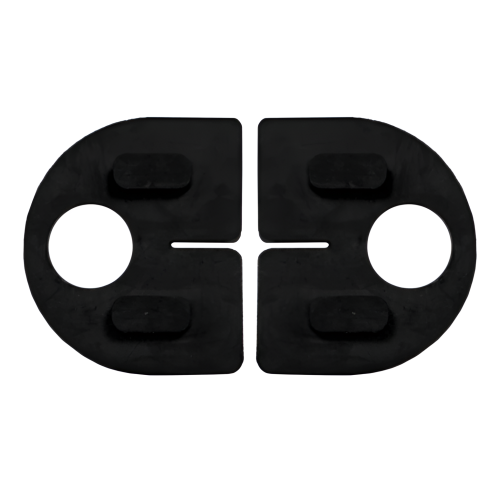

Pressure rubber 10mm for 50D1 clamps

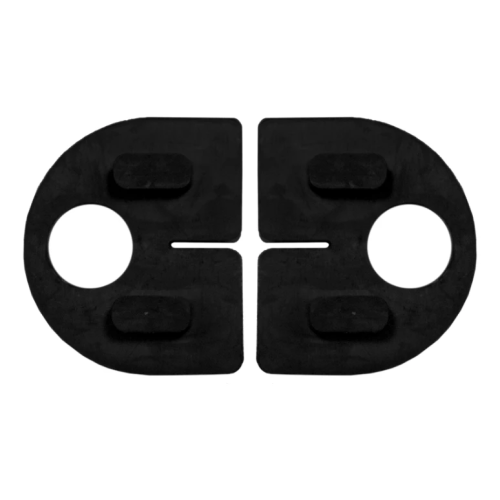

Pressure Rubber 8mm for 50D1 Clamps
