Glass holder 50x40x26 mm pin glass 6-10.76 mm AISI 316 flat system satin
Description
Glass Clamp 50x40 mm AISI 316 Satin – Flat System, Glass 6–10.76 mm

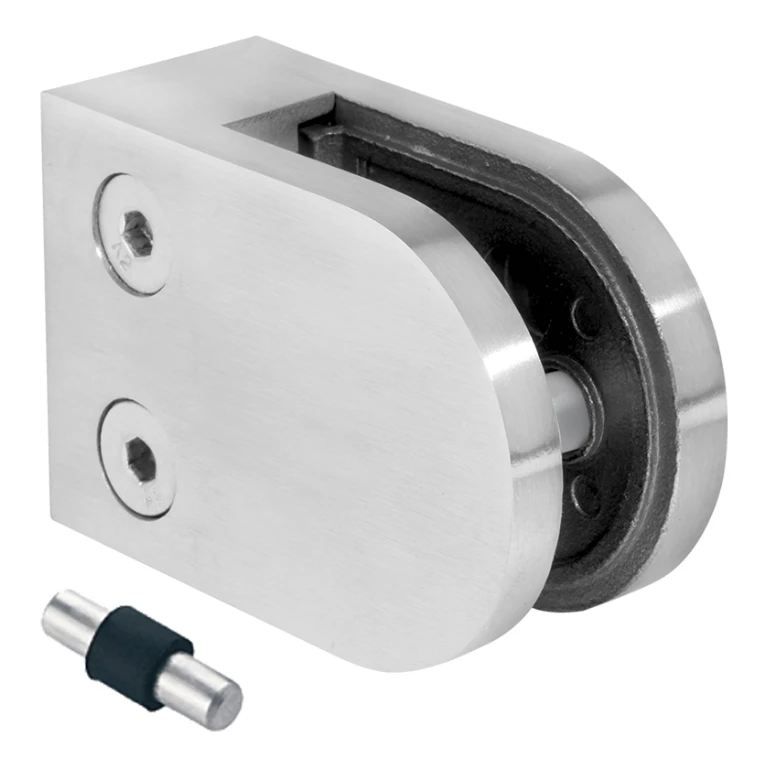

Glass clamp 50×40×26 mm in AISI 316 stainless steel with a satin finish — a reliable solution for mounting glass panels on flat surfaces. Designed for professional applications in balustrades, screens and glass enclosures where high corrosion resistance and a sleek, modern appearance are essential.
The clamp is designed for flat systems — mounted directly to posts or profiles with a flat surface by screwing in place. The set includes a securing pin that prevents the glass from accidentally sliding out, significantly improving the safety of the entire structure. Two Allen screws allow precise adjustment of the glass clamping pressure without removing the clamp — a considerable advantage during installation and any on-site adjustments.
AISI 316 stainless steel (acid-resistant grade) provides excellent resistance to weathering, moisture and marine environments, making the clamp suitable for both indoor and outdoor use. The satin surface finish gives the fitting an elegant, matt appearance while effectively concealing minor surface scratches from everyday use.

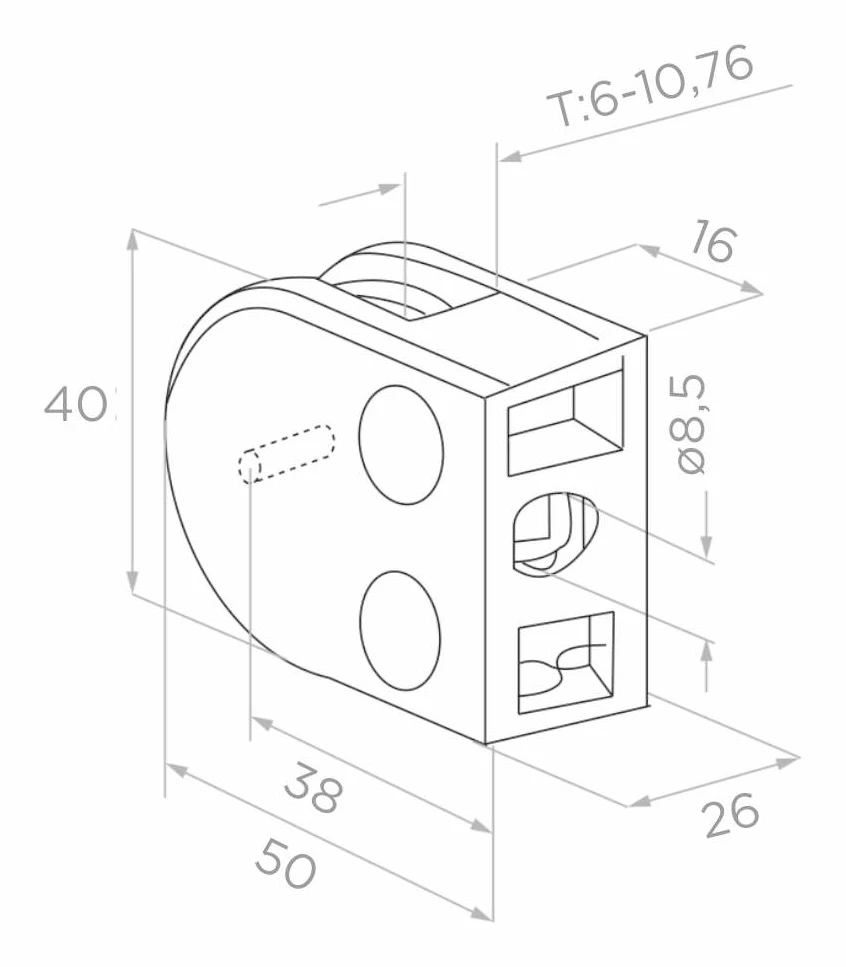

Dimensions and Technical Specifications
- Length (L): 50 mm
- Height (H): 40 mm
- Width: 26 mm
- Front face width: 38 mm
- Glass insertion depth: 16 mm
- Accepted glass thickness (T): 6–10.76 mm
- Mounting hole diameter: ø8.5 mm
- Material: AISI 316 stainless steel
- Surface finish: satin
- Mounting system: flat (screw-in)
- Included: securing pin
- Weight: 0.17 kg
- Volume: 52 cm³
- EAN: 5901289670517
Installation Notes
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being installed. The gaskets serve a dual purpose — they protect the glass surface from scratching and ensure even clamping pressure throughout the clamp slot. Rubber gaskets are available as separate accessories — when ordering, please take into account the thickness of the glass intended for installation (within the range of 6–10.76 mm).
The accepted glass thickness range covers both single toughened panes (e.g. 6 mm, 8 mm, 10 mm) and laminated glass (e.g. 8.76 mm, 10.76 mm), making this clamp a versatile fitting compatible with the majority of standard glass balustrade configurations.
Technical data
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
| Material | AISI 316 |
| Finish | Satin |
