Glass holder 45x45x26 mm, glass 6-10.76 mm, zamak, flat system, raw
Description

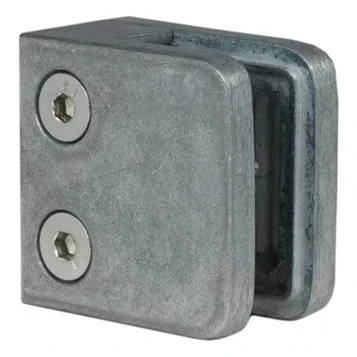

Glass Clamp 45×45×26 mm – Zamak, Flat System, Glass 6–10.76 mm
A rectangular glass clamp designed for mounting on flat surfaces. It enables secure fixing of toughened glass with a thickness of 6 to 10.76 mm — an ideal component for glass balustrades in commercial and residential buildings.
Manufactured from zamak — a high-strength zinc alloy with excellent castability. The raw surface finish allows for further treatment tailored to the requirements of a specific project. The compact design measuring 45×45×26 mm ensures a discreet installation, while two mounting holes with a diameter of O8.5 mm guarantee stable fixing to the substrate.
The clamp requires the use of rubber gaskets (sold separately), which protect the glass from direct contact with metal and ensure even clamping pressure across the panel.

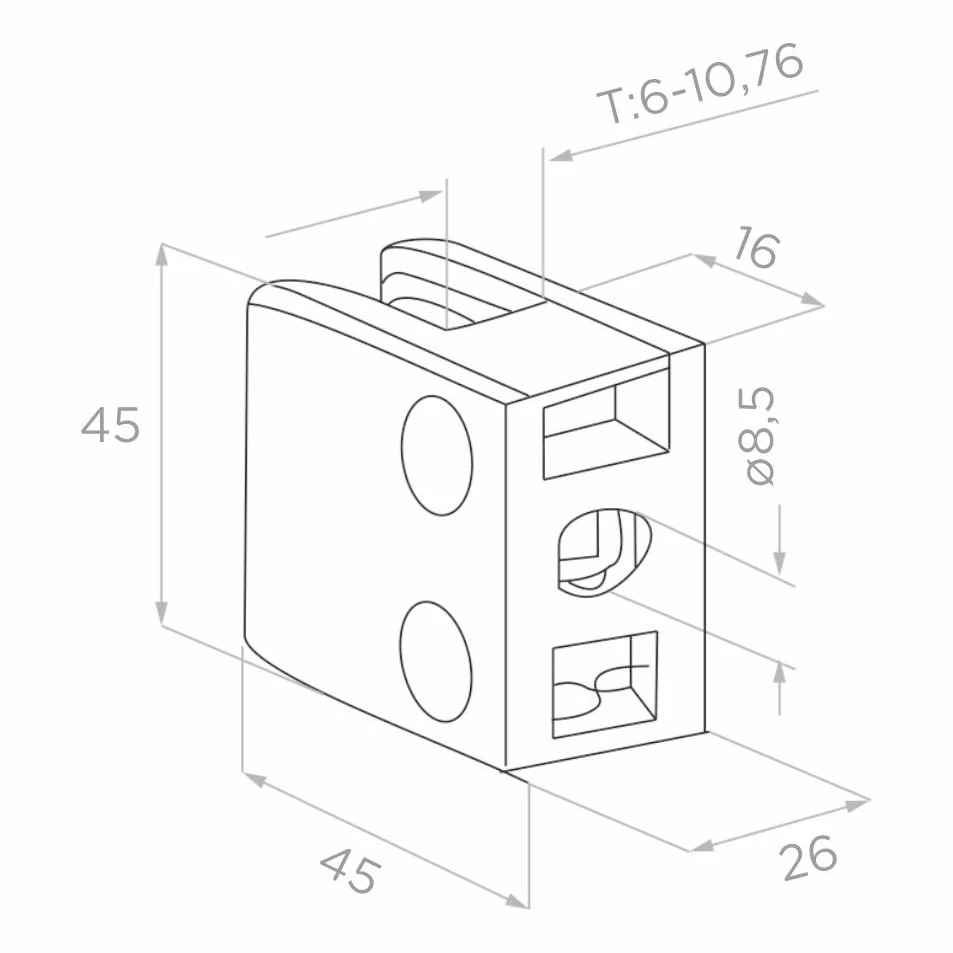

Technical Specifications
- Dimensions (L × H × W): 45 × 45 × 26 mm
- Glass thickness: 6–10.76 mm
- Mounting hole diameter: O8.5 mm
- Jaw width: 16 mm
- Material: zamak
- Surface finish: raw
- Mounting system: flat
- Application: indoor use
- Weight: 0.17 kg
Applications
This clamp is designed for the installation of glass balustrades — on staircases, mezzanines, internal balconies, and as part of glass partition systems. Flat-surface mounting (wall or steel post) allows for fast and repeatable installation across a large number of fixing points.
Additional Information
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | Zamak |
| Finish | Raw |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
