Glass holder 45x45x26 mm, glass 6-10.76 mm, AISI 304, flat system, polished
Description

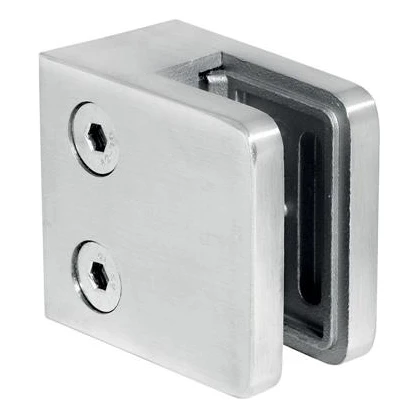

Glass Clamp 45x45 mm AISI 304 – Flat Mount, Polished
Rectangular glass clamp 45×45×26 mm in AISI 304 stainless steel with a polished/mirror finish. Designed for the professional fixing of glass panels with a thickness of 6 to 10.76 mm onto flat surfaces. An ideal component for glass balustrade systems, partitions and interior glazing — providing stable and aesthetically pleasing fixing of glass panels without the need to drill through the glass.
The clamp is mounted using screws through two fixing holes with a diameter of o8.5 mm, ensuring a secure hold against the substrate. A rubber gasket inside the slot protects the glass edge from scratching and dampens vibrations. The product is suitable for indoor and outdoor use — ideal for offices, retail premises, hotels and residential buildings.

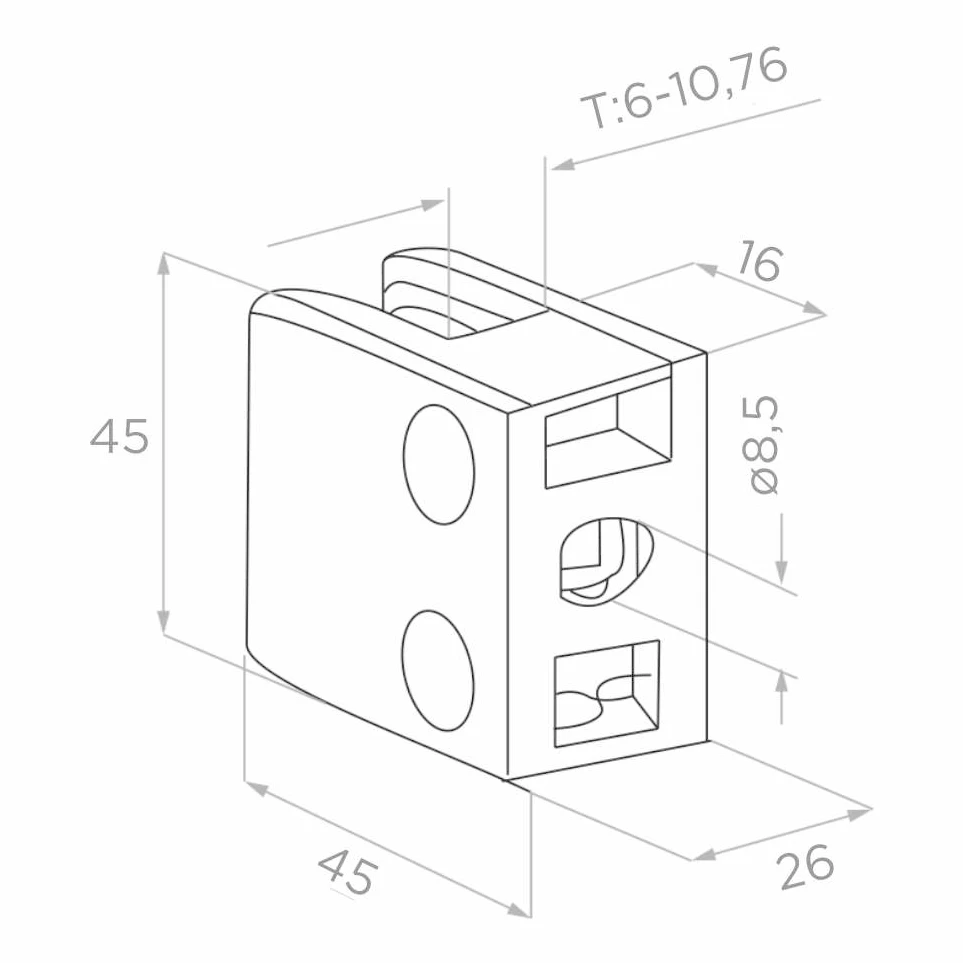

Technical Specifications
- Material: AISI 304 stainless steel
- Surface finish: polished / mirror
- Height (H): 45 mm
- Length (L): 45 mm
- Width (depth): 26 mm
- Slot width for glass: 16 mm
- Glass thickness: 6–10.76 mm
- Fixing hole diameter: o8.5 mm
- Weight: 0.16 kg
- Volume: 56.7 cm3
- Mounting type: screw-fixed – flat surface
- System: flat
- EAN: 5901289670159
Application and Installation

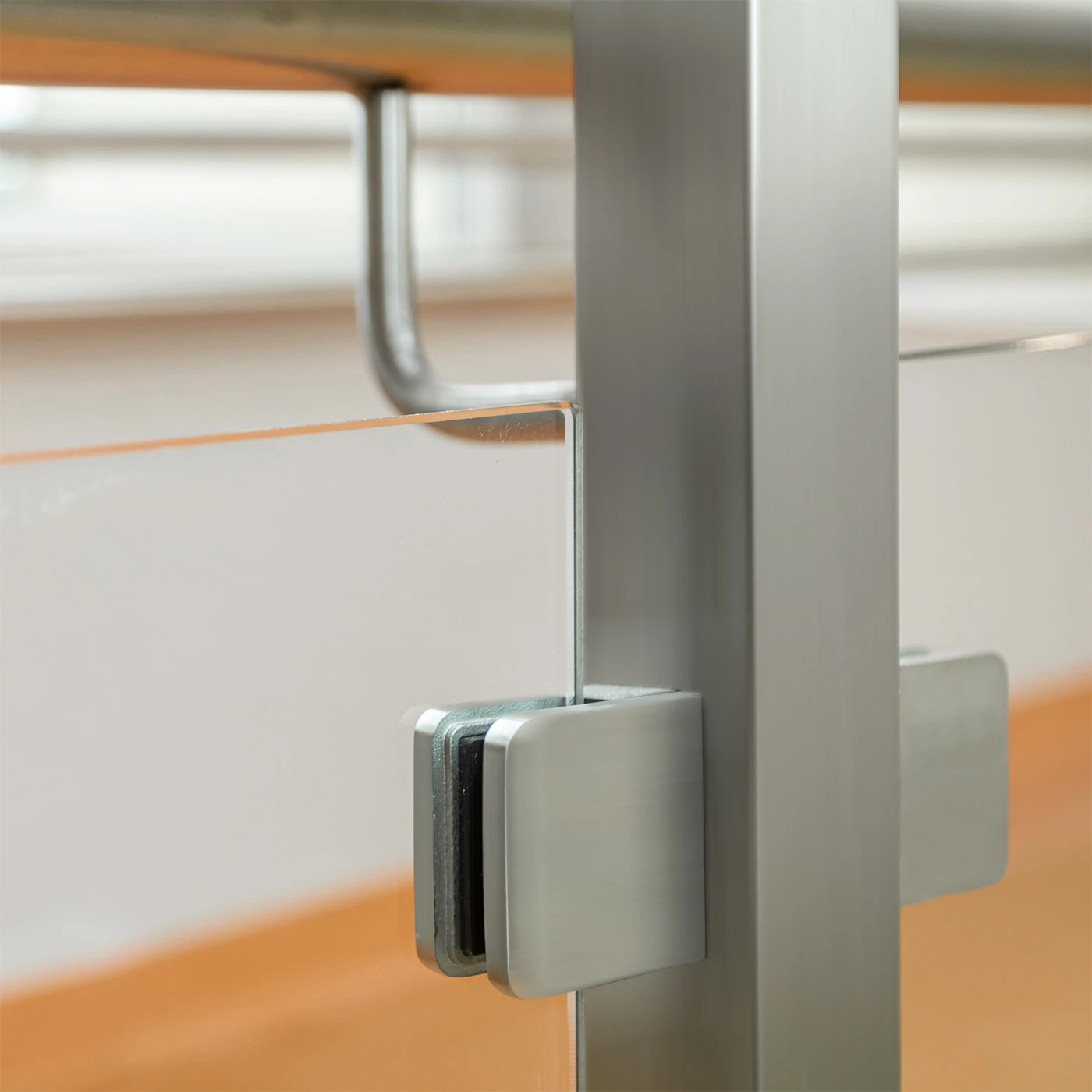

This clamp is designed for systems with a flat mounting surface — rectangular posts, steel profiles and walls. The compact 45×45 mm form ensures a discreet appearance, while the mirror polish complements contemporary interior designs. Thanks to the glass thickness range of 6–10.76 mm, it accommodates both single toughened panels and laminated VSG glass. Installation simply involves screwing the clamp to the substrate and sliding the panel into the slotted gasket — quick and without the need for specialist tools.
- Additional Information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
