Glass holder 180° 95x45x30 mm with pin glass 6-12.76 mm, AISI 304, satin
Description

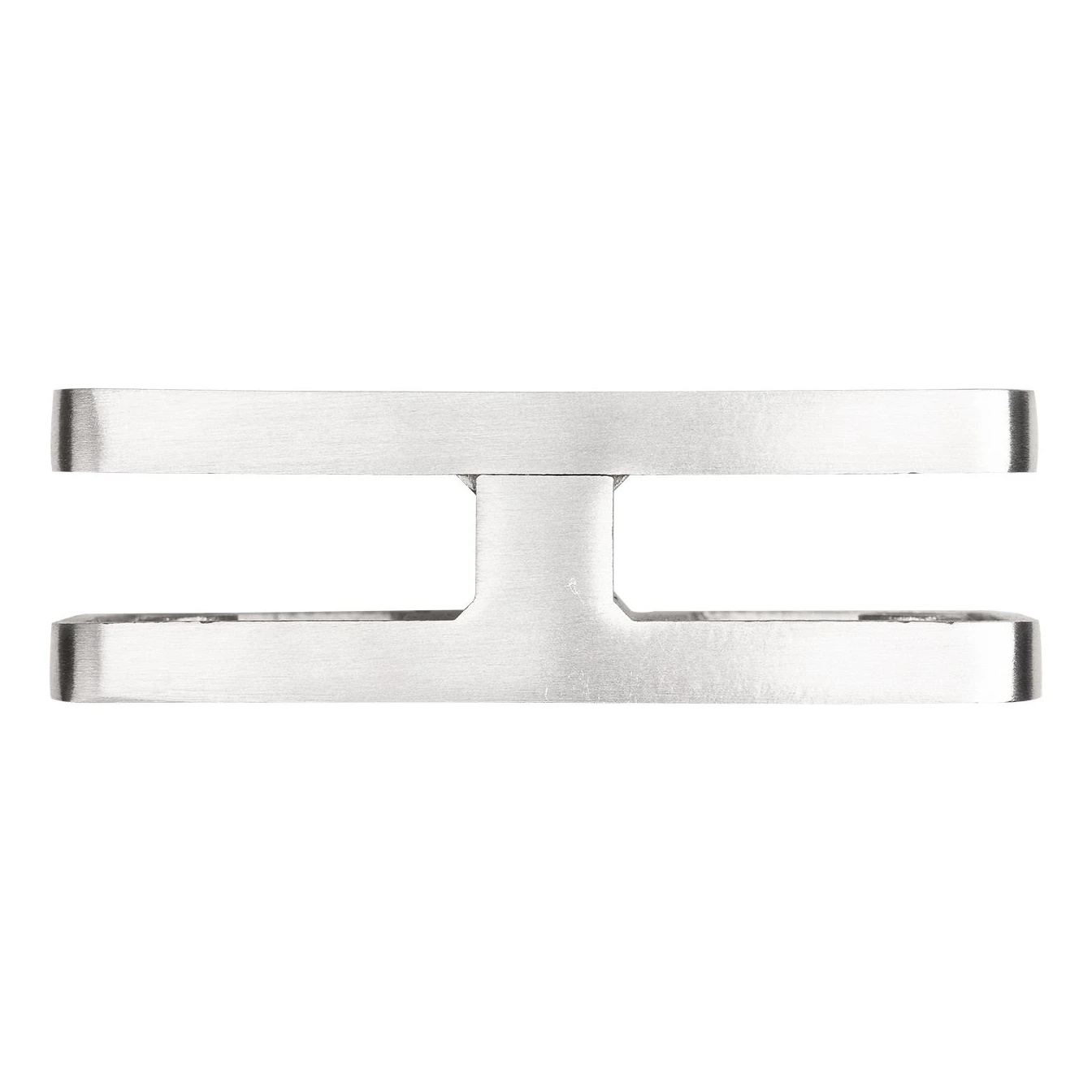

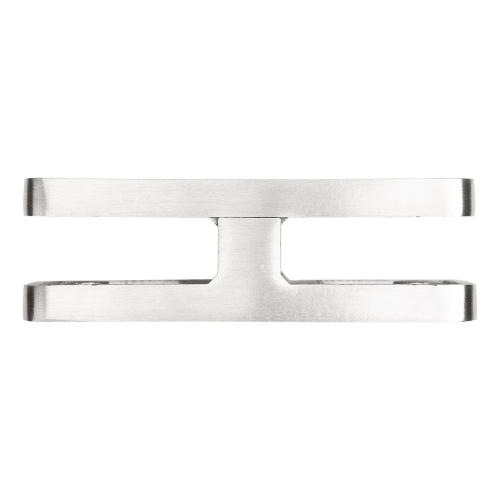

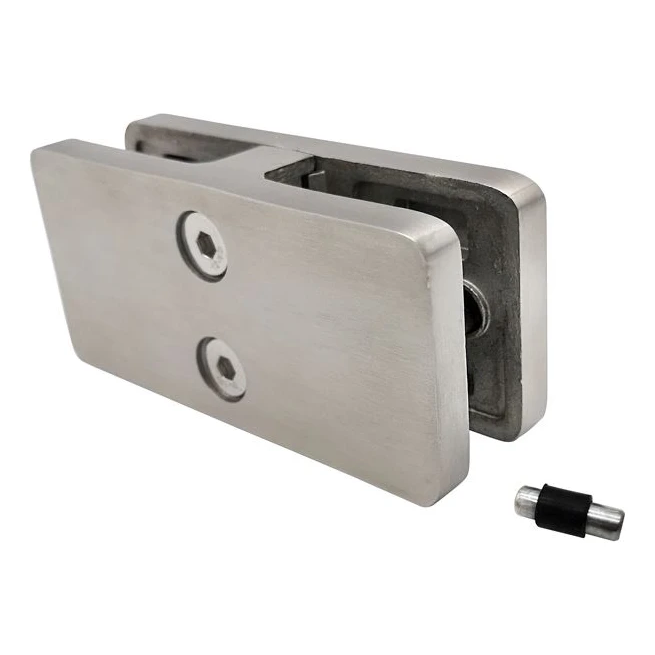

180° Glass Clamp Satin 95×45 mm – AISI 304 Steel, Glass 6–12.76 mm
The 180° glass clamp is designed to join two glass panels in a single line — an ideal component for frameless glass balustrades installed on balconies and terraces. The integrated securing pin effectively stabilises the glass panels and prevents them from sliding out unintentionally, ensuring the safety and durability of the entire structure.
The clamp is compatible with toughened and laminated glass with a thickness ranging from 6 mm to 12.76 mm. Correct installation requires two sets of specialist rubber gaskets, selected to match the thickness of the glass used (gaskets sold separately). The 180° design allows frameless glass balustrades to be built without the need for balustrade posts, delivering a modern, minimalist appearance.
Key Benefits
- Provides structural rigidity — stable connection of two glass panels in a straight line
- Stabilises the panels and secures them against displacement with the locking pin
- Delivers an elegant satin finish to the balustrade with no visible posts
- Versatile design — compatible with both toughened and laminated glass
Technical Specification
- Type: 180° glass clamp (straight)

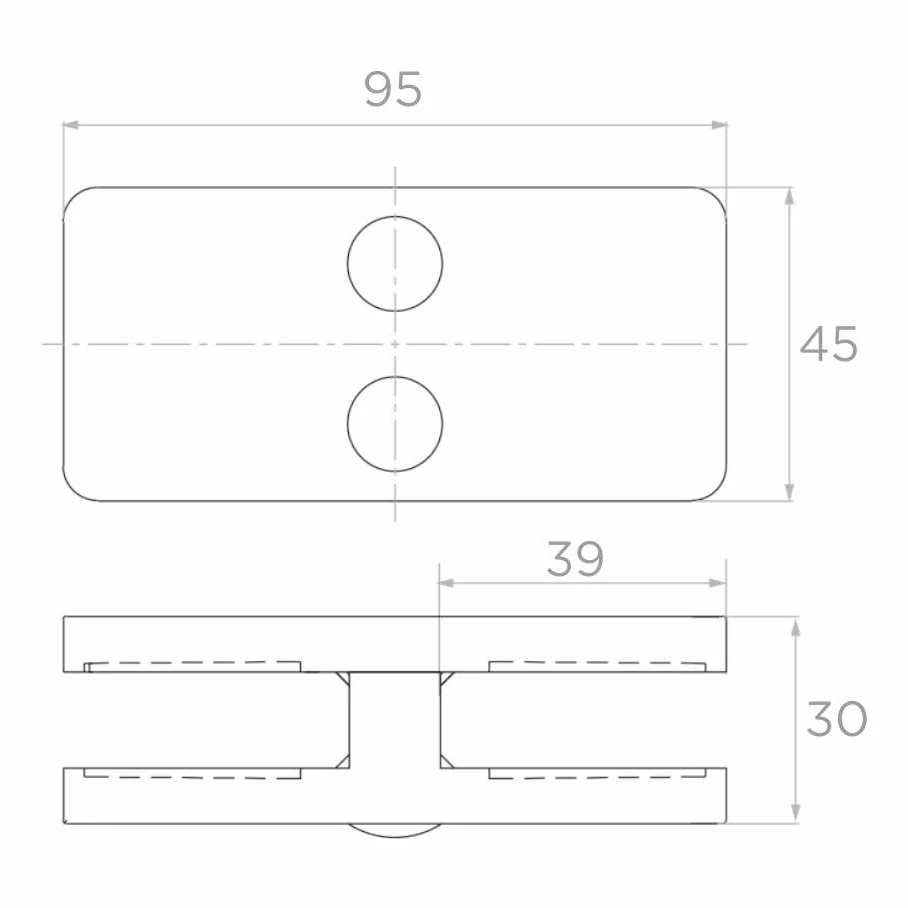

- Dimensions (L × H × Width): 95 × 45 × 30 mm
- Internal slot width: 39 mm
- Glass thickness: 6–12.76 mm
- Material: stainless steel AISI 304
- Finish: satin
- Included accessories: securing pin
- Weight: 0.46 kg
- EAN: 5903313208413
Installation and Gasket Selection

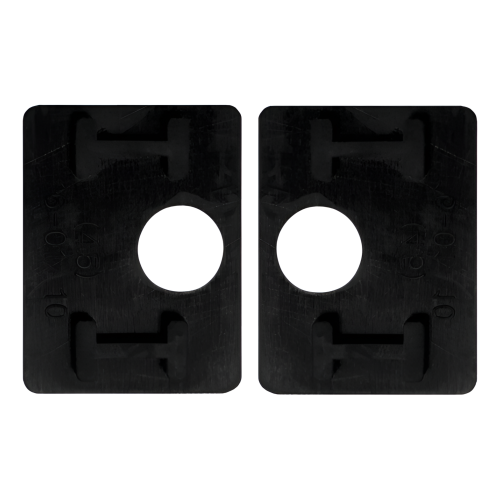

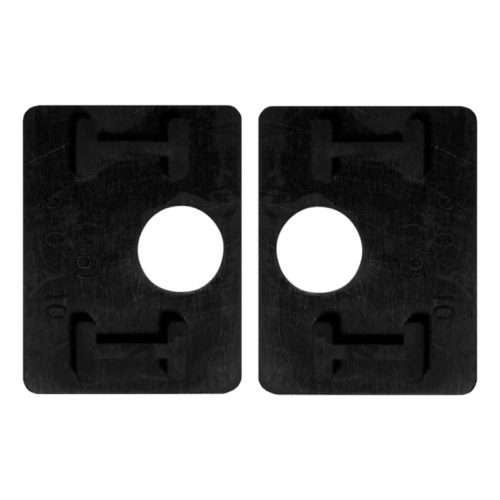

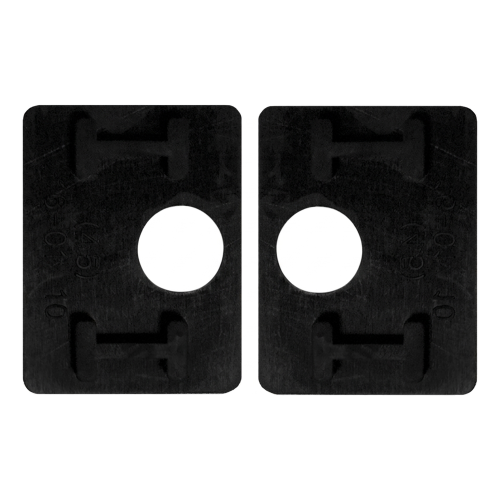

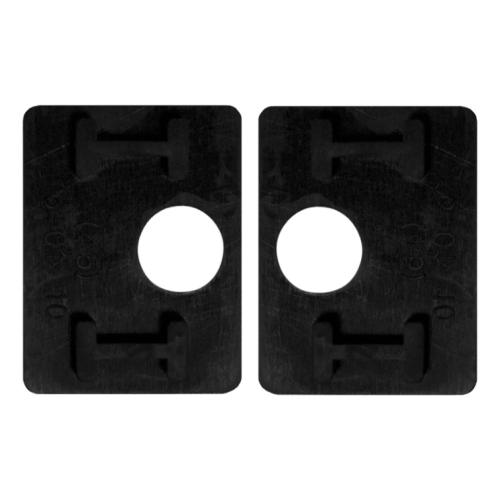

The clamp requires the use of two sets of rubber gaskets matched to the thickness of the glass being installed. The gaskets serve a cushioning and stabilising function — they prevent direct contact between the glass and the steel, eliminating the risk of cracking and ensuring even clamping pressure. Correct gasket selection is critical to the safety of the structure; the variant must correspond precisely to the thickness of the glass used.
AISI 304 stainless steel with a satin finish offers excellent resistance to corrosion and weathering, making the clamp equally suitable for indoor balustrades and outdoor applications — balconies and terraces. The satin surface conceals minor scratches and marks, making it easy to maintain an attractive appearance throughout years of use.
Additional Information:
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12,76 |
