PSG

Glass clamp 8-12.76 mm 52x52x32 mm bracket and pin AISI 304 system 42.4 mm satin

Go to Product feedback

Rectangular glass clamp 52x52 mm with bracket for 42.4 mm tube, AISI 304 steel, satin finish. Accepts glass 8–12.76 mm, weight 0.3 kg.

Go to full description
with VAT without VAT
Price €5.74
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-do-szkla #124

  • Material AISI 304
  • Finish Satin
  • Mounting System 42.4 mm
  • Glass Thickness [mm] 8-12,76

Description

Glass Clamp 52x52 mm with Bracket for 42.4 mm Tube – AISI 304 Satin Stainless Steel

Rectangular glass clamp with bracket and securing pin, designed for the professional installation of glass panels on tubes with a diameter of 42.4 mm. Made from AISI 304 stainless steel with a satin finish — it provides an elegant, contemporary appearance and excellent corrosion resistance, making it suitable for both indoor and outdoor applications.

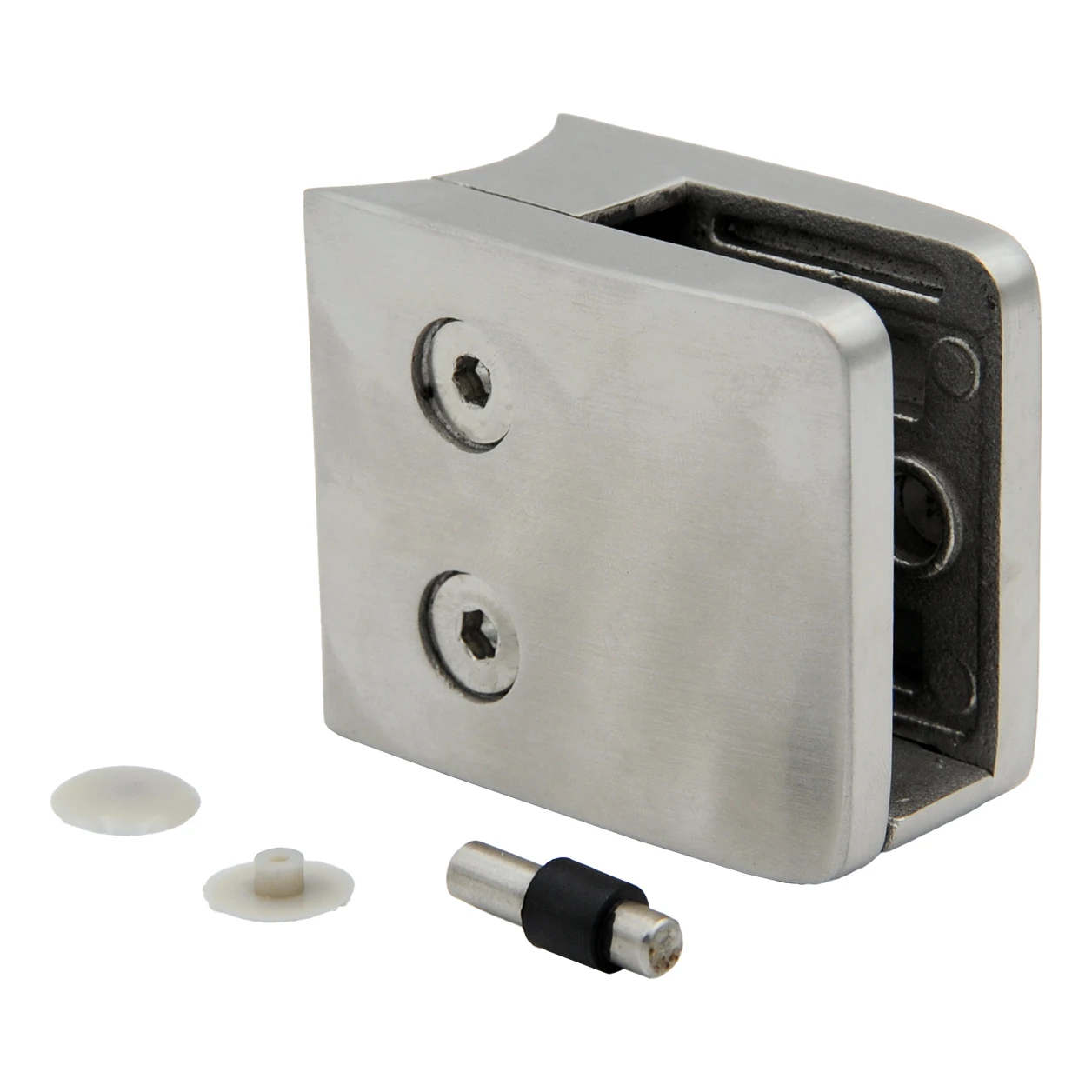

Glass clamp 52x52 mm with bracket – general view with accessories
Glass clamp 52x52 mm with bracket – general view with accessories

The clamp is supplied complete with a securing pin and decorative screw covers. Two Allen screws allow precise adjustment of the glass clamping pressure without the need to disassemble the entire fitting — saving time during installation and maintenance. The rounded rear of the bracket conforms perfectly to a 42.4 mm diameter tube, ensuring a stable and secure fixing.

The clamp accommodates glass thicknesses from 8 to 12.76 mm, covering both toughened single-pane glass and laminated VSG glass. The use of rubber gaskets is required — the appropriate gasket thickness must be selected to match the glass being installed. Gaskets are available as separate accessories.

Dimensions and Technical Specifications

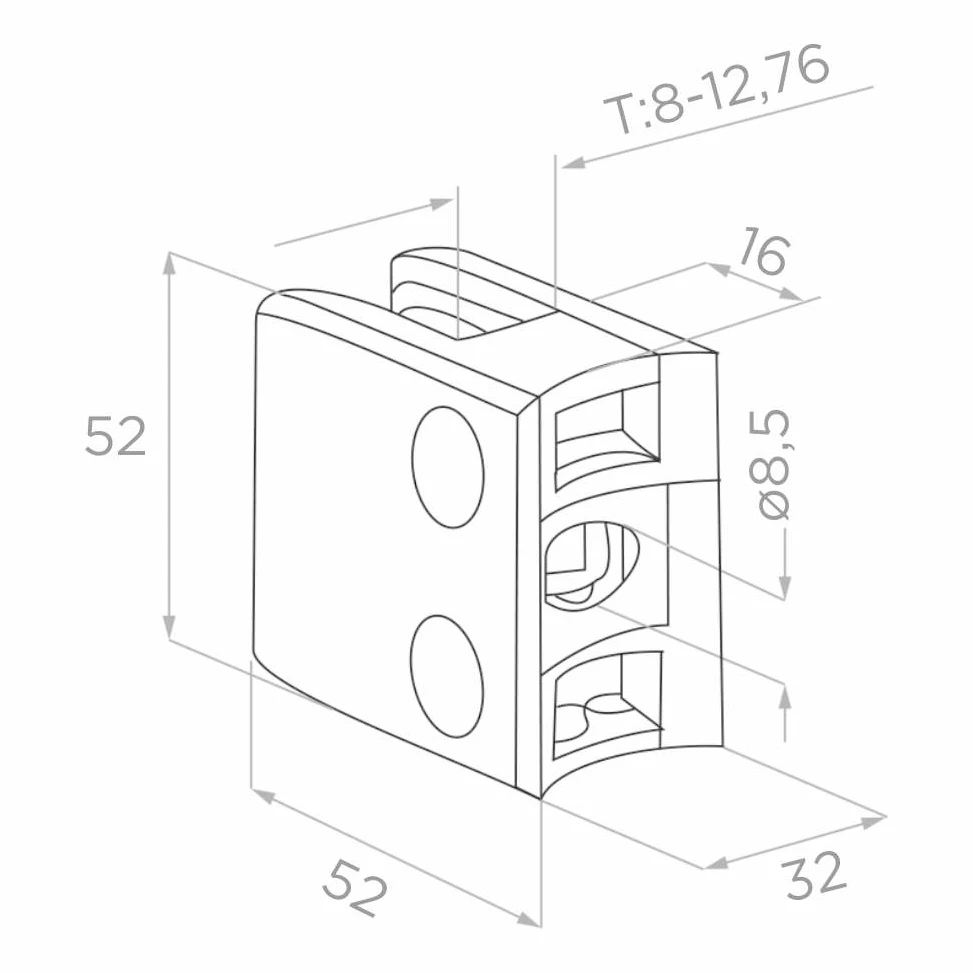

Dimensional drawing of the 52x52x32 mm glass clamp
Dimensional drawing of the 52x52x32 mm glass clamp
  • Height: 52 mm
  • Front width: 52 mm
  • Depth (distance from tube): 32 mm
  • Glass thickness: 8–12.76 mm
  • Mounting hole diameter: ø8.5 mm
  • Distance from hole axis to tube surface: 16 mm
  • Mounting tube diameter: 42.4 mm
  • Material: AISI 304 stainless steel
  • Finish: satin
  • Fixing method: screw-in
  • Weight: 0.3 kg
  • EAN: 5901289670593

Package Contents

  • Glass clamp with bracket
  • Securing pin
  • Decorative screw hole covers

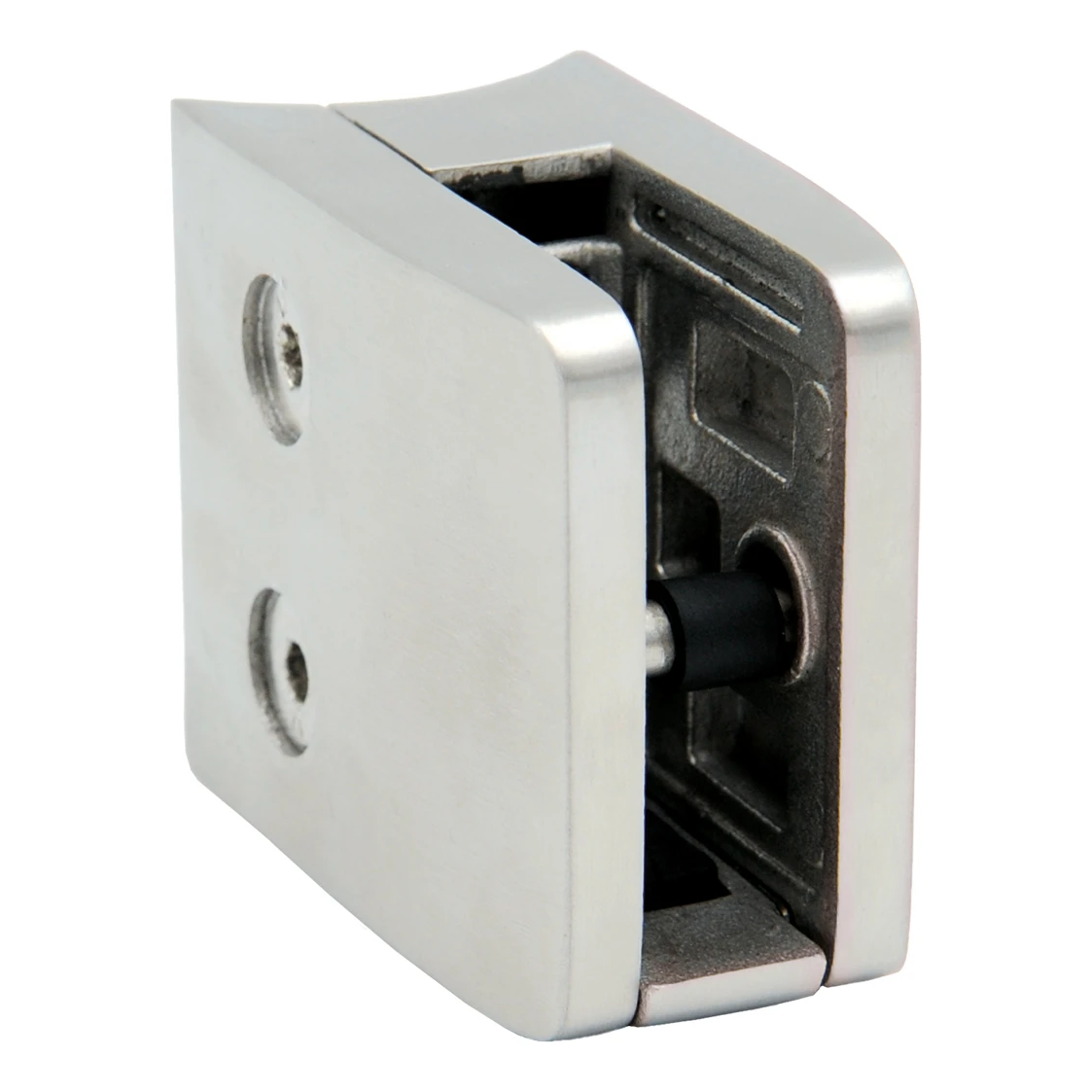

Glass clamp – side view showing the glass slot and bracket
Glass clamp – side view showing the glass slot and bracket

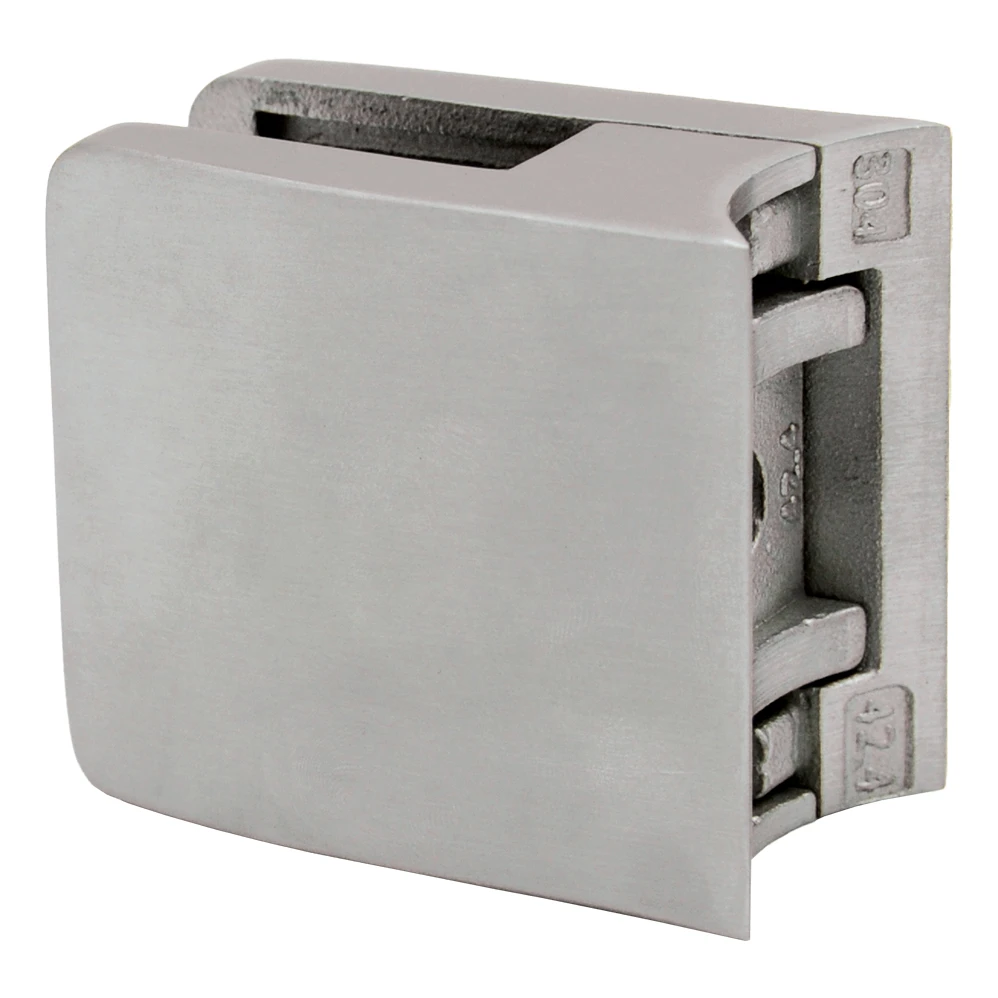

Glass clamp – rear view with 304 and 42.4 markings
Glass clamp – rear view with 304 and 42.4 markings

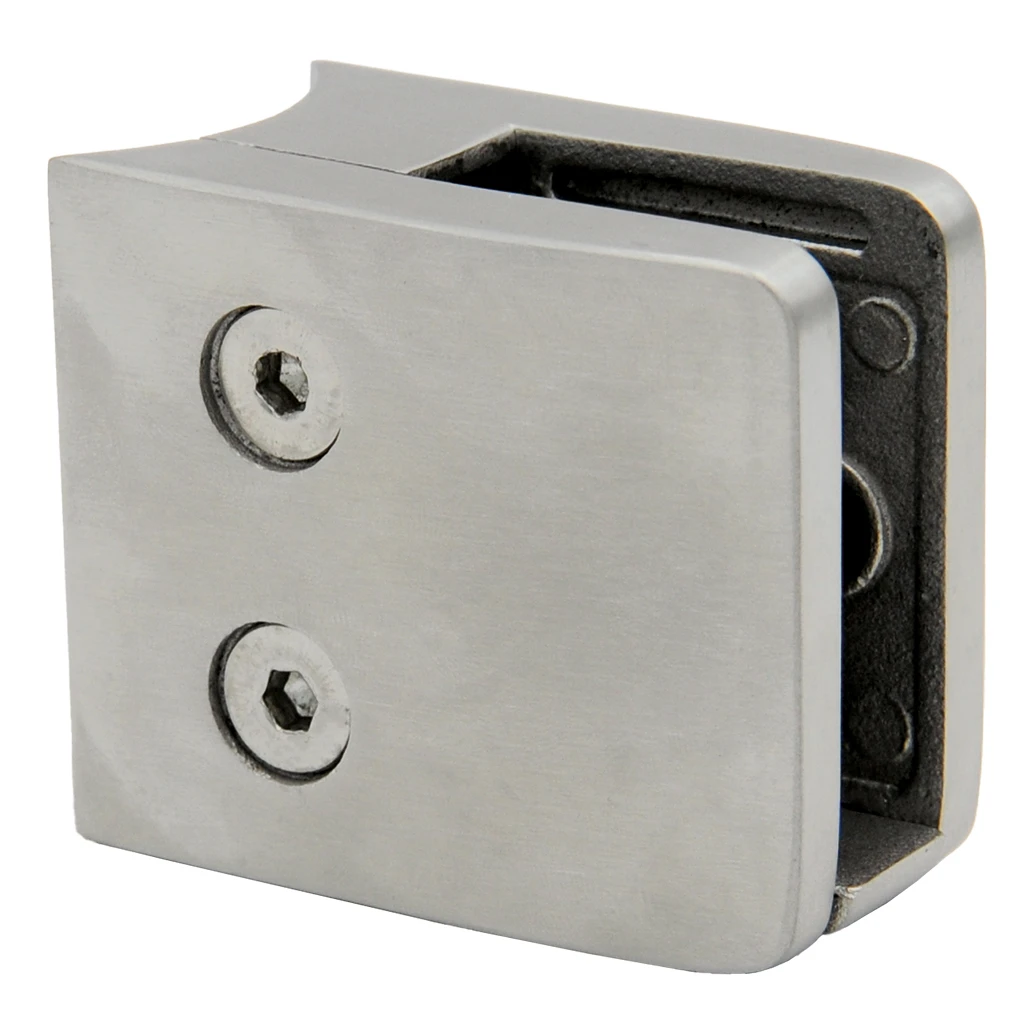

Glass clamp – front view showing Allen screws
Glass clamp – front view showing Allen screws
