Glass clamp 8-12.76 mm 52x52x32 mm bracket and pin AISI 304 flat system satin
Description

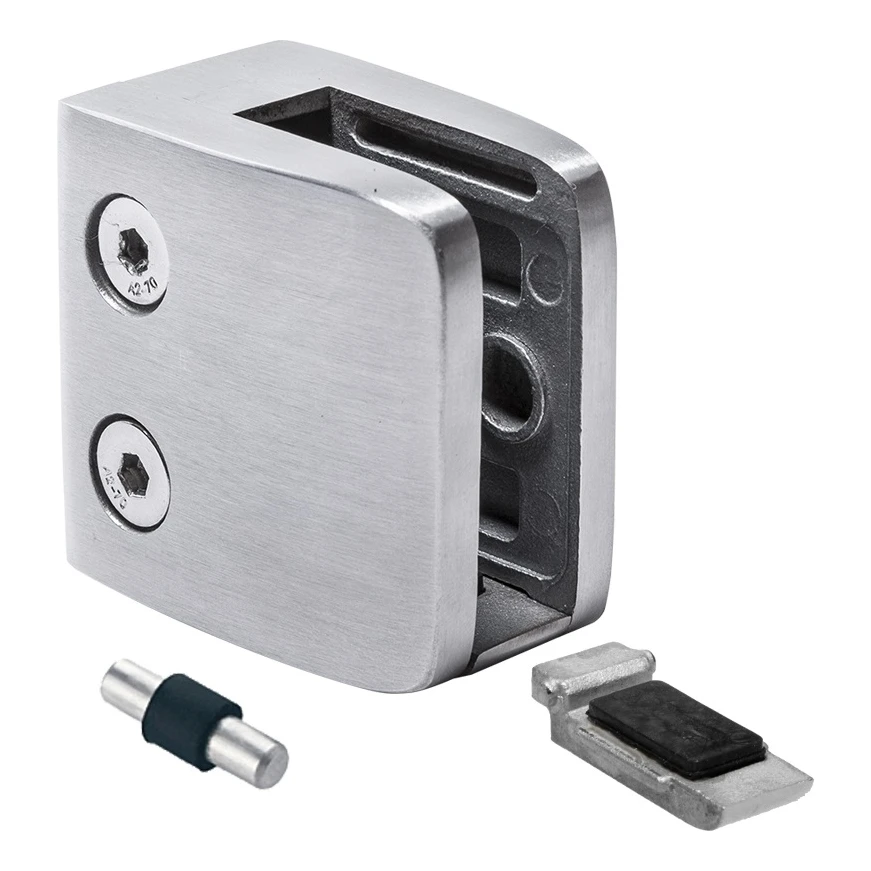

Glass Clamp 52x52 mm with Bracket and Pin – AISI 304 Stainless Steel Satin
Glass clamp with bracket and securing pin is a robust fixing element designed for glass thicknesses from 8 to 12.76 mm. Made from AISI 304 stainless steel with a satin finish, it provides an aesthetically pleasing and durable mounting solution for glass panels on flat surfaces. The compact design and included accessories (bracket and securing pin) speed up installation and eliminate the need to source additional components.
Application and Installation
The clamp is designed for screw-in mounting and is dedicated to flat surfaces. It is ideal for glass balustrades, internal partitions, wind screens, and anywhere a secure and elegant fixing of glass panels is required. The satin finish lends a refined appearance and complements contemporary architectural designs.
The set includes a bracket and a securing pin, enabling complete installation without the need to order additional components. Allen-head screws of class A2-70, visible on the front face, ensure firm clamping of the glass and easy adjustment.

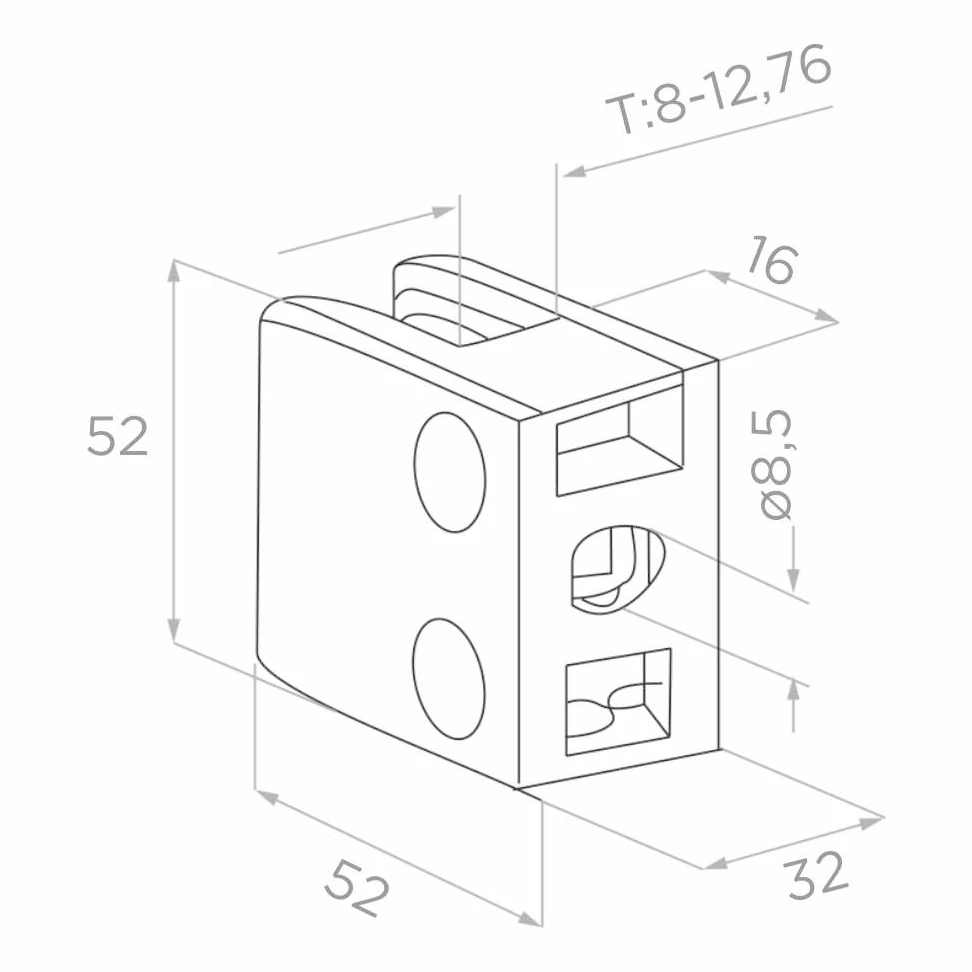

Technical Specifications
- Height (H): 52 mm
- Length (L): 52 mm
- Width: 32 mm
- Glass thickness (T): 8–12.76 mm
- Mounting hole diameter: O 8.5 mm
- Glass slot depth: 16 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Mounting system: flat (screw-in)
- Weight: 0.3 kg
- Volume: 86.53 cm3
- EAN: 5901289670616
Package Contents
- Glass clamp 52×52×32 mm
- Mounting bracket
- Securing pin
Additional Information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure to be adjusted without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 8-12,76 |
