Gravel board bracket 250×55 mm anthracite
Leave feedback on the product

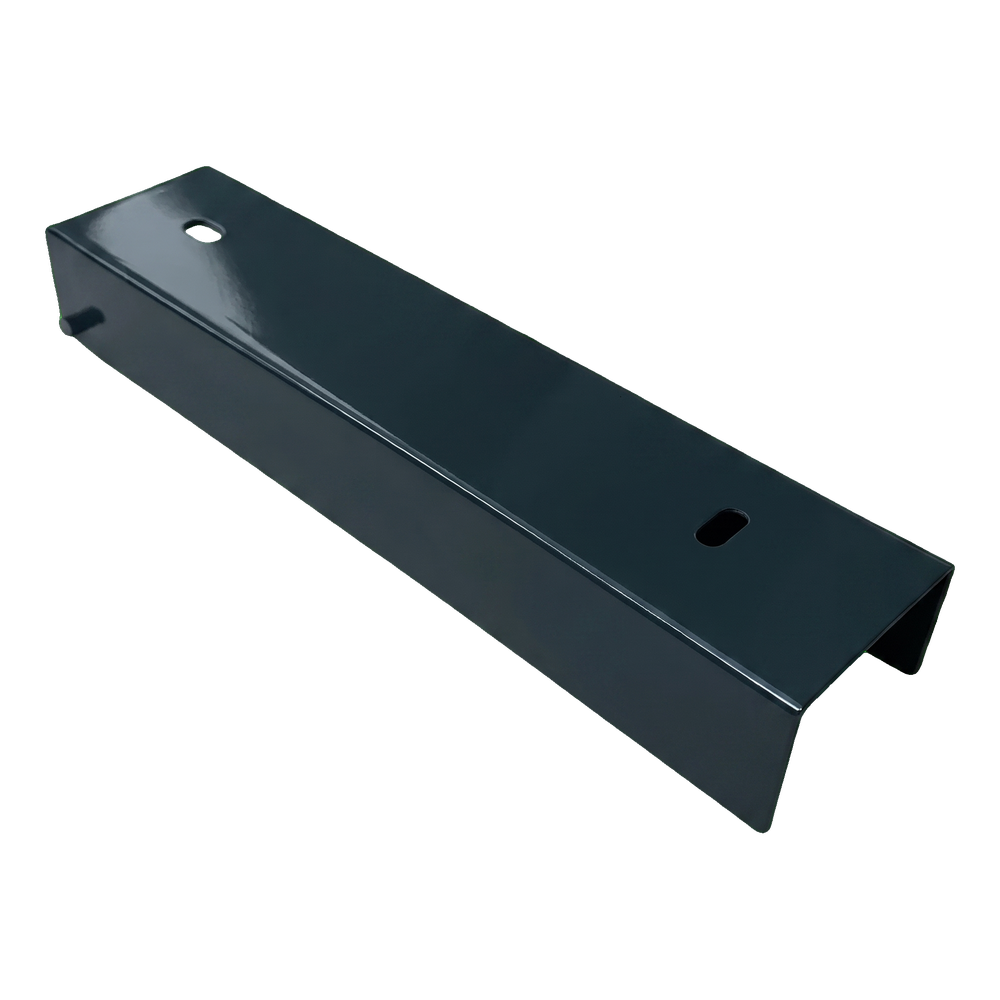

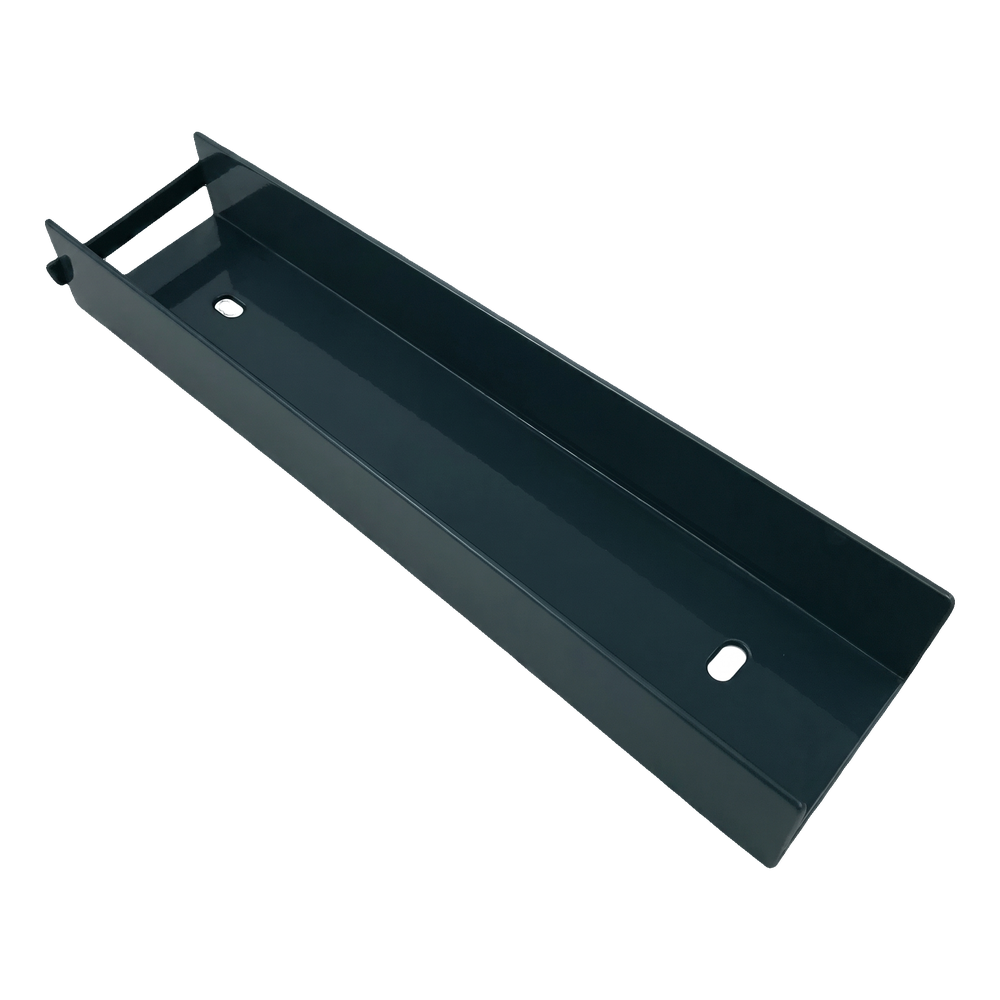

GPV-700-41 gravel board bracket for fencing, made of galvanised, powder-coated steel in anthracite. Dimensions 250×55 mm, internal width 57 mm, material thickness 1.5 mm, weight 0.352 kg. Two mounting holes for screwing to the fence post.
Product code: GPV-700-41
Product features
[PIM] ceownik-do-podmurowki #165
- Colour Graphite RAL 7016
- C-channel dimension [mm] 250x55
Description
Gravel board bracket with a length of 250 mm and an internal width of 57 mm – connects a 250 × 55 mm gravel board to a fence post
About the product
The gravel board bracket connects a concrete gravel board to a fence post. It is fastened to the post, and the end of the board slides between the bracket's flanges.
Length L is 250 mm and corresponds to the height of the 250 × 55 mm gravel board. Internal width w is 57 mm. The flange depth, holes and spacer bar shown in the drawing are indicative.
The coating (zinc-coated and powder-coated, anthracite RAL 7016) protects the steel against corrosion under typical conditions; in the event of contact with salt or chemicals, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the gravel board dimensions – the bracket is designed for 250 × 55 mm boards.
- ✓Fasten the bracket to the post through the 2 mounting holes, with the web against the post.
- ✓Slide the end of the gravel board into the bracket; where two boards meet at a post, use a bracket on each side.
Important
The product listing data does not specify the bracket's load-bearing capacity. Choose screws or bolts suitable for the post wall.
Files to download
250x55 EN.pdf
59.51 kB
250x55 EN
