Equal leg aluminium angle 30×30×2 mm – L profile, length 2000 mm
0
Description
Equal leg aluminium angle 30×30×2 mm – L profile, length 2000 mm

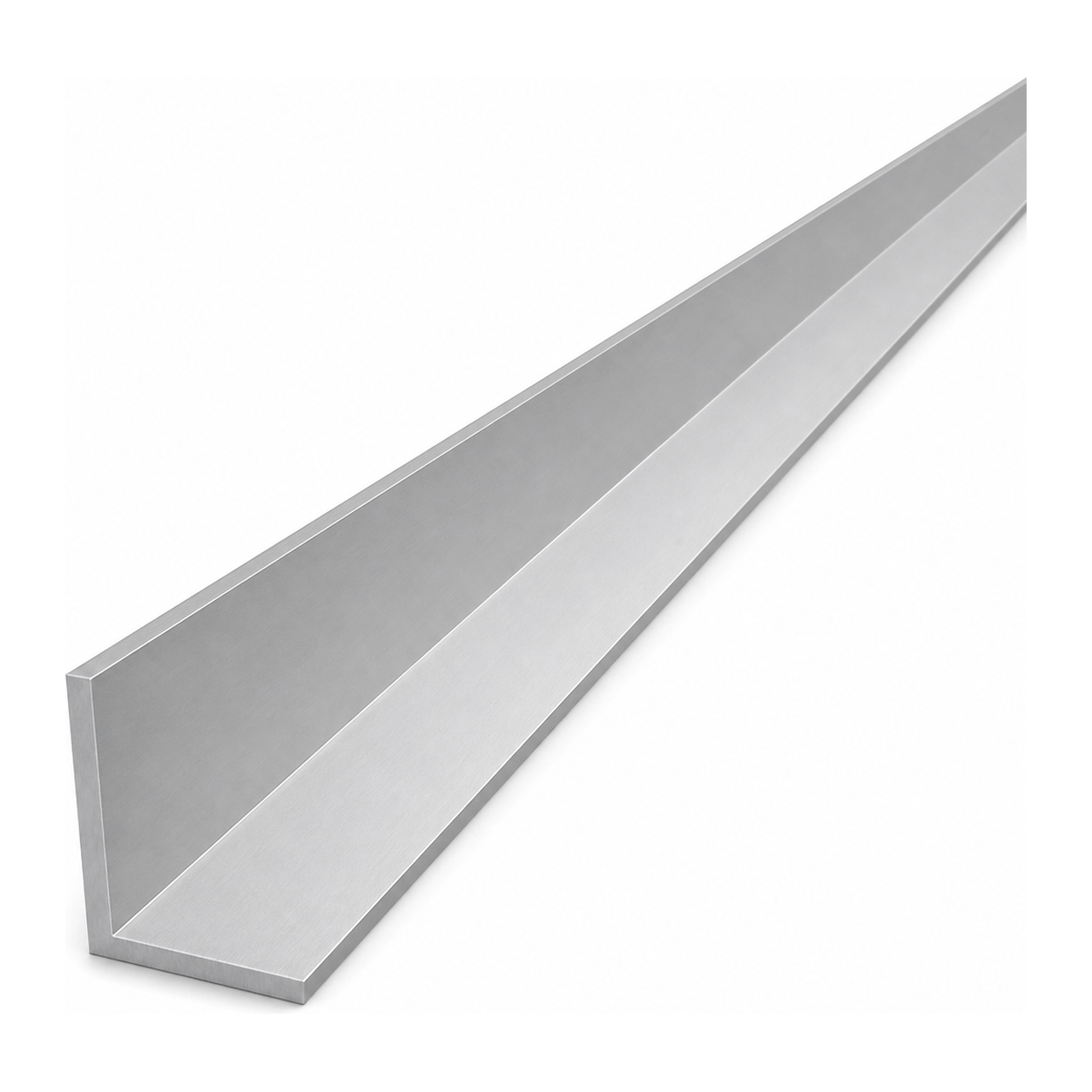

Equal leg aluminium angle 30×30×2 mm is a versatile L-profile manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). With equal legs measuring 30 mm and a wall thickness of 2 mm, it provides good rigidity whilst maintaining a low weight — just 0.64 kg for the full length of 2000 mm. It is a proven structural material used by installation teams for building frames, reinforcements, trims and repairs to aluminium components.
The profile is supplied in mill finish (non-anodised), giving complete freedom for further processing — it can be cut, drilled, welded, anodised or powder-coated depending on project requirements. The EN AW-6060 alloy offers excellent resistance to atmospheric corrosion, making the angle suitable for use both indoors and outdoors.
Technical Specification

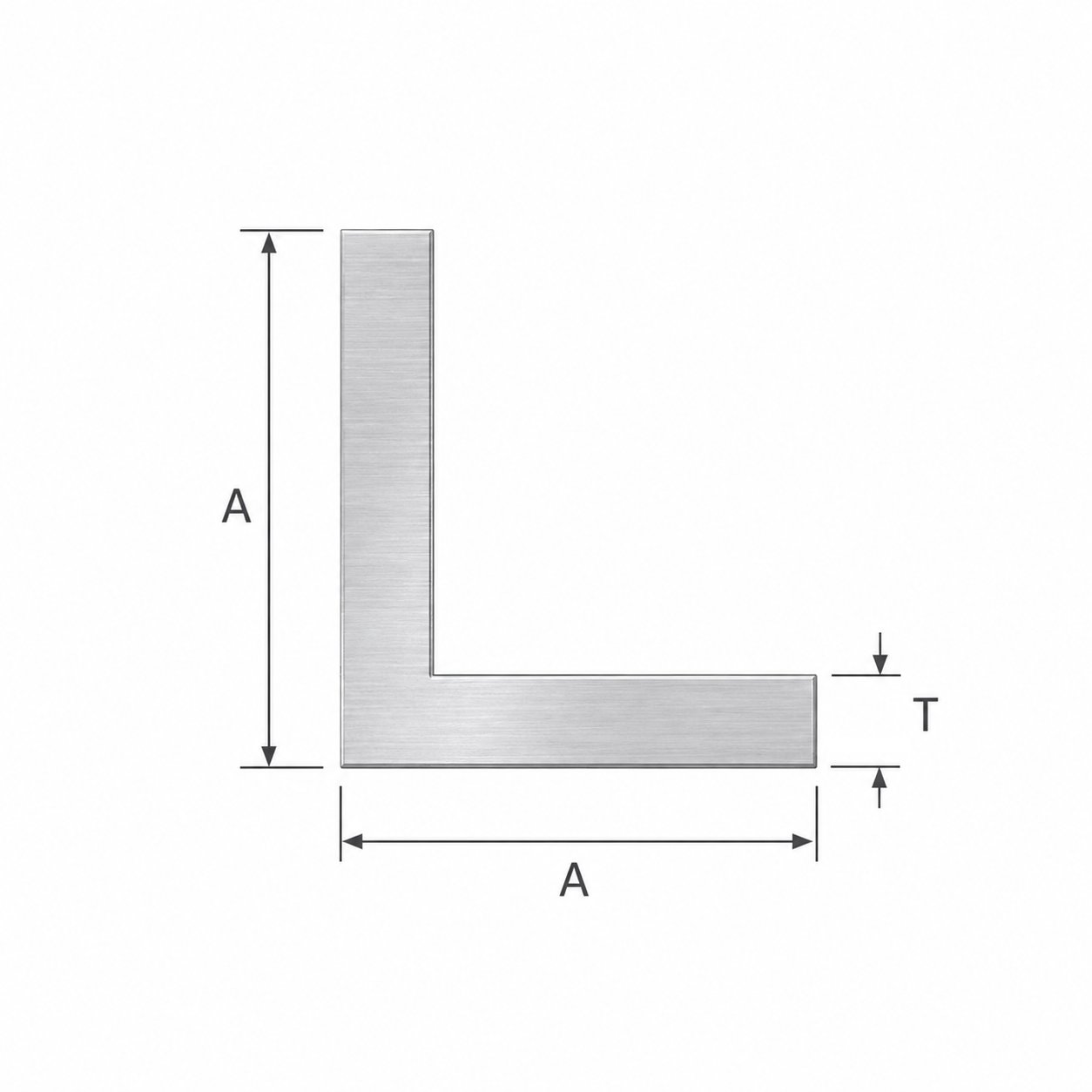

- Section type: equal leg angle (L profile)
- Legs (A × A): 30 × 30 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight: 0.64 kg (0.32 kg/m)
- Overall dimensions: 200 × 3 × 3 cm (L × W × H)
Applications
The 30×30 mm aluminium angle is widely used in installation and construction work. It is ideally suited as a reinforcing element for support structures, frame corners, mounting stiffeners and edge trims. Thanks to its light weight and ease of machining, it is a popular choice wherever fast assembly and low finished-structure weight are important — from photovoltaic substructures and technical frames to finishing and repair work.
