Equal leg aluminium angle 20×20×2 mm – L-profile, length 2000 mm

Go to Product feedback

Equal leg aluminium angle, L-profile, alloy EN AW-6060 T6/T66 (AlMgSi0.5). Legs 20×20 mm, wall thickness 2 mm, length 2000 mm, weight 0.42 kg. Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €4.69
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] katowniki-rownoramienne #147

  • Material Aluminium
  • Height [mm] 20
  • Wall Thickness [mm] 2
  • Length [mm] 2000

Description

Equal leg aluminium angle 20×20×2 mm – L-profile, length 2000 mm

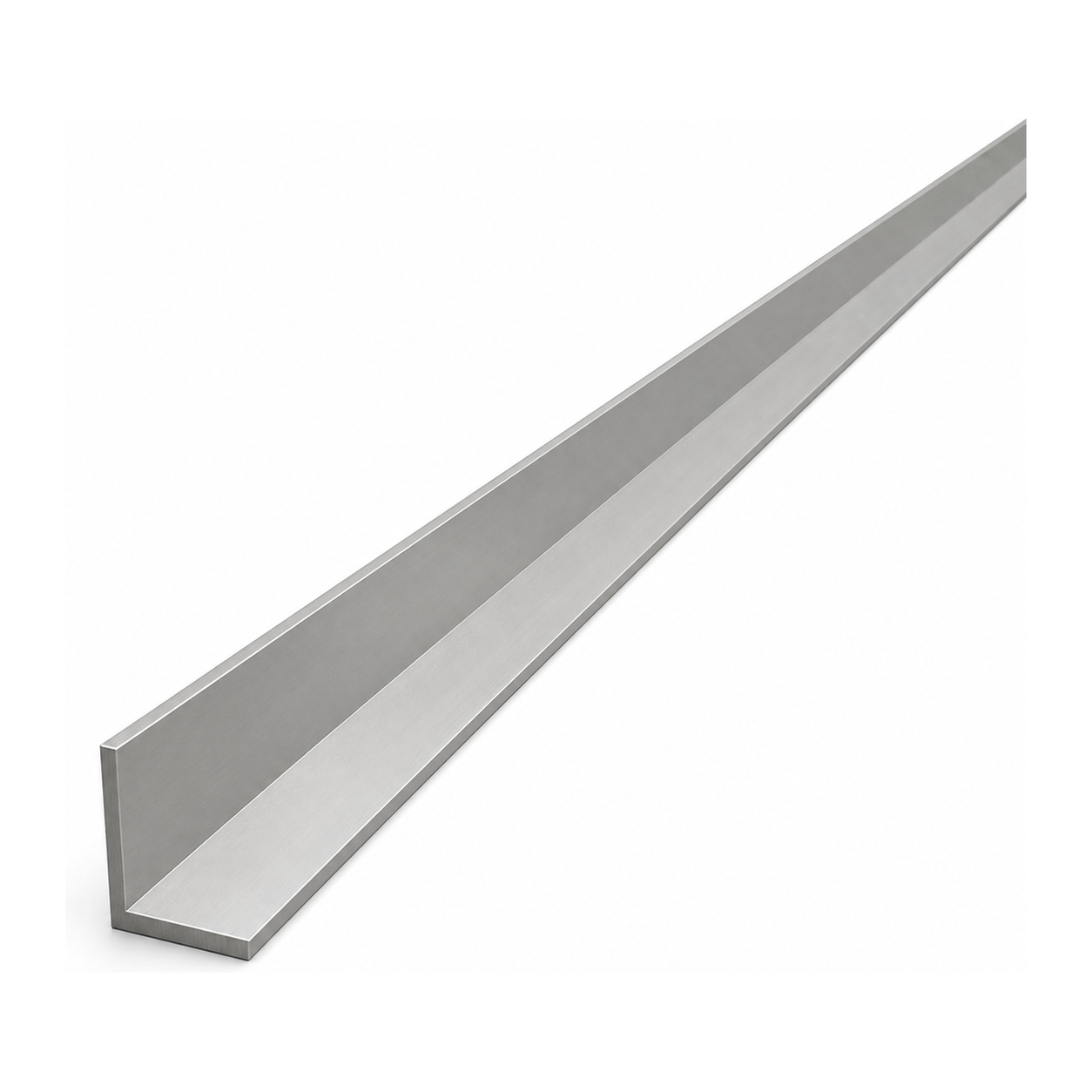

Equal leg aluminium angle 20×20×2 mm – general view of the L-profile
Equal leg aluminium angle 20×20×2 mm – general view of the L-profile

The equal leg aluminium angle 20×20×2 mm is a versatile L-profile designed for structural, finishing and assembly applications. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low weight with good rigidity and high corrosion resistance — characteristics that are particularly important for outdoor use, including photovoltaic installations.

The profile, with a length of 2000 mm and a weight of just 0.42 kg, is easy to transport and process. The raw, non-anodised aluminium surface allows for further treatment — anodising, powder coating, or leaving in its natural state. The equal legs measuring 20 × 20 mm provide a symmetrical load distribution, making it easier to design joints and frames.

Applications

The angle is suitable wherever a lightweight yet strong, rigid angular joint is required. Professional installers use it for building frames, guards, mounting substructures, panel edge finishing, and minor repairs to aluminium components.

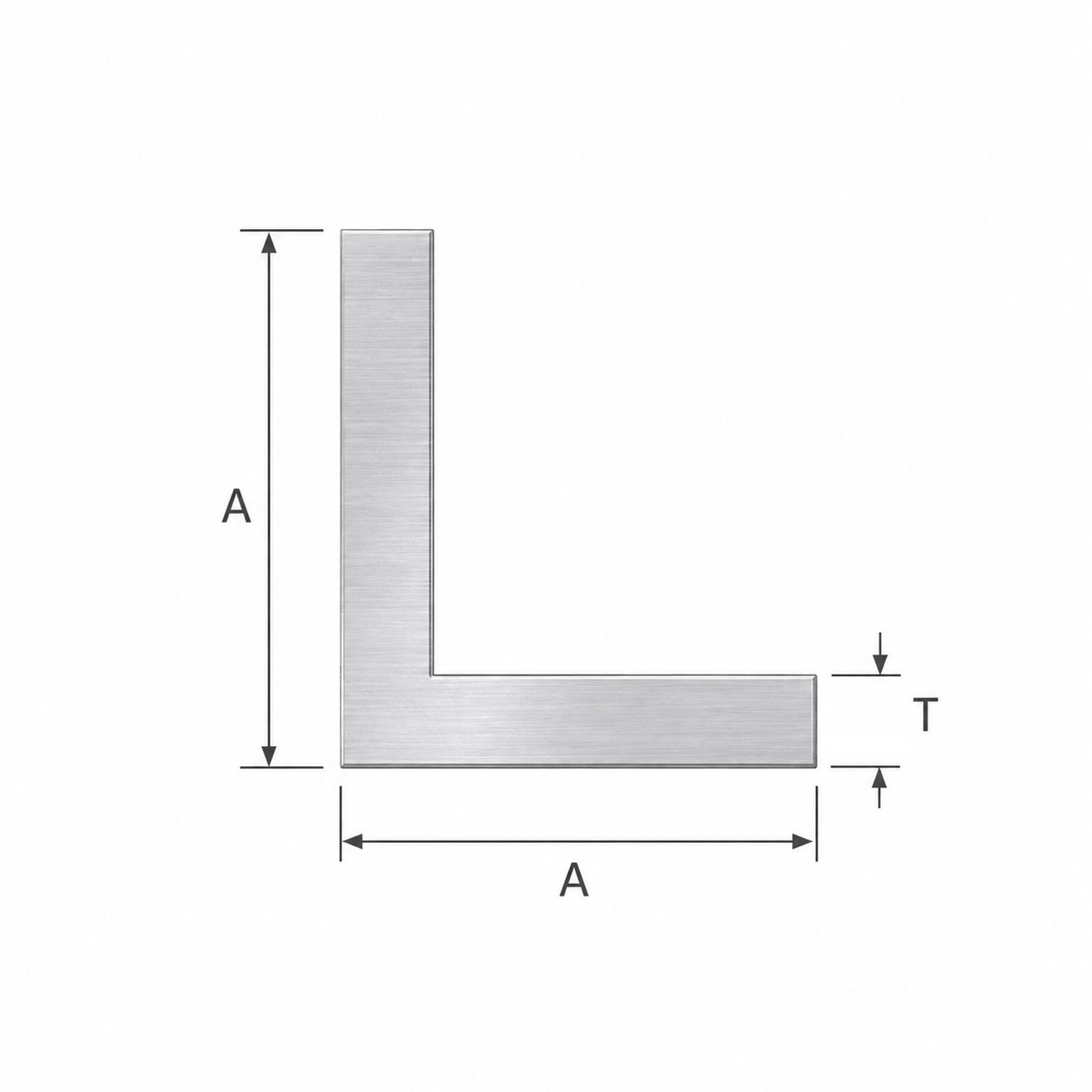

Dimensional drawing of the aluminium angle cross-section – markings A (legs) and T (wall thickness)
Dimensional drawing of the aluminium angle cross-section – markings A (legs) and T (wall thickness)

Technical specification

  • Cross-section type: equal leg angle (L-profile)
  • Legs (A × A): 20 × 20 mm
  • Wall thickness (T): 2 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: raw (non-anodised)
  • Total weight: 0.42 kg (0.21 kg/m)
  • Packaging dimensions (L × W × H): 200 × 2 × 2 cm

Properties of EN AW-6060 T6/T66 alloy

EN AW-6060 alloy in the T6/T66 temper is one of the most popular aluminium alloys for extruded profiles. It is characterised by good weldability, ease of machining, and high resistance to atmospheric corrosion. The T6/T66 temper denotes heat treatment that provides an optimal compromise between strength and ductility — the profile is sufficiently rigid for structural applications whilst remaining easy to cut and drill with standard tools.
