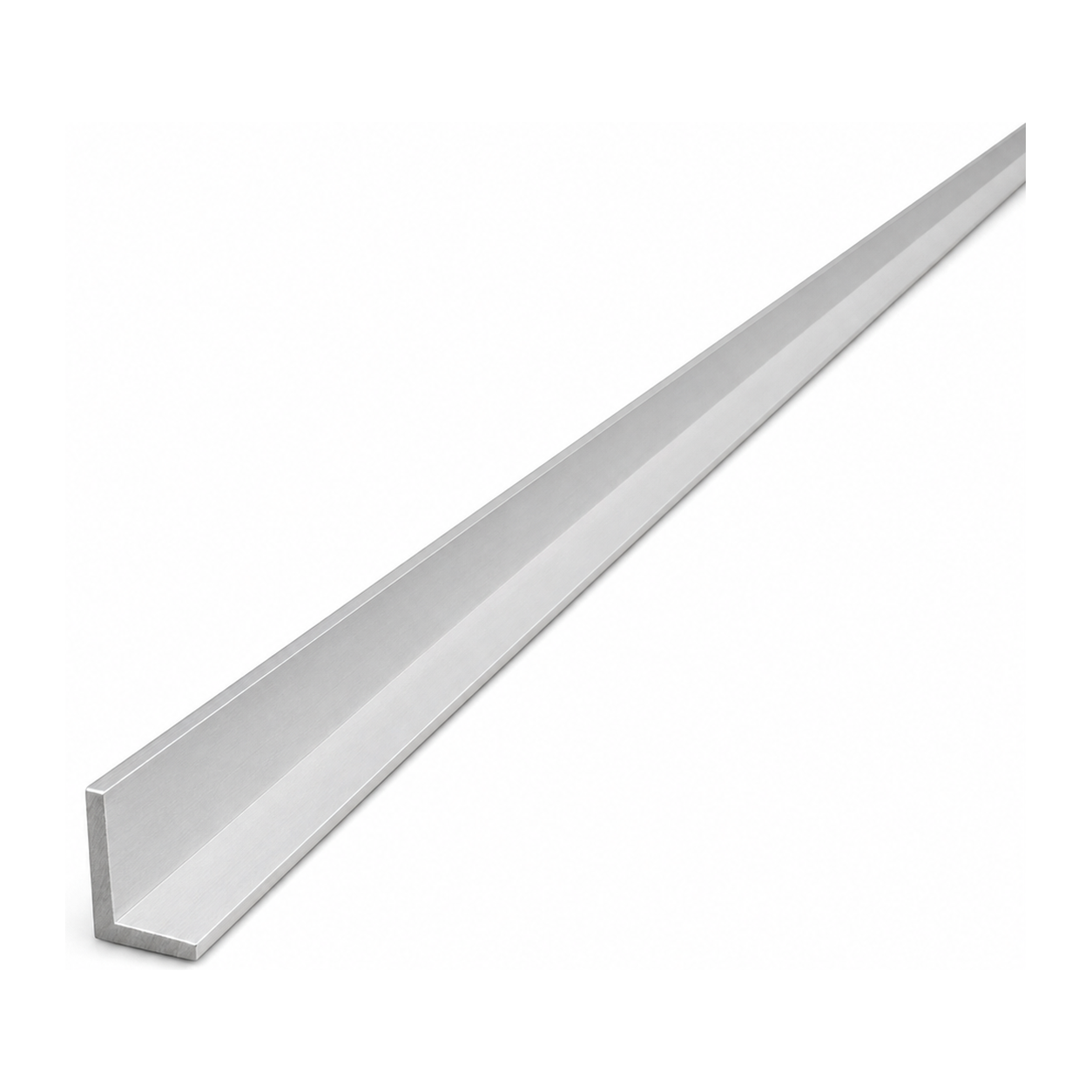

Equal leg aluminium angle 15×15×2 mm – L-profile, length 2000 mm
Leave feedback on the product
Equal leg aluminium angle, L-profile, alloy EN AW-6060 T6/T66 (AlMgSi0.5). Legs 15×15 mm, wall thickness 2 mm, length 2000 mm. Weight 0.30 kg (0.15 kg/m). Raw, non-anodised surface.
Product code: 001-720
Product features
[PIM] katowniki-rownoramienne #147
- Material Aluminium
- Height [mm] 15
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Equal leg aluminium angle 15×15×2 mm – L-profile, length 2000 mm
Equal leg aluminium angle 15×15×2 mm is a versatile L-type profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). With equal legs measuring 15 mm and a wall thickness of 2 mm, it is ideal as a reinforcing element, structural connector, edge trim, and material for building lightweight frames and enclosures. The raw, non-anodised surface allows for further processing — anodising, painting, or installation in its as-supplied condition.
The profile, 2000 mm in length and weighing just 0.30 kg (linear weight 0.15 kg/m), combines low mass with sufficient rigidity for structural and finishing applications. The 6060 series aluminium offers natural corrosion resistance, good machinability, and weldability — properties particularly valued by installation companies undertaking projects with bespoke components.

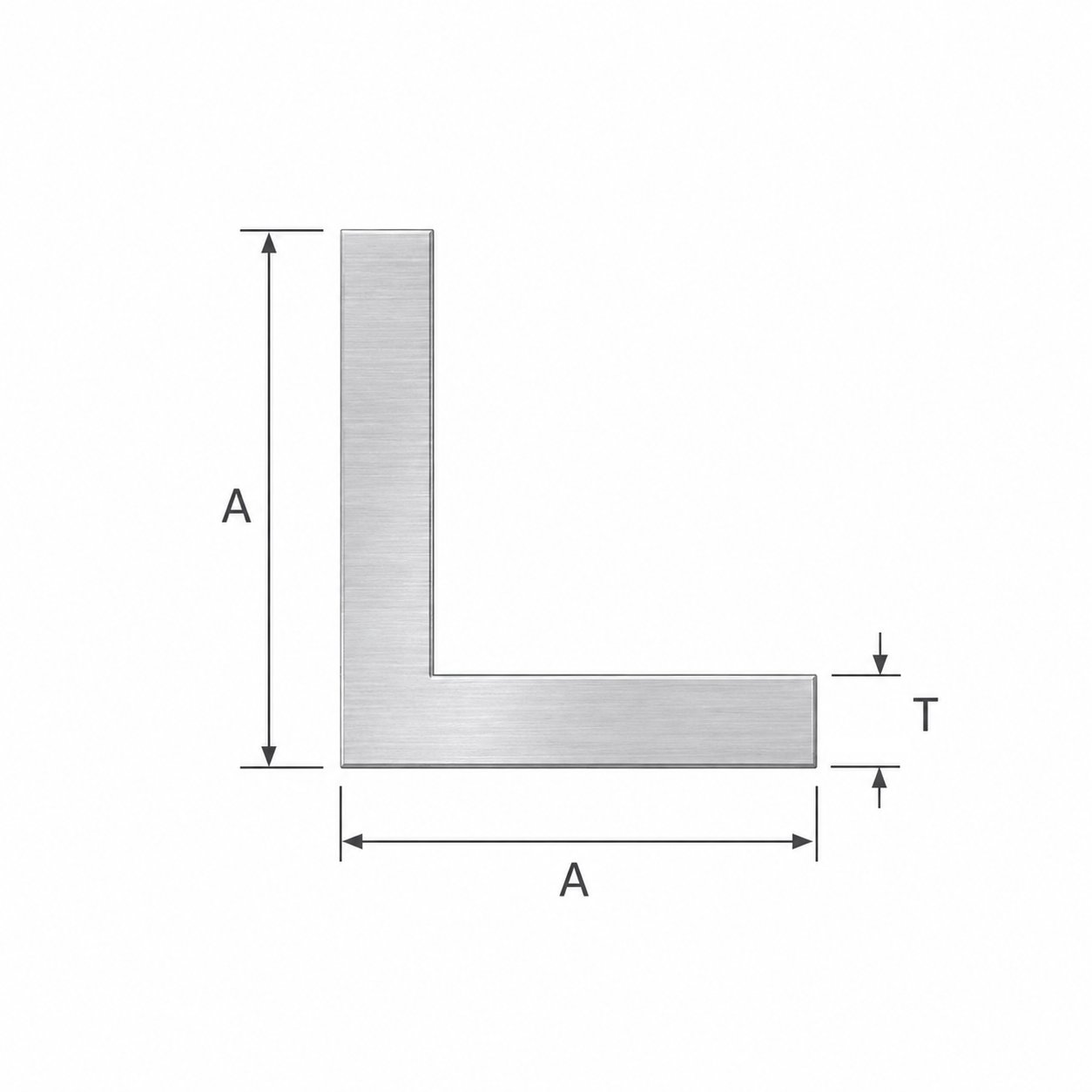

Technical Specification
- Section type: equal leg angle (L-profile)
- Legs (A × A): 15 × 15 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 0.30 kg
- Linear weight: 0.15 kg/m
Applications
- Lightweight structures and mounting frames
- Edge finishes and corner protection
- Reinforcements and connectors in technical installations
- Repairs and maintenance work requiring a lightweight angle profile
- Enclosure components, brackets, and support frames
