Equal angle aluminium 50×50×5 mm – L profile, length 2000 mm
0
Description

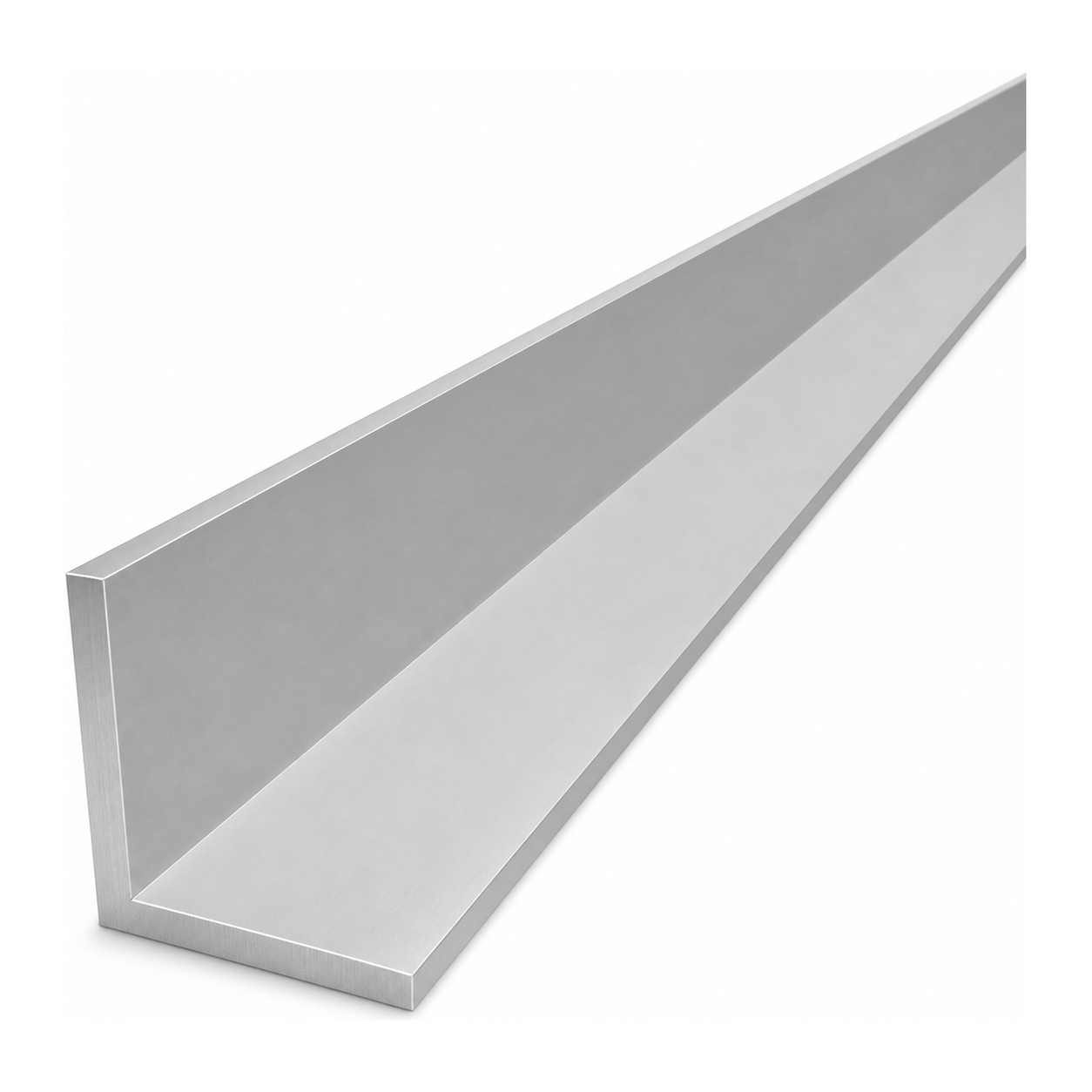

Equal angle aluminium 50×50×5 mm – L profile, length 2000 mm
Equal leg aluminium angle 50×50×5 mm is a versatile L-type profile manufactured from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). With equal legs measuring 50 mm and a wall thickness of 5 mm, it provides high rigidity at low weight — just 2.44 kg for the full two-metre length. It is a proven structural material that speeds up the installation of photovoltaic systems, frame construction, finishing, and repairs without the need for additional corrosion protection.
The EN AW-6060 alloy in the T64 temper combines good mechanical strength with excellent resistance to atmospheric corrosion — the profile is suitable for use both indoors and outdoors. The mill finish surface (non-anodised) allows further processing: anodising, powder coating, or leaving in its natural state depending on the project requirements.

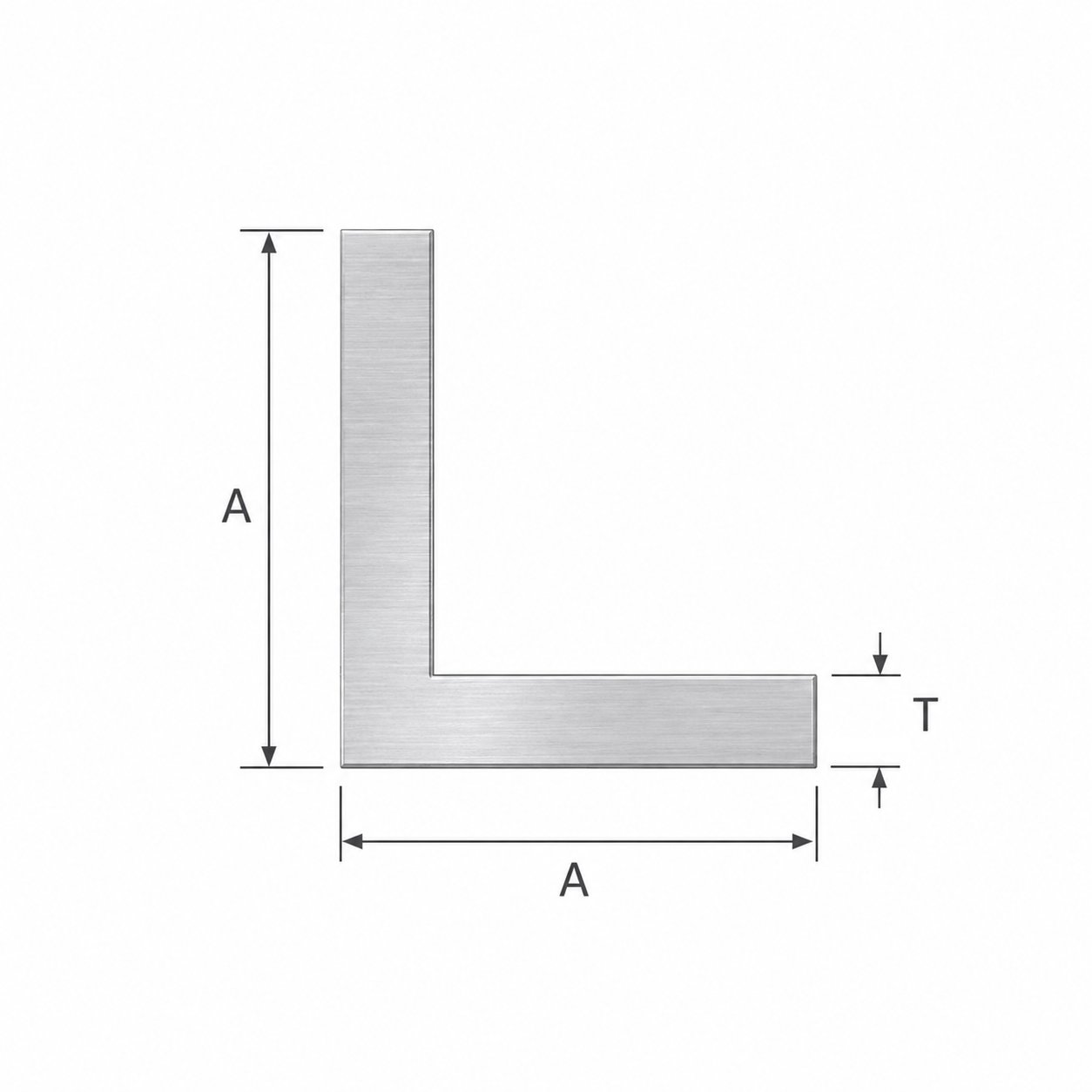

Dimensions and technical specification
- Section type: equal leg angle (L profile)
- Legs (A × A): 50 × 50 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Total weight (2 m): 2.44 kg
- Linear weight: 1.22 kg/m
Applications
The 50×50×5 mm aluminium angle is widely used in the installation and construction industries. Professional teams use it as a support structure element, reinforcement for mounting frames, stiffening of profile joints, and edge finishing. Thanks to the lightness of aluminium and ease of mechanical processing (cutting, drilling, welding), it significantly reduces assembly time on site.
