Equal angle aluminium 40×40×2 mm – L-profile, length 2000 mm
0
Description

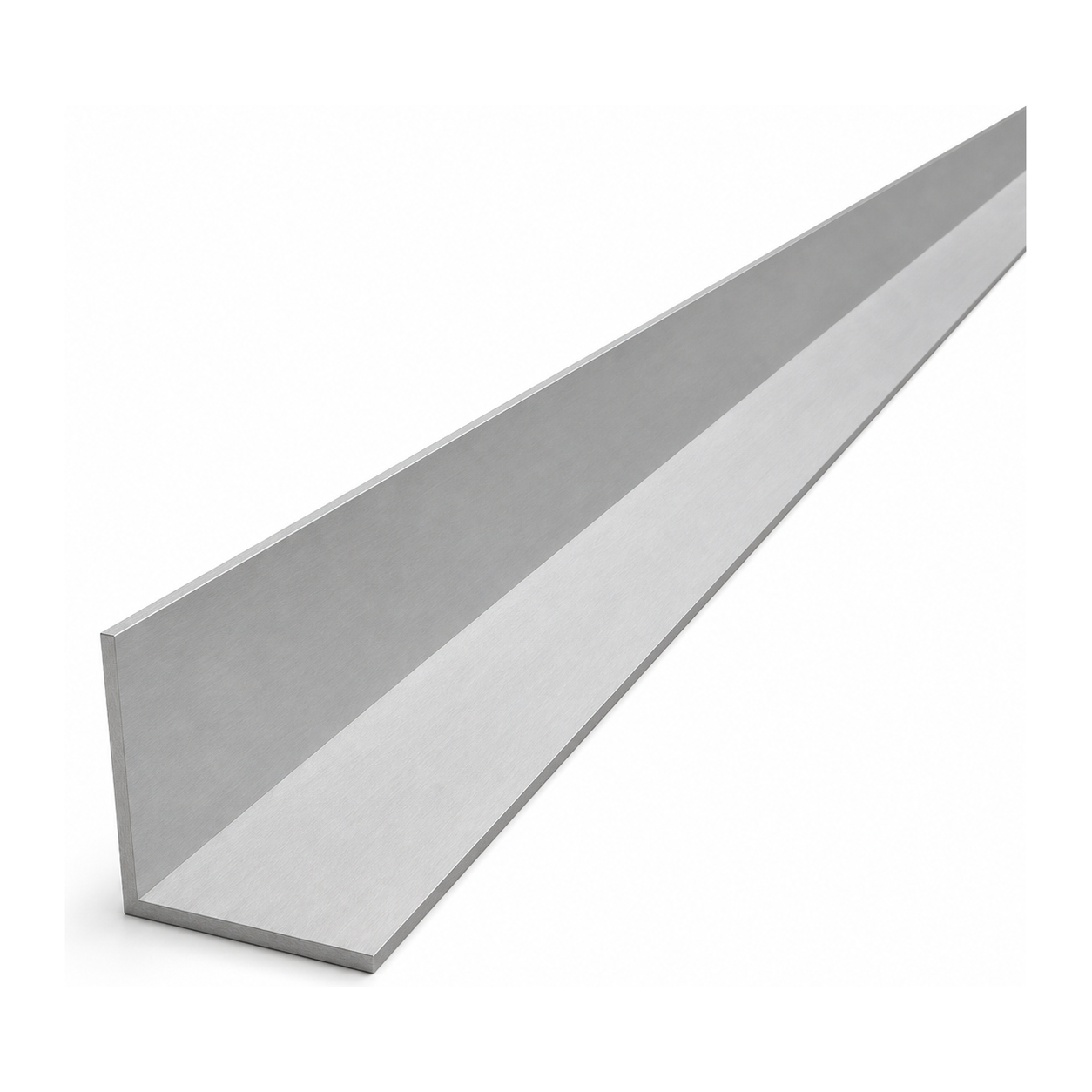

Equal angle aluminium 40×40×2 mm – L-profile, length 2000 mm
Equal angle aluminium 40×40×2 mm is a versatile L-profile with a length of 2000 mm, made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Combining low self-weight with high rigidity and aluminium's natural corrosion resistance, this angle is suitable wherever structural durability is required whilst keeping load to a minimum — from mounting frames and support structures to finishing, repairs, and prototyping.
The symmetrical cross-section (both legs 40 mm) simplifies design and cutting — there is no need to distinguish the profile's orientation on site. The raw, non-anodised surface allows further processing: anodising, powder coating, or leaving in its natural state if the component is used in conditions that require no additional protection.
Technical specification

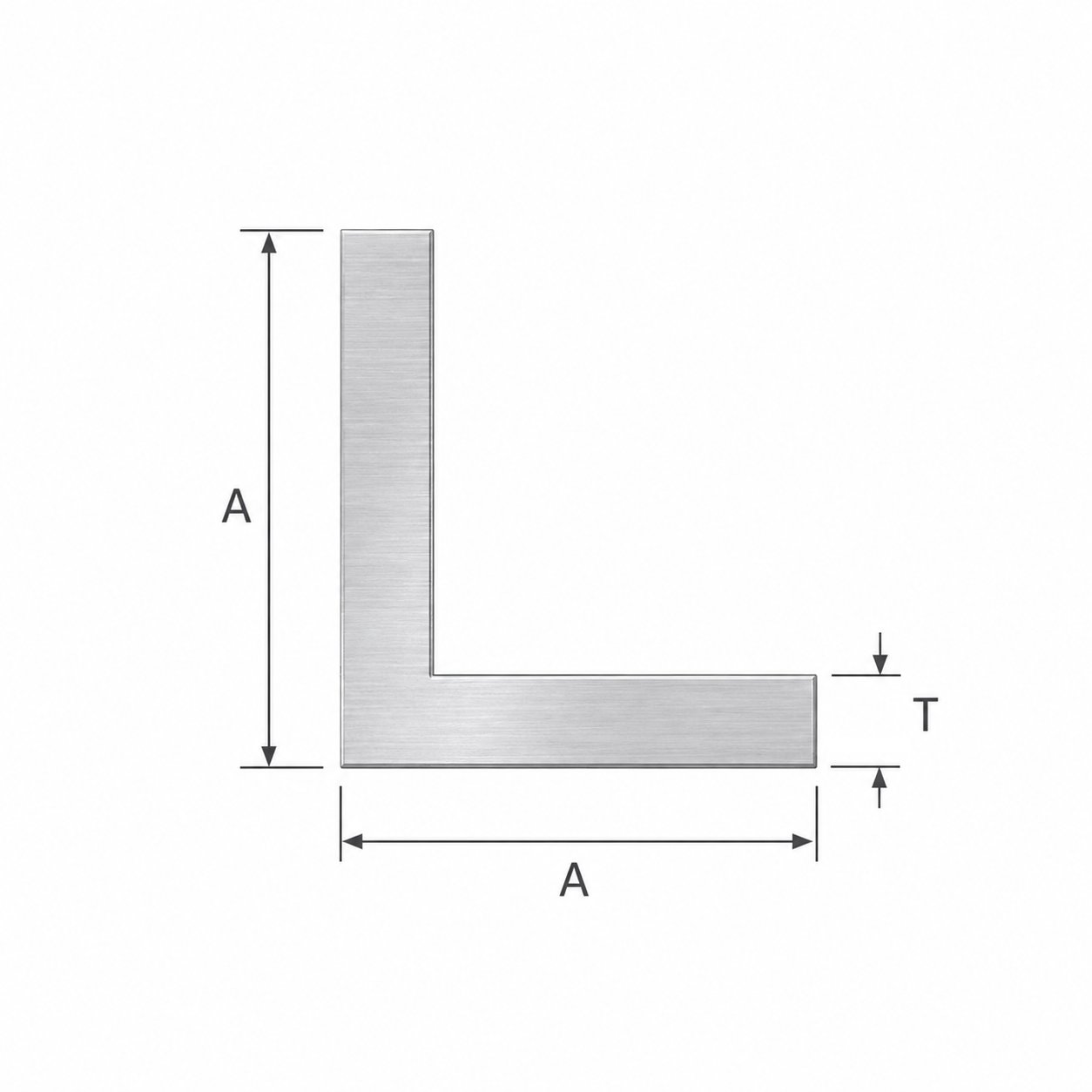

- Cross-section type: equal angle (L-profile)
- Leg dimensions (A × A): 40 × 40 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 0.90 kg (0.45 kg/m)
Applications
The 40×40 mm aluminium angle is suitable for use as a component in support structures, frame bracing, edge finishing, and profile joining in mounting systems. Its low weight — just 0.90 kg per 2-metre length — makes transport and installation straightforward, even when working at height. The profile can be cut, drilled, and joined using standard mechanical fasteners or brackets.
Technical data
| Height [mm] | 40 |
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
