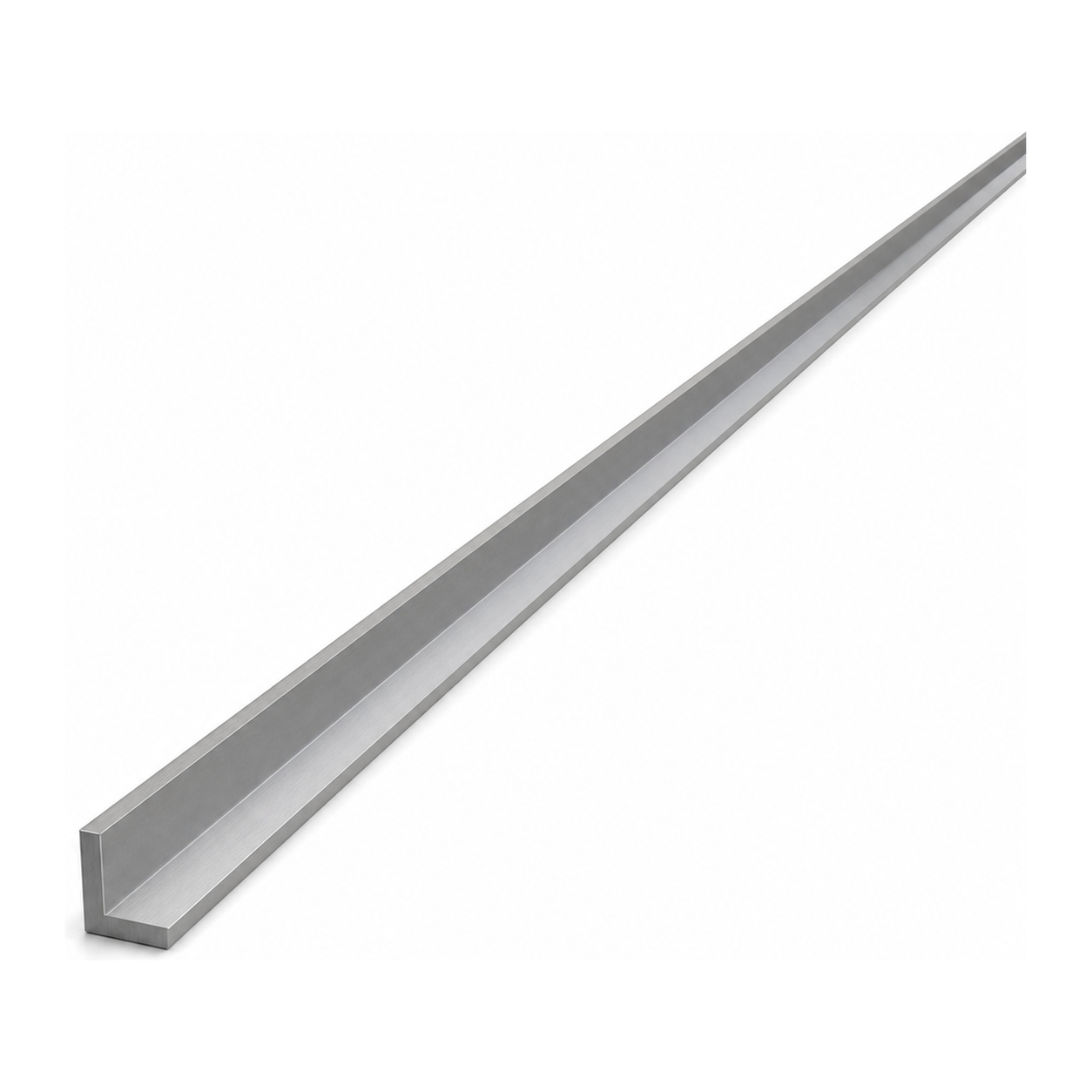

Equal angle aluminium 10×10×2 mm – L-profile, length 2000 mm
Leave feedback on the product
Equal leg aluminium angle, L-profile, alloy EN AW-6060 T6/T66 (AlMgSi0.5). Legs 10×10 mm, wall thickness 2 mm, length 2000 mm. Mill finish, non-anodised. Weight 0.19 kg/2 m.
Product code: 001-719
Product features
[PIM] katowniki-rownoramienne #147
- Material Aluminium
- Height [mm] 10
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Equal Leg Aluminium Angle 10×10×2 mm – L Profile, Length 2000 mm
Equal leg aluminium angle 10×10×2 mm is a versatile L-type profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its small cross-section and low weight of just 0.19 kg per 2 metres, it is ideal wherever a lightweight, rigid and corrosion-resistant structure is required — from frame reinforcements and finishes, through minor assembly work, to repairs and prototyping.
The profile is supplied in a 2000 mm length with a mill finish (non-anodised) surface, allowing for further processing — anodising, powder coating, or leaving in its natural state. Aluminium alloy 6060 in the T6/T66 temper offers good machinability and weldability, making cutting, drilling and joining to other structural elements straightforward.

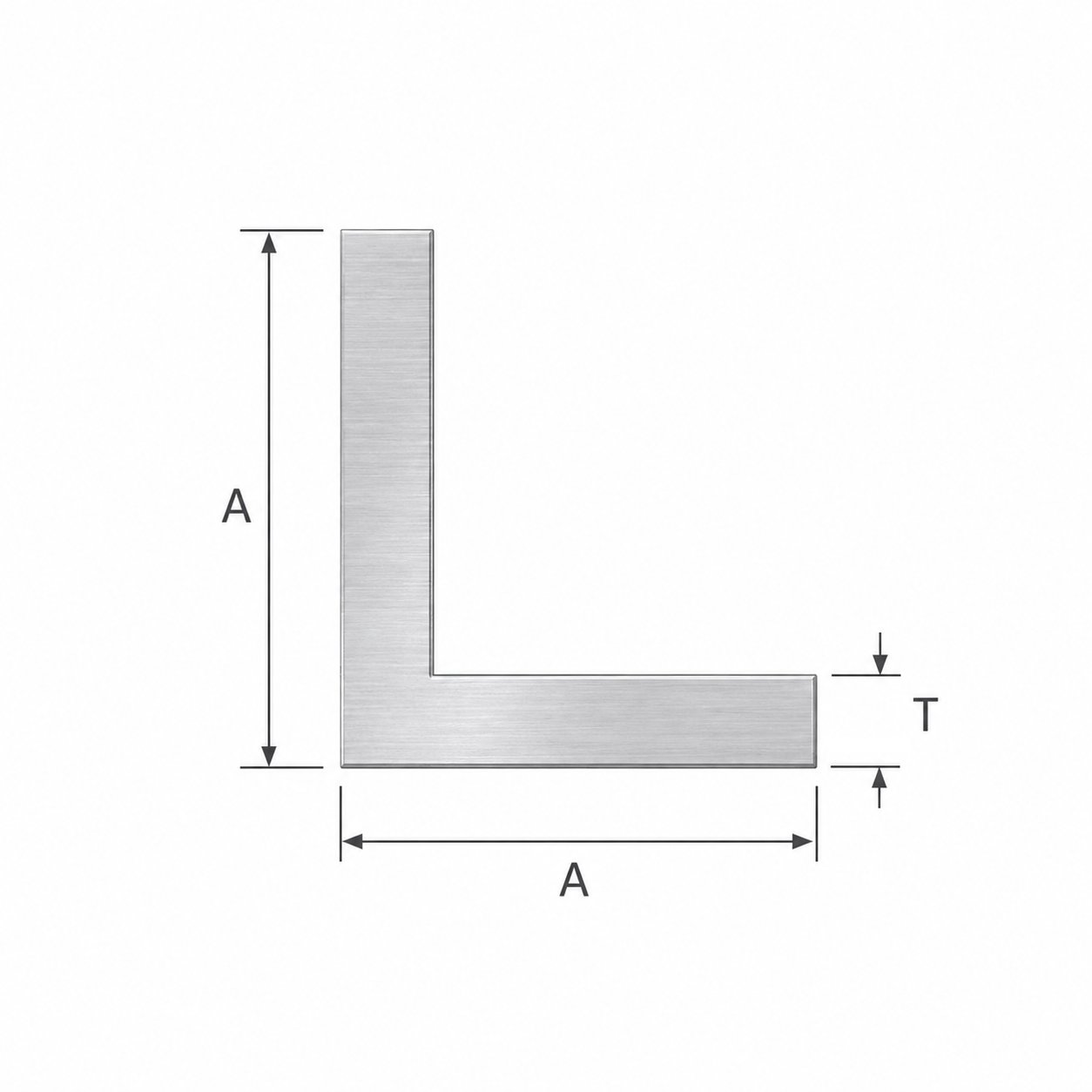

Technical Specification
- Section type: equal leg angle (L profile)
- Leg dimensions (A × A): 10 × 10 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface finish: mill finish (non-anodised)
- Total weight (2 m): 0.19 kg
- Linear weight: 0.097 kg/m
Applications
The 10×10×2 mm angle is widely used in installation and structural work. It is ideally suited as a stiffening element, for angular joining of sheets and panels, edge framing, and as a guide or spacer. Its small cross-section allows fitting in confined spaces — around guards, enclosures and lightweight frames.
