Equal Leg Aluminium Angle 80×80×3 mm EN AW-6060 L=2000 mm
0
Description
Equal Leg Aluminium Angle 80×80×3 mm EN AW-6060 L=2000 mm

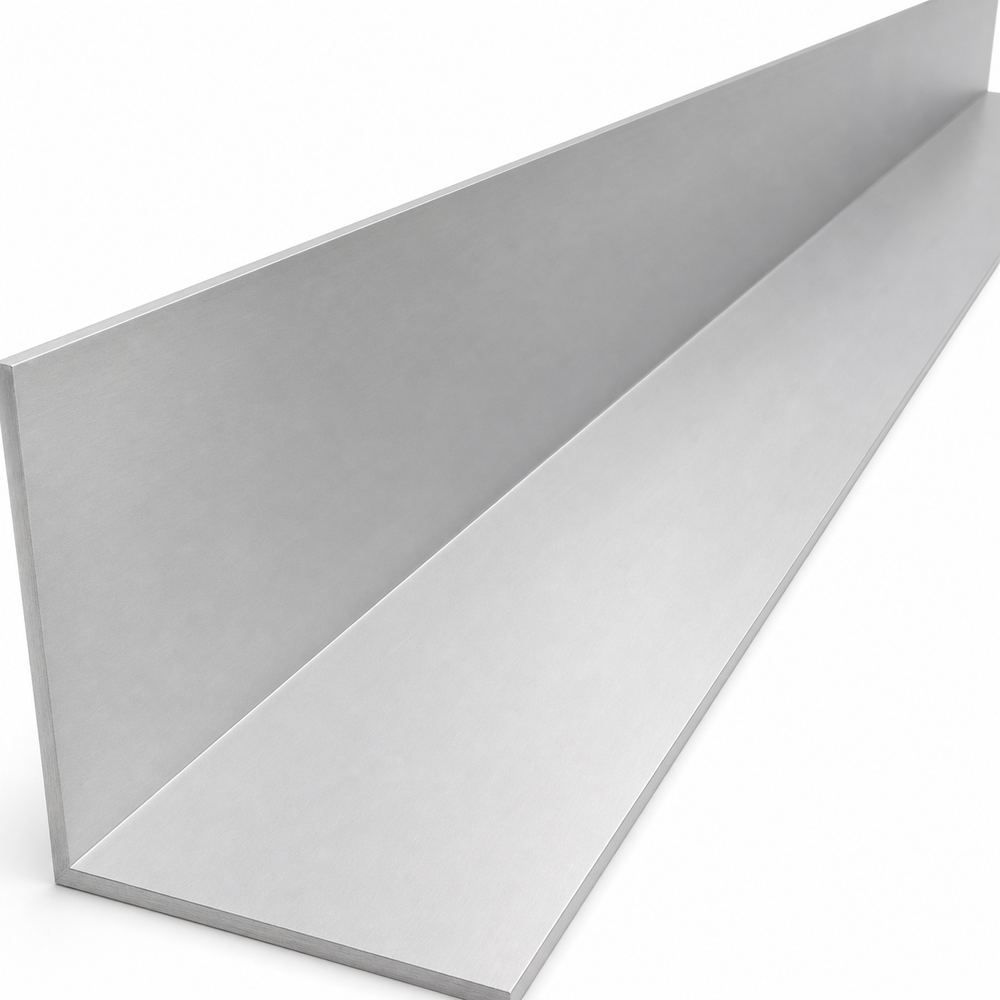

Equal leg aluminium angle 80×80×3 mm is a versatile L-profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), supplied in a 2000 mm length. Combining the lightweight properties of aluminium with high structural rigidity, this angle section is equally suited as a load-bearing element for frames and support structures, as well as for edge finishing, corner protection, or repair applications.
Applications
The equal legs measuring 80 × 80 mm ensure symmetrical load transfer, which is essential when constructing mounting frames, substructures for photovoltaic installations, support frameworks for technical equipment, and various types of guards and enclosures. The mill finish aluminium surface allows for further processing — anodising, powder coating, or painting — depending on project requirements. The profile can also be easily cut, drilled, and connected using standard bolted fixings, or welded using TIG/MIG methods.
Technical Specification

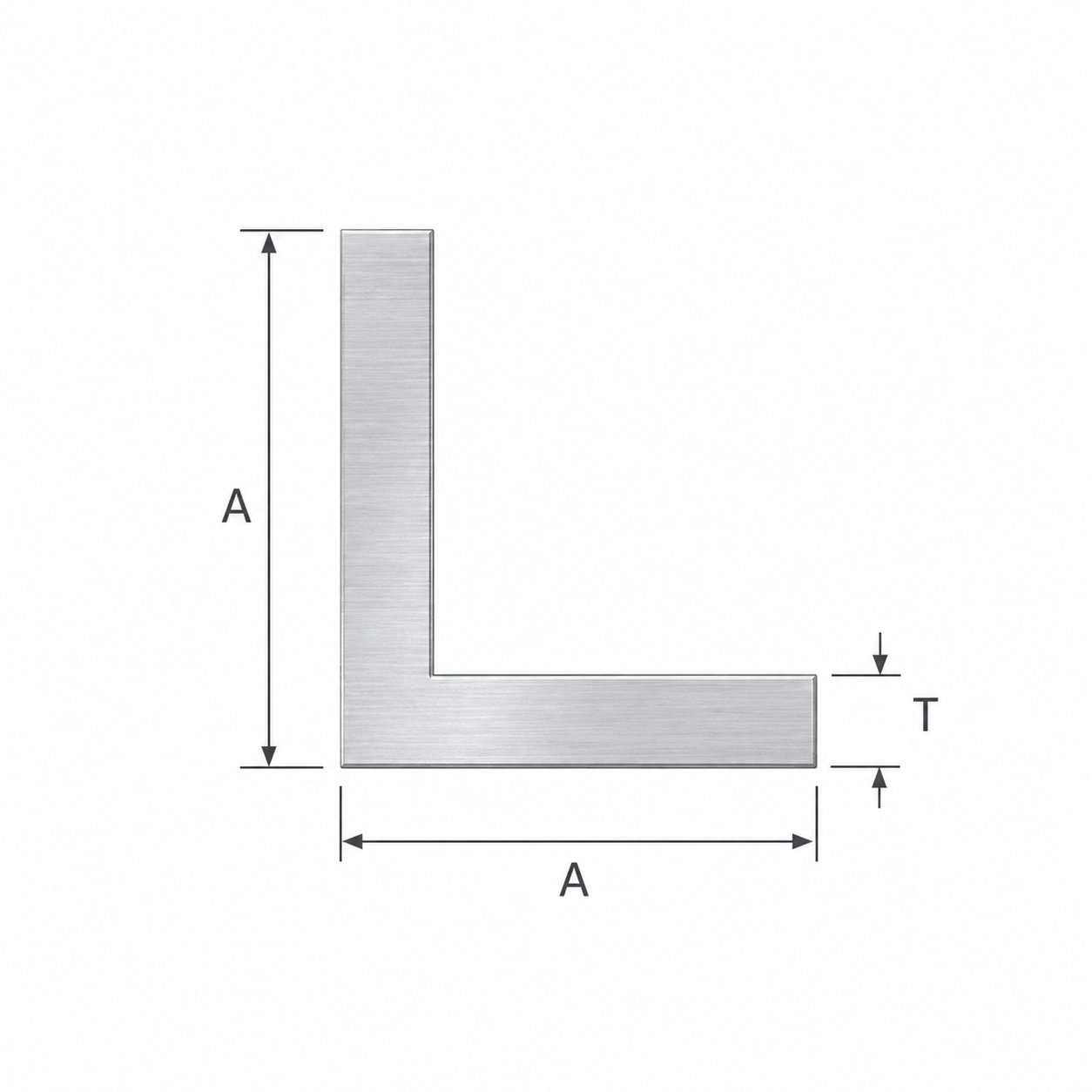

- Cross-section type: equal leg angle (L-profile)
- Leg dimensions (A × A): 80 × 80 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface finish: mill finish (non-anodised)
- Total weight (2 m): approx. 2.60 kg (1.30 kg/m)
Why choose this product?
- Lightweight — weighing just 1.30 kg/m, it is easy to transport and install, particularly when working at height
- Corrosion resistance — aluminium requires no additional protective coatings under standard operating conditions
- Structural rigidity — the L-profile with equal 80 mm legs provides stable support and even load distribution
- Ease of fabrication — cutting, drilling, milling, and TIG/MIG welding without the need for specialist tools
- EN AW-6060 T64 alloy — excellent weldability and suitability for anodising, widely used in construction and industry
