Equal Leg Aluminium Angle 40×40×5 mm EN AW-6060 – Length 2000 mm

Go to Product feedback

Equal leg aluminium angle EN AW-6060 T6/T66, L-profile 40×40×5 mm, length 2000 mm. Weight approx. 2.06 kg (1.03 kg/m). Raw, non-anodised surface. Alloy AlMgSi0.5 / PA38.

Go to full description
with VAT without VAT
Price €24.77
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] katowniki-rownoramienne #147

  • Material Aluminium
  • Height [mm] 40
  • Wall Thickness [mm] 5
  • Length [mm] 2000

Description

Equal Leg Aluminium Angle 40×40×5 mm EN AW-6060 – Length 2000 mm

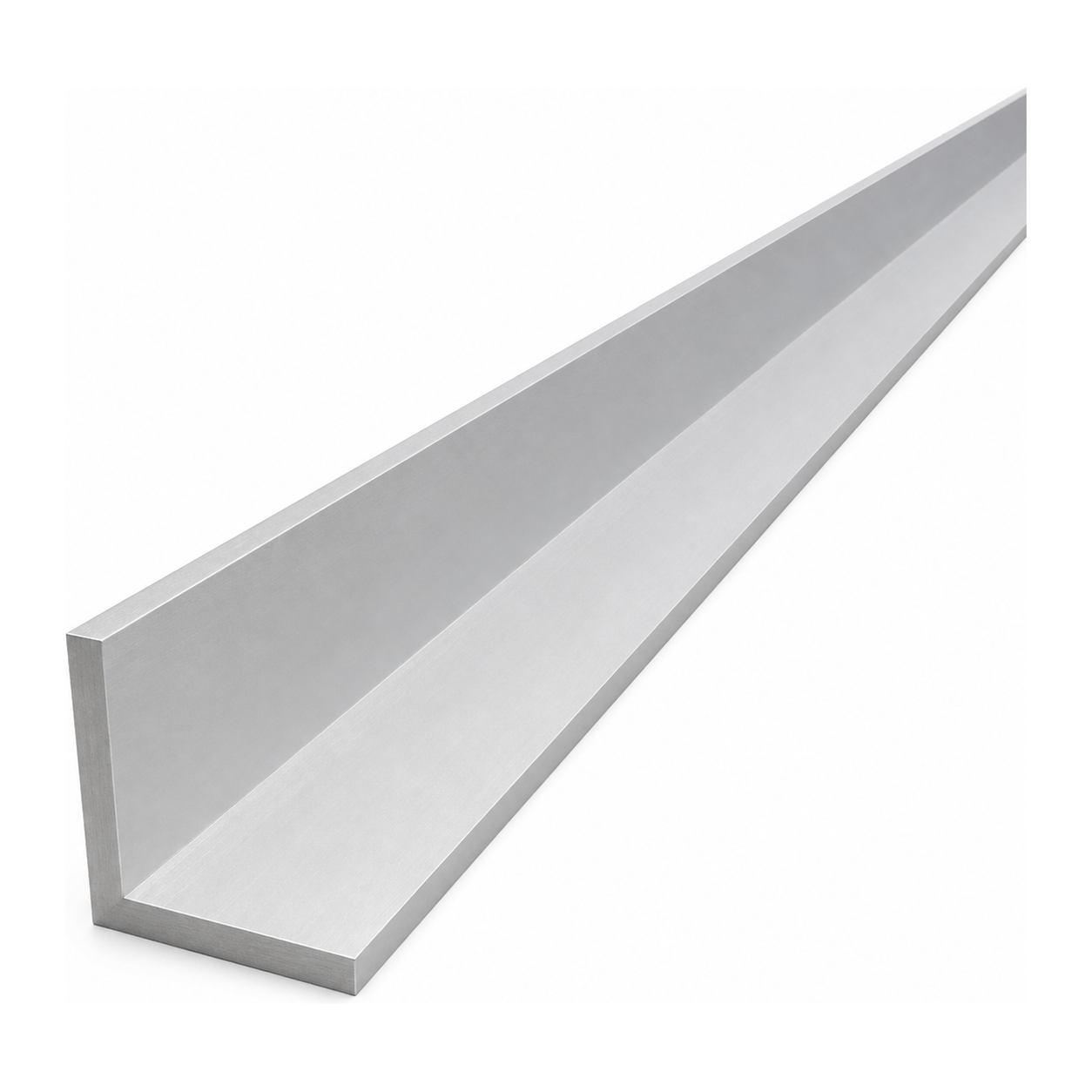

Equal leg aluminium angle 40×40×5 mm – perspective view of L-profile
Equal leg aluminium angle 40×40×5 mm – perspective view of L-profile

Equal leg aluminium angle 40×40×5 mm is a versatile L-profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). With equal legs measuring 40 mm and a wall thickness of 5 mm, the profile combines high rigidity with low weight, making it an ideal structural element for photovoltaic installations, support frames, finishing work, and repairs.

6060-series aluminium in the T6/T66 temper provides excellent resistance to atmospheric corrosion — the profile requires no additional anti-corrosion treatment under standard outdoor conditions. The raw (non-anodised) surface allows for further processing: anodising, powder coating, or leaving in its as-supplied state.

Dimensions and Technical Specification

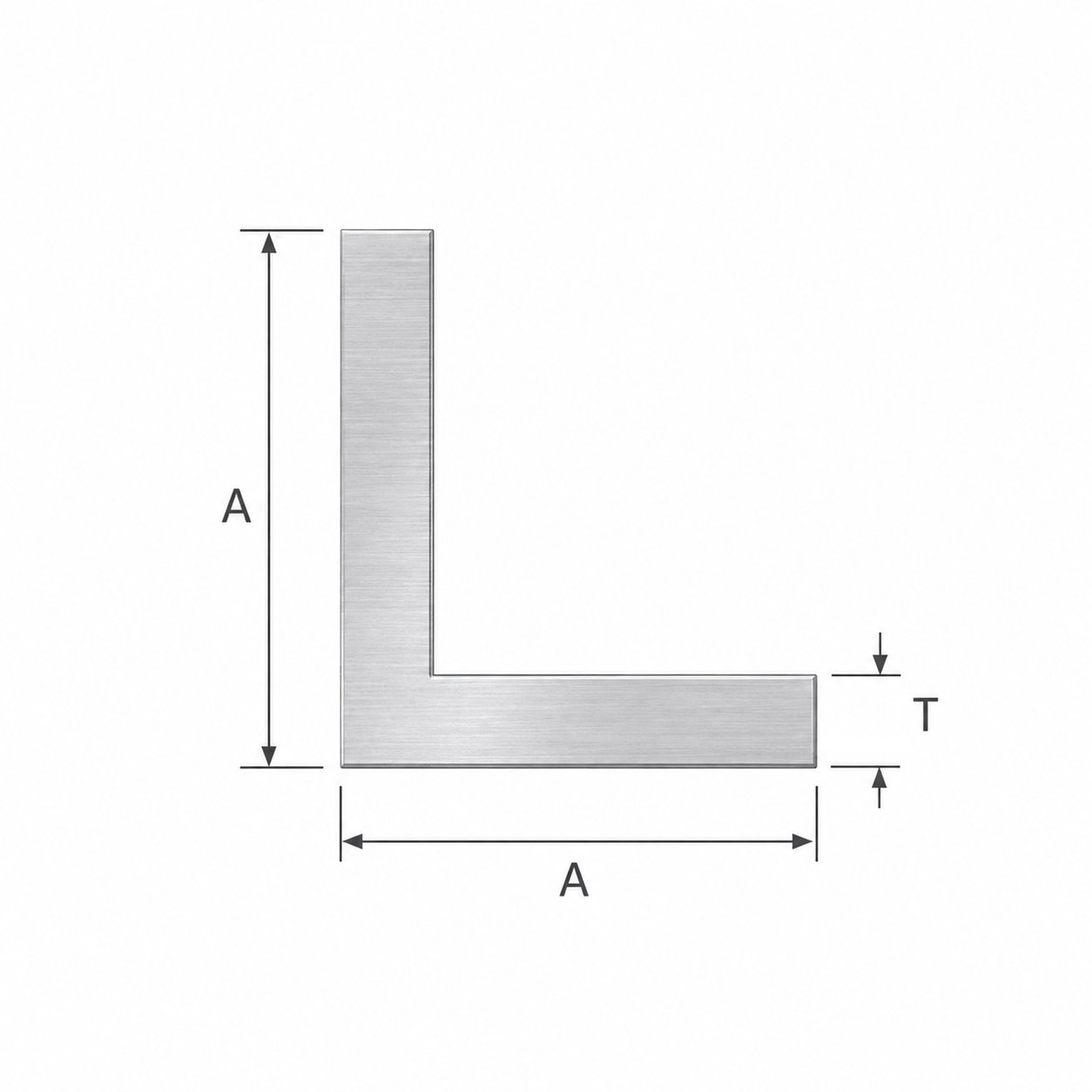

Dimensional drawing of aluminium angle cross-section – dimensions A (legs) and T (wall thickness)
Dimensional drawing of aluminium angle cross-section – dimensions A (legs) and T (wall thickness)
  • Cross-section type: equal leg angle (L-profile)
  • Legs (A × A): 40 × 40 mm
  • Wall thickness (T): 5 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: raw (non-anodised)
  • Weight (2 m): approx. 2.06 kg (1.03 kg/m)

Applications

The 40×40×5 mm angle has a wide range of applications in installation and structural work. It is suitable as a reinforcing element for PV structure frames, stiffening of mounting profile connections, edge protection, and corner finishing. Its low weight — just approx. 1.03 kg per linear metre — facilitates transport and installation at height, whilst the rigidity of the profile allows mechanical loads to be transferred in lightweight support structures.
