Equal Leg Aluminium Angle 40×40×4 mm EN AW-6060 – Length 2000 mm
0
Description
Equal Leg Aluminium Angle 40×40×4 mm EN AW-6060 – Length 2000 mm

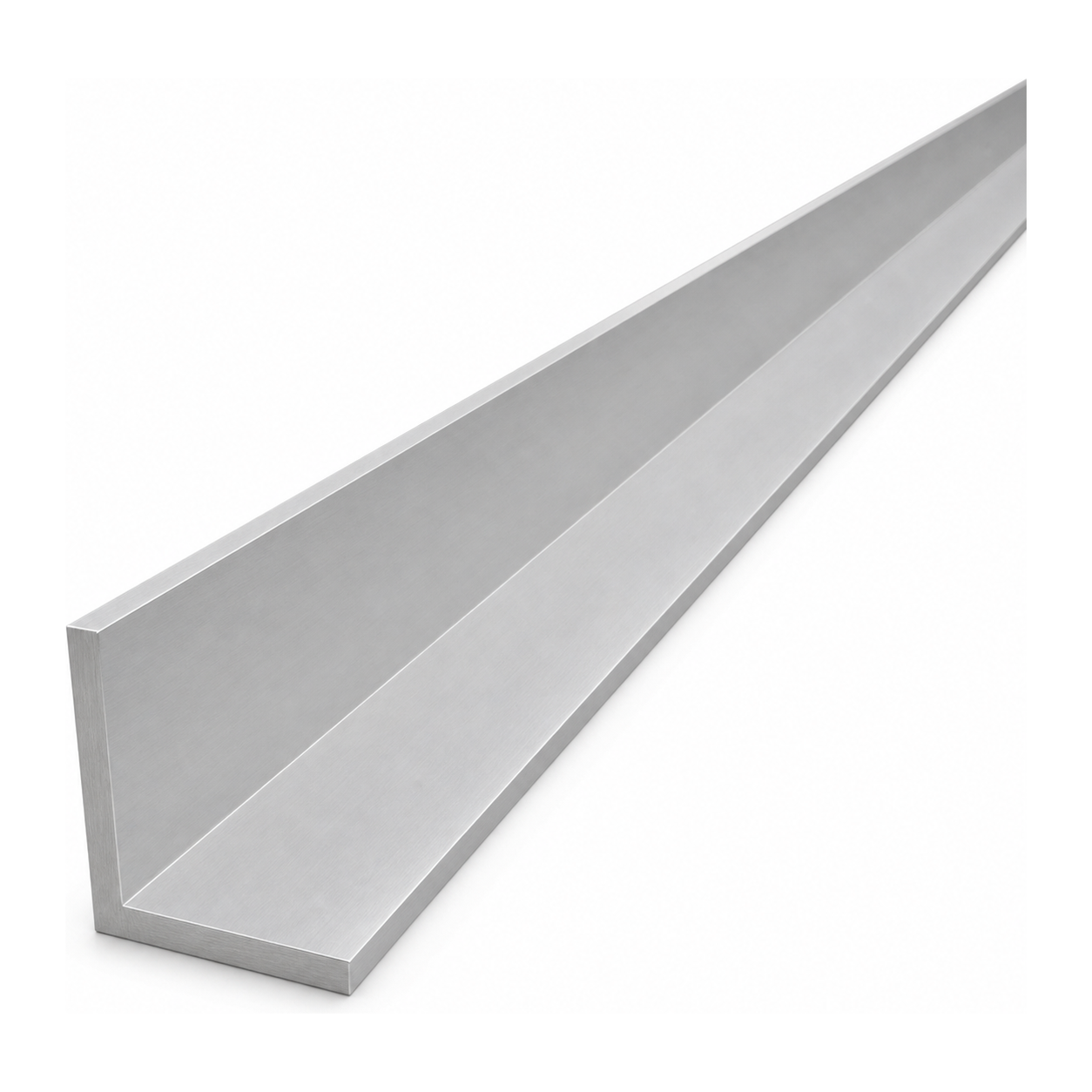

Equal leg aluminium angle 40×40×4 mm is a versatile L-profile manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). With equal legs measuring 40 mm and a wall thickness of 4 mm, it combines good rigidity with low weight — just 1.64 kg per 2000 mm length. It is a proven structural material for installation contractors, suitable for building frames, reinforcements, trims, and any repairs requiring a lightweight yet corrosion-resistant profile.
Technical Specification

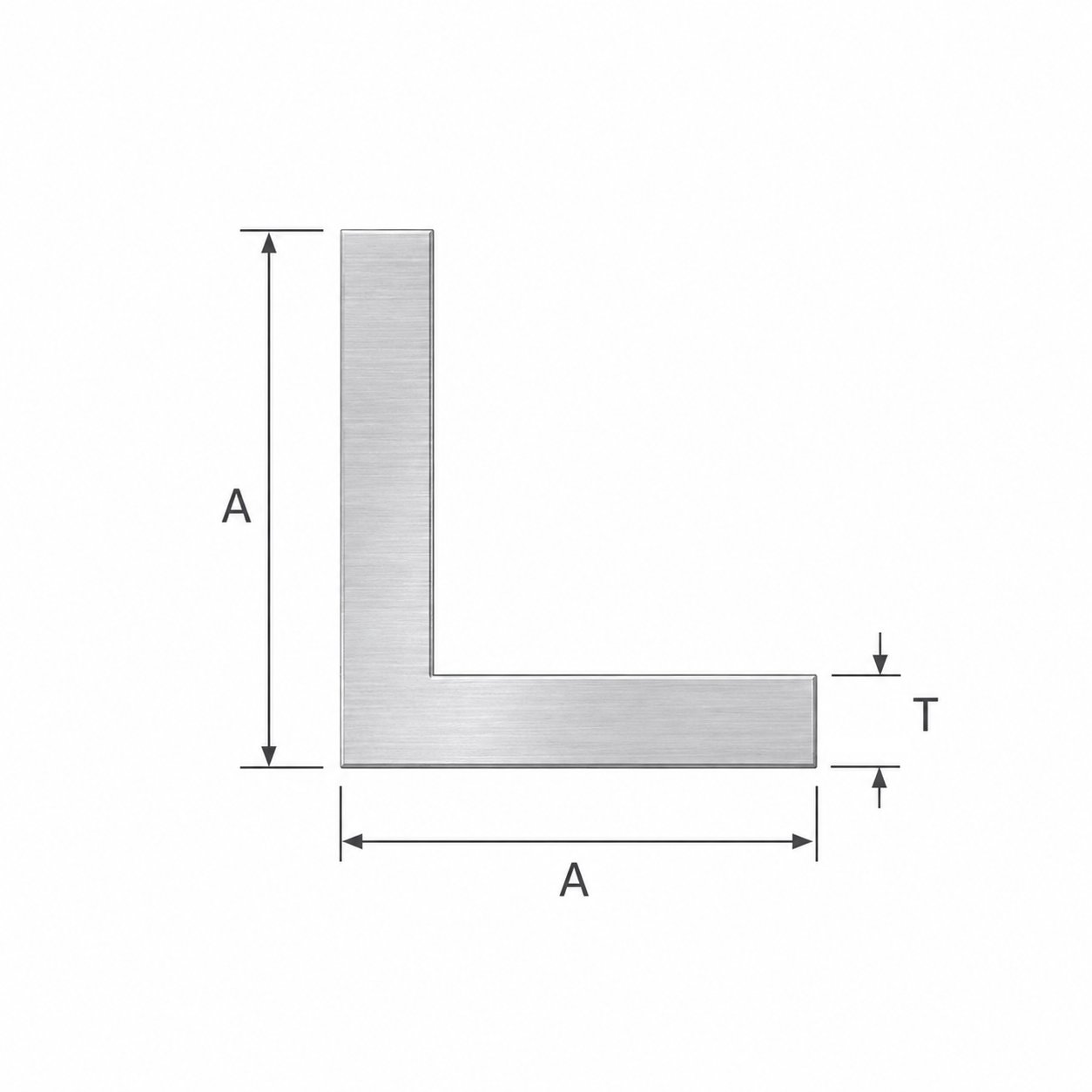

- Section type: equal leg angle (L-profile)
- Legs (A × A): 40 × 40 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 1.64 kg (unit weight: 0.82 kg/m)
Applications and Advantages
The EN AW-6060 alloy in T64 temper provides excellent corrosion resistance without the need for additional surface treatment, reducing costs and project lead times. The profile is easy to process — it can be cut, drilled, and welded using standard workshop tools. The low unit weight (0.82 kg/m) facilitates handling and installation, particularly when working at height.
- Construction of lightweight frames and support structures
- Reinforcements and bracing of mounting components
- Edge trims and corner guards
- Photovoltaic and installation structures
- Field repairs and service work
