Equal Leg Aluminium Angle 100×100×2 mm – L Profile, Length 2000 mm
0
Description
Equal Leg Aluminium Angle 100×100×2 mm – L Profile, Length 2000 mm
The equal leg aluminium angle 100×100×2 mm is a robust L-type profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to the large leg cross-section of 100 × 100 mm combined with a slim wall thickness of 2 mm, it offers an excellent balance of rigidity and low weight — making it an ideal structural component for frames, reinforcements, trims and repairs in photovoltaic installations and general construction.
The profile is supplied in a 2000 mm length with a mill finish (unanodised) surface, allowing further processing — powder coating, anodising, or direct installation in structures sheltered from direct weathering. Aluminium EN AW-6060 provides natural corrosion resistance, while the T64 temper guarantees enhanced mechanical properties following heat treatment.

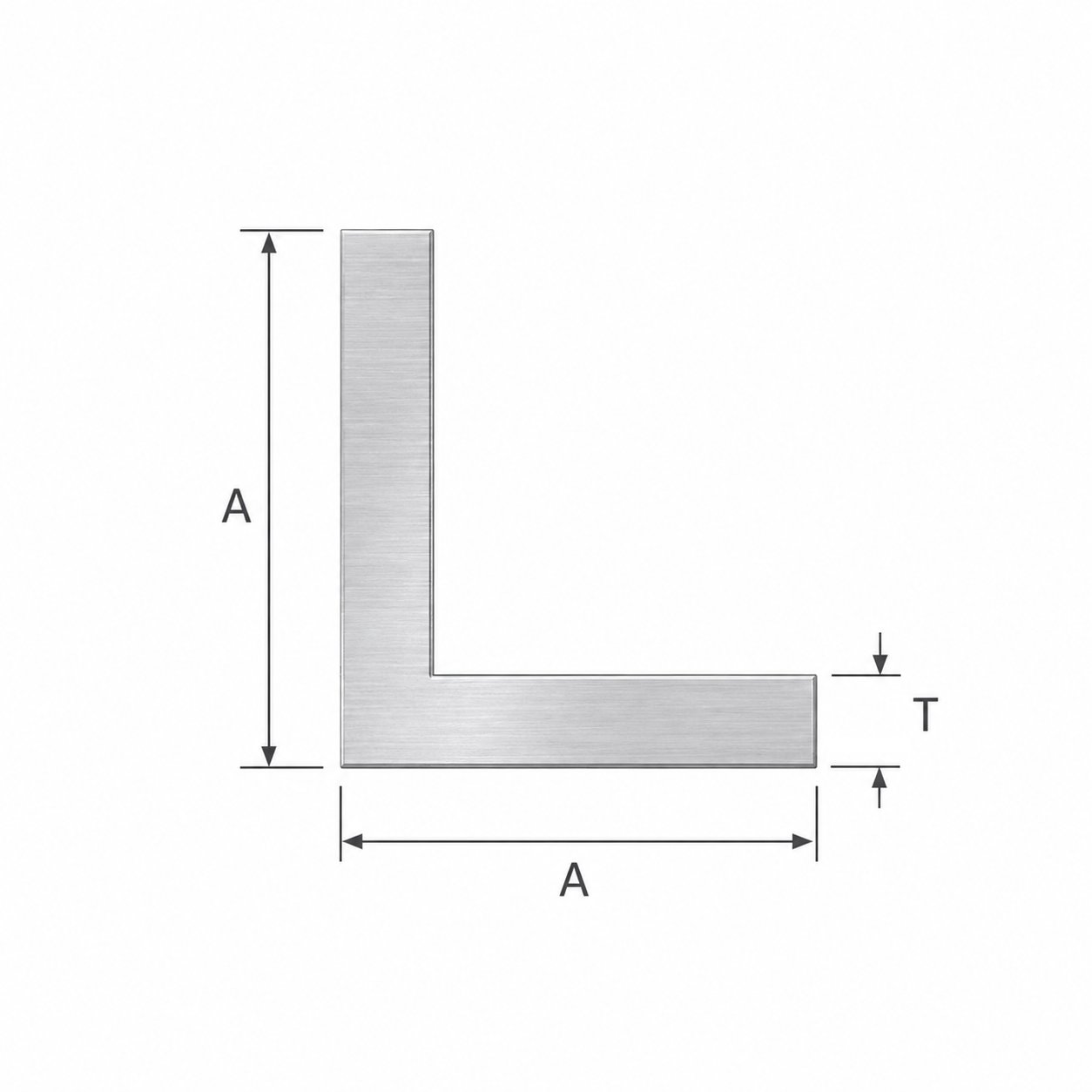

Cross-section Diagram
Technical Specification
- Profile type: equal leg angle (L profile)
- Legs (A × A): 100 × 100 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (unanodised)
- Total weight: 2.14 kg (1.07 kg/m)
- Overall dimensions: 200 × 10 × 10 cm (L × W × H)
Applications
The 100×100 mm aluminium angle is suitable wherever a lightweight and rigid angular connection is required. Professional installers use it as a reinforcing element in support structures, mounting frames, enclosures and trims. Its low weight — just 2.14 kg for a 2-metre length — makes it easy to transport and install at height, while maintaining the high load-bearing capacity of the profile.
