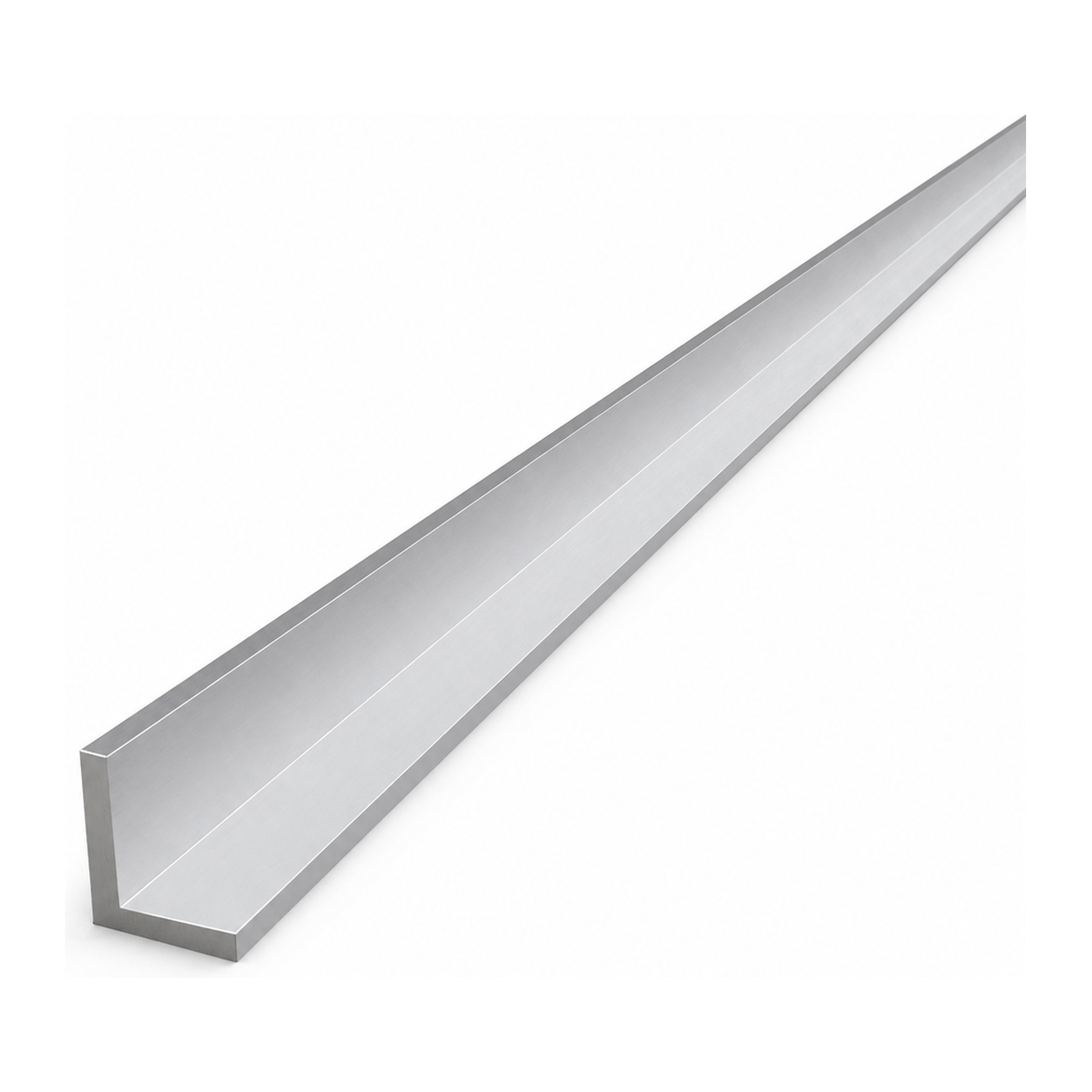

Equal Angle Aluminium 20×20×3 mm – L-Profile, Length 2000 mm
Leave feedback on the product
Equal angle aluminium EN AW-6060 T6/T66, L-profile. Legs 20×20 mm, wall thickness 3 mm, length 2000 mm. Mill finish (non-anodised). Weight 0.62 kg (0.31 kg/m).
Product code: 001-722
Product features
[PIM] katowniki-rownoramienne #147
- Material Aluminium
- Height [mm] 20
- Wall Thickness [mm] 3
- Length [mm] 2000
Description
Equal Angle Aluminium 20×20×3 mm – L-Profile, Length 2000 mm
Equal angle aluminium 20×20×3 mm is a versatile L-profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Combining light weight with good rigidity and aluminium's natural corrosion resistance, it is suitable wherever you need a durable and easy-to-work structural component — from frames and subframes, to edge finishing, through to minor repairs and reinforcements.
The 2000 mm length profile weighs just 0.62 kg (linear weight 0.31 kg/m), making it significantly easier to transport and install. The mill finish (non-anodised) surface allows further processing — anodising, powder coating, or leaving in its natural state for indoor applications.

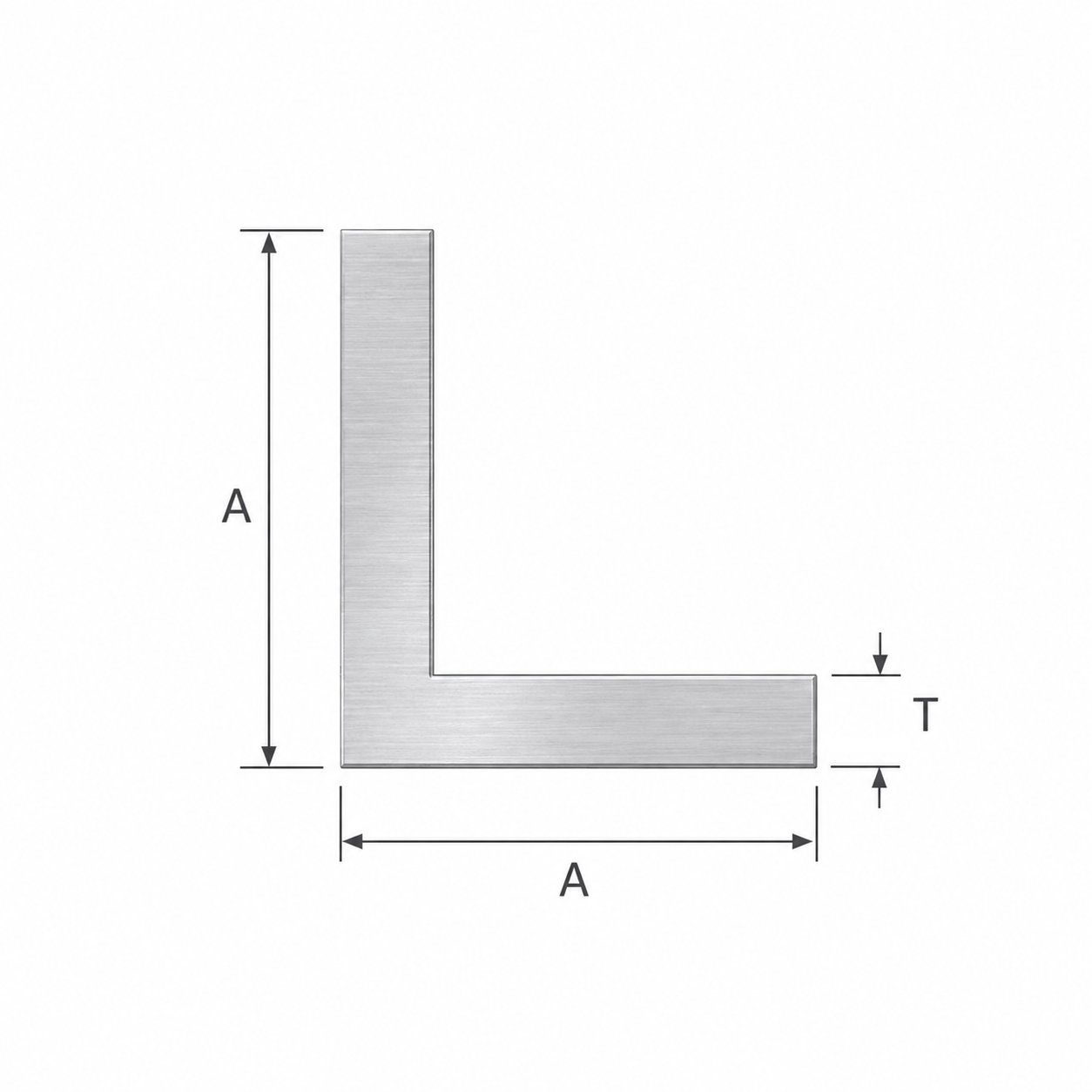

Dimensions and Technical Specification
- Cross-section type: equal angle (L-profile)
- Legs (A × A): 20 × 20 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Total weight (2 m): 0.62 kg
- Linear weight: 0.31 kg/m
Applications
The 20×20×3 mm angle is widely used in installation and construction work. It can be used as a reinforcing element in lightweight frames and subframes, for finishing edges of boards and panels, as an angle connector in aluminium structures, and for minor repairs and modifications to existing installations. The EN AW-6060 alloy offers excellent weldability and machinability, allowing quick cutting, drilling, and joining directly on site.
