Corner bracket for fencing panels 100x100 mm galvanised
Description

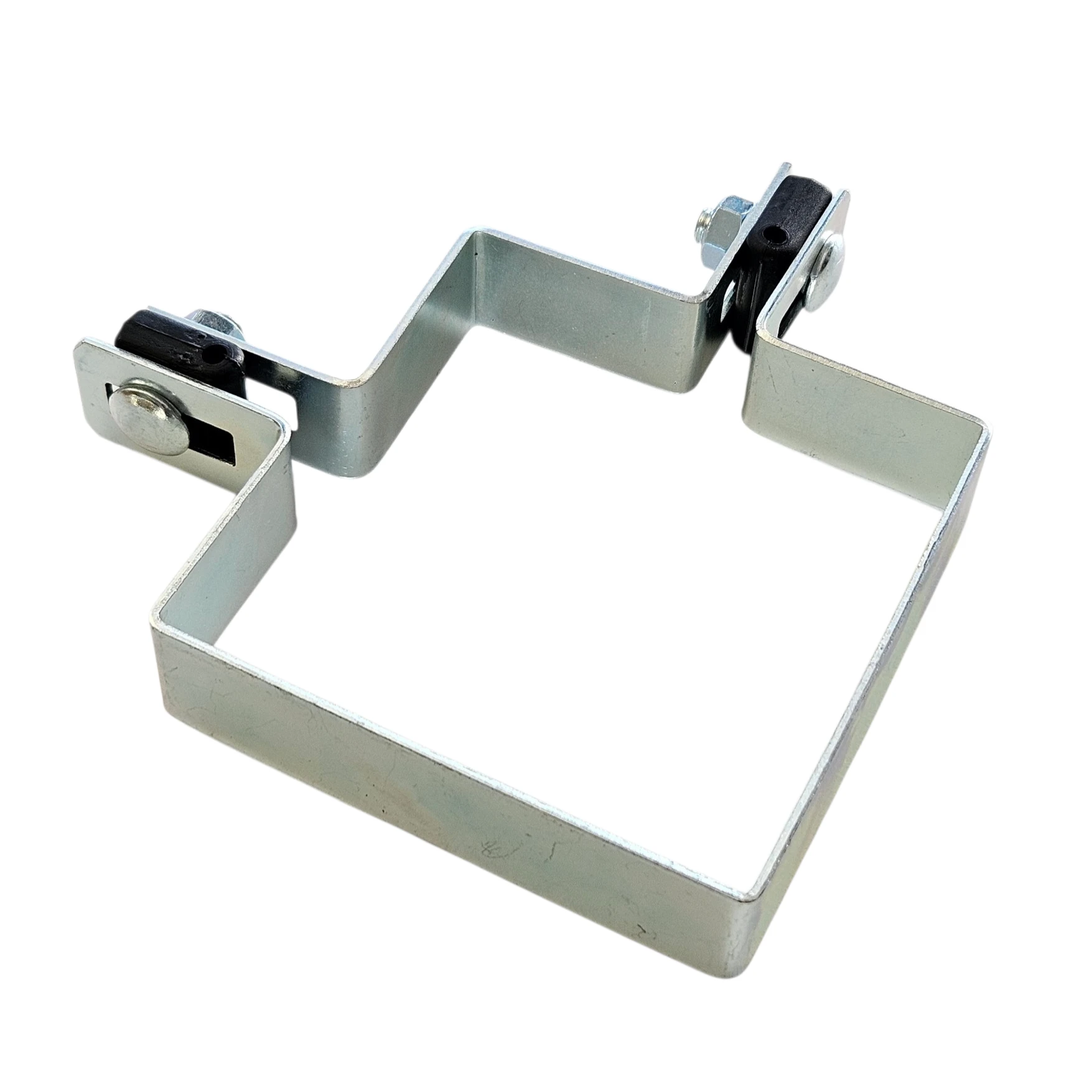

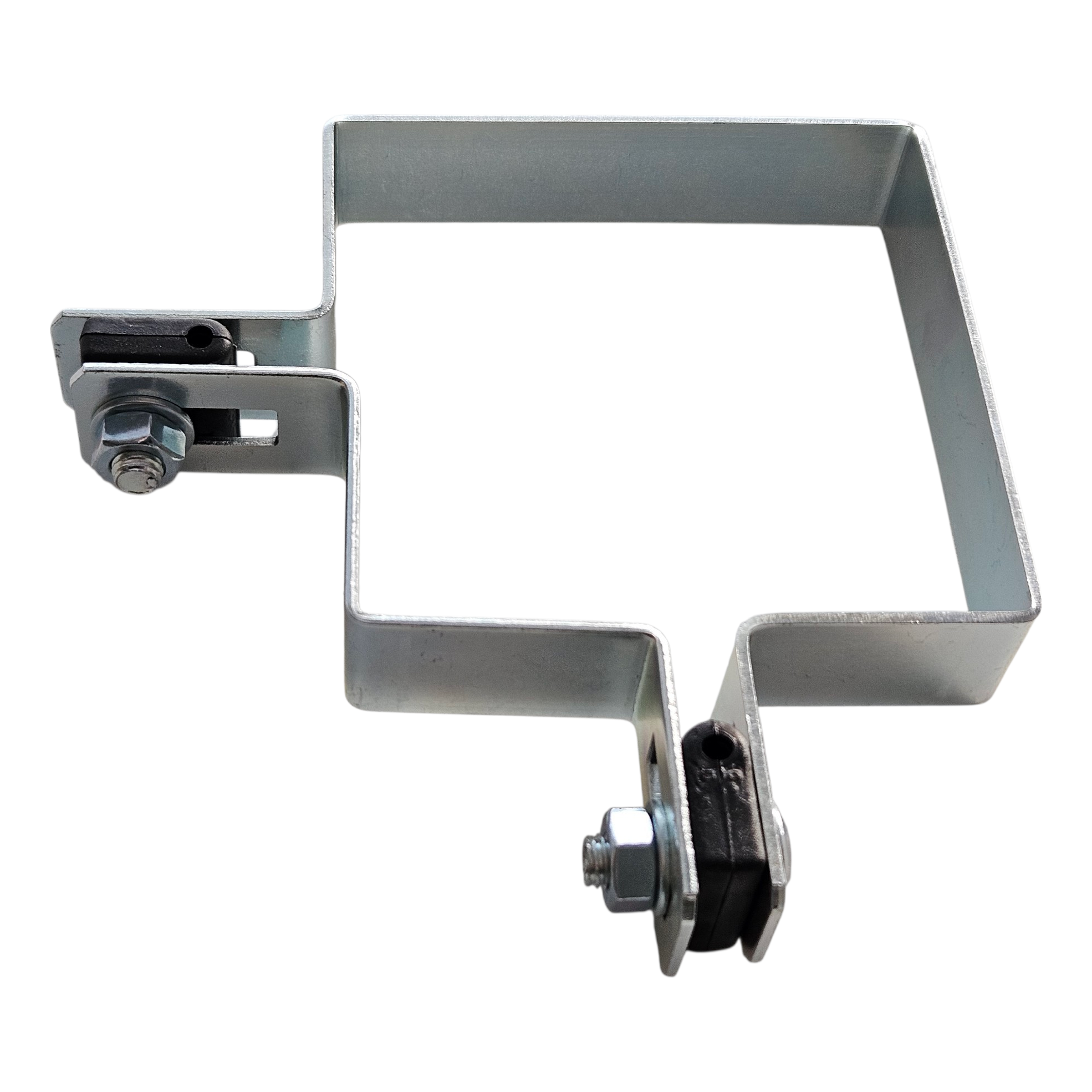

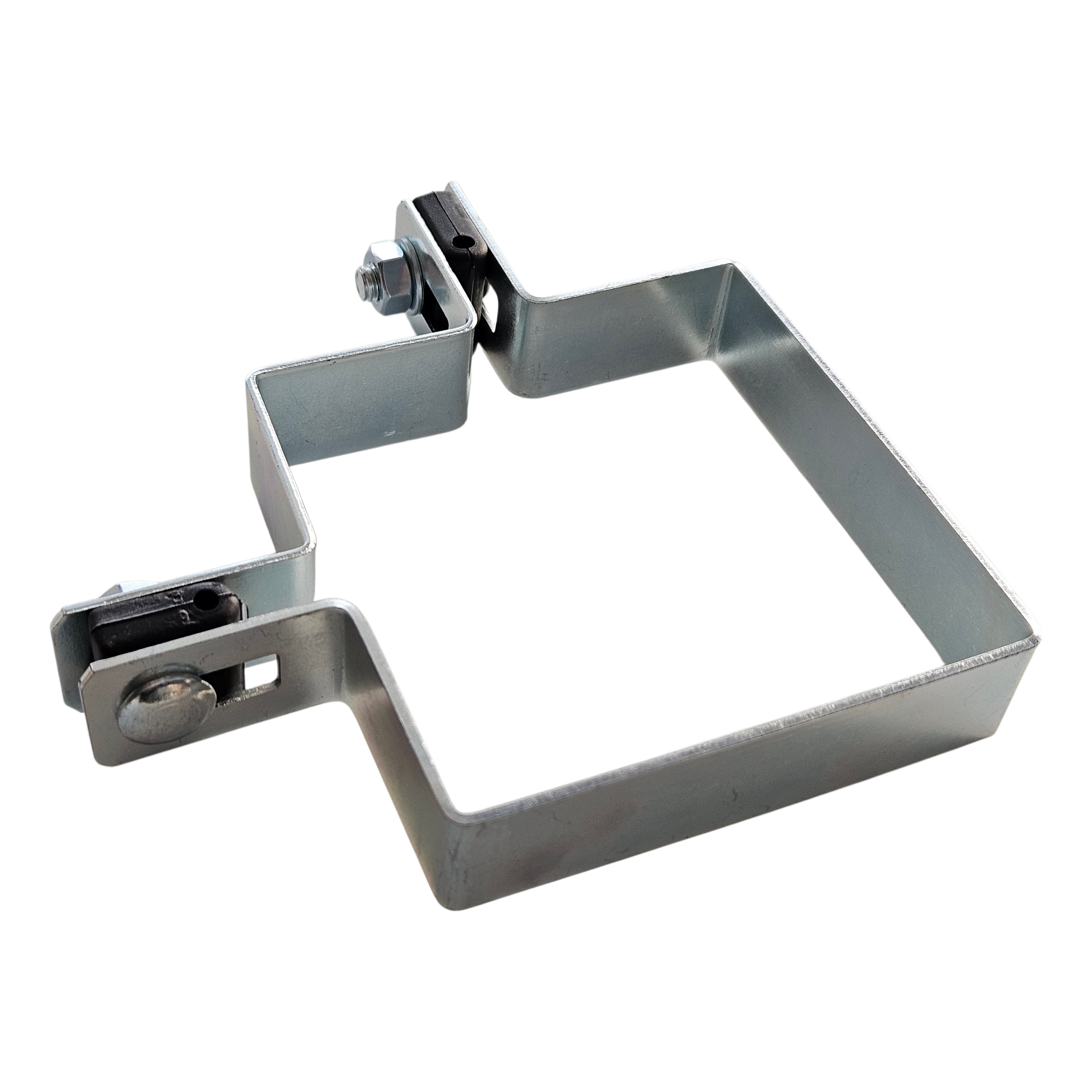

Corner panel bracket 100x100 mm galvanised – for fence posts
Corner panel bracket 100×100 mm is a durable mounting element designed for securing fencing panels at fence corners. Perfectly matched to posts with 100×100 mm cross-section, it provides a secure and permanent connection between the post and fencing panel. Thanks to construction from galvanised steel, the bracket is resistant to corrosion and long-term exposure to weather conditions — suitable for both panel fencing and traditional fencing.
Complete mounting kit
The kit includes everything needed for immediate installation — without the need to order additional components:
- 1 pc. corner bracket 100×100 mm — galvanic zinc coating
- 2 pcs. M8×25 bolt with nut and washer (galvanised)
- 2 pcs. spacer (booklet) made from plastic — black colour

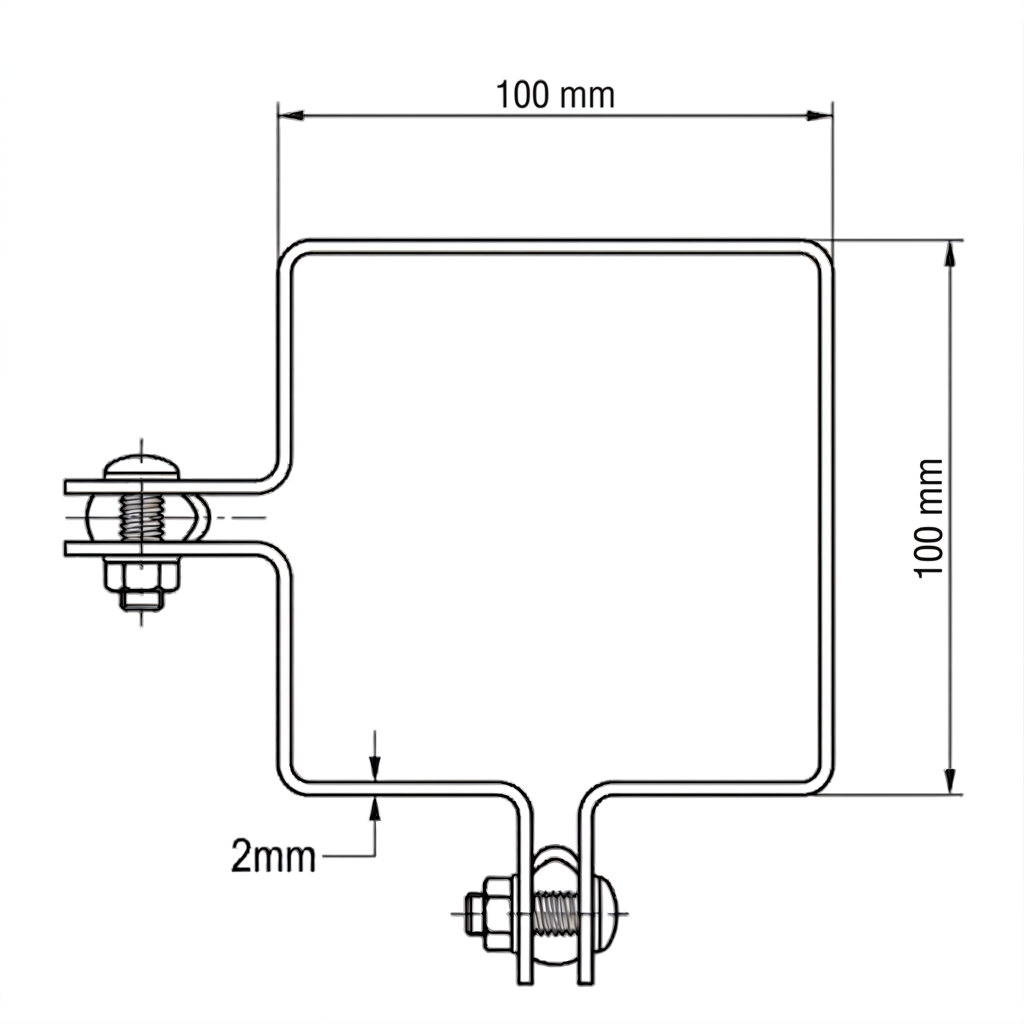

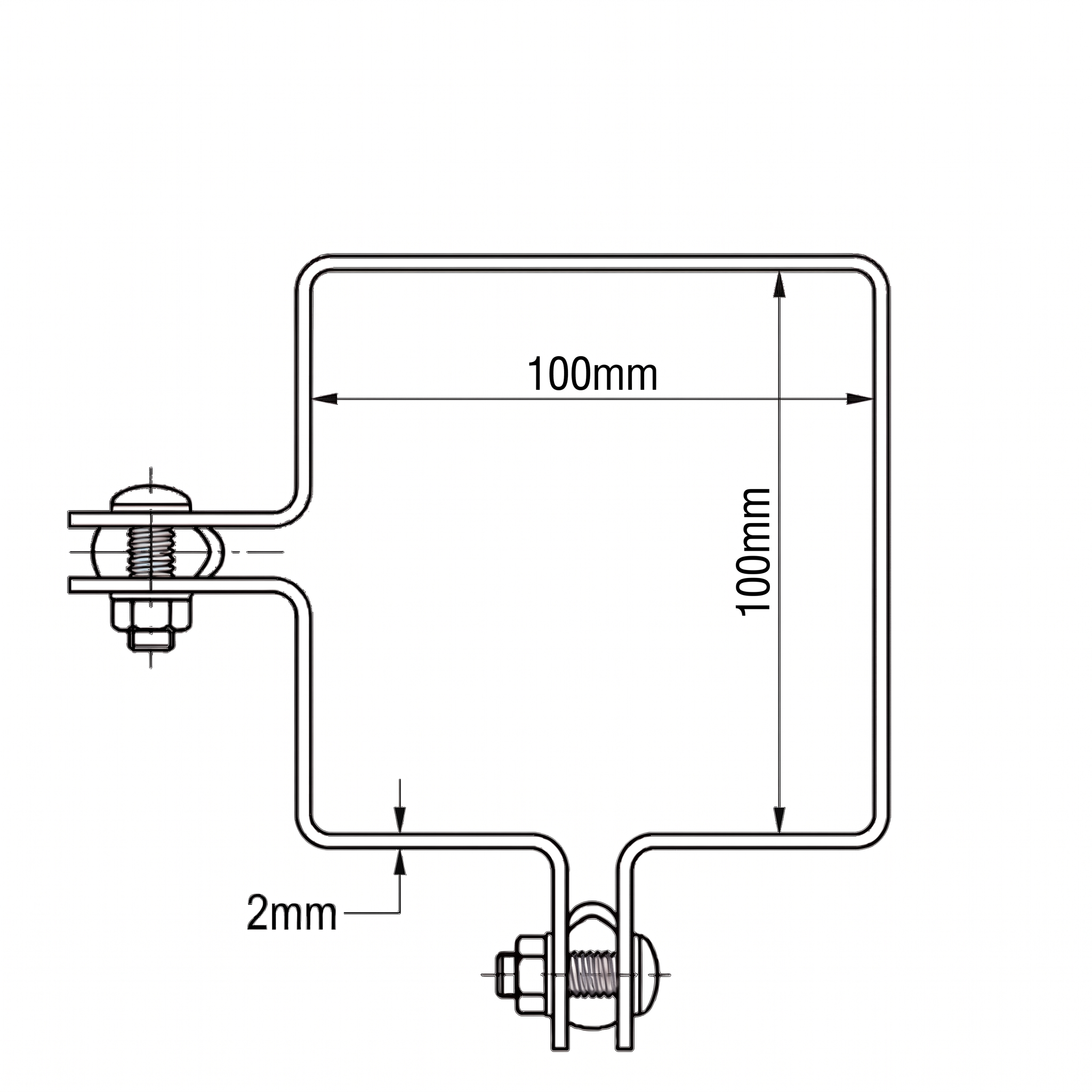

Dimensions and technical parameters
- Internal bracket dimension: 100×100 mm
- Wall thickness: 2 mm
- Material: galvanised steel
- Anti-corrosion coating: galvanic zinc
- Type: corner (for mounting panels at fence corners)
- Mounting hole: bean-shaped — allows position adjustment
- Bolts: M8×25 with nut and washer (galvanised)
- Standard spacer: for 4 mm diameter wire
Precise fit and easy installation
The bracket is perfectly matched to the 100×100 mm post cross-section, guaranteeing stable and secure connection of the fence structure. Bean-shaped mounting holes allow position adjustment of the panel relative to the post — facilitating fence alignment even on uneven terrain.
NOTE: The included plastic spacers (booklets) are factory-matched to wire diameter — ensuring the kit works precisely with fencing panels. Standard supplied inserts are for 4 mm diameter wire. If you use mesh with different wire thickness (3 mm diameter or 5 mm diameter), simply note this in your order comments to receive the appropriate spacer type.
Application
- Mounting fencing panels at fence corners
- Construction of panel fencing on square posts 100×100 mm
- Traditional fencing with mesh on square posts
- Wide application in fencing systems according to individual requirements
Technical data
| Accessory Type | Corner Clamp |
| Colour | Galvanised |
| Post Profile Dimension [mm] | 100x100 |
