Black corner fence post clamp 100x100 mm
Leave feedback on the product
Corner panel bracket 100x100 mm made from galvanised steel, black RAL 9005. Wall thickness 2 mm, kidney-shaped mounting holes. For 100x100 mm fencing posts. Anti-corrosion powder coating.
Product code: 000-774
Product features
[PIM] obejmy #164
- Accessory Type Corner Clamp
- Colour Black RAL 9005
- Post Profile Dimension [mm] 100x100
Description

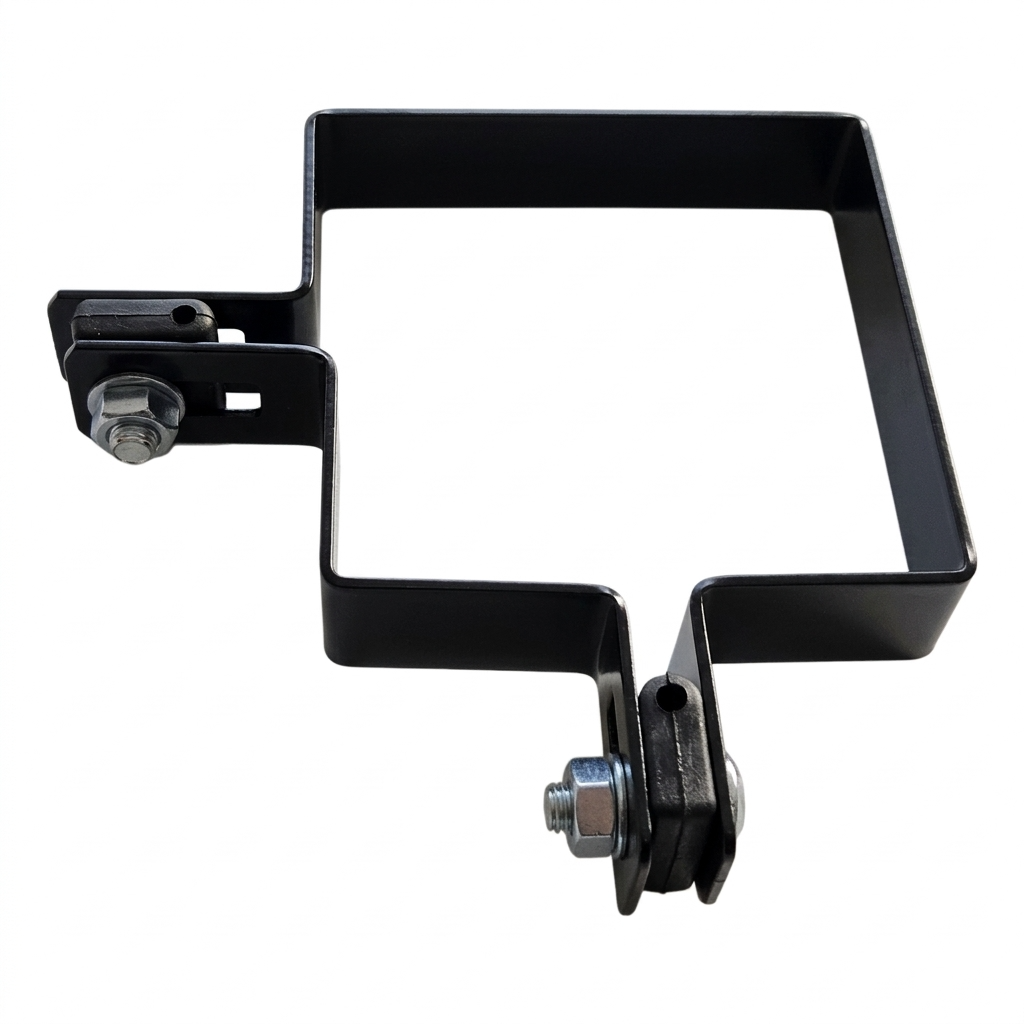

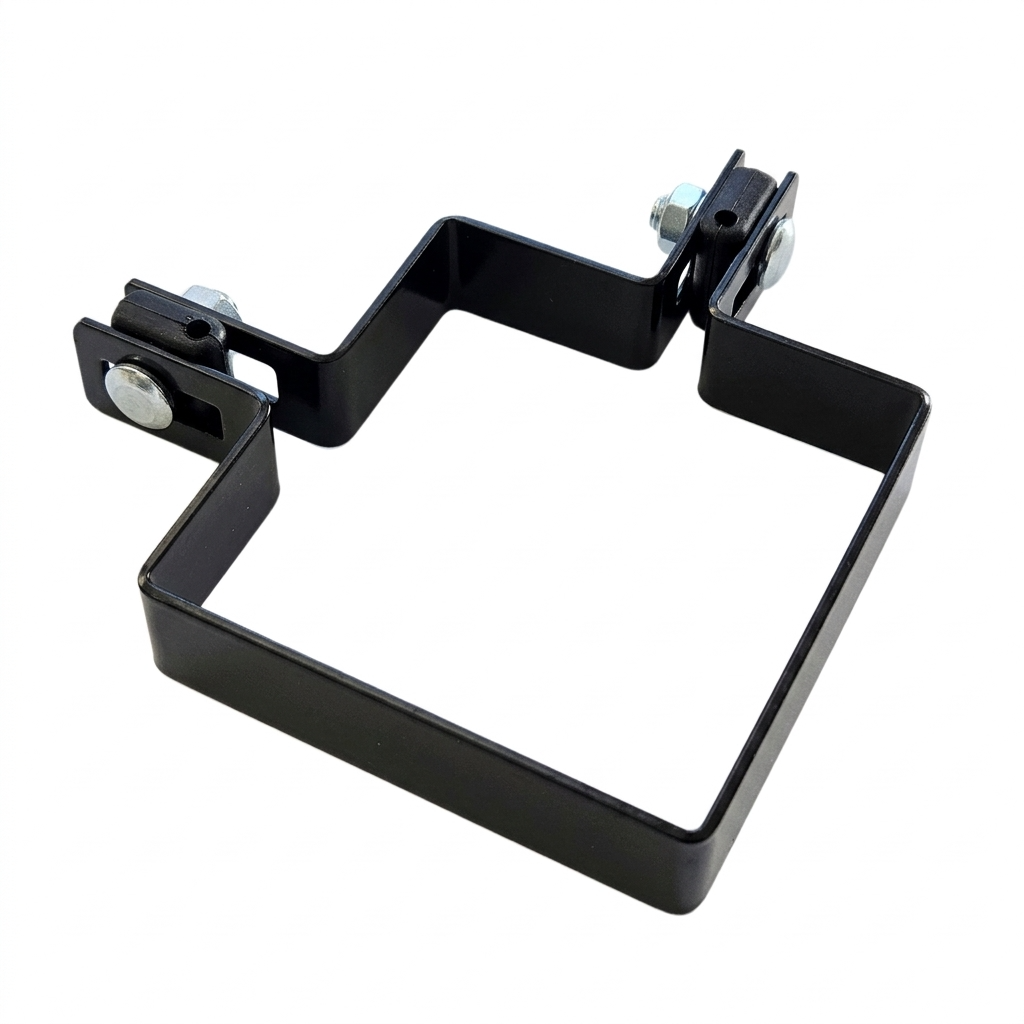

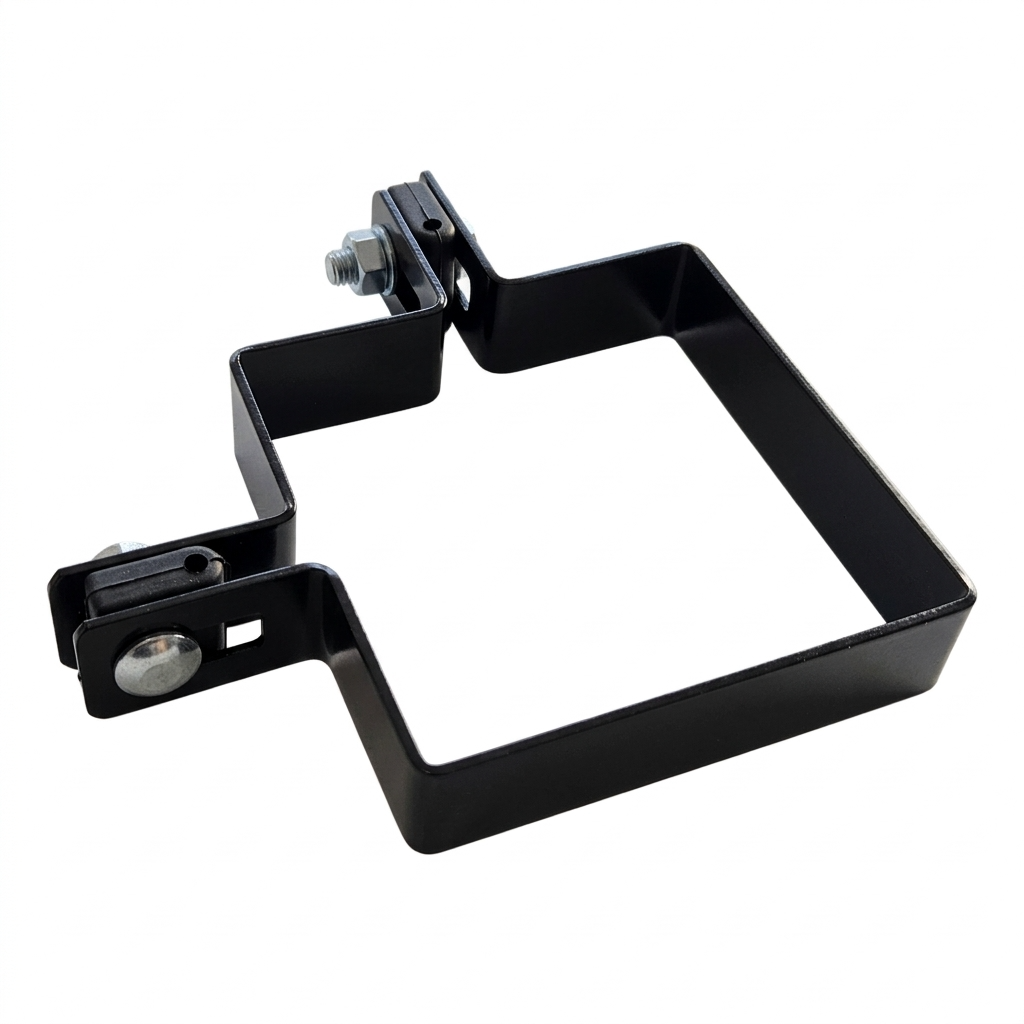

Sheet metal band, 2 mm thick, around a 100 × 100 mm post, with two lugs, 2 × M8 × 25 bolts and spacers for Ø 4 mm wire
About the product
The corner fence post clamp is used to secure two fence panels to a single post where the fence turns through 90°. The sheet metal band wraps around the post, while two lugs on adjacent faces hold the wires of both panels.

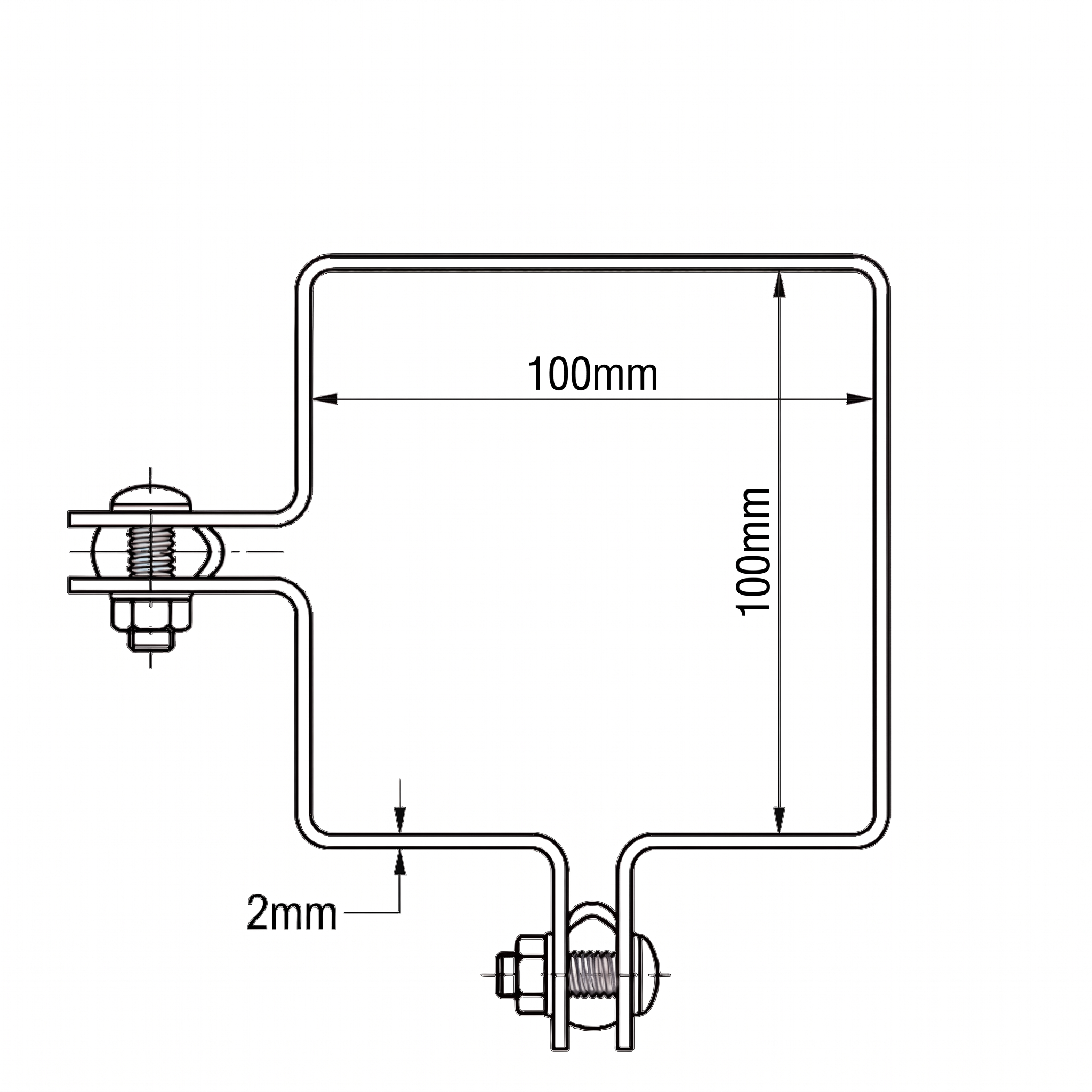

The internal dimensions a × a are 100 × 100 mm, so the clamp fits a post with this cross-section. The sheet thickness s is 2 mm. The set includes 2 × M8 × 25 bolts with nuts and plastic spacers for Ø 4 mm wire.
The coating (zinc-coated and powder-coated, black RAL 9005) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the post cross-section – the clamp fits 100 × 100 mm posts.
- ✓Fit the clamp around the post so that the lugs align with both panels at the corner.
- ✓Insert the panel wire into the plastic spacer and tighten the M8 bolt in the lug.
Important
The supplied spacer is sized for Ø 4 mm wire. For panels with a different wire diameter, choose a suitable spacer.
