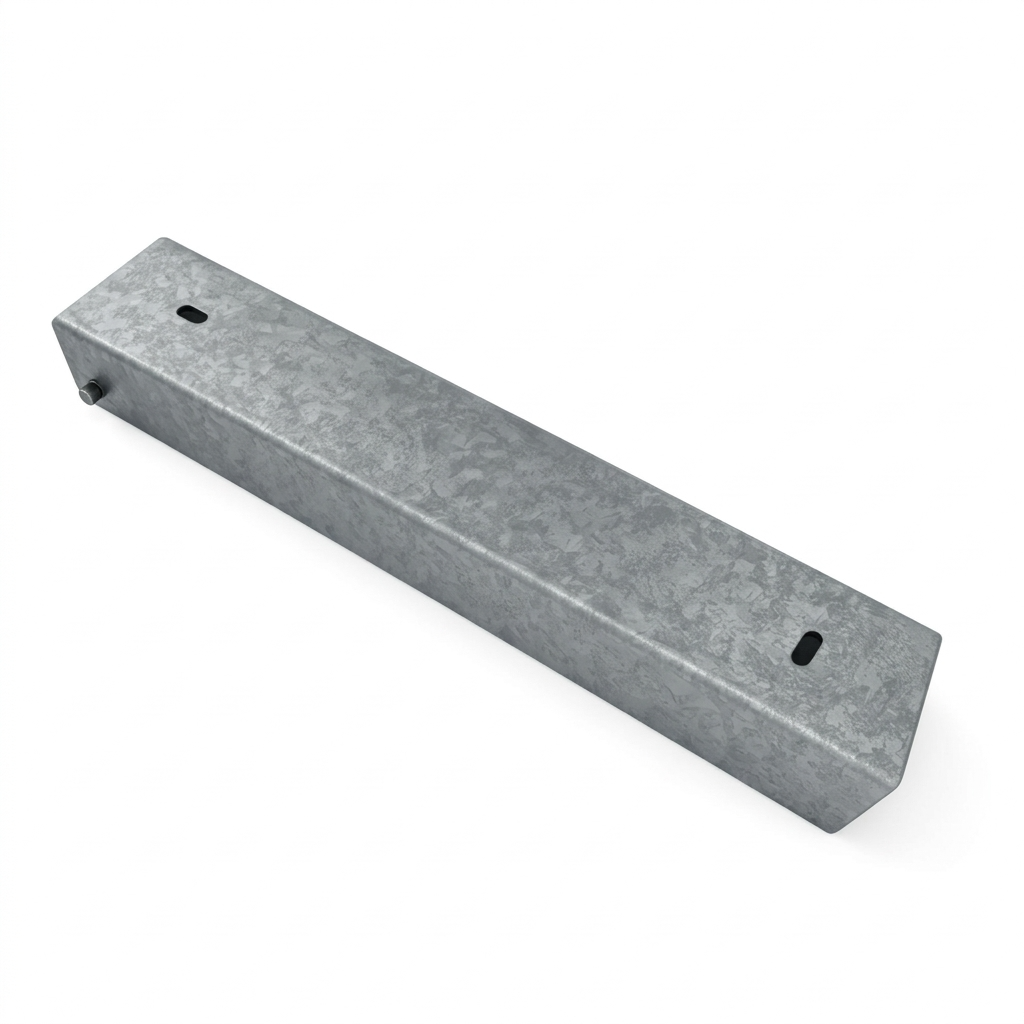

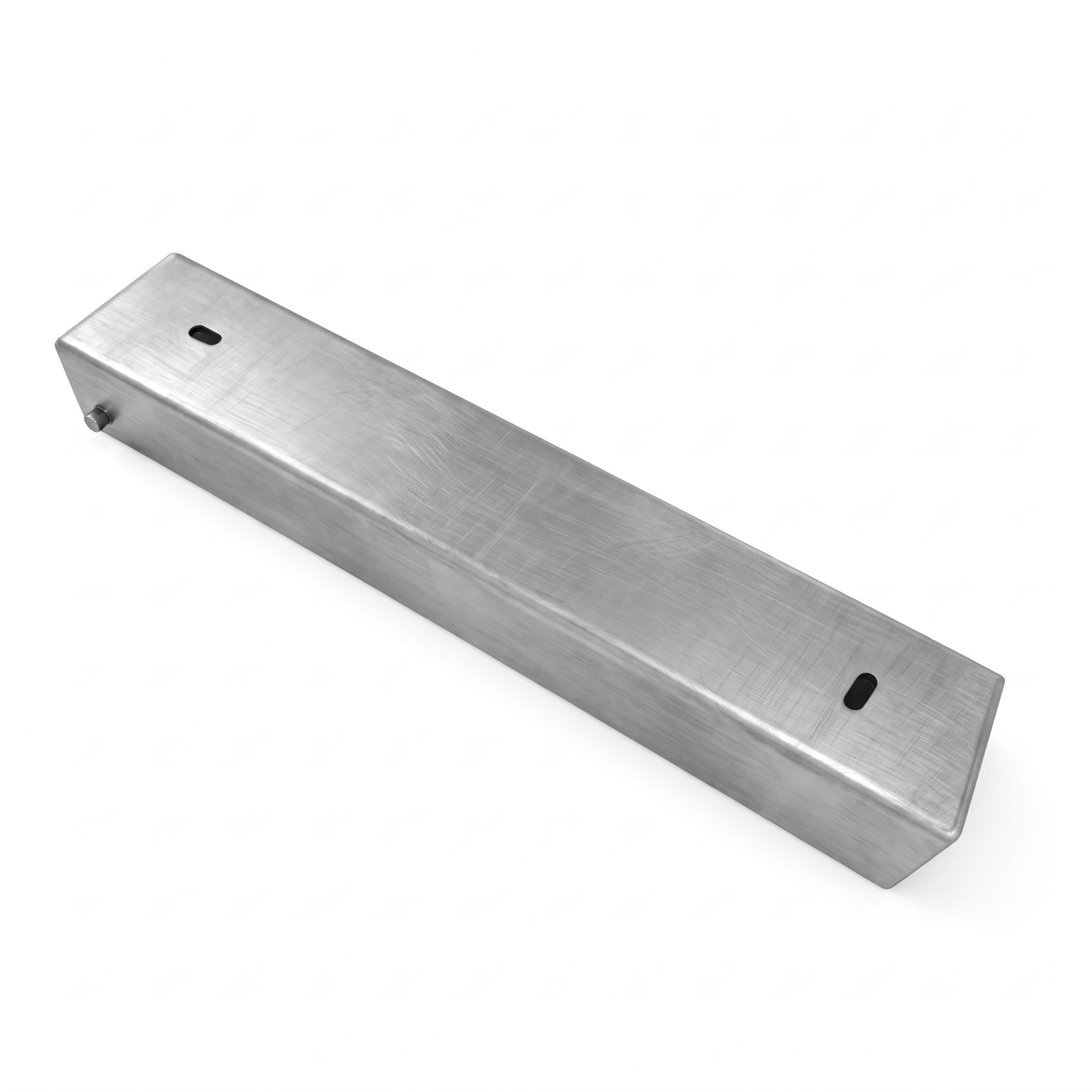

C-channel connector mount for foundation wall 300x55 galvanised

C-channel connector for fence foundation wall is a durable mounting element for permanent connection of concrete foundation wall panels to fence posts. Designed for foundation walls with dimensions 300 × 55 mm, it ensures precise fit and stable panel placement regardless of terrain and weather conditions.

The product is made from steel coated with galvanic zinc, giving it a characteristic silver, metallic appearance. The zinc coating effectively protects the steel against corrosion, moisture and atmospheric factors, ensuring years of durability without the need for additional maintenance. The raw, industrial finish perfectly complements the aesthetics of modern panel fencing in galvanised variant.

Construction and mounting

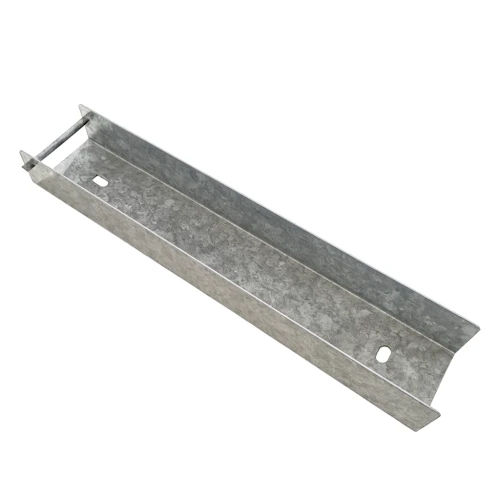

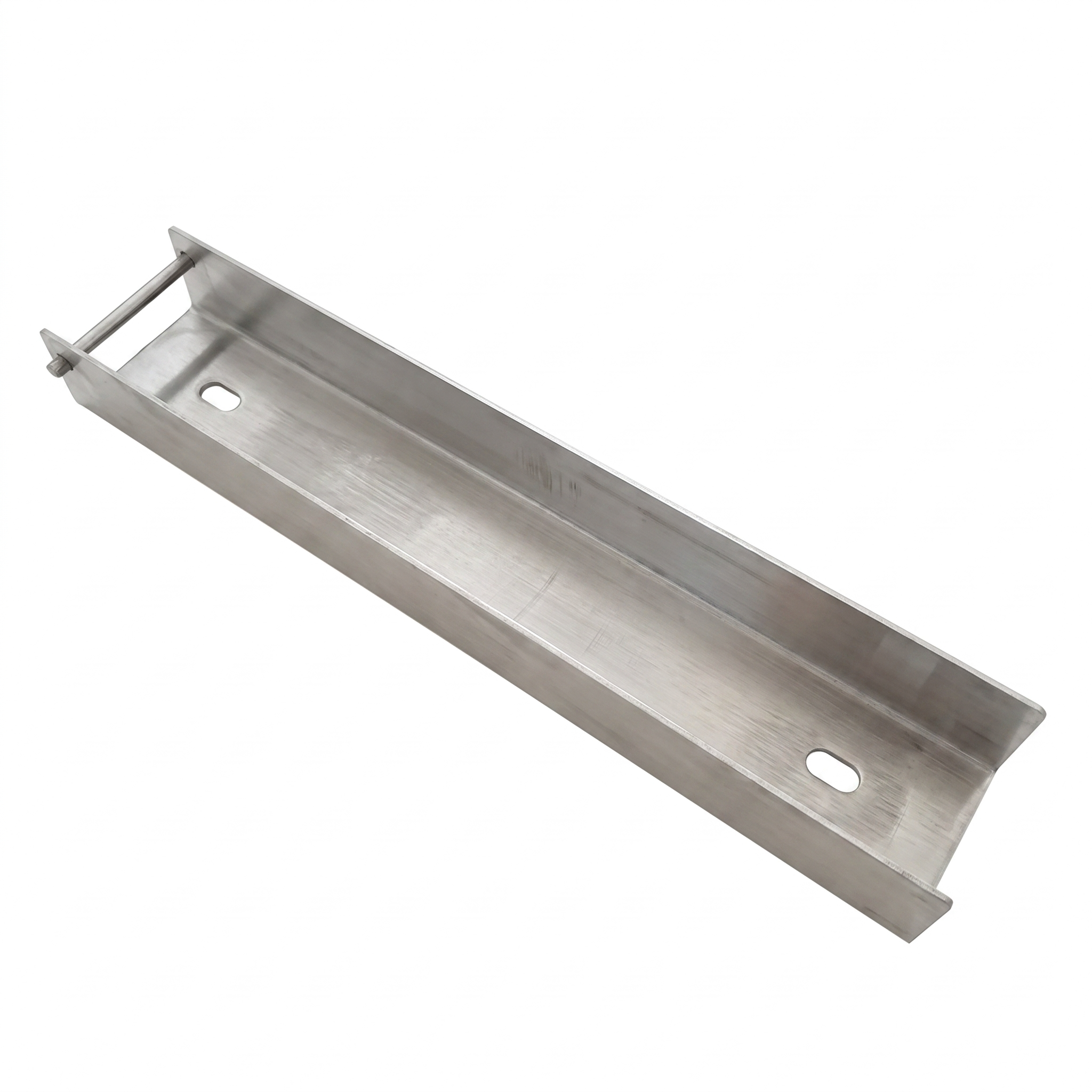

The C-channel has a C-shaped profile in which the concrete foundation wall panel is seated. The external width of the profile is 57 mm, allowing free and stable placement of a 55 mm thick panel with slight mounting clearance facilitating installation. The built-in cross rod Ø 6 mm acts as a stopper — preventing the foundation wall from sliding out of the mount, increasing the durability and safety of the entire fence construction.

Two mounting holes in the form of slots 6 × 12 mm enable quick screwing of the C-channel to the fence post. The elongated shape of the holes allows position correction during mounting, significantly speeding up the installation team's work and facilitating foundation wall line alignment on uneven terrain. The flat base of the C-channel protects the concrete panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used in mounting residential, industrial and plot fencing. It performs ideally wherever a concrete foundation wall with 55 mm thickness requires permanent attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and requires no specialist tools — standard screws and a spanner are sufficient.
