Gravel board bracket 250×55 mm galvanised
Leave feedback on the product

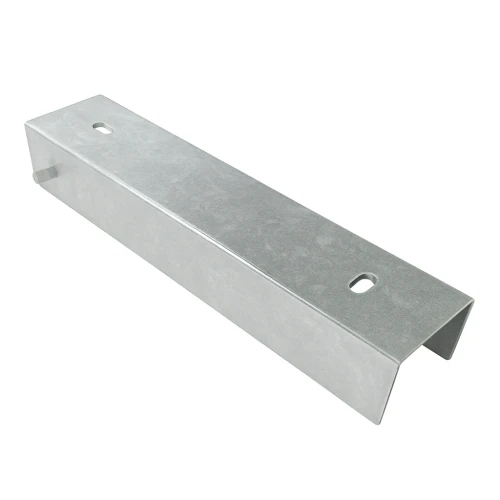

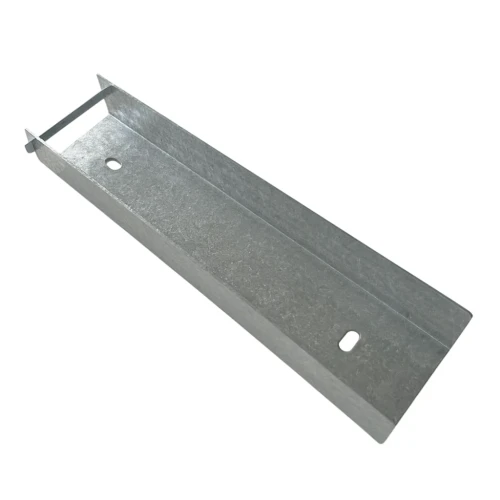

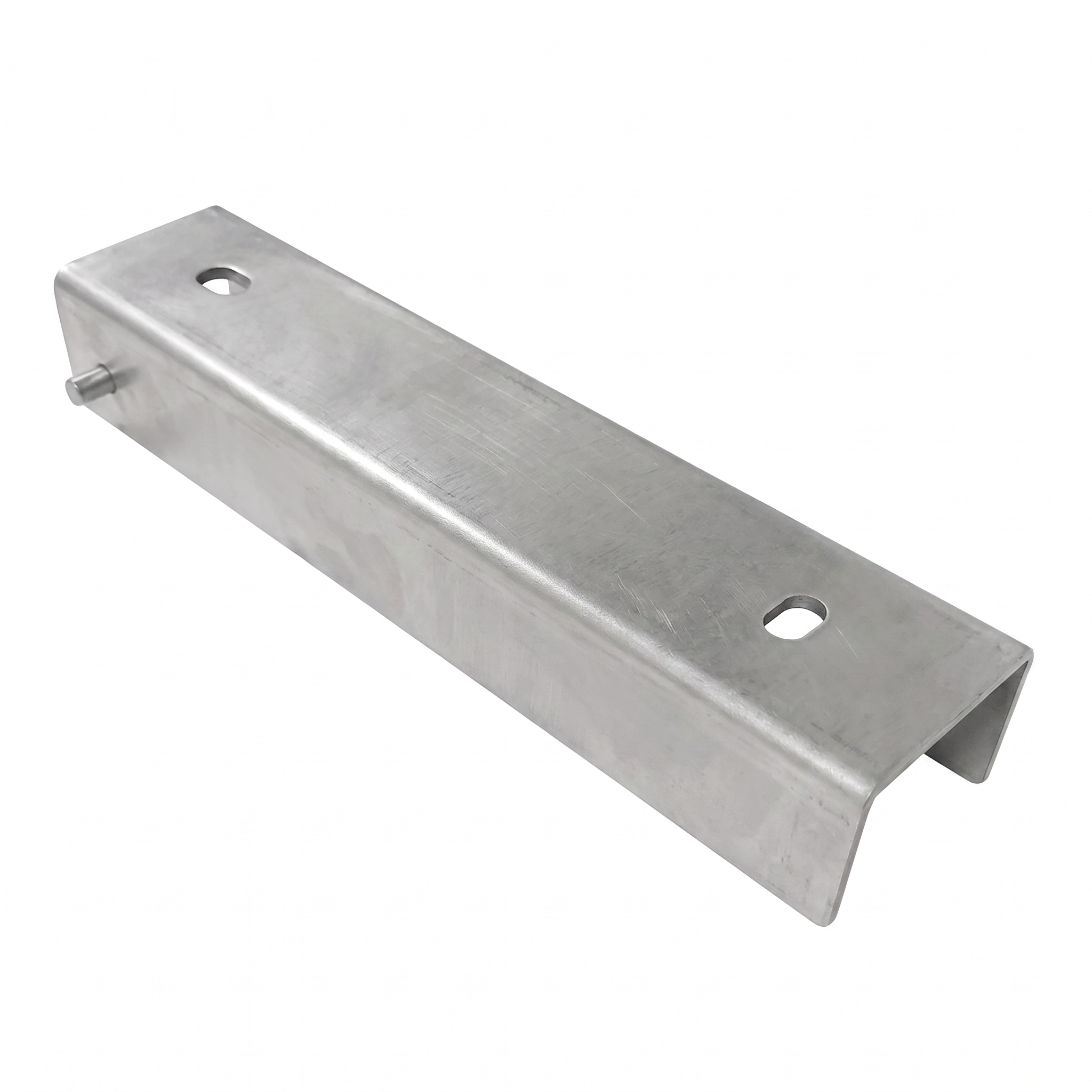

Gravel board bracket connector for fence gravel boards, 250×55 mm, made of electro-galvanised steel in silver. External width 57 mm, sheet thickness 1.5 mm. 2 mounting holes 6×12 mm, Ø6 mm locking rod. Corrosion resistant.
Product code: GPV-700-44
Product features
[PIM] ceownik-do-podmurowki #165
- Colour Galvanised
- C-channel dimension [mm] 250x55
Description
Gravel board bracket with a length of 250 mm and an internal width of 57 mm – connects a 250 × 55 mm gravel board to a fence post
About the product

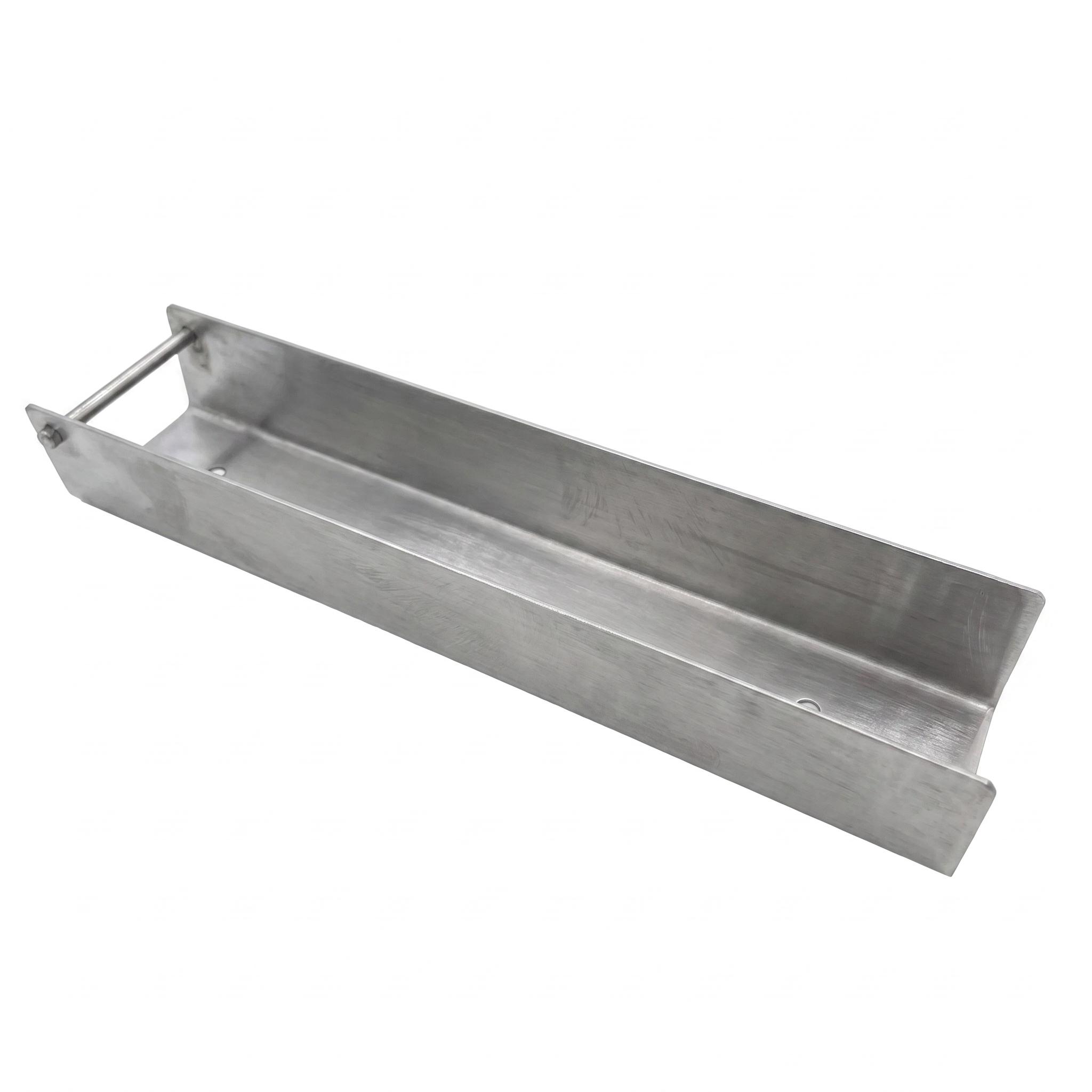

The gravel board bracket connects a concrete gravel board to a fence post. It is fastened to the post, and the end of the board slides between the bracket's flanges.

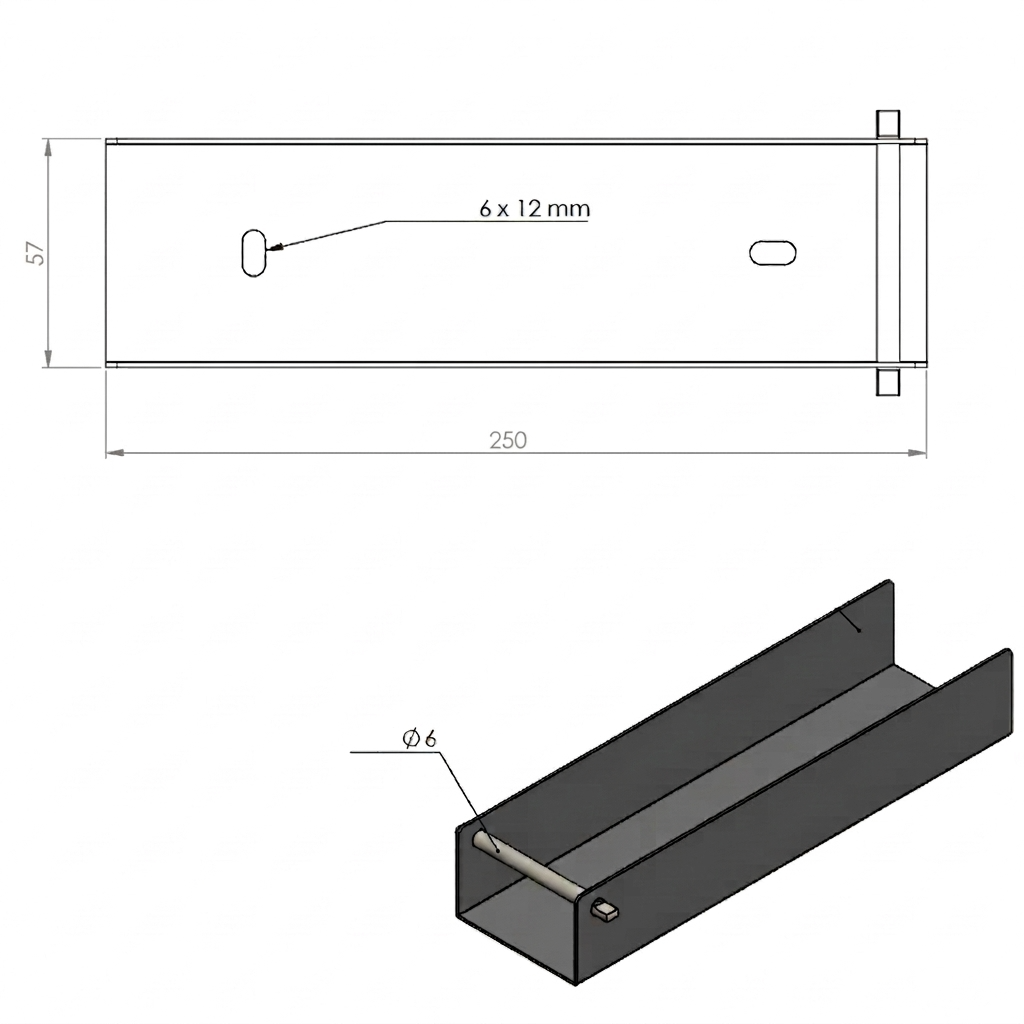

Length L is 250 mm and corresponds to the height of the 250 × 55 mm gravel board. Internal width w is 57 mm. The flange depth, holes and spacer bar shown in the drawing are indicative.
The coating (zinc-coated) protects the steel against corrosion under typical conditions; in the event of contact with salt or chemicals, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the gravel board dimensions – the bracket is designed for 250 × 55 mm boards.
- ✓Fasten the bracket to the post through the 2 mounting holes, with the web against the post.
- ✓Slide the end of the gravel board into the bracket; where two boards meet at a post, use a bracket on each side.
Important
The product listing data does not specify the bracket's load-bearing capacity. Choose screws or bolts suitable for the post wall.
