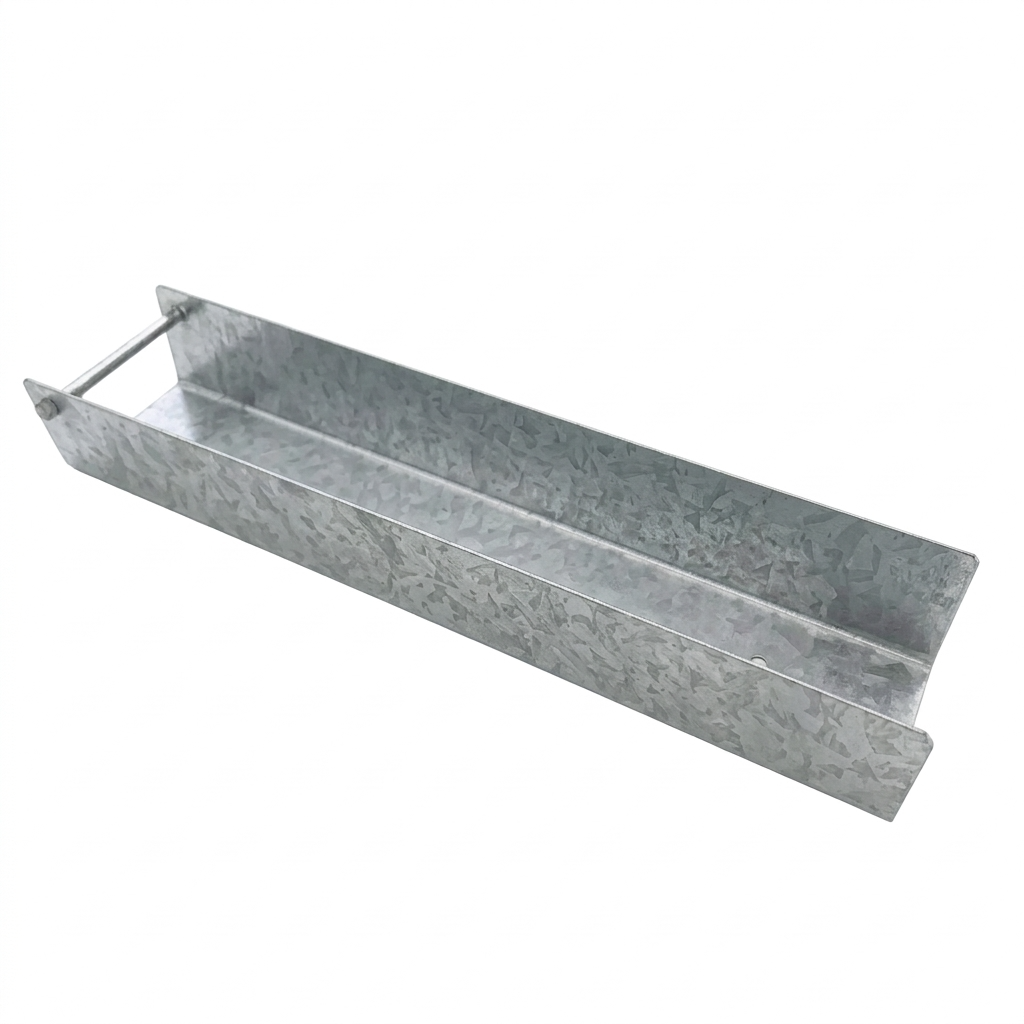

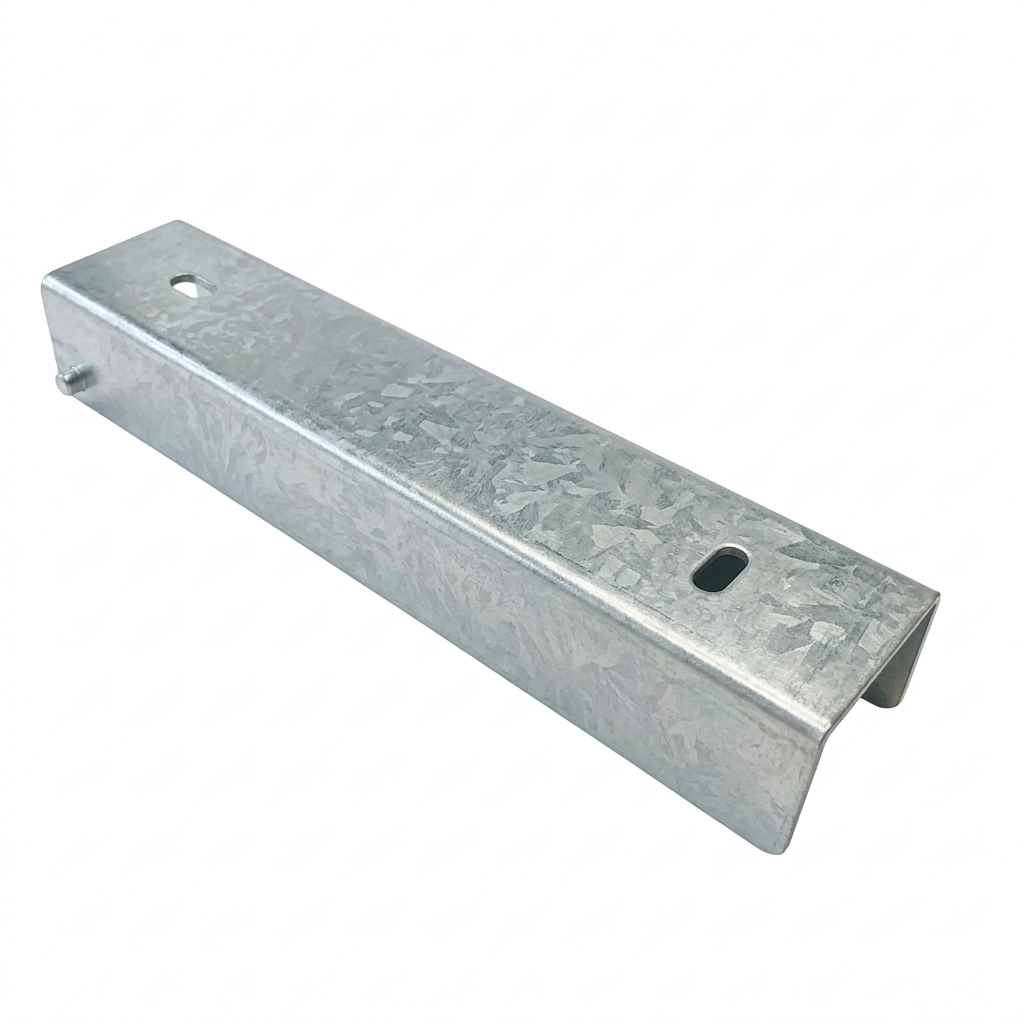

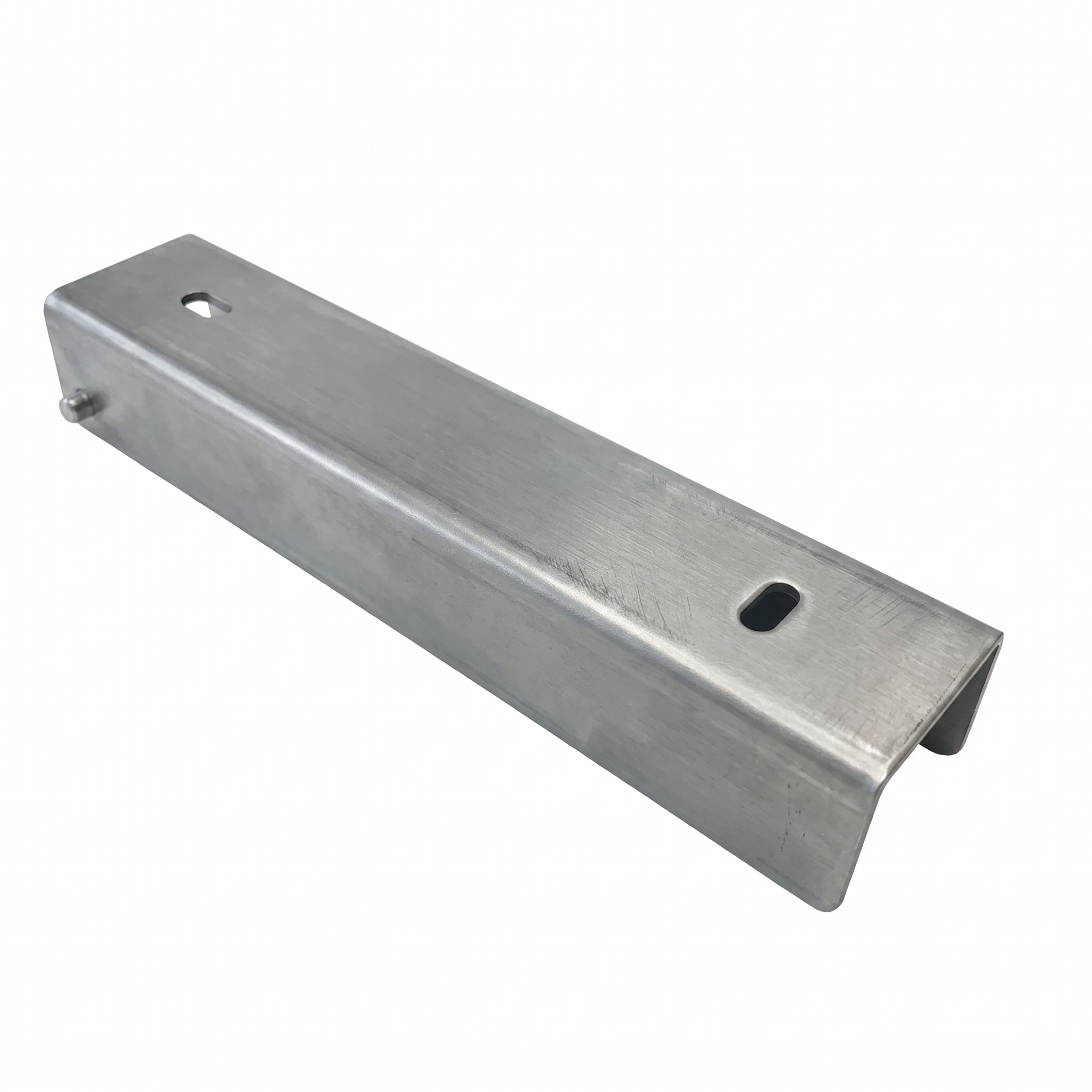

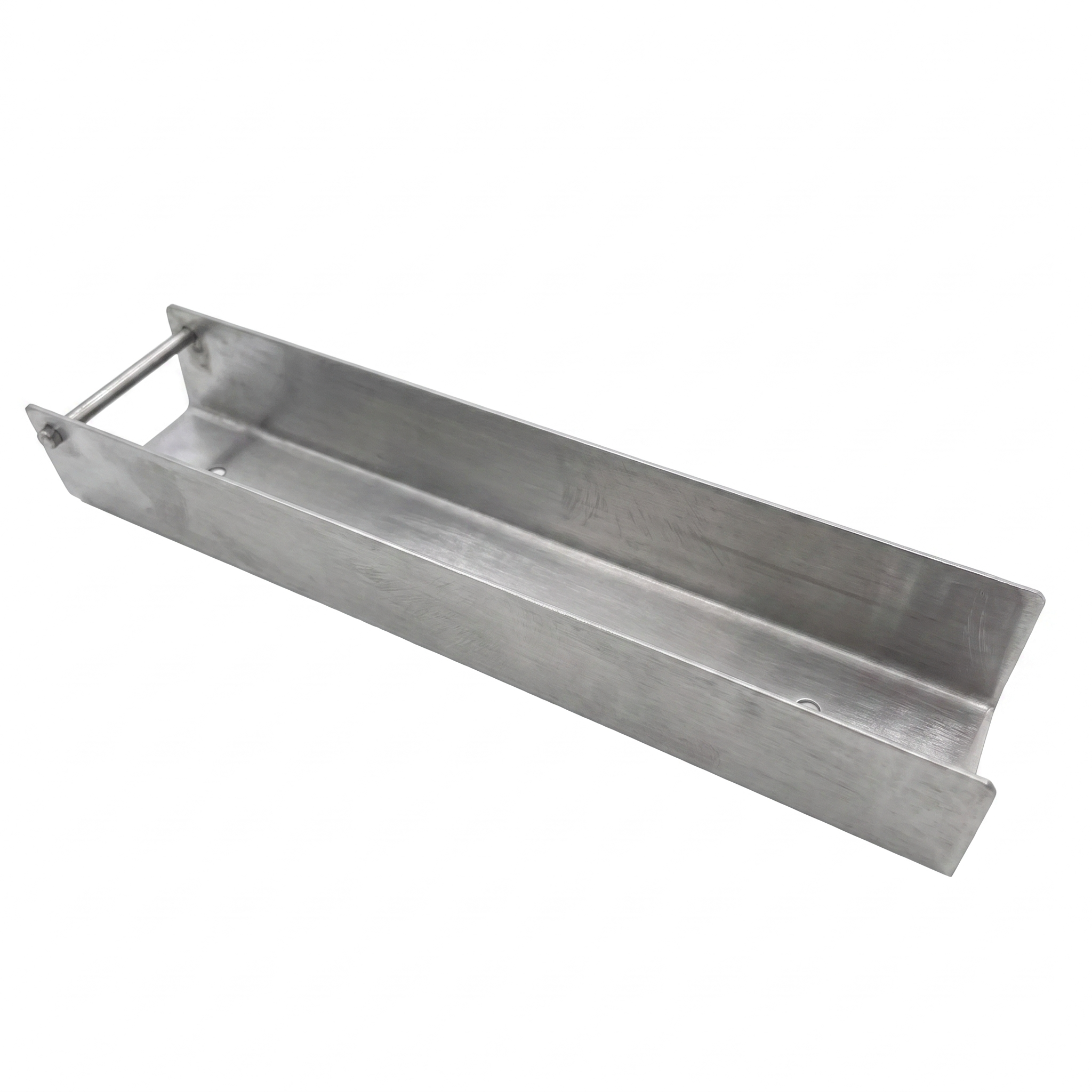

C-channel connector bracket for foundation wall 250x50 galvanised

C-channel connector for fence foundation wall is a robust mounting element designed for permanent connection of concrete foundation wall panels to fence posts. Designed specifically for foundation walls with dimensions 250 × 50 mm, it ensures precise fitting and stable panel installation regardless of ground conditions and weather.

The product is made from galvanically galvanised steel, giving it a characteristic silver colour with visible zinc structure. The zinc coating provides an effective anti-corrosion barrier — protecting the steel from moisture, precipitation and corrosion, ensuring years of durability without the need for additional maintenance. The galvanised version without powder coating is an ideal choice where fence colour does not require colour-matching of the connector, or where posts and panels have a galvanised finish.

Construction and mounting

The C-channel has a C-shaped profile in which the concrete foundation wall panel is installed. The internal width of the profile is 52 mm, allowing for free and stable placement of a 50 mm thick panel with a small mounting clearance to facilitate installation. The built-in cross rod Ø 6 mm acts as a lock — preventing the foundation wall from sliding out of the bracket, increasing the durability and safety of the entire fence structure.

Two mounting holes in the form of slots 6 × 12 mm enable quick screwing of the C-channel to the fence post. The elongated shape of the holes allows for position correction during installation, which significantly speeds up the installation team's work and facilitates levelling of the foundation wall line on uneven terrain. The flat base of the C-channel protects the concrete panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used for mounting residential, industrial and garden fences. It performs perfectly wherever a concrete foundation wall with 50 mm thickness requires permanent attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and does not require specialist tools — standard screws and a spanner are sufficient.
