C-channel connector bracket for fence base 200x50 galvanised

C-channel connector for fence base is a robust mounting element designed for permanent connection of concrete base panels to fence posts. It has been designed specifically for bases measuring 200 × 50 mm, which guarantees precise fit and stable panel installation in all conditions.

The product is manufactured from steel with galvanised coating. The zinc layer applied using the galvanic method provides an effective anti-corrosion barrier, ensuring years of resistance to moisture and atmospheric factors. The silvery, metallic finish gives the element a universal, neutral appearance that harmoniously complements panel fencing in various colours.

Construction and mounting

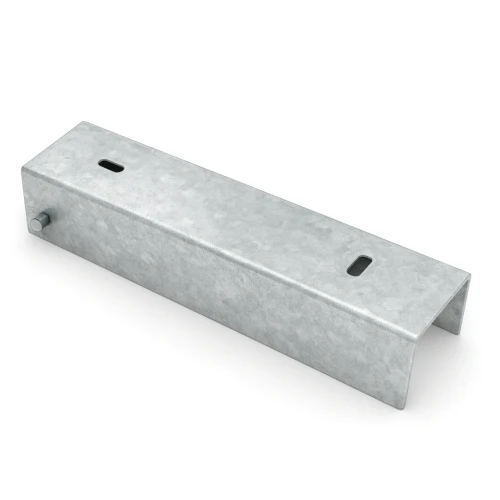

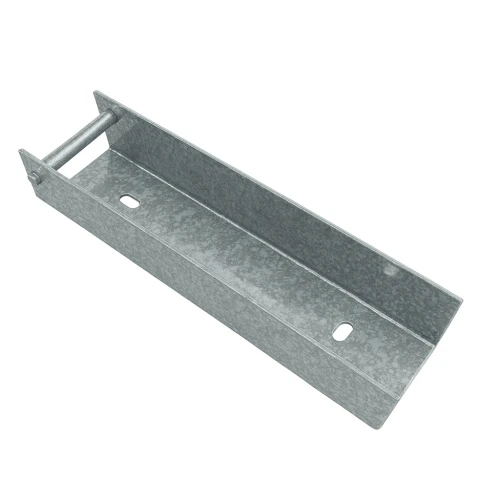

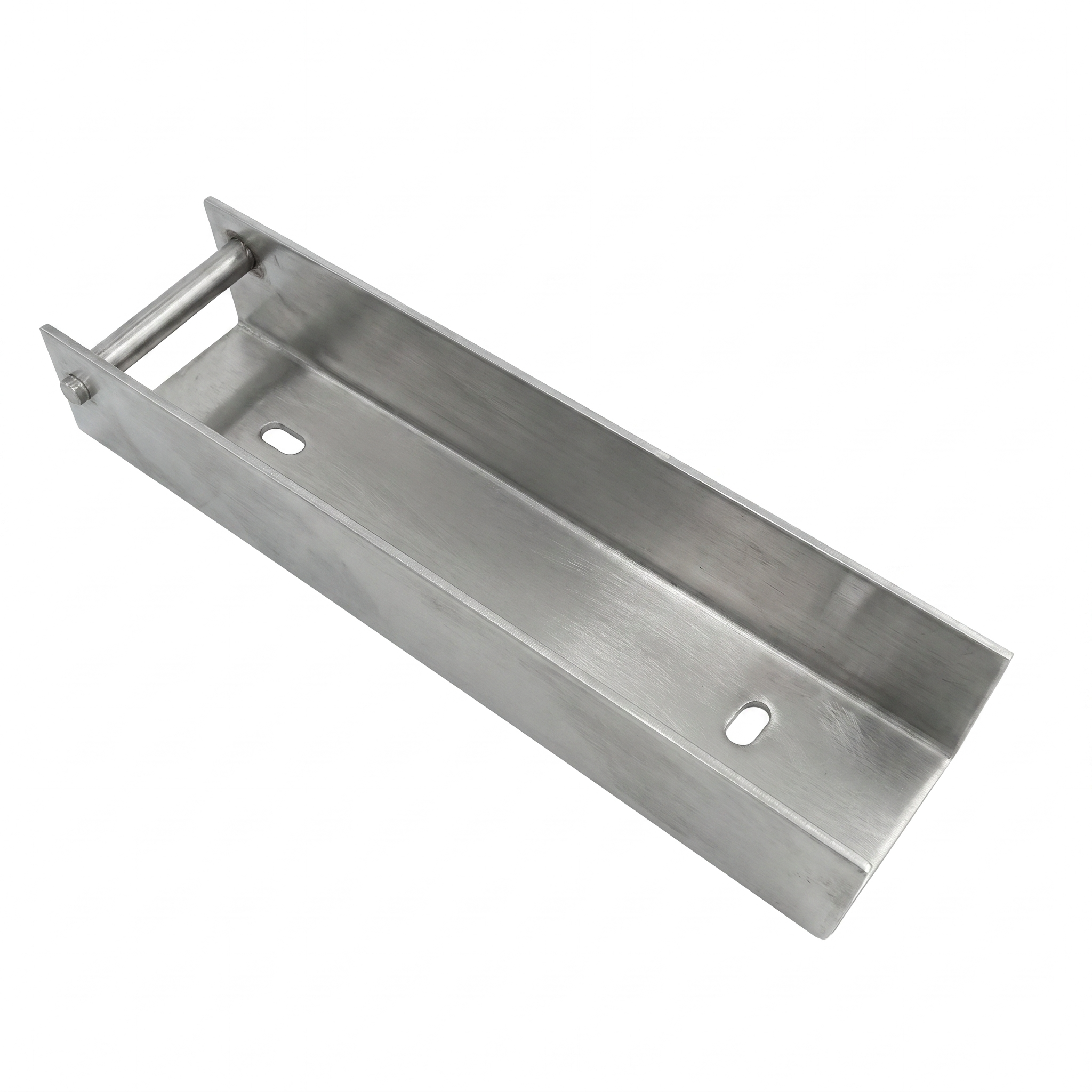

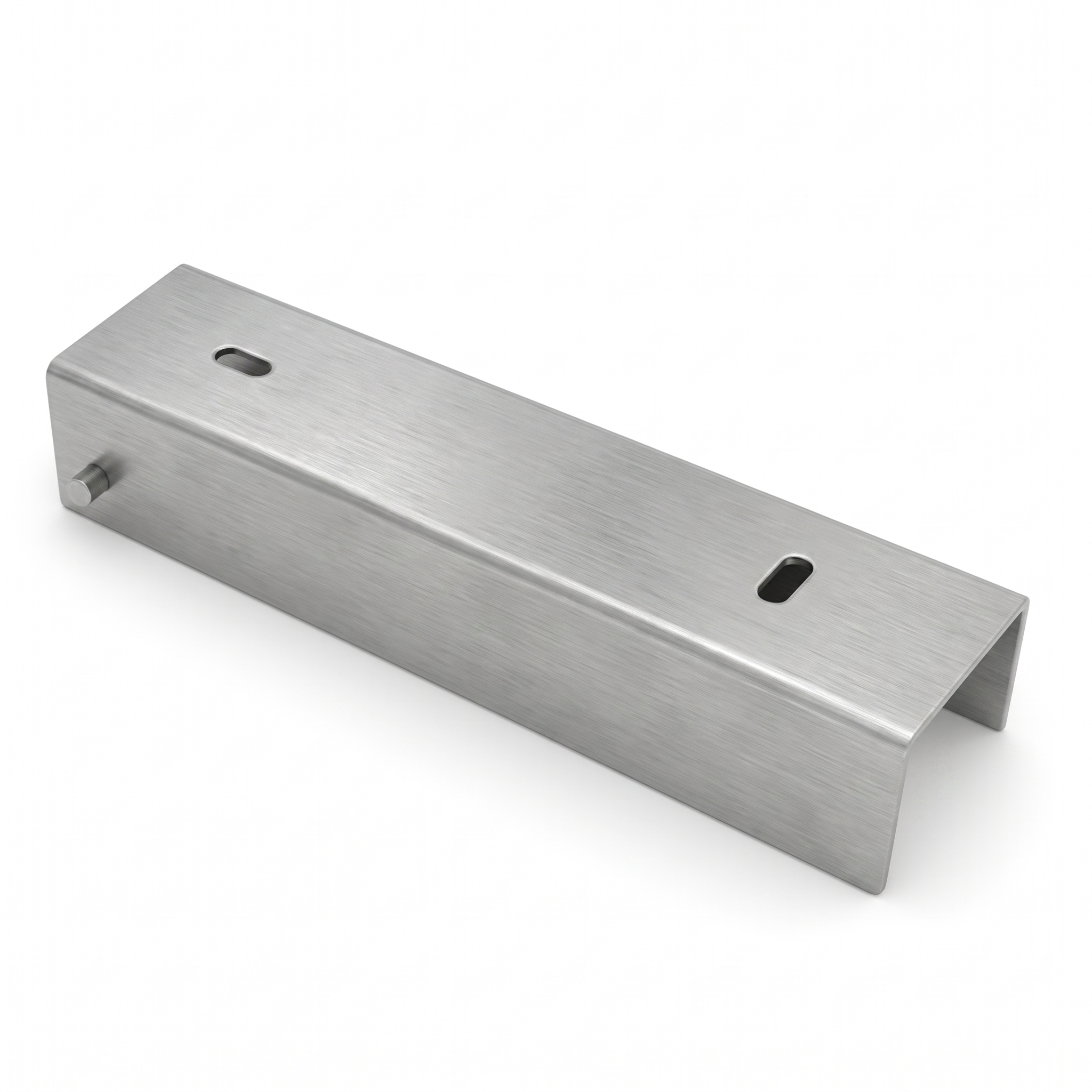

The C-channel has a C-shaped profile in which the concrete base panel is seated. The internal width of the profile is 52 mm, which allows for easy and stable placement of a 50 mm thick panel with a small mounting clearance. The built-in crossbar Ø 6 mm acts as a stop — it prevents the base from sliding out of the bracket, increasing the durability and safety of the entire structure.

Two mounting holes in the form of ovals 6 × 12 mm enable quick attachment of the C-channel to the fence post. The elongated shape of the holes allows for position adjustment during installation, which significantly speeds up the work of the installation team. The flat base of the C-channel protects the base panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used in the installation of residential, industrial and allotment fencing. It is ideal wherever a concrete base requires permanent attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and does not require specialist tools — standard screws and a spanner are sufficient.

Available colour variants

The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and galvanised (without powder coating). The wide colour range allows the connector to be matched to the colour of the panel fencing and posts.
