C-channel connector bracket for base wall 200x50 green
5
Description

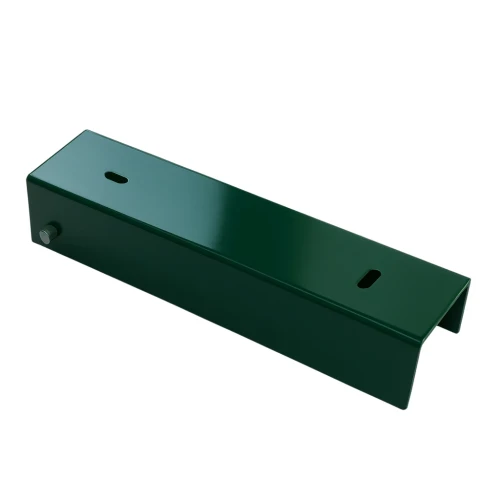

C-channel connector for fencing base wall 200×50 mm green RAL 6005
C-channel connector for fencing base wall is a robust mounting element designed for permanent connection of concrete base wall panels with fencing posts. It has been designed specifically for base walls with dimensions 200 × 50 mm, guaranteeing precise fit and stable panel installation in all conditions.
The product is made from galvanised steel coated with powder coating in green RAL 6005 colour. Double anti-corrosion protection — galvanising plus powder coating — ensures years of resistance to weather conditions, moisture and corrosion, eliminating the need for maintenance. The aesthetic finish harmoniously complements modern panel fencing.
Construction and installation

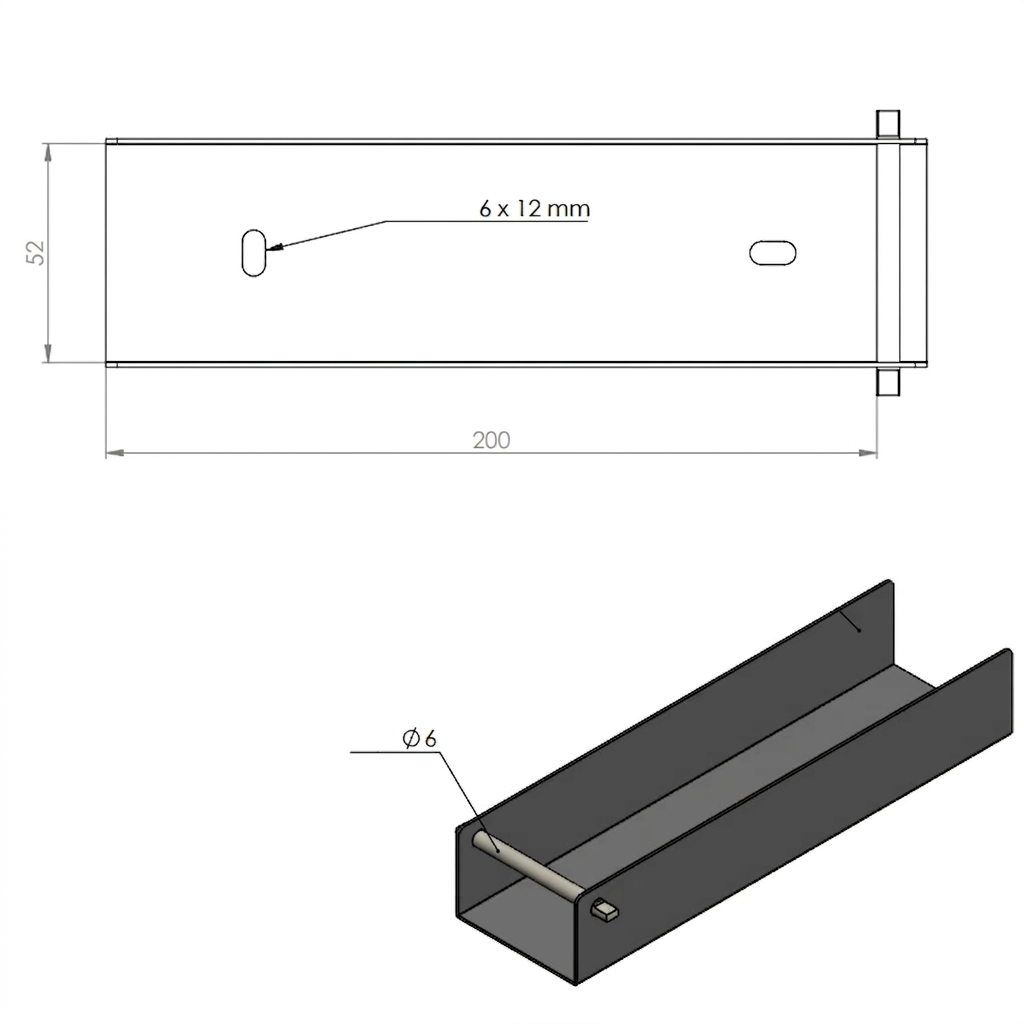

The C-channel has a C-shaped profile in which the concrete base wall panel is installed. The internal width of the profile is 52 mm, allowing easy and stable placement of a 50 mm thick panel with slight installation clearance. The built-in Ø 6 mm cross rod serves as a stopper — preventing the base wall from sliding out of the bracket, increasing durability and safety of the entire structure.
Two mounting holes in the form of 6 × 12 mm slots enable quick attachment of the C-channel to the fencing post. The elongated shape of the holes allows for position adjustment during installation, significantly speeding up the installation team's work. The flat base of the C-channel protects the base wall from mechanical damage during installation.
Technical parameters
- Application: for base wall with dimensions 200 × 50 mm
- C-channel length: 200 mm
- Internal width: 52 mm
- Sheet thickness: 1.5 mm
- Material: galvanised steel
- Finish: powder coating
- Colour: green RAL 6005
- Mounting holes: 2 pcs. — slots 6 × 12 mm
- Blocking rod: Ø 6 mm
- Resistance to corrosion and atmospheric factors: yes
Application
The C-channel is a universal element used for installing residential, industrial and allotment fencing. It works perfectly wherever a concrete base wall requires durable and aesthetic attachment to a fencing post. Thanks to its simple construction and adjustable mounting holes, installation is quick and requires no specialist tools — standard screws and a spanner are sufficient.
Available colour variants
The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and galvanised (without powder coating). The wide colour palette allows matching the connector to the colour of panel fencing and posts.
Files to download:
Technical data
| Accessory Type | C-Channel for Foundation Wall |
| Colour | Green RAL 6005 |
| C-channel dimension [mm] | 200x50 |
