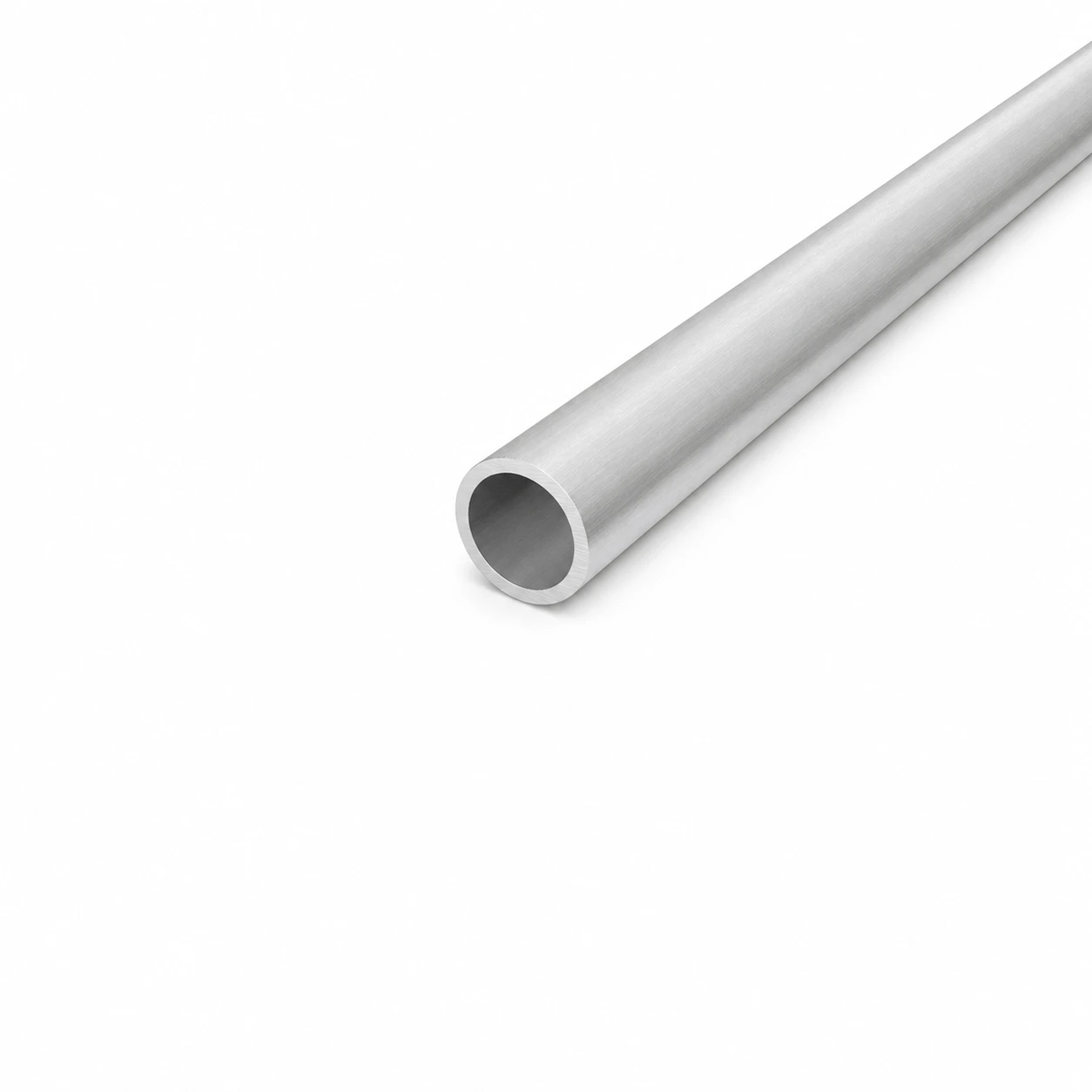

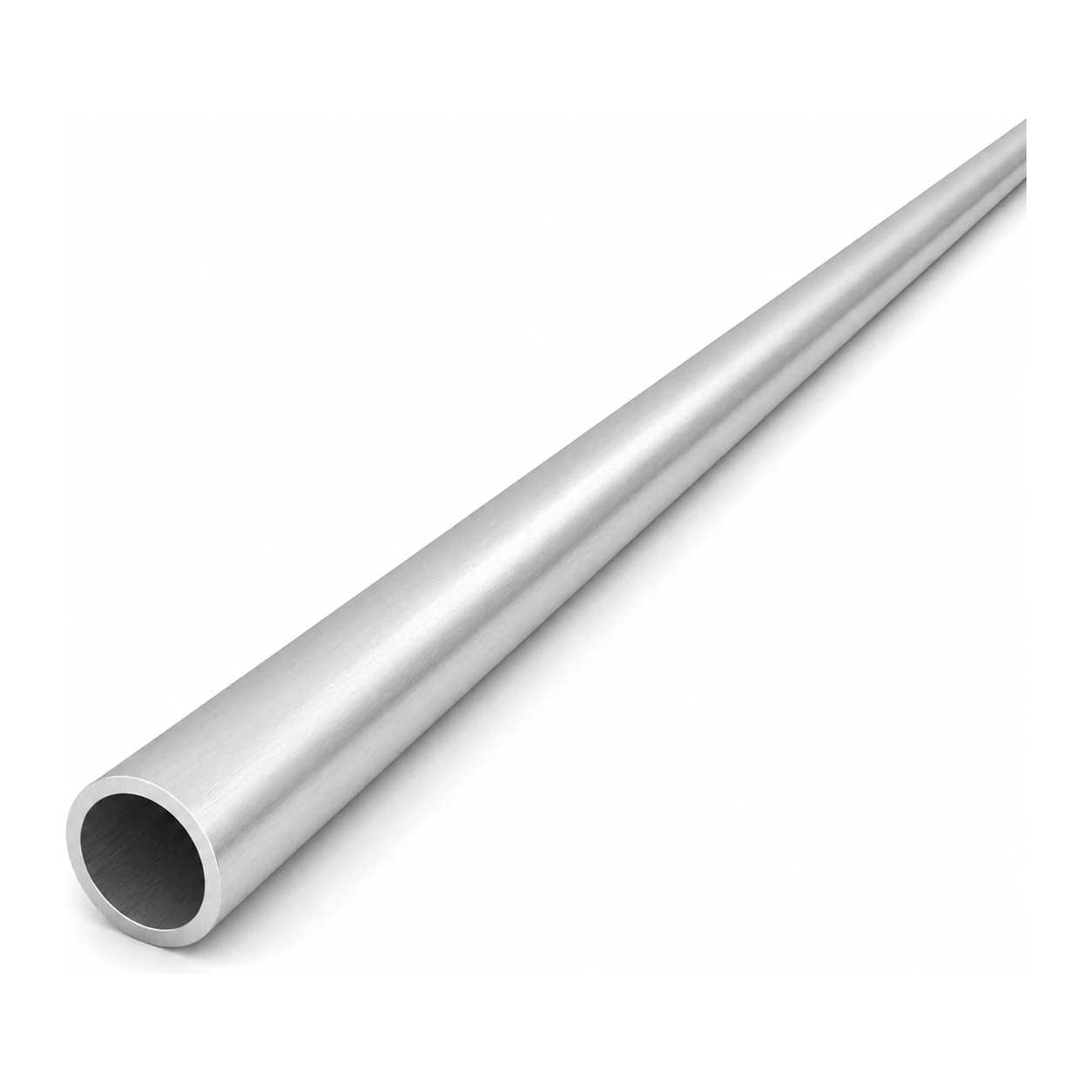

Aluminium round tube Ø20×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description
Aluminium round tube Ø20×2 mm – closed profile EN AW-6060, L=2000 mm
Aluminium round tube Ø20×2 mm is a universal closed profile with a circular cross-section, made from aluminium alloy EN AW-6060 T6 (PA38 / AlMgSi0.5). Thanks to its low weight of just 0.64 kg at a length of 2000 mm, the tube is extremely convenient for transport and installation, whilst maintaining high rigidity and natural corrosion resistance.
The profile is excellent as a component for aluminium structures, balustrades, handrails, frames, racks and furniture. The raw, non-anodised surface allows for any finishing treatment – powder coating, anodising or polishing. The tube is easy to cut, drill, bend and join, enabling quick completion of even non-standard projects.
Applications
- Aluminium structures and frames
- Balustrades and handrails
- Frames and equipment housings
- Furniture and decorative elements
- Model making and DIY projects
Technical specification
- Cross-section: closed round tube
- External diameter (D): 20 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (width × height × length): 20 × 20 × 2000 mm
- Weight: 0.64 kg (0.32 kg/m)
- Material: aluminium EN AW-6060 T6 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (non-anodised)
EN AW-6060 alloy is characterised by very good machinability and anodising properties. Delivery condition T6 (solution heat treatment + artificial aging) ensures optimum strength whilst maintaining sufficient plasticity for bending and shaping the profile on site.
Technical data
| Material | Aluminium |
| Diameter | 20 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
