Aluminium profile 443cm 40x40 for hexagonal bolts
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
3.63 kg
Price / pcs.:
incl. 20% TAX, excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

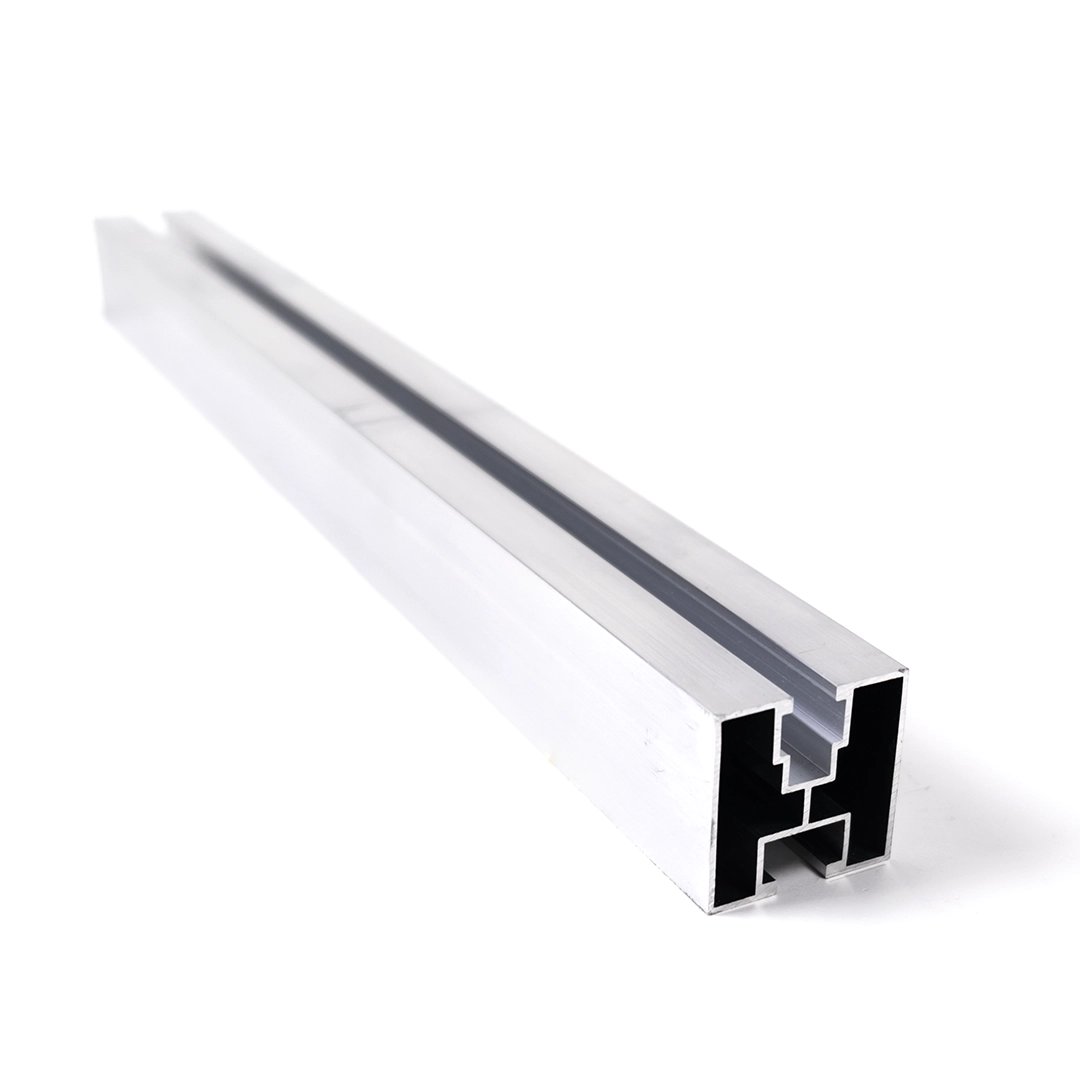

Aluminium profile 443cm 40x40 for hexagonal screws
Mounting profile made of Aluminium 6060 443cm for hexagonal screw DIN 933 M10, for photovoltaic modules.

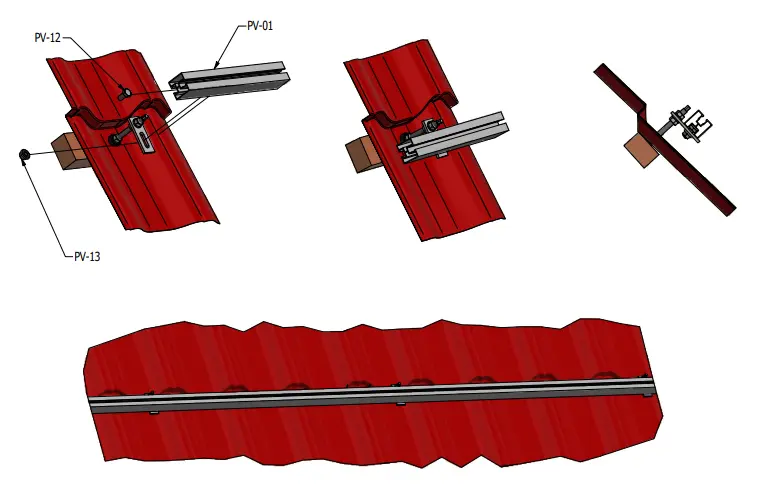

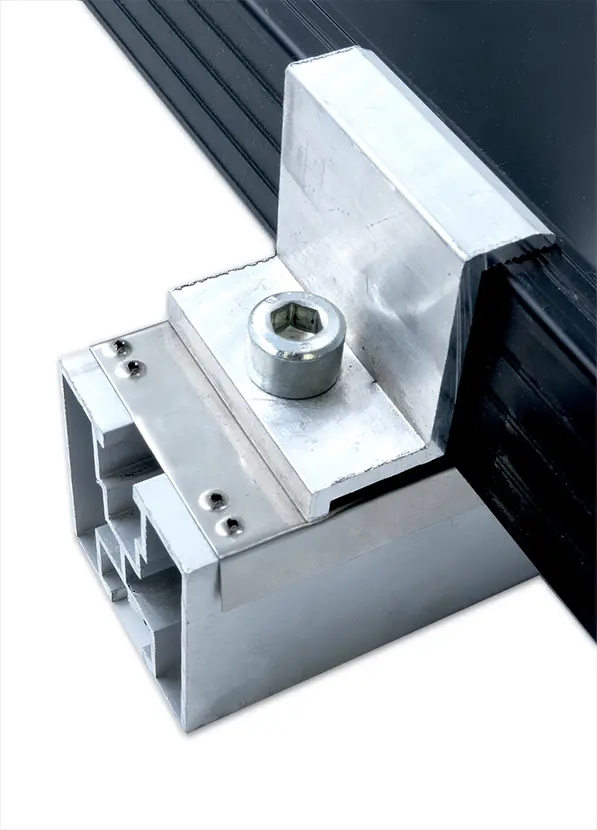

The mounting profile is suitable for fixing photovoltaic panels using mid and end clamps. The clamps are attached to the upper rail channel of the profile. The lower rail channel enables mounting of the profile on adapters, roof hooks or triangles.
- Installation is carried out using M10 hexagonal screws and M10 flange nuts.
- Mounting profiles measuring 4x4cm for hexagonal screws are made of high-quality aluminium 6060.
- The length of the profiles can be extended using profile connectors available separately.
- Also available anodised in black, which provides high resistance and protection against environmental influences.
- Available only with "FTL (Full Truck Load)" delivery option.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Coating type | Raw |
| Mounting type | Hex bolt |

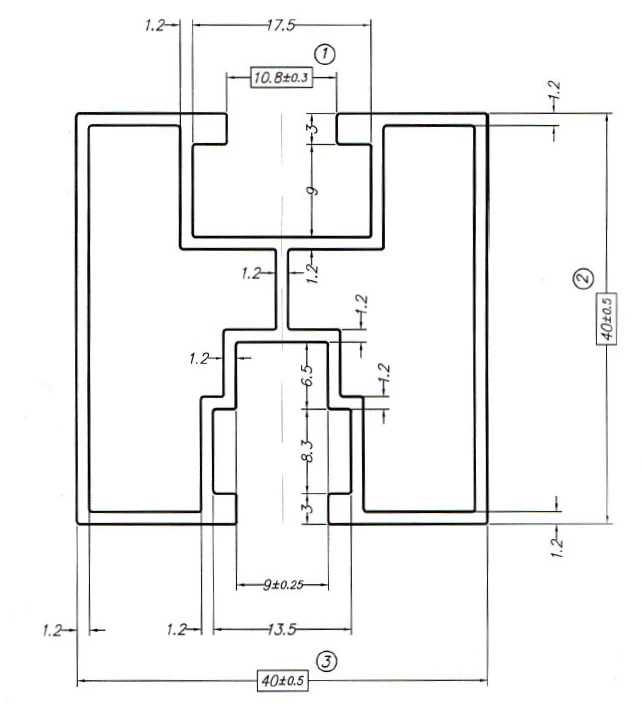

| Cross-section | 40x40 |
| Length [cm] | 442 |
| Cable channel | None |
| Length [mm] | 4420 |
| Profile [mm] | 40×40 |
| Slot Type | For hex bolt |
| Finish | Natural |
