Aluminium flat bar EN AW-6060 T64 – 10×5 mm, length 2000 mm
0
Description

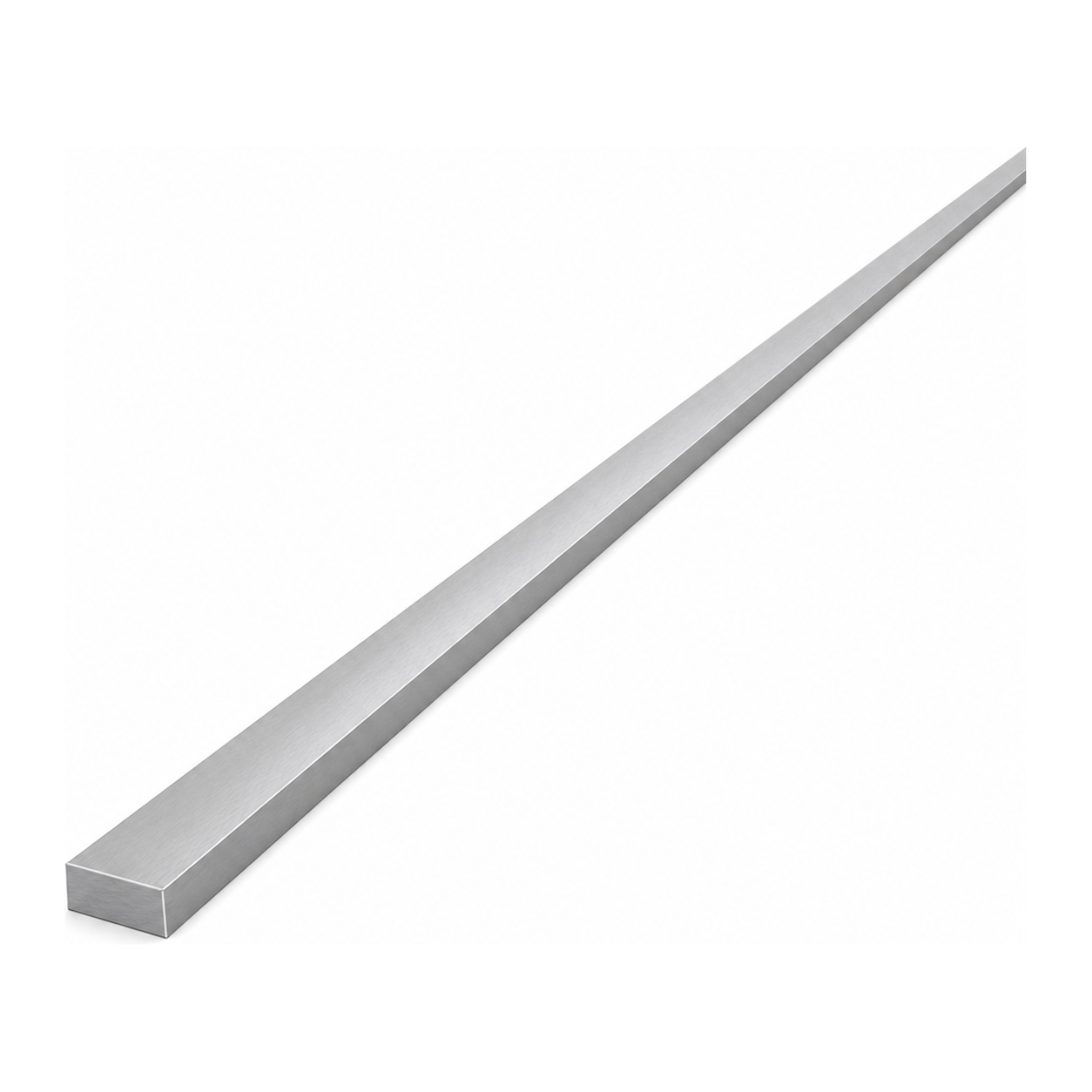

Aluminium flat bar EN AW-6060 T64 – 10×5 mm, length 2000 mm
Aluminium flat bar 10×5 mm made from high-grade alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for support structures, finishing, mounting frames, and repair work. Thanks to its low weight of just 0.28 kg per 2-metre length, the material is easy to transport and machine, whilst retaining high rigidity and natural corrosion resistance.
The EN AW-6060 alloy in the T64 temper provides an optimal balance between mechanical strength and machinability — the profile can be cut, drilled, and milled using standard workshop tools. The raw (non-anodised) surface allows for further finishing — anodising, powder coating, or leaving without additional protection in indoor applications.
Dimensions and technical specification
- Cross-section type: flat bar (flat profile)
- Width (A): 10 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight (2 m): 0.28 kg (0.14 kg/m)
- Colour: natural silver (aluminium)
Applications
The 10×5 mm aluminium flat bar is suited to any application requiring a lightweight, rigid, and corrosion-resistant structural element. Typical uses include reinforcement of mounting structures, frame and chassis components, finishing strips, spacers and shims, and repairs and modifications to existing installations. In the photovoltaic sector, it can serve as an additional stiffening element or connector in support structures.
